Beyma 10NMFS 8Ω
8 Ω · 30–2000 Hz
£329.47
SteadyParts Express · 2 in stock · Ships from United States · All 5 offers
- Fs
- 35Hz
- Xmax
- 14.5mm
- SPL
- 88dB
- Pe
- 350W
- BL
- 16T·m
- Vd
- 537cm³
- Qts
- 0.42
- Vas
- 45L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence3,591 selected pixels of 6,002 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,756 selected pixels of 3,756
Published graphs
Beyma 10NMFS is a 10-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.42, Vas 45 L, Xmax 14.5 mm, sensitivity 88.4 dB, plus 537 cm³ Vd and 78 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £328.58.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.42
- Qes
- 0.45
- Qms
- 5.9
- Vas
- 45L
- Re
- 5.9Ω
- Le
- 1.49mH
Motor and cone
- BL
- 16T·m
- Sd
- 370cm²
- Mms
- 89g
- Xmax
- 14.5mm
- Vd †
- 537cm³
Power and response
- Sensitivity †
- 88.4dB
- Manufacturer sensitivity
- 90dB
- Power
- 350W
- Impedance
- 8Ω
- Range
- 30–2000Hz
- EBP †
- 78 · Sealed or vented
Size and mounting
- Weight
- 6.5kg
Other published values
- Cms
- 0.23mm/N
- Rms
- 3.30kg/s
- Power Program
- 700
Sensitivity shows 88.4 dB, calculated from the T/S values. Beyma publishes 90.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Beyma lists
LF · Primary · 10″
- BL
- 16T·m
- Fs
- 35Hz
- Le
- 1.49mH
- Re
- 5.9Ω
- Sd
- 370cm²
- Cms
- 0.23mm/N
- Mms
- 89g
- Qes
- 0.45
- Qms
- 5.9
- Qts
- 0.42
- Rms
- 3.30kg/s
- SPL
- 88.4dB
- Vas
- 45L
- Xmax
- 14.5mm
- Power
- 350W
- Impedance
- 8Ω
- Sensitivity
- 90dB
- Low limit
- 30Hz
- Power Program
- 700
- Calculated sensitivity †
- 88.4dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 90dB
- Weight
- 6.5kg
02
Compare
Same-size drivers, compared with the 10NMFS. Clear differences are green when better and red when worse.
This driver10NMFS
Best price
£328.58
Fs
35 Hz
Qts
0.42
Vas
45 L
BL
16 T·m
Xmax
14.5 mm
Sensitivity
88.4 dB
Power
350 W
Beyma10WRS300
£75.00 · 77% less, betterFs52 Hz +49%, worse
Qts0.38 −10%
Vas42 L −7%
BL13.9 T·m −13%, worse
Xmax6 mm −59%, worse
Sensitivity93.7 dB +5.3, better
CIAREFXI10
£79.75 · 76% less, betterFs58 Hz +66%, worse
Qts0.38 −10%
Vas38.5 L −14%, better
BL13.3 T·m −17%, worse
Xmax4.5 mm −69%, worse
Sensitivity94.7 dB +6.3, better
CIAREPWA10.50
£83.85 · 74% less, betterFs57 Hz +63%, worse
Qts0.40 −5%
Vas39.9 L −11%, better
BL11.4 T·m −29%, worse
Xmax5.8 mm −60%, worse
Sensitivity94.2 dB +5.8, better
B&C10CLA64
£116.03 · 65% less, betterFs74 Hz +111%, worse
Qts0.42 –
Vas18.5 L −59%, better
BL14.5 T·m −9%
Xmax5 mm −66%, worse
Sensitivity94.2 dB +5.8, better
PeerlessSDF-250F75PR01-06
£119.25 · 64% less, betterFs34 Hz –
Qts0.46 +10%
Vas32.9 L −27%, better
BL14.6 T·m −9%
Xmax15.3 mm +6%
Sensitivity86.3 dB −2.1, worse
FaitalPRO10RS350
£119.58 · 64% less, betterFs40 Hz +14%, worse
Qts0.37 −12%, better
Vas44.3 L –
BL14 T·m −13%, worse
Xmax7.4 mm −49%, worse
Sensitivity90.5 dB +2.1, better
CelestionCF1025BMB
£143.11 · 56% less, betterFs41 Hz +17%, worse
Qts0.35 −15%, better
Vas46.1 L –
BL15.3 T·m −5%
Xmax6.7 mm −54%, worse
Sensitivity91.3 dB +2.9, better
SB AudienceROSSO-10CX300
£174.95 · 47% less, betterFs58 Hz +66%, worse
Qts0.45 +7%
Vas40.5 L −10%, better
BL11.9 T·m −26%, worse
Xmax8.2 mm −43%, worse
Sensitivity94.2 dB +5.8, better
Dayton AudioRSS265HF-8
£216.23 · 34% less, betterFs25 Hz −29%, better
Qts0.49 +17%, worse
Vas52.5 L +17%, worse
BL15 T·m −6%
Xmax14.3 mm –
Sensitivity83.4 dB −5, worse
B&C10FCX64
£237.42 · 28% less, betterFs63 Hz +80%, worse
Qts0.42 –
Vas25 L −44%, better
BL13.4 T·m −16%, worse
Xmax6 mm −59%, worse
Sensitivity93.6 dB +5.2, better
WavecorSW280WA04
£244.77 · 26% less, betterFs34 Hz –
Qts0.45 +7%
Vas30.5 L −32%, better
BL15.5 T·m −3%
Xmax6 mm −59%, worse
Sensitivity86.1 dB −2.3, worse
Dayton AudioRSS265HO-44
£296.39 · 10% less, betterFs28 Hz −21%, better
Qts0.45 +7%
Vas34.8 L −23%, better
BL9.4 T·m −41%, worse
Xmax13.3 mm −9%
Sensitivity83.7 dB −4.7, worse
WavecorSW259WA02
£381.13 · 16% more, worseFs24 Hz −31%, better
Qts0.43 –
Vas40 L −11%, better
BL18.6 T·m +16%, better
Xmax11.5 mm −21%, worse
Sensitivity83 dB −5.4, worse
WavecorSW259WA01
£381.13 · 16% more, worseFs29 Hz −17%, better
Qts0.46 +10%
Vas25 L −44%, better
BL14.5 T·m −9%
Xmax11.5 mm −21%, worse
Sensitivity83 dB −5.4, worse
WavecorSW280WA01
£413.65 · 26% more, worseFs27 Hz −24%, better
Qts0.41 –
Vas41.4 L −8%
BL13.4 T·m −16%, worse
Xmax6 mm −59%, worse
Sensitivity84.5 dB −3.9, worse
Acoustic EleganceSBP10-8
No current priceFs28 Hz −20%, better
Qts0.41 −4%
Vas62.8 L +40%, worse
BL13.1 T·m −18%, worse
Xmax14 mm −3%
Sensitivity87 dB −1.4
PurifiPTT10.0X08-NAB-01
No current priceFs22 Hz −37%, better
Qts0.40 −5%
Vas81 L +80%, worse
BL15.7 T·m –
Xmax14.8 mm –
Sensitivity85.2 dB −3.2, worse

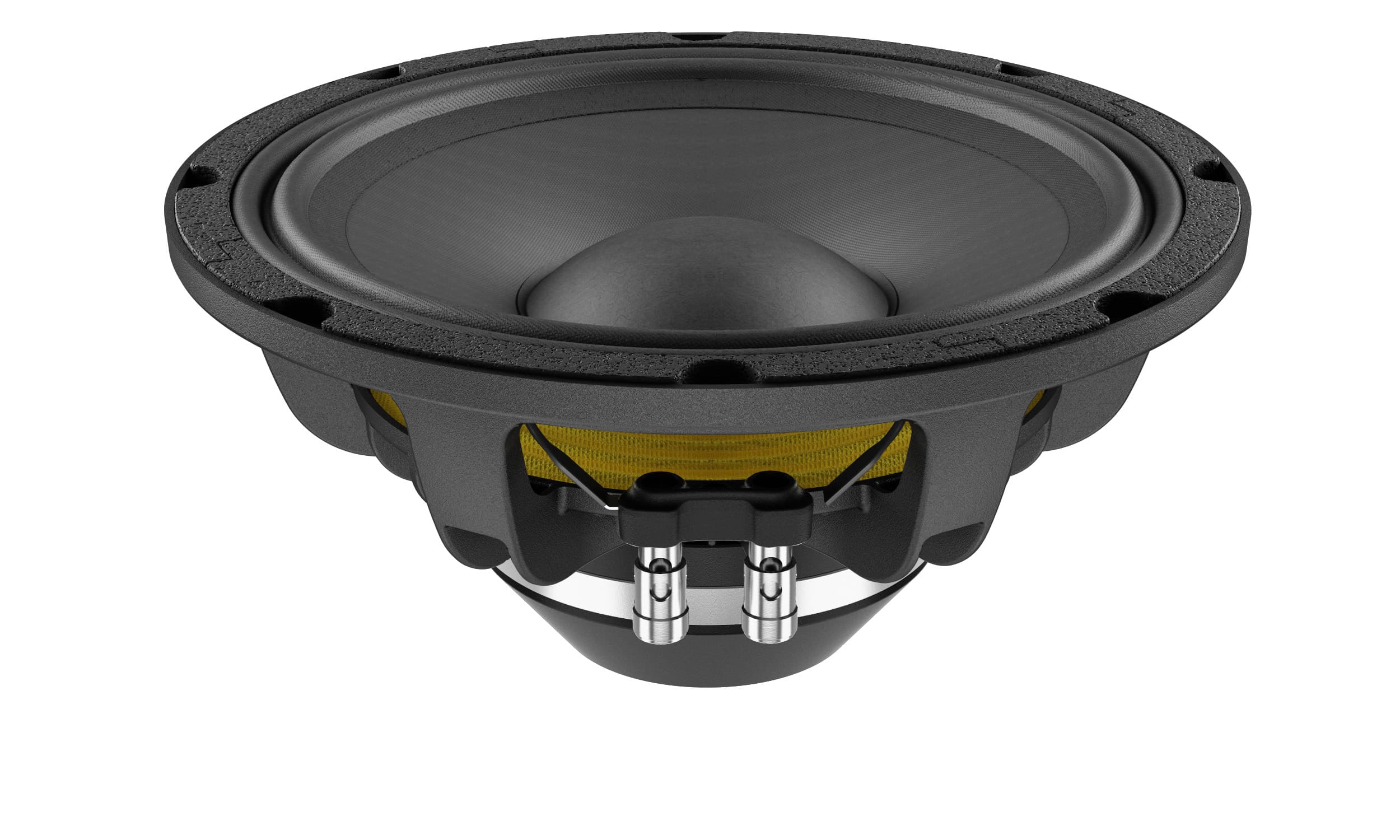

LavoceWAF102.51
No current priceFs70 Hz +100%, worse
Qts0.42 –
Vas21.4 L −52%, better
BL15.6 T·m –
Xmax6.0 mm −59%, worse
Sensitivity94.3 dB +5.9, better
No photo
PHL Audio3002
No current priceFs47 Hz +34%, worse
Qts0.39 −7%
Vas31.5 L −30%, better
BL15.9 T·m –
Xmax4.5 mm −69%, worse
Sensitivity91 dB +2.6, better
CelestionTF1020RE
No current priceFs53 Hz +50%, worse
Qts0.39 −8%
Vas44.5 L –
BL12.0 T·m −25%, worse
Xmax5.9 mm −59%, worse
Sensitivity93.6 dB +5.2, better
KartesianSUB265_VKI-V
No current priceFs24 Hz −31%, better
Qts0.40 −5%
Vas91.1 L +102%, worse
BL13.8 T·m −14%, worse
Xmax16 mm +10%, better
Sensitivity86.8 dB −1.6
LavoceNBASS10-20
No current priceFs52 Hz +49%, worse
Qts0.39 −7%
Vas43.4 L −4%
BL12.5 T·m −22%, worse
Xmax6.6 mm −54%, worse
Sensitivity93.6 dB +5.2, better
Acoustic EleganceSBP10-4
No current priceFs28 Hz −20%, better
Qts0.41 −4%
Vas68.2 L +52%, worse
BL10.4 T·m −35%, worse
Xmax14 mm −3%
Sensitivity87.2 dB −1.2
PRV Audio10W1000-NDY
No current priceFs62 Hz +77%, worse
Qts0.40 −5%
Vas39 L −13%, better
BL12.7 T·m −20%, worse
Xmax6.5 mm −55%, worse
Sensitivity95.5 dB +7.1, better
WavecorSW280WA02
No current priceFs27 Hz −23%, better
Qts0.48 +14%, worse
Vas41.4 L −8%
BL16.6 T·m +4%
Xmax6 mm −59%, worse
Sensitivity83.9 dB −4.5, worse
JensenBS10N250A-8
No current priceFs58 Hz +66%, worse
Qts0.43 –
Vas30.9 L −31%, better
BL12.9 T·m −19%, worse
Xmax5 mm −66%, worse
Sensitivity93.2 dB +4.8, better
PRV Audio10W650A
No current priceFs72 Hz +107%, worse
Qts0.46 +10%
Vas34.0 L −24%, better
BL14.1 T·m −12%, worse
Xmax4.5 mm −69%, worse
Sensitivity96.4 dB +8, better
EminenceDELTALITE 2510
No current priceFs53 Hz +51%, worse
Qts0.42 –
Vas52.5 L +17%, worse
BL10.6 T·m −34%, worse
Xmax4.2 mm −71%, worse
Sensitivity94.4 dB +6, better
No current price
Fs55 Hz +57%, worse
Qts0.36 −14%, better
Vas45.3 L –
BL14 T·m −13%, worse
Xmax5.5 mm −62%, worse
Sensitivity95 dB +6.6, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Parts Express Import VAT and duty may apply | £329.47, the lowest price | 2 in stock | Visit shop at Parts Express | |
Blue Aran approx 2 months | £326.63 | Ordered on Request (approx 2 months) | Visit shop at Blue Aran | |
SoundImports Import VAT and duty may apply | £338.74 | 2.8% above the lowest price | 3 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
