Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespGRS 10PT-8 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
GRS
GRS 10PT-8

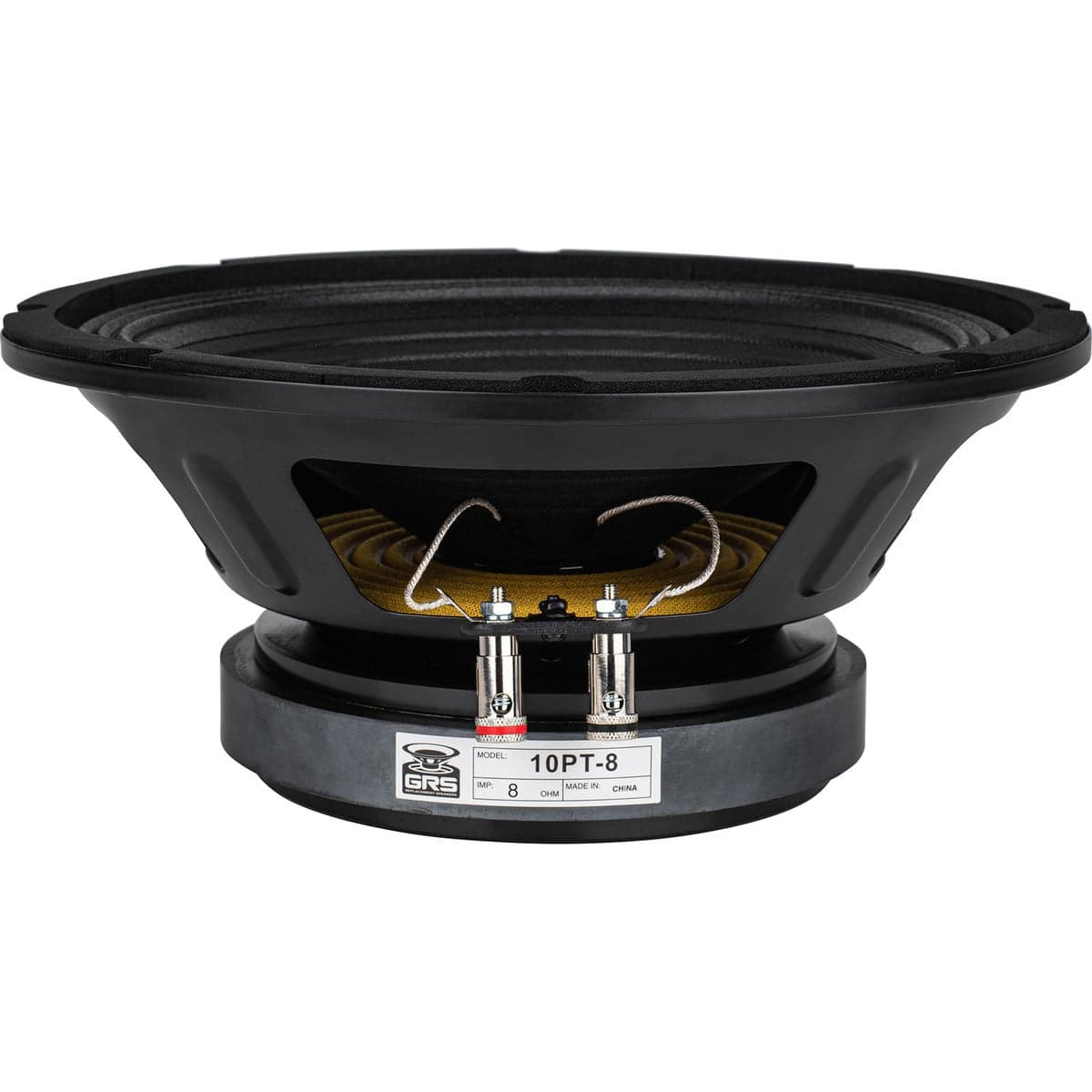

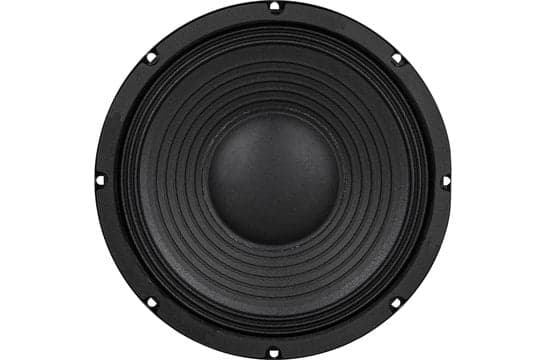

GRS 10PT-8 is a 10" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 47Hz, Qts 0.48, Vas 1.6L, Xmax 7.8mm, sensitivity 77.3dB, plus 271cm³ Vd and 94 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £31.80.
Size
10"
Impedance
8Ω
RMS Power
200W
Sensitivity
77.3dB
93.0dBmanufacturer; using T/S-derived value (15.7dB delta).
EBP
94
Either alignment
Vd
271cm³
T/S Parameters
Valid
Fs47Hz
Qts0.48
Qes0.50
Qms11.4
Vas1.6L
Re7.1Ω
Le1.60mH
BL13.4Tm
Sd348cm²
Mms43g
Xmax7.8mm
SPL77dB
Power200W
Impedance8Ω
F Low40Hz
F High7000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£60.96
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
partsexpress
£31.80
inc VAT·183 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter258.1mm
Overall Depth112.0mm
Cutout Diameter231.9mm
Bolt Circle Diameter247.9mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
GRS
10PT-8
10"
Best current price
£31.80
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
Loading matches
