Overview
LF DriverSSF102 series
Lavoce
Lavoce SSF102.40
Lavoce SSF102.40 is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 39Hz, Qts 0.57, Vas 39.5L, Xmax 8.3mm, sensitivity 87.9dB, plus 291cm³ Vd and 64 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £56.92.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
87.9dB
EBP
64
Either alignment
Vd
291cm³

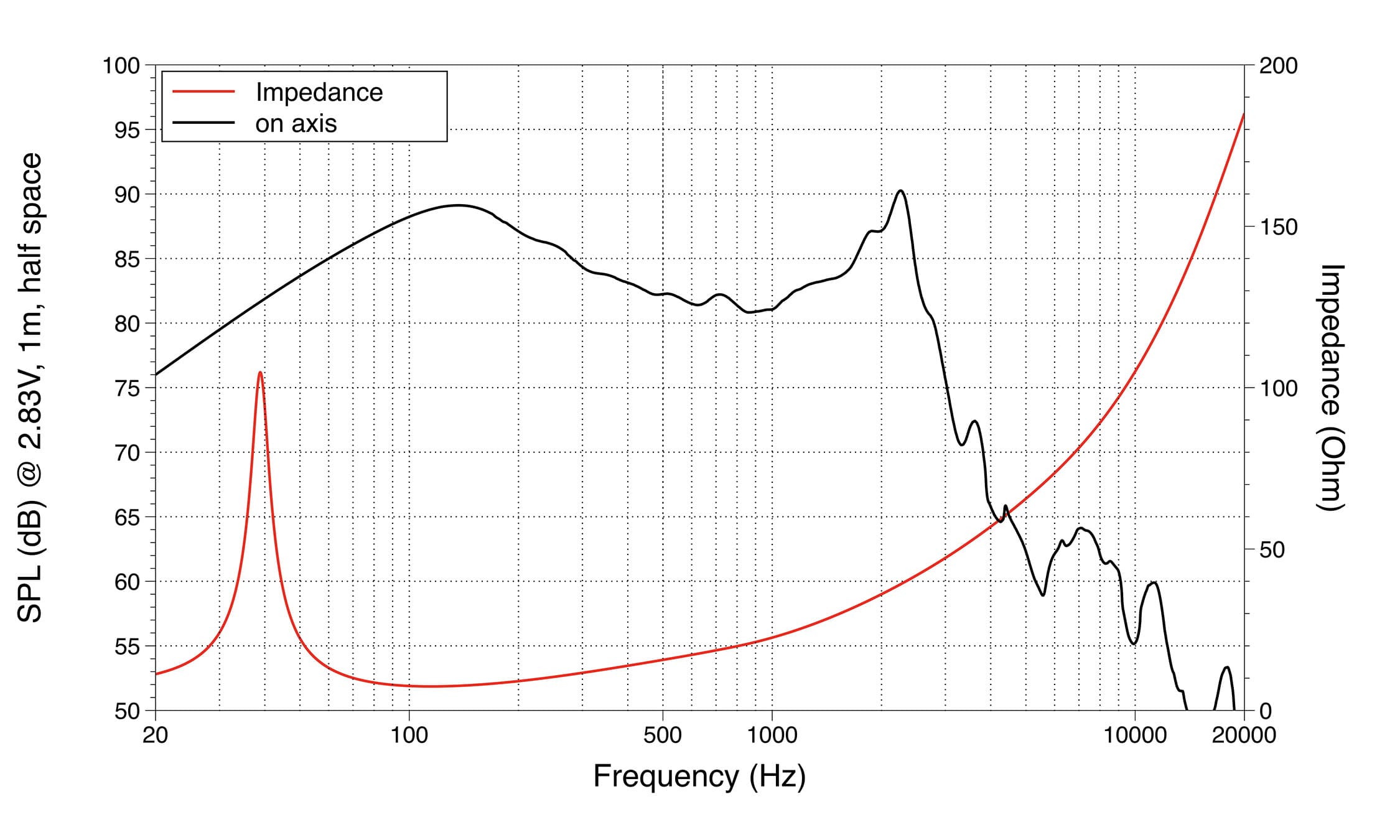

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs39Hz
Qts0.57
Qes0.61
Qms9.0
Vas39.5L
Re6.7Ω
Le2.42mH
BL14.0Tm
Sd350cm²
Mms73g
Xmax8.3mm
SPL88dB
Power250W
Impedance8Ω
Min Impedance7.7Ω
F Low40Hz
F High500Hz
Voice Coil61mm
Pricing & availability
Price definitionsPrice movement
Best current price
£56.92
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

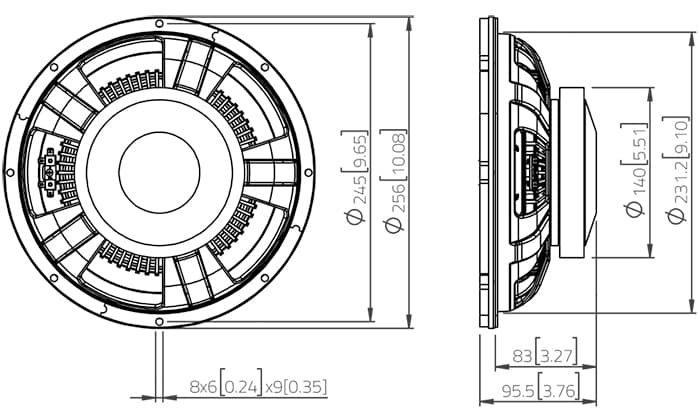

Dimensions & Physical
Weight3.5kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
SSF102.40
10"
Best current price
£56.92
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
72%
Similarity
3% more£58.74
BishopSound
BSP10
10"
Higher price
Xmax8.3mm0%
Qts0.51-11%
BL11.6Tm-17%
Vas27.4L-31%
Qes0.55-10%
Image unavailable
50%
Similarity
84% more£104.85
Eminence
DELTA-10A-2
10"
Higher price
Xmax6.4mm-23%
Qts0.44-23%
BL12.2Tm-13%
Vas29.7L-25%
Qes0.48-21%
53%
Similarity
149% more£141.89
Lavoce
CSF102.50K
10"
Higher price
Xmax6.3mm-25%
Qts0.45-21%
BL12.9Tm-8%
Vas29.9L-24%
Qes0.48-21%
69%
Similarity
Dayton Audio
DCS255-4
10"
Xmax8.3mm0%
Qts0.46-19%
BL12.6Tm-10%
Vas32.1L-19%
Qes0.5-18%
67%
Similarity
Peerless
GBS-250F38CP01-04
10"
Xmax9.2mm+10%
Qts0.51-11%
BL12.9Tm-8%
Vas22.8L-42%
Qes0.54-11%
Image unavailable
58%
Similarity
Wavecor
SW280WA02
10"
Xmax6mm-28%
Qts0.48-16%
BL16.6Tm+18%
Vas41.4L+5%
Qes0.52-15%
Image unavailable
51%
Similarity
Wavecor
SW280WA03
10"
Xmax6mm-28%
Qts0.46-19%
BL12.5Tm-11%
Vas29.7L-25%
Qes0.48-21%
50%
Similarity
Peerless
FSL-1025R03-06
10"
Xmax6.3mm-24%
Qts0.46-19%
BL14.3Tm+2%
Vas18.1L-54%
Qes0.51-17%
49%
Similarity
Wavecor
SW280WA04
10"
Xmax6mm-28%
Qts0.45-21%
BL15.5Tm+11%
Vas30.5L-23%
Qes0.47-23%
