Wavecor SW275BD01 4Ω
LF DriverMedia
Wavecor
SW275BD01
Image unavailable
Overview
LF DriverSW275BD series
Wavecor

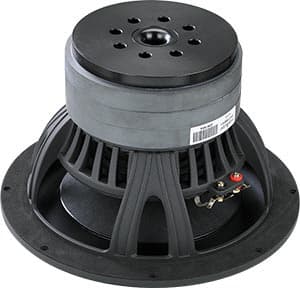

Wavecor SW275BD01
Wavecor SW275BD01 is a 10" 4 ohm LF driver. The validated T/S data includes Fs 31Hz, Qts 0.57, Vas 31L, Xmax 16mm, sensitivity 83.9dB, plus 502cm³ Vd and 52 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
4Ω
Sensitivity
83.9dB
EBP
52
Either alignment
Vd
502cm³
T/S Parameters
Valid
Fs31Hz
Qts0.57
Qes0.59
Qms12.7
Vas31.0L
Re3.7Ω
BL12.1Tm
Sd314cm²
Mms121g
Xmax16.0mm
SPL84dB
Impedance4Ω
Voice Coil64mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter273.1mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW275BD01
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
73%
Similarity
PRV Audio
MT10SW1000
10"
Xmax14mm-12%
Qts0.51-11%
BL9.9Tm-18%
Vas29.9L-4%
Qes0.55-7%
Image unavailable
68%
Similarity

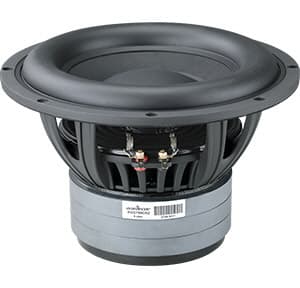

Wavecor
