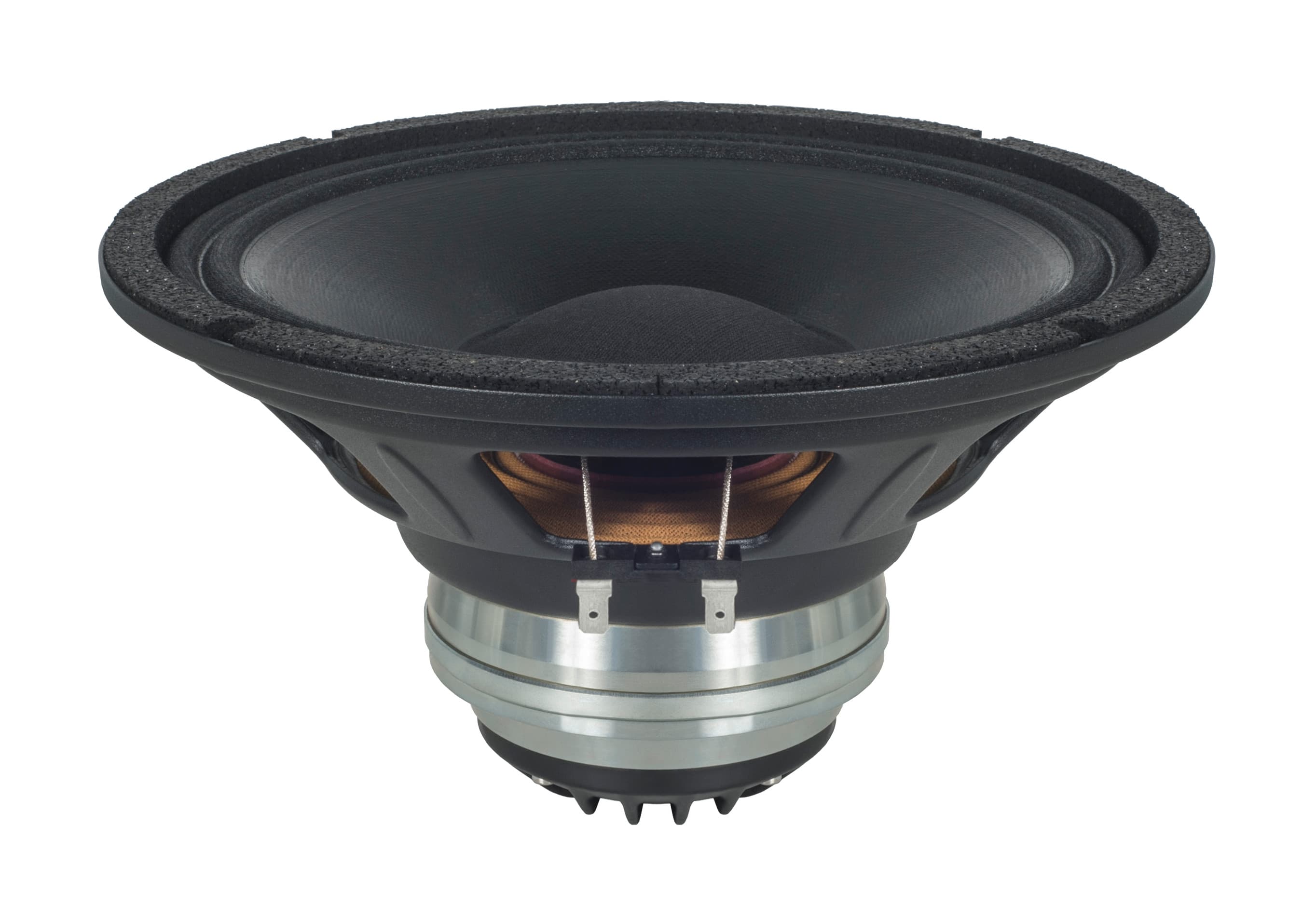

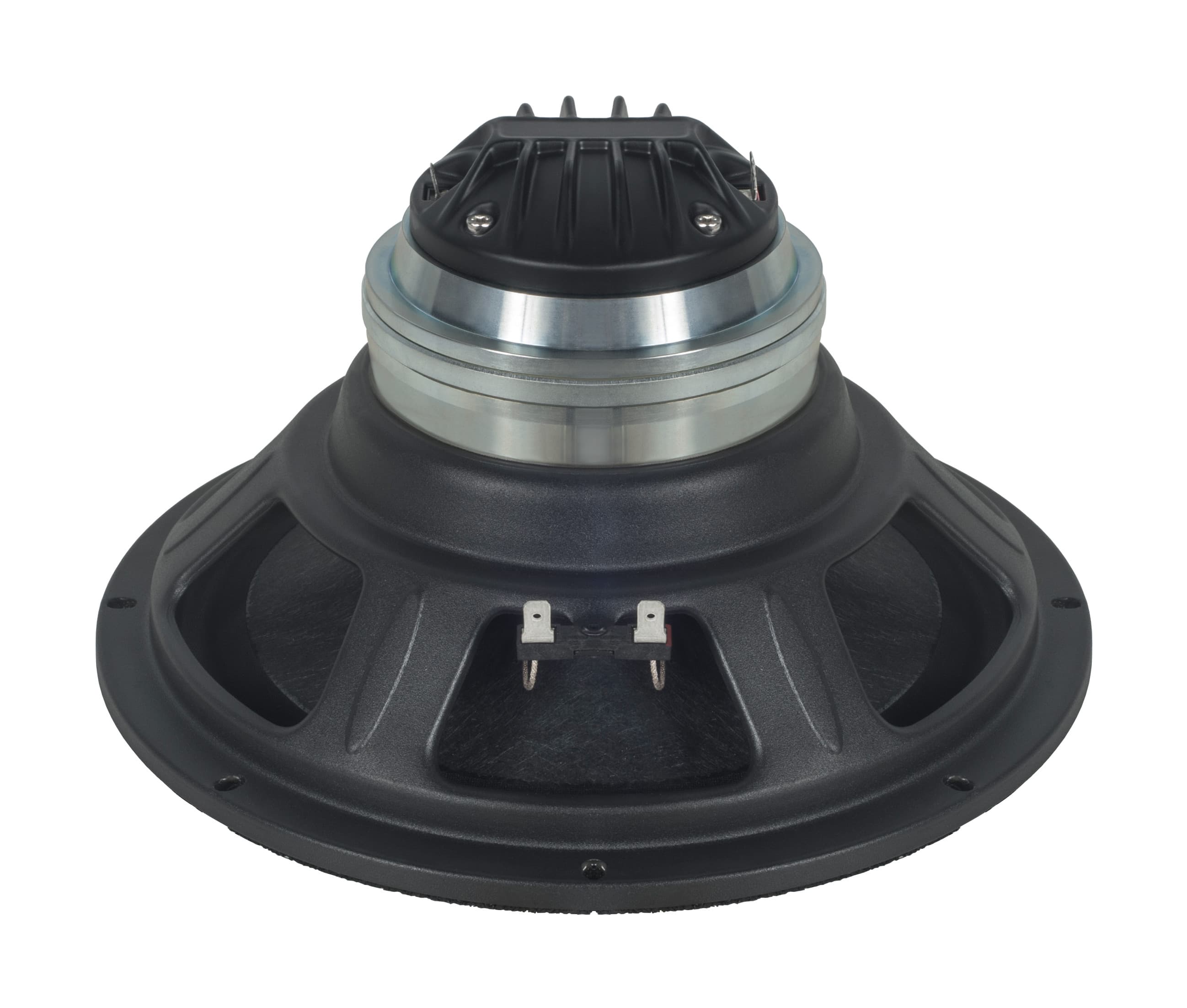

10-inch LF driver · 10CLX series · 64 mm voice coil · 250 W
B&C 10CLX64 8Ω
8 Ω
No current price
- Fs
- 70Hz
- Xmax
- 5.5mm
- SPL
- 92dB
- Pe
- 250W
- BL
- 11.4T·m
- Vd
- 176cm³
- Qts
- 0.63
- Vas
- 21L

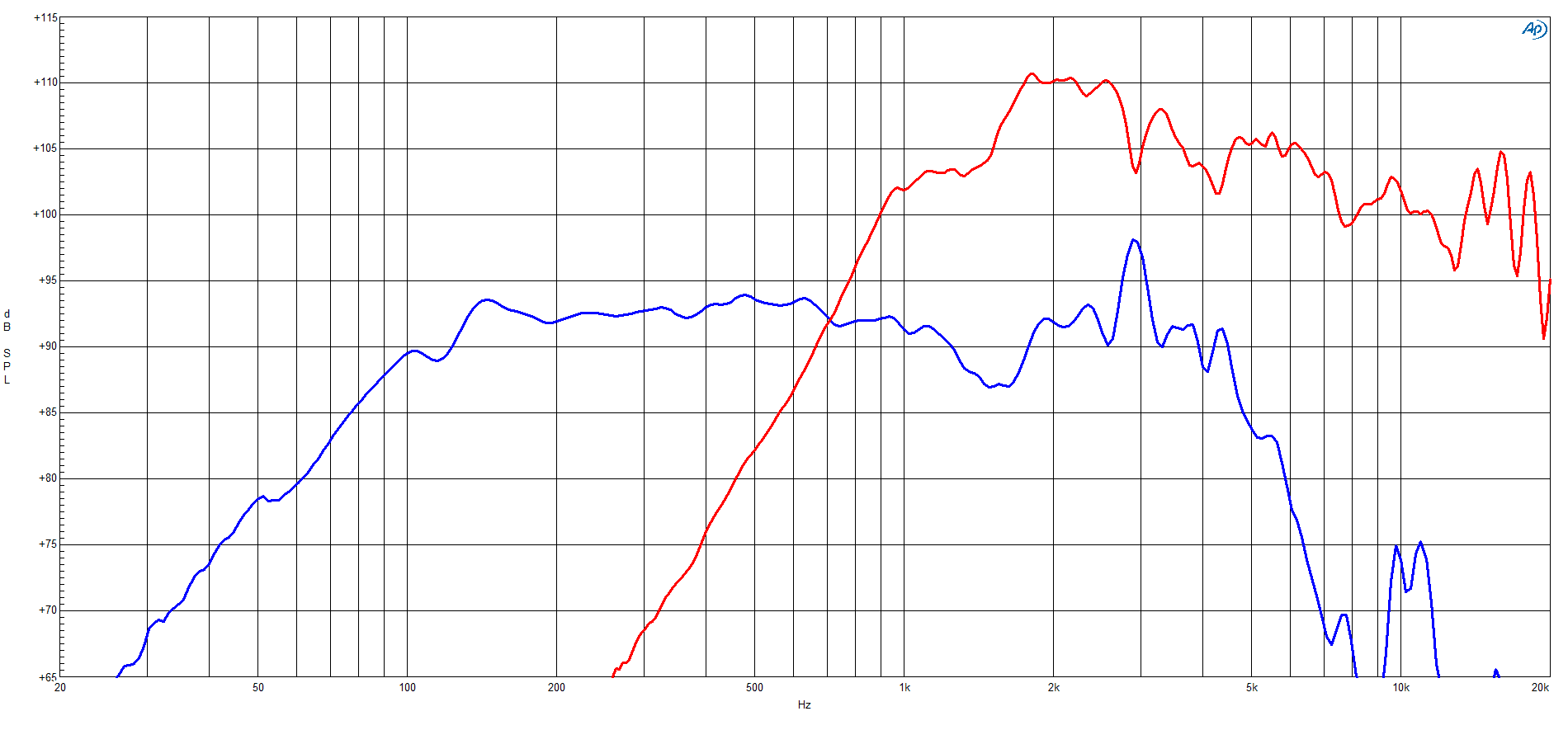

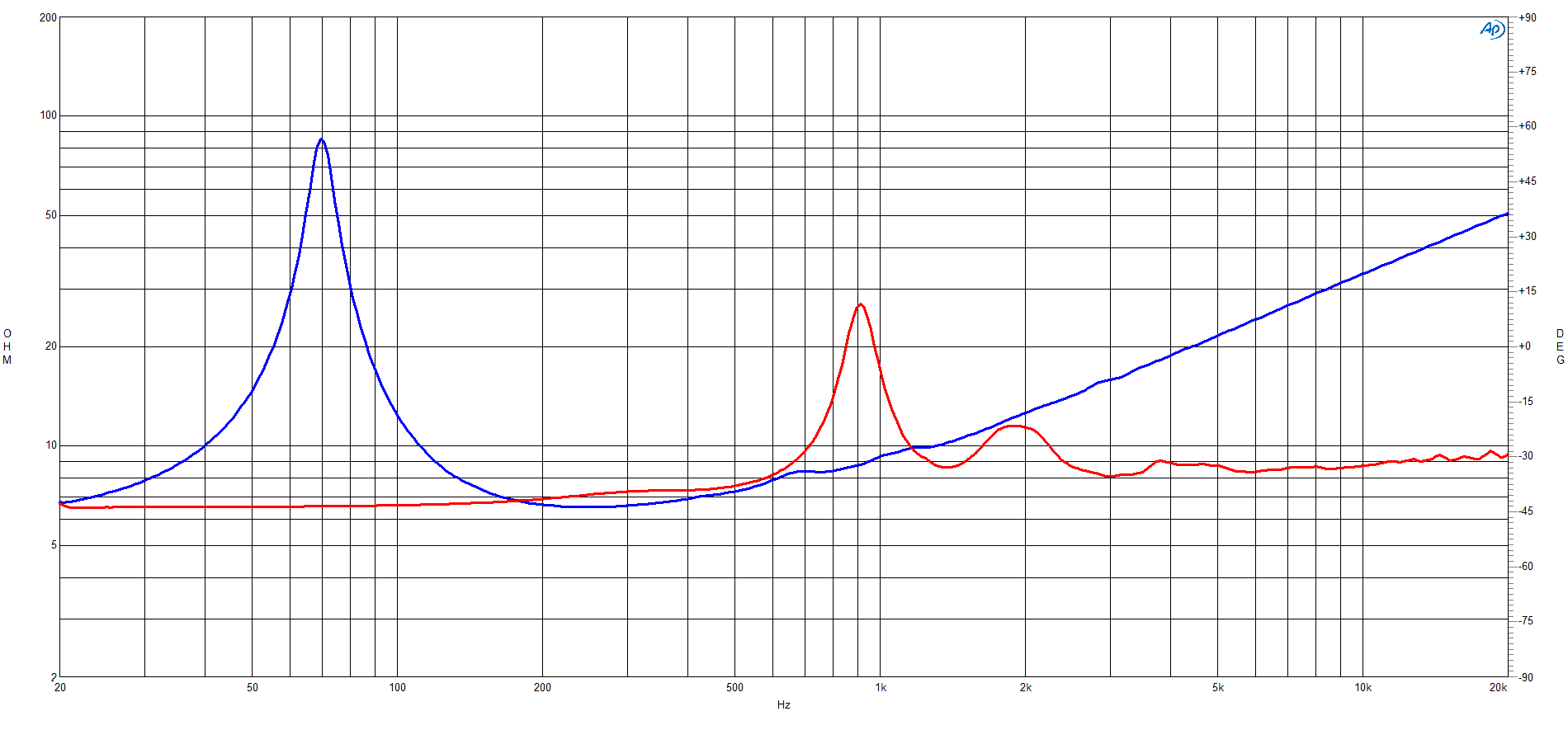

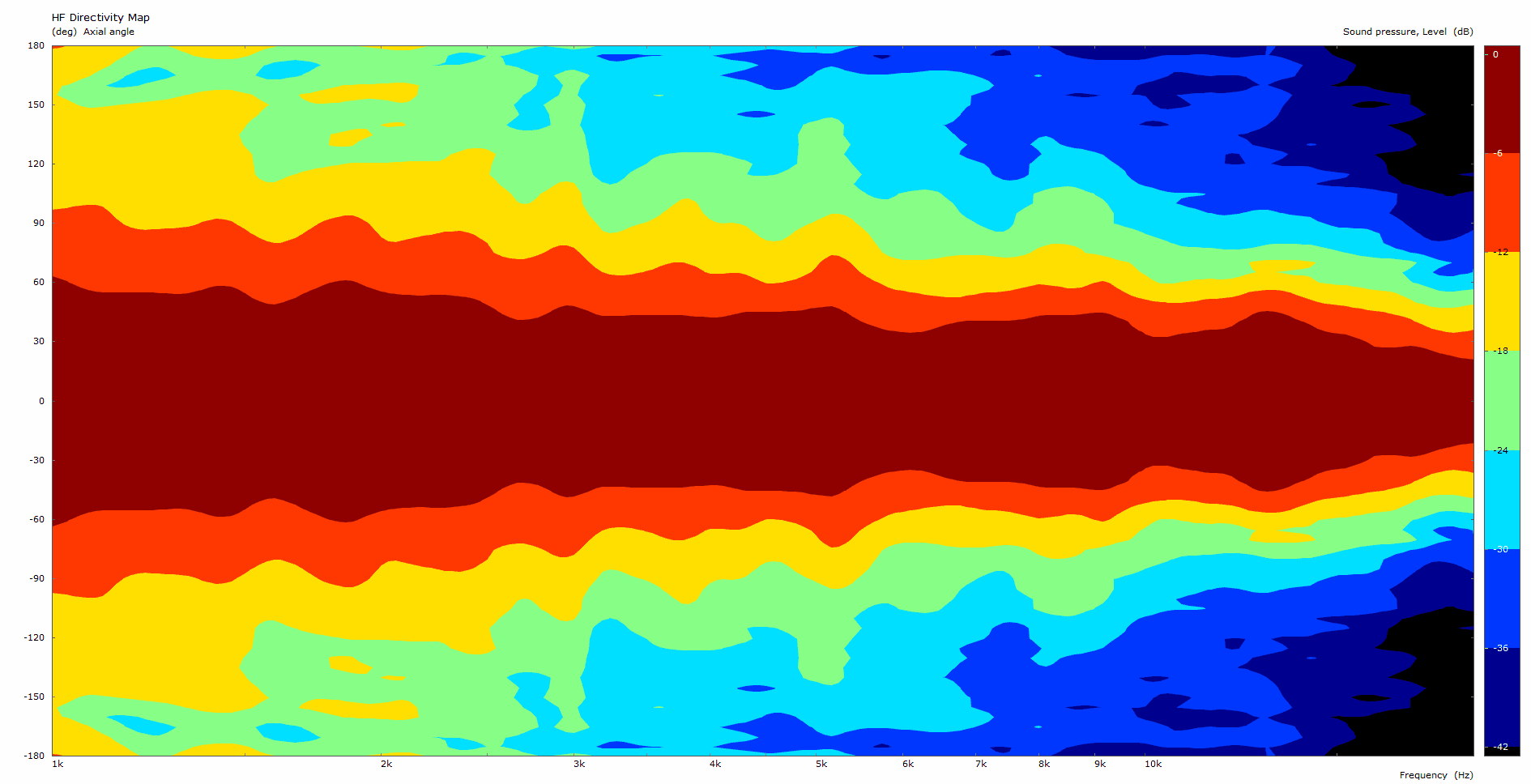

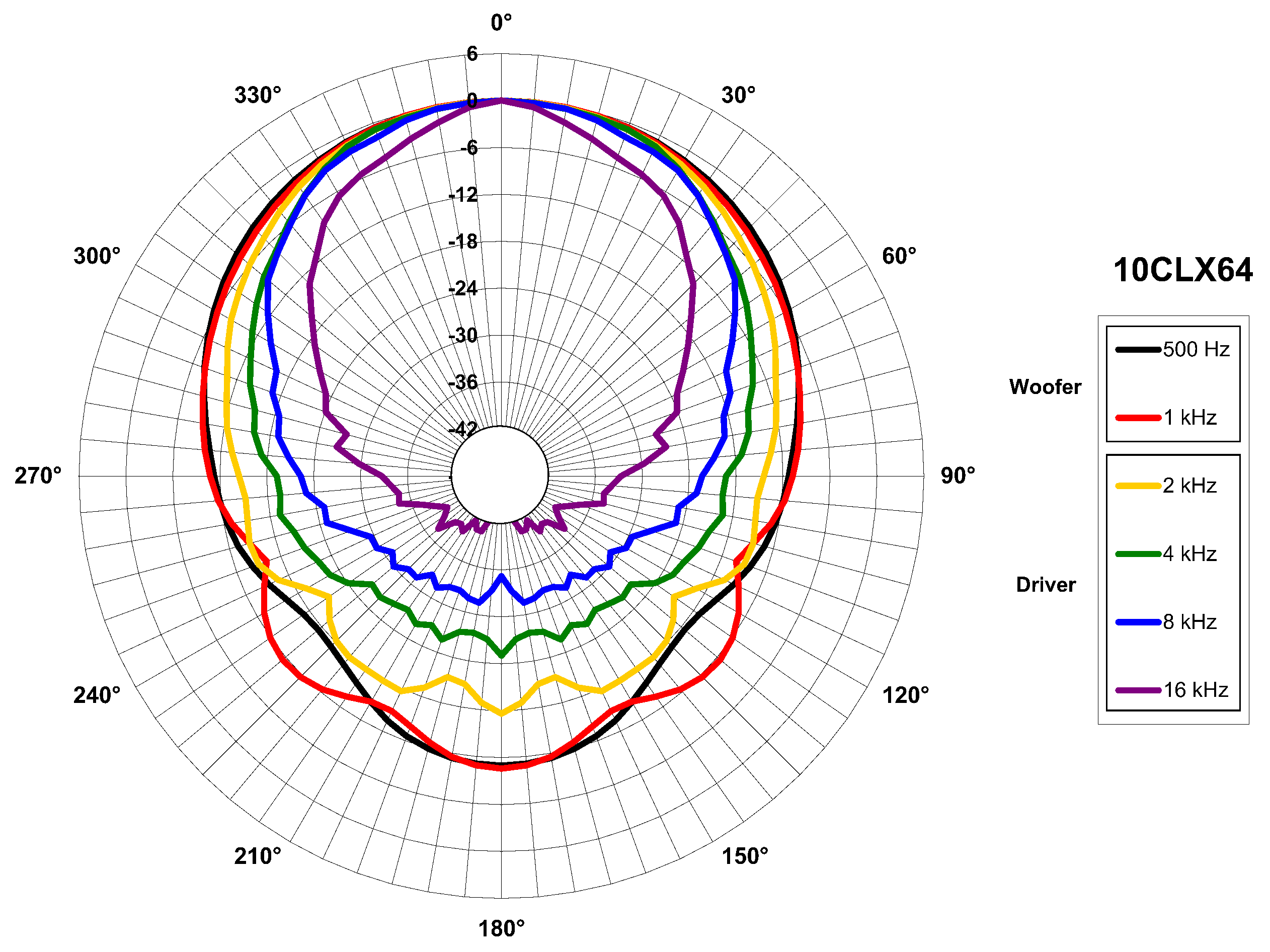

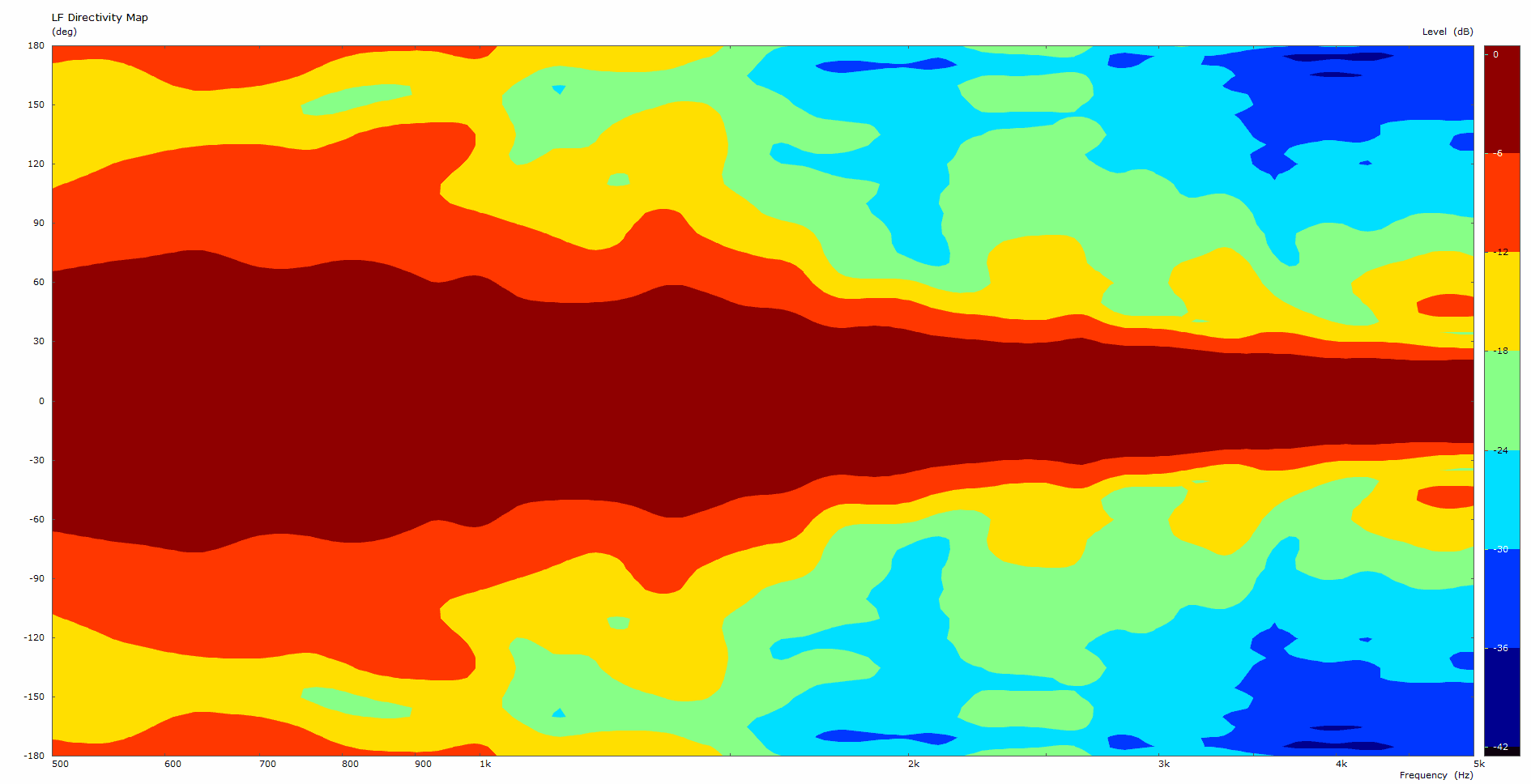

Published graphs
B&C 10CLX64 is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 70 Hz, Qts 0.63, Vas 21 L, Xmax 5.5 mm, sensitivity 92.3 dB, plus 176 cm³ Vd and 104 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 70Hz
- Qts
- 0.63
- Qes
- 0.67
- Qms
- 9.8
- Vas
- 21L
- Re
- 5.6Ω
- Le
- 0.91mH
Motor and cone
- BL
- 11.4T·m
- Sd
- 320cm²
- Mms
- 36g
- Xmax
- 5.5mm
- Vd †
- 176cm³
- Voice coil
- 64mm
- Flux density
- 0.90T
Power and response
- Sensitivity †
- 92.3dB
- Manufacturer sensitivity
- 94dB
- Power
- 250W
- Nominal power
- 250W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- EBP †
- 104 · Leans vented
Sensitivity shows 92.3 dB, calculated from the T/S values. B&C publishes 94.0 dB, 1.7 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Specifications LF unit
- BL
- 11.4T·m
- Fs
- 70Hz
- Le
- 0.91mH
- Re
- 5.6Ω
- Sd
- 320cm²
- Mms
- 36g
- Qes
- 0.67
- Qms
- 9.8
- Qts
- 0.63
- SPL
- 92.3dB
- Vas
- 21L
- Xmax
- 5.5mm
- Power
- 250W
- Impedance
- 8Ω
- Flux density
- 0.90T
- Sensitivity
- 94dB
- Nominal power
- 250W
- Calculated sensitivity †
- 92.3dB
- Manufacturer sensitivity
- 94dB
- Min. impedance
- 6.5Ω
- Voice coil
- 64mm
- Bl
- 11.4 Tm
- Fs
- 70 Hz
- Le
- 0.91 mH
- Re
- 5.6 Ω
- Sd
- 320 cm² (49.6 in²)
- Ebp
- 104 Hz
- Mms
- 36 g
- Qes
- 0.67
- Qms
- 9.8
- Qts
- 0.63
- Vas
- 21 dm³ (0.74 ft³)
- Η0
- 1.1 %
- Xvar
- 5.5 mm
- Sensitivity
- 94 dB
- Flux density
- 0.9 T
- Winding depth
- 14.5 mm (0.57 in)
- Former material
- Glass Fibre
- Nominal diameter
- 250 mm (10 in)
- Winding material
- Copper
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Voice coil diameter
- 64 mm (2.5 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Nominal power handling
- 250 W
- Continuous power handling
- 500 W
HF · Specifications HF unit
- Le
- 0.14mH
- SPL
- 105dB
- Power
- 70W
- Impedance
- 8Ω
- Flux density
- 1.60T
- Sensitivity
- 105dB
- Nominal power
- 70W
- Manufacturer sensitivity
- 105dB
- Min. impedance
- 8.2Ω
- Voice coil
- 51mm
- Crossover
- 1200Hz
- Inductance
- 0.14 mH
- Sensitivity
- 105 dB
- Flux density
- 1.6 T
- Nominal diameter
- 250 mm (10 in)
- Winding material
- Aluminium
- Minimum impedance
- 8.2 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- HT Polymer
- Voice coil diameter
- 51 mm (2 in)
- Recommended crossover
- 1.2 kHz
- Nominal power handling
- 70 W
- Continuous power handling
- 140 W
