Overview
LF Driver
GRS
GRS 10SMP-8

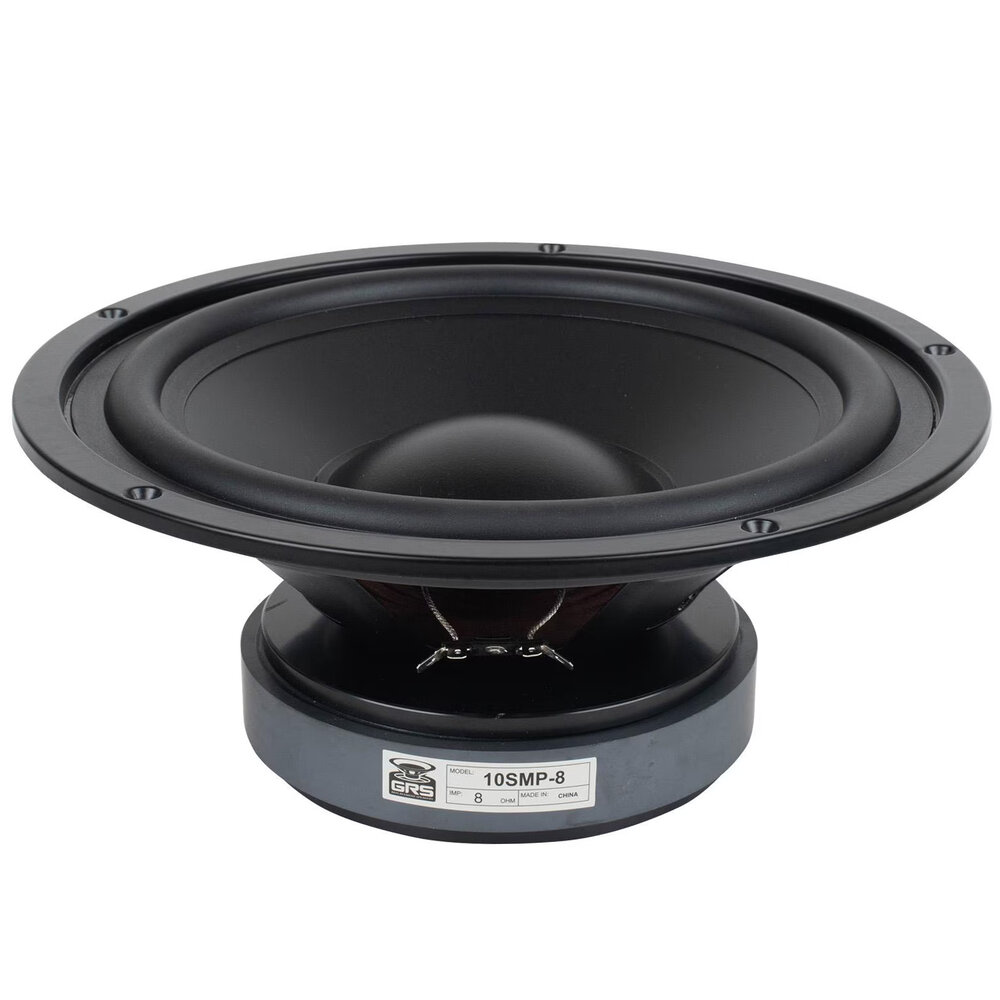

GRS 10SMP-8 is a 10" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 29Hz, Qts 0.58, Vas 81L, Xmax 5mm, sensitivity 86.4dB, plus 170cm³ Vd and 40 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
70W
Sensitivity
86.4dB
87.5dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
40
Sealed alignment
Vd
170cm³
T/S Parameters
Valid
Fs29Hz
Qts0.58
Qes0.73
Qms2.8
Vas81.0L
Re6.1Ω
Le0.46mH
BL9.6Tm
Sd340cm²
Mms61g
Xmax5.0mm
SPL86dB
Power70W
Impedance8Ω
F Low24Hz
F High2000Hz
Voice Coil39mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
GRS
10SMP-8
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
78%
Similarity
GRS
10SMP-4
10"
Xmax5mm0%
Qts0.51-12%
BL8.2Tm-15%
Vas86L+6%
Qes0.63-14%
74%
Similarity
Dayton Audio
PA255-8
10"
Xmax5mm0%
Qts0.61+5%
BL10.6Tm+10%
Vas41.2L-49%
Qes0.66-10%
73%
Similarity
Dayton Audio
PCS10-4
10"
Xmax5.6mm+12%
Qts0.64+10%
BL9.1Tm-5%
Vas49L-40%
Qes0.730%
69%
Similarity
£40.91
FaitalPRO
10FE200
10"
Xmax4.7mm-7%
Qts0.69+19%
BL8.2Tm-15%
Vas61.7L-24%
Qes0.74+1%
68%
Similarity
Peerless
FSL-1015R02-08
10"
Xmax4.3mm-14%
Qts0.64+10%
BL9.5Tm-1%
Vas36L-56%
Qes0.74+2%
65%
Similarity
PRV Audio
10FR300
10"
Xmax4mm-20%
Qts0.65+12%
BL9.8Tm+2%
Vas47.4L-41%
Qes0.68-7%
63%
Similarity
£65.89
Dayton Audio
DS270-8
10"
Xmax5.5mm+10%
Qts0.44-24%
BL10.1Tm+5%
Vas87.7L+8%
Qes0.54-26%
59%
Similarity
CIARE
CME250
10"
Xmax4.5mm-10%
Qts0.48-17%
BL7.5Tm-22%
Vas74L-9%
Qes0.53-27%
59%
Similarity
Monacor
SP-252E
10"
Xmax4mm-20%
Qts0.5-14%
BL8.5Tm-11%
Vas57L-30%
Qes0.6-18%
58%
Similarity
£67.00
FaitalPRO
10FE300
10"
Xmax5.5mm+10%
Qts0.52-10%
BL11.3Tm+18%
Vas50.5L-38%
Qes0.54-26%
54%
Similarity
CIARE
CMI250
10"
Xmax4.5mm-10%
Qts0.5-14%
BL9Tm-6%
Vas34L-58%
Qes0.52-29%
54%
Similarity
CIARE
CMI250ND
10"
Xmax4.5mm-10%
Qts0.5-14%
BL9Tm-6%
Vas34L-58%
Qes0.52-29%
