Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEminence ALPHA-10A 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverALPHA series
Eminence

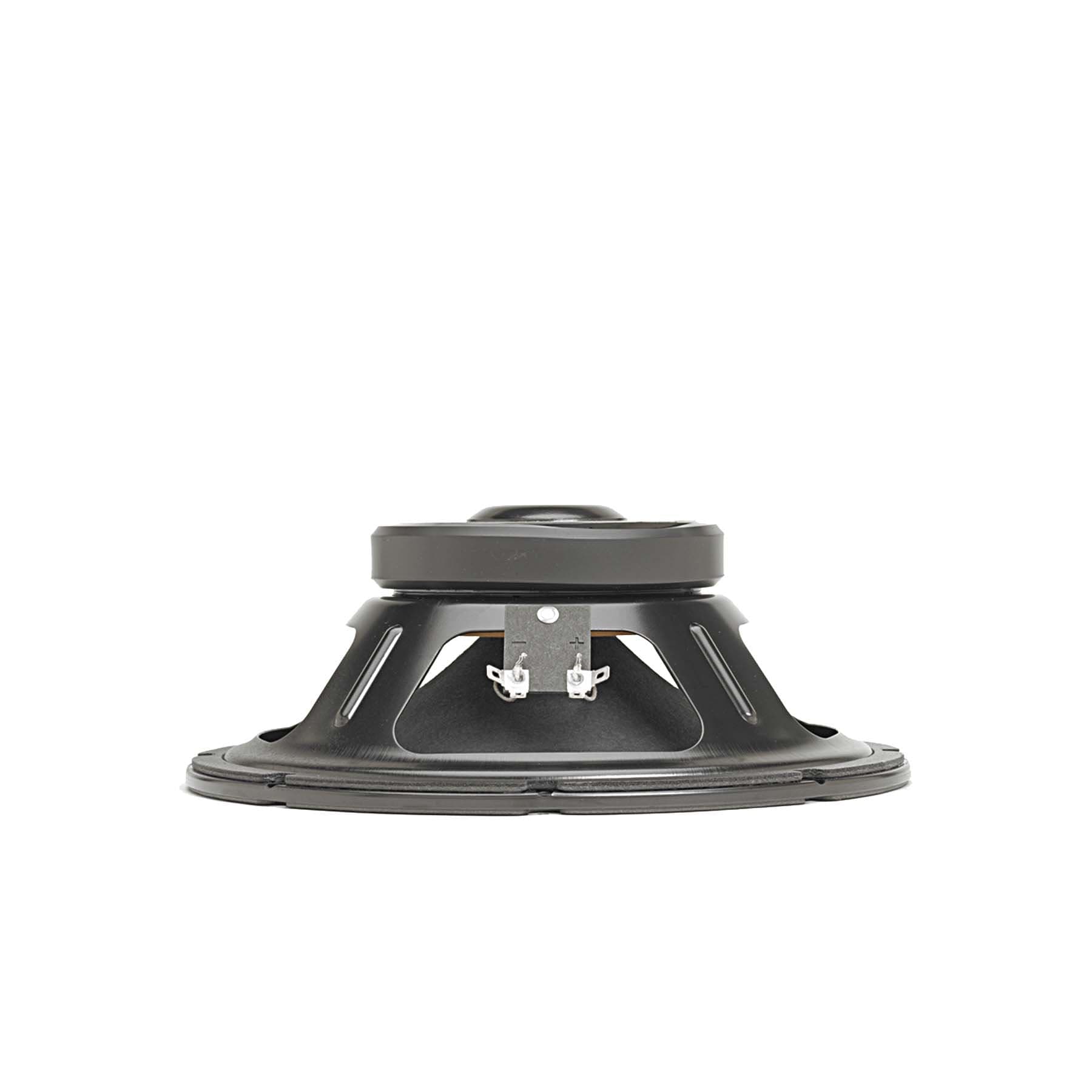

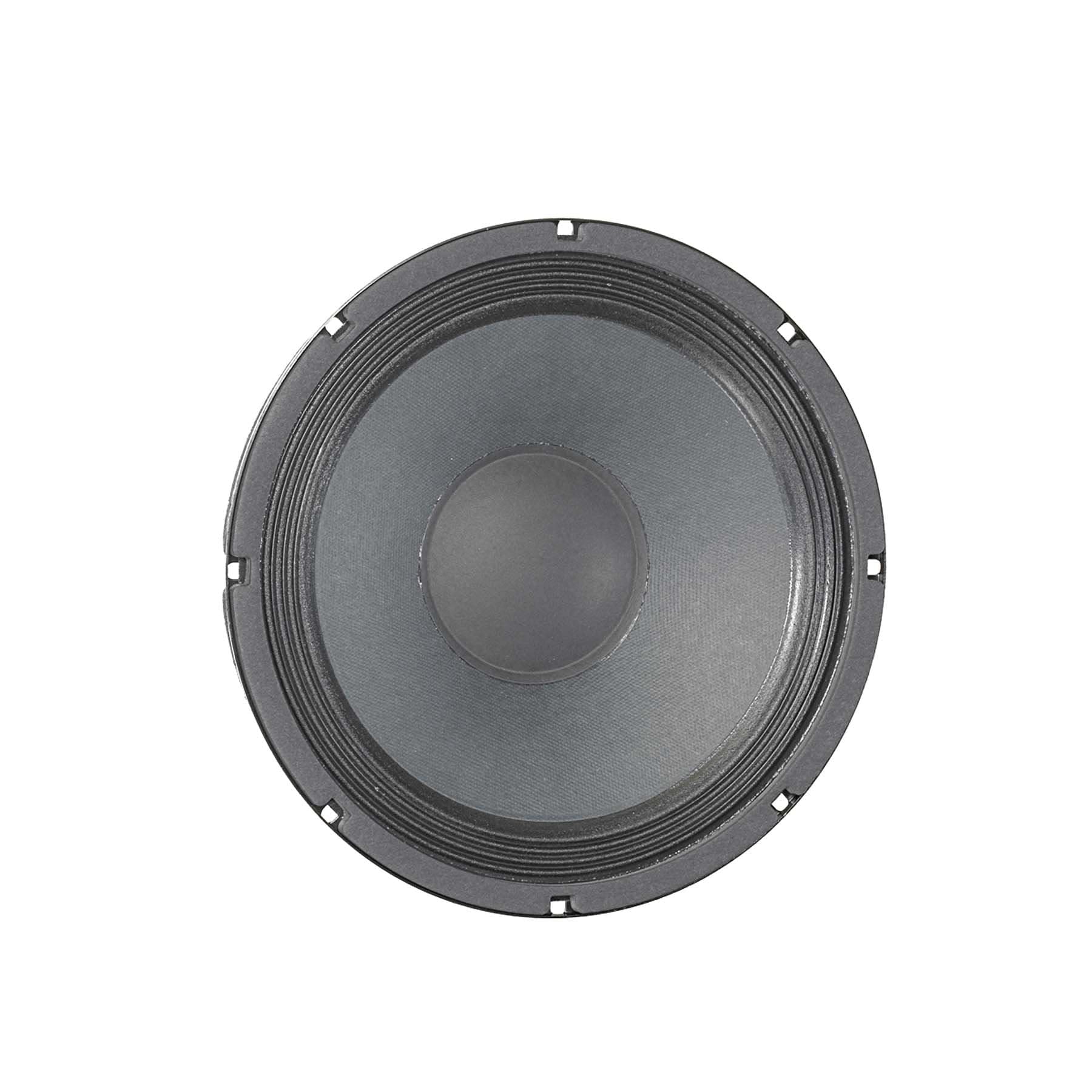

Eminence ALPHA-10A
Eminence ALPHA-10A is a 10" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 50Hz, Qts 0.59, Vas 82.2L, Xmax 3.2mm, sensitivity 94dB, plus 114cm³ Vd and 76 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £60.00.
Size
10"
Impedance
8Ω
RMS Power
150W
Sensitivity
94.0dB
95.6dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
76
Either alignment
Vd
114cm³
T/S Parameters
Valid
Fs50Hz
Qts0.59
Qes0.66
Qms5.2
Vas82.2L
Re5.3Ω
Le0.66mH
BL7.5Tm
Sd355cm²
Mms22g
Xmax3.2mm
SPL94dB
Power150W
Impedance8Ω
F Low57Hz
F High4000Hz
Pricing & availability
Price definitionsOffers & B-stock
2 hidden from price comparisons
Price movement
Other offers
4 vendorsleanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£63.00
inc VAT
partsexpress
Updated 11 Sept 2026
Source: ex VAT
£77.29
inc VAT
2 in stock
leanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£79.69
inc VAT
In stock
thomann
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£99.00
inc VAT
In stock
Best current price
Updated 11 Sept 2026
bluearan
£60.00
Avg £75.80£15.80 below avg (-20.8%)
inc VAT·8+ in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.0kg
Diameter256.8mm
Overall Depth99.1mm
Cutout Diameter231.9mm
Bolt Circle Diameter243.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
ALPHA-10A
10"
Best current price
£60.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
56%
Similarity
38% more£82.83
Eminence
BETA-10A
10"
Higher price
Xmax3mm-6%
Qts0.49-17%
BL9.6Tm+28%
Vas60.1L-27%
Qes0.52-21%
58%
Similarity
Monacor
SP-252E
10"
Xmax4mm+25%
Qts0.5-15%
BL8.5Tm+13%
Vas57L-31%
Qes0.6-9%
52%
Similarity
PRV Audio
10FR300
10"
Xmax4mm+25%
Qts0.65+10%
BL9.8Tm+30%
Vas47.4L-42%
Qes0.68+3%
