10-inch LF driver · LEGEND B series · 150 W

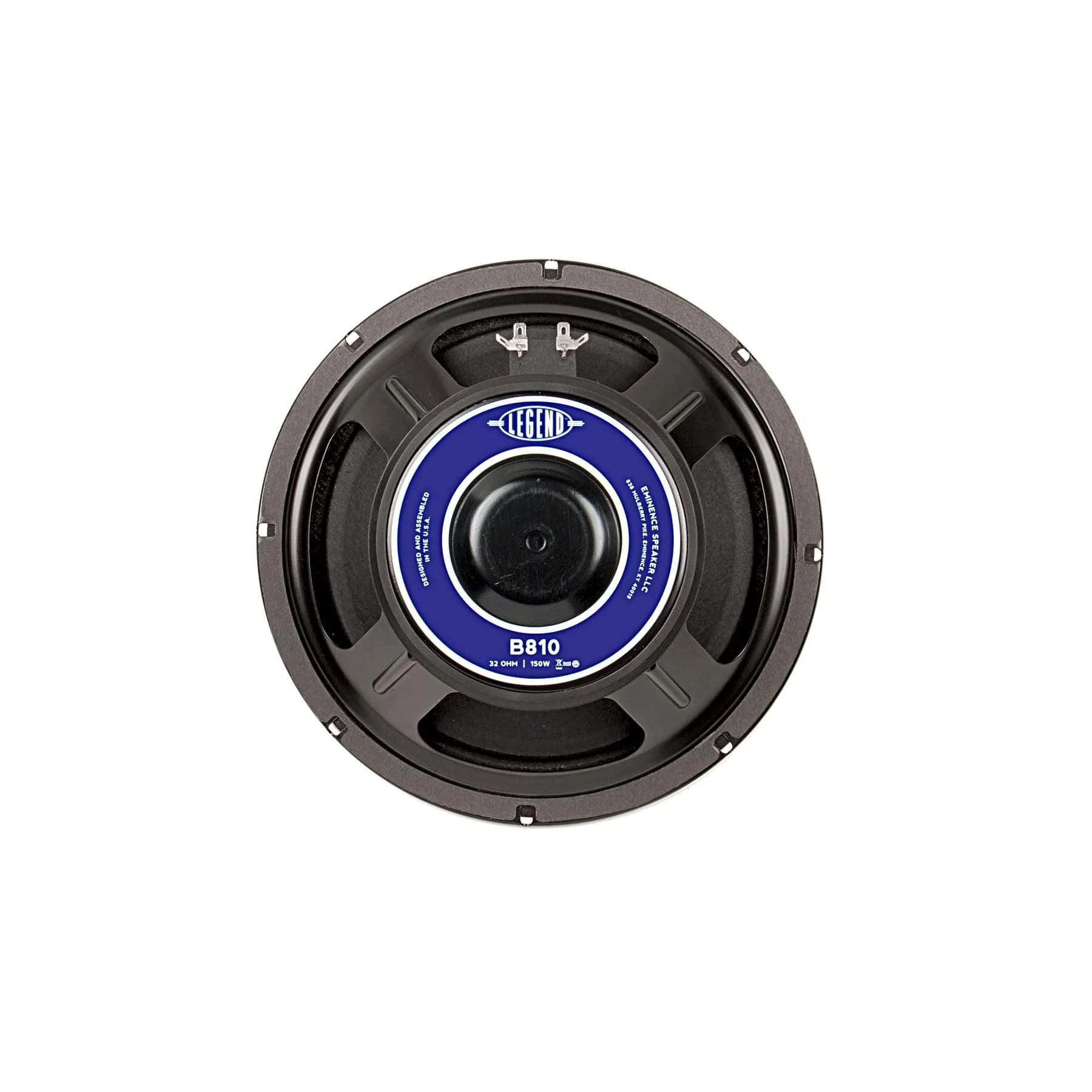

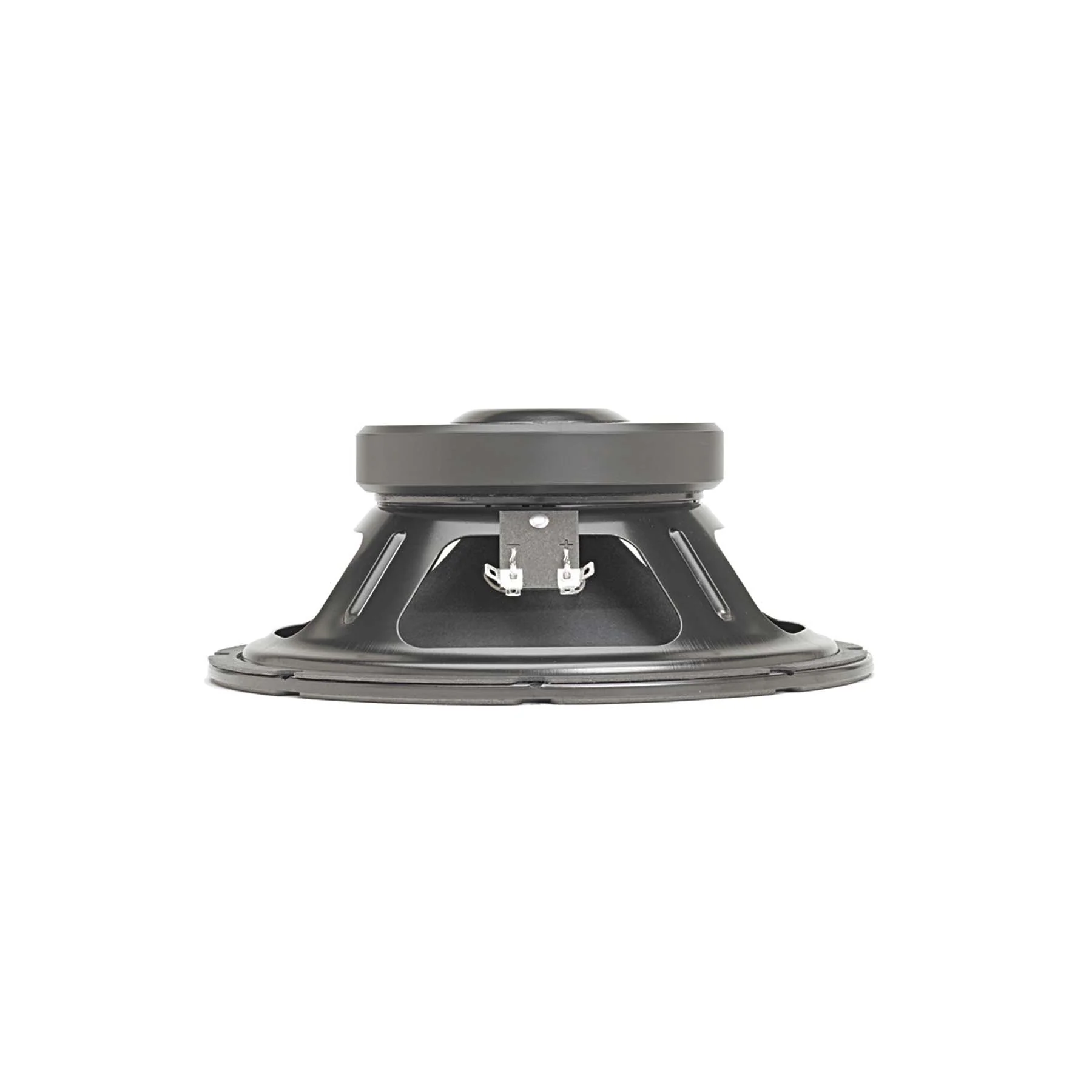

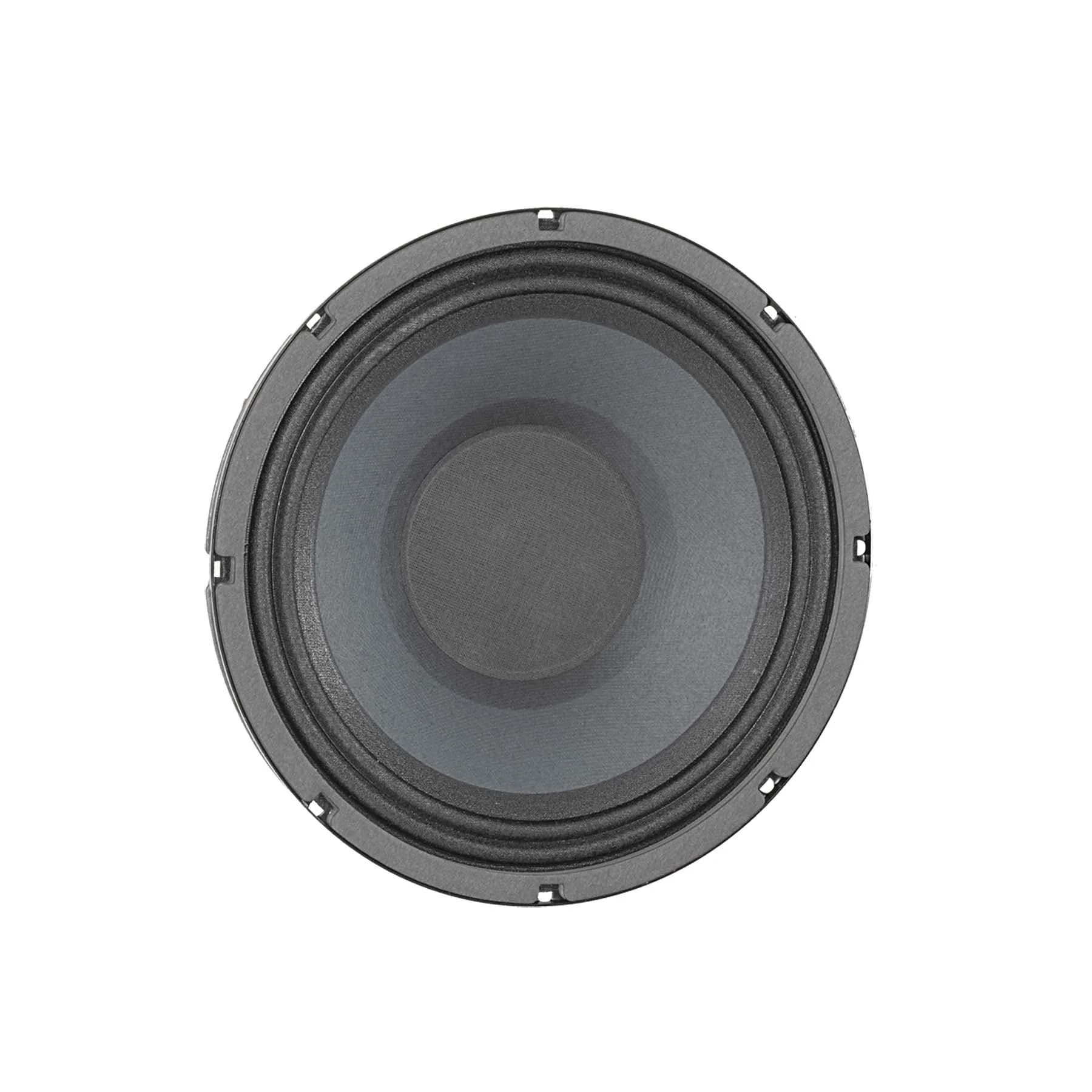

Eminence LEGEND B810 32Ω
32 Ω · 49–5100 Hz
No price for delivery to the UK
- Fs
- 52Hz
- Xmax
- 4.7mm
- SPL
- 93dB
- Pe
- 150W
- BL
- 17.7T·m
- Vd
- 165cm³
- Qts
- 0.65
- Vas
- 66L
Eminence LEGEND B810 is a 10-inch 32 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 52 Hz, Qts 0.65, Vas 66.4 L, Xmax 4.7 mm, sensitivity 93.4 dB, plus 165 cm³ Vd and 76 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 52Hz
- Qts
- 0.65
- Qes
- 0.68
- Qms
- 13.9
- Vas
- 66.4L
- Re
- 27.5Ω
- Le
- 2.72mH
Motor and cone
- BL
- 17.7T·m
- Sd
- 350cm²
- Mms
- 24g
- Xmax
- 4.7mm
- Vd †
- 165cm³
Power and response
- Sensitivity †
- 93.4dB
- Manufacturer sensitivity
- 92.7dB
- Power
- 150W
- Impedance
- 32Ω
- Range
- 49–5100Hz
- EBP †
- 76 · Sealed or vented
Size and mounting
- Diameter
- 256.8mm
- Cutout
- 231.9mm
- Depth
- 103.6mm
- Weight
- 3.0kg
Other published values
- Cms
- 0.39mm/N
- Power Program
- 300
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 10″
- BL
- 17.7T·m
- Fs
- 52Hz
- Le
- 2.72mH
- Re
- 27.5Ω
- Sd
- 350cm²
- Cms
- 0.39mm/N
- Mms
- 24g
- Qes
- 0.68
- Qms
- 13.9
- Qts
- 0.65
- SPL
- 93.4dB
- Vas
- 66.4L
- Xmax
- 4.7mm
- Power
- 150W
- Impedance
- 32Ω
- Sensitivity
- 92.7dB
- Low limit
- 49Hz
- Power Program
- 300
- Calculated sensitivity †
- 93.4dB
- High limit
- 5100Hz
- Manufacturer sensitivity
- 92.7dB
- Weight
- 3.0kg
- Diameter
- 256.8mm
- Depth
- 103.6mm
- Cutout
- 231.9mm
