Dayton AudioPCS10-4
£33.65 · 16% less, betterFs33 Hz −40%, better
Qts0.64 −7%
Vas49 L −21%, better
BL9.1 T·m +11%, better
Xmax5.6 mm +20%, better
Sensitivity85.9 dB −7.6, worse
10-inch LF driver · FE series · 150 W
FaitalPRO 10FE200 8Ω
50–4500 Hz
- Fs
- 55Hz
- Xmax
- 4.7mm
- SPL
- 94dB
- Pe
- 150W
- BL
- 8.2T·m
- Vd
- 168cm³
- Qts
- 0.69
- Vas
- 62L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
224 plotted pointsMedium confidence735 selected pixels of 993 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,307 selected pixels of 1,307 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,469 selected pixels of 1,469
FaitalPRO 10FE200 is a 10-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 55 Hz, Qts 0.69, Vas 61.7 L, Xmax 4.7 mm, sensitivity 93.5 dB, plus 168 cm³ Vd and 74 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £40.19.
The published T/S values agree with each other
Thiele/Small
- Fs
- 55Hz
- Qts
- 0.69
- Qes
- 0.74
- Qms
- 11.3
- Vas
- 61.7L
- Re
- 5.9Ω
- Le
- 0.42mH
Motor and cone
- BL
- 8.2T·m
- Sd
- 360cm²
- Mms
- 25g
- Xmax
- 4.7mm
- Vd †
- 168cm³
Power and response
- Sensitivity †
- 93.5dB
- Manufacturer sensitivity
- 96dB
- Power
- 150W
- Impedance
- 8Ω
- Range
- 50–4500Hz
- EBP †
- 74 · Sealed or vented
Size and mounting
- Diameter
- 256.8mm
- Cutout
- 233.8mm
- Bolt circle
- 243.8mm
- Depth
- 102mm
- Weight
- 2.2kg
Other published values
- Cms
- 0.34mm/N
- Rms
- 0.70kg/s
- Power Program
- 300
Sensitivity shows 93.5 dB, calculated from the T/S values. FaitalPRO publishes 96.0 dB, 2.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 10″
- BL
- 8.2T·m
- Fs
- 55Hz
- Le
- 0.42mH
- Re
- 5.9Ω
- Sd
- 360cm²
- Cms
- 0.34mm/N
- Mms
- 25g
- Qes
- 0.74
- Qms
- 11.3
- Qts
- 0.69
- Rms
- 0.70kg/s
- SPL
- 93.5dB
- Vas
- 61.7L
- Xmax
- 4.7mm
- Power
- 150W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 50Hz
- Power Program
- 300
- Calculated sensitivity †
- 93.5dB
- High limit
- 4500Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 2.2kg
- Diameter
- 256.8mm
- Depth
- 102mm
- Cutout
- 233.8mm
- Bolt circle
- 243.8mm
02
Compare
Same-size drivers, compared with the 10FE200. Clear differences are green when better and red when worse.
This driver10FE200
Best price
£40.19
Fs
55 Hz
Qts
0.69
Vas
61.7 L
BL
8.2 T·m
Xmax
4.7 mm
Sensitivity
93.5 dB
Power
150 W

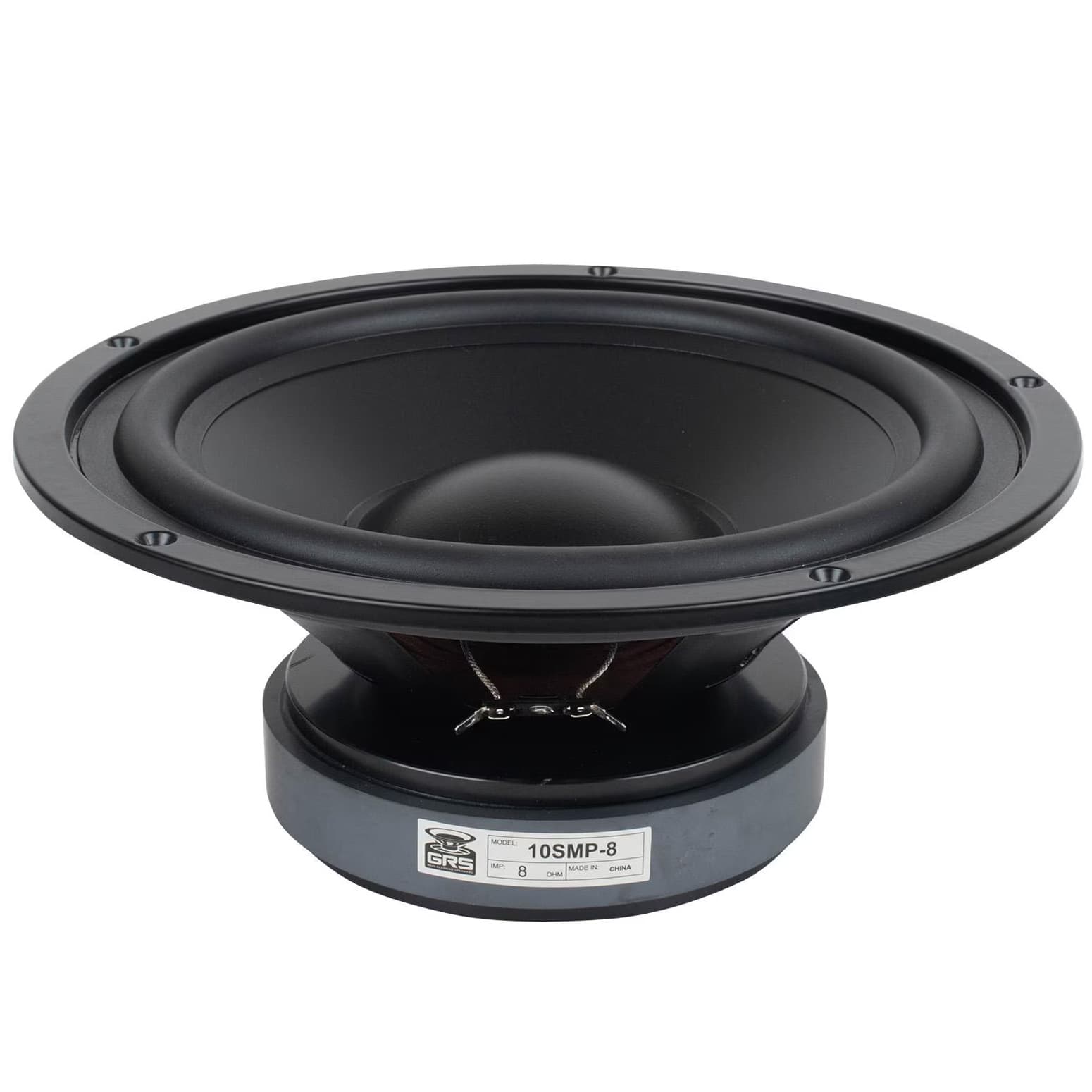

GRS10SMP-8
£38.89 · 3% lessFs29 Hz −47%, better
Qts0.58 −16%, better
Vas81 L +31%, worse
BL9.6 T·m +17%, better
Xmax5 mm +7%
Sensitivity86.4 dB −7.1, worse
GRS10SMP-4
£38.89 · 3% lessFs28 Hz −49%, better
Qts0.51 −26%, better
Vas86 L +39%, worse
BL8.2 T·m –
Xmax5 mm +7%
Sensitivity86.8 dB −6.7, worse
Dayton AudioPA255-8
£56.09 · 40% more, worseFs51 Hz −8%
Qts0.61 −12%, better
Vas41.2 L −33%, better
BL10.6 T·m +29%, better
Xmax5 mm +7%
Sensitivity91.1 dB −2.4, worse
EminenceALPHA-10A
£60.00 · 49% more, worseFs50 Hz −9%
Qts0.59 −14%, better
Vas82.2 L +33%, worse
BL7.5 T·m −9%
Xmax3.2 mm −31%, worse
Sensitivity94 dB +0.5
PeerlessSLS-P830668
£66.98 · 67% more, worseFs35 Hz −36%, better
Qts0.59 −14%, better
Vas62.9 L –
BL10.3 T·m +26%, better
Xmax10.9 mm +133%, better
Sensitivity88.2 dB −5.3, worse
EminenceBETA-10A
£82.50 · 105% more, worseFs53 Hz −4%
Qts0.49 −29%, better
Vas60.1 L –
BL9.6 T·m +17%, better
Xmax3 mm −36%, worse
Sensitivity94.4 dB +0.9
REDCATT101NPM
£83.69 · 108% more, worseFs53 Hz −4%
Qts0.55 −20%, better
Vas49.7 L −19%, better
BL9.6 T·m +17%, better
Xmax3.3 mm −30%, worse
Sensitivity92.9 dB −0.6
EminenceBETA 10CX
£106.91 · 166% more, worseFs49 Hz −11%, better
Qts0.38 −45%, better
Vas61.1 L –
BL10.9 T·m +33%, better
Xmax5 mm +7%
Sensitivity94.5 dB +1
Beyma10MI100
£134.51 · 235% more, worseFs50 Hz −9%
Qts0.21 −70%, better
Vas54 L −12%, better
BL18.7 T·m +128%, better
Xmax4.5 mm −4%
Sensitivity96.9 dB +3.4, better
SB AcousticsWO24P-4
£195.93 · 387% more, worseFs28 Hz −49%, better
Qts0.40 −42%, better
Vas71 L +15%, worse
BL7.6 T·m −7%
Xmax8.5 mm +82%, better
Sensitivity87.7 dB −5.8, worse
RCFMR10N301
£236.08 · 487% more, worseFs250 Hz +355%, worse
Qts0.65 −6%
Vas2 L −97%, better
BL20.7 T·m +152%, better
Xmax1 mm −79%, worse
Sensitivity98.4 dB +4.9, better
WavecorSW275BD02
£561.84 · 1298% more, worseFs32 Hz −43%, better
Qts0.67 –
Vas31 L −50%, better
BL15.2 T·m +85%, better
Xmax16 mm +243%, better
Sensitivity83.5 dB −10, worse
EminenceLEGEND B810
No current priceFs52 Hz −5%
Qts0.65 −6%
Vas66.4 L +8%
BL17.7 T·m +116%, better
Xmax4.7 mm –
Sensitivity93.4 dB –

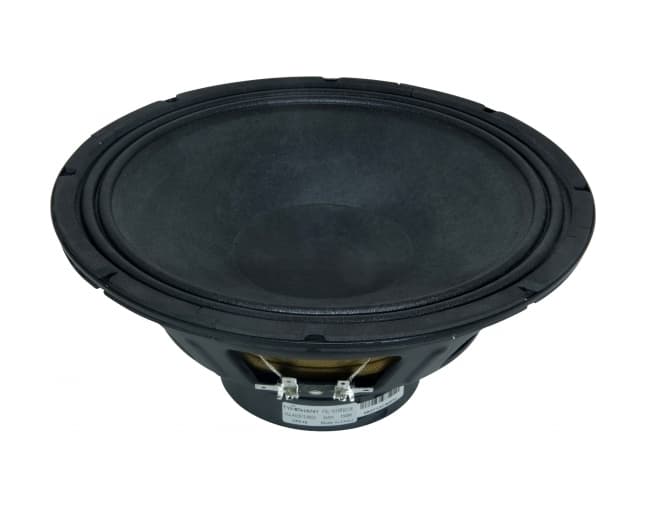

PeerlessFSL-1015R02-08
No current priceFs68 Hz +24%, worse
Qts0.64 −7%
Vas36 L −42%, better
BL9.5 T·m +16%, better
Xmax4.3 mm −8%
Sensitivity93.9 dB –
PRV Audio10FR300
No current priceFs60 Hz +9%
Qts0.65 −6%
Vas47.4 L −23%, better
BL9.8 T·m +19%, better
Xmax4 mm −14%, worse
Sensitivity93.8 dB –
MonacorSP-252E
No current priceFs42 Hz −24%, better
Qts0.50 −28%, better
Vas57 L −8%
BL8.5 T·m +4%
Xmax4 mm −14%, worse
Sensitivity90.5 dB −3, worse
CIARECME250
No current priceFs48 Hz −13%, better
Qts0.48 −30%, better
Vas74 L +20%, worse
BL7.5 T·m −9%
Xmax4.5 mm −4%
Sensitivity93.9 dB –
JensenMOD10-70-8
No current priceFs99 Hz +80%, worse
Qts0.69 –
Vas19.8 L −68%, better
BL9.3 T·m +13%, better
Xmax1.5 mm −68%, worse
Sensitivity96.3 dB +2.8, better
CIARECMI250
No current priceFs55 Hz –
Qts0.50 −28%, better
Vas34 L −45%, better
BL9 T·m +10%
Xmax4.5 mm −4%
Sensitivity92.4 dB −1.1
CIARECMI250ND
No current priceFs59 Hz +7%
Qts0.50 −28%, better
Vas34 L −45%, better
BL9 T·m +10%
Xmax4.5 mm −4%
Sensitivity93.3 dB –
PRV Audio69MR500-PHP-4
No current priceFs92 Hz +67%, worse
Qts0.65 −6%
Vas15.2 L −75%, better
BL6.8 T·m −17%, worse
Xmax2.9 mm −39%, worse
Sensitivity94.4 dB +0.9
Acoustic EleganceIB10AU-4
No current priceFs25 Hz −55%, better
Qts0.48 −30%, better
Vas68 L +10%, worse
BL8.8 T·m +7%
Xmax18 mm +285%, better
Sensitivity84.8 dB −8.7, worse
MonacorSP-252C
No current priceFs35 Hz −36%, better
Qts0.41 −41%, better
Vas96 L +56%, worse
BL8.1 T·m –
Xmax5 mm +7%
Sensitivity91.5 dB −2, worse
B&C10CLX64
No current priceFs70 Hz +27%, worse
Qts0.63 −9%
Vas21 L −66%, better
BL11.4 T·m +39%, better
Xmax5.5 mm +18%, better
Sensitivity92.3 dB −1.2
JensenJC10-50EL-8
No current priceFs100 Hz +82%, worse
Qts0.80 +16%, worse
Vas20.4 L −67%, better
BL9.3 T·m +13%, better
Xmax1 mm −79%, worse
Sensitivity96.1 dB +2.6, better
MonacorSP-252PA
No current priceFs55 Hz –
Qts0.70 –
Vas30 L −51%, better
BL9.7 T·m +18%, better
Xmax2.5 mm −46%, worse
Sensitivity89 dB −4.5, worse
Cube AudioF10 SELECT V2
No current priceFs28 Hz −49%, better
Qts0.58 −16%, better
Vas185 L +200%, worse
BL9.2 T·m +12%, better
Xmax2.5 mm −46%, worse
Sensitivity90.1 dB −3.4, worse
EminenceDELTALITE 2510
No current priceFs53 Hz −4%
Qts0.42 −39%, better
Vas52.5 L −15%, better
BL10.6 T·m +29%, better
Xmax4.2 mm −10%, worse
Sensitivity94.4 dB +0.9
PRV Audio10MR650A-4
No current priceFs62 Hz +13%, worse
Qts0.39 −43%, better
Vas44 L −29%, better
BL10.0 T·m +21%, better
Xmax5.2 mm +12%, better
Sensitivity96.2 dB +2.7, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
- Parts Express4.9 out of 512 ratings · Checked 24 Oct 2026Read reviews on Parts Express
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £40.91, the lowest price | Stock not listed | Visit shop at Lean Business | |
Blue Aran | £41.27 | 0.9% above the lowest price | 2 in stock | Visit shop at Blue Aran |
Lean Audio | £41.27 | 0.9% above the lowest price | Back order | Visit shop at Lean Audio |
Thomann | £42.00 | 2.7% above the lowest price | In stock | Visit shop at Thomann |
Thomann Not currently listed · Last seen 21 Apr 2026 | £43.00 | 5.1% above the lowest price | Stock not listed | Visit shop at Thomann |
Audio Video Parts Import VAT and duty may apply | £45.23 | 11% above the lowest price | In stock | Visit shop at Audio Video Parts |
SoundImports Import VAT and duty may apply | £54.38 | 33% above the lowest price | 8 in stock | Visit shop at SoundImports |
Parts Express Import VAT and duty may apply | £62.09 | 52% above the lowest price | Back order | Visit shop at Parts Express |
Best price over time
Tracked since 1 Apr
Recent changes
- 4 OctThomann£43.00 → £42.00Down 2.3% from £43.00
- 26 SepThomann£42.00 → £43.00Up 2.4% from £42.00
- 18 SepThomann£43.00 → £42.00Down 2.3% from £43.00
