LF DriverBETA series
Eminence

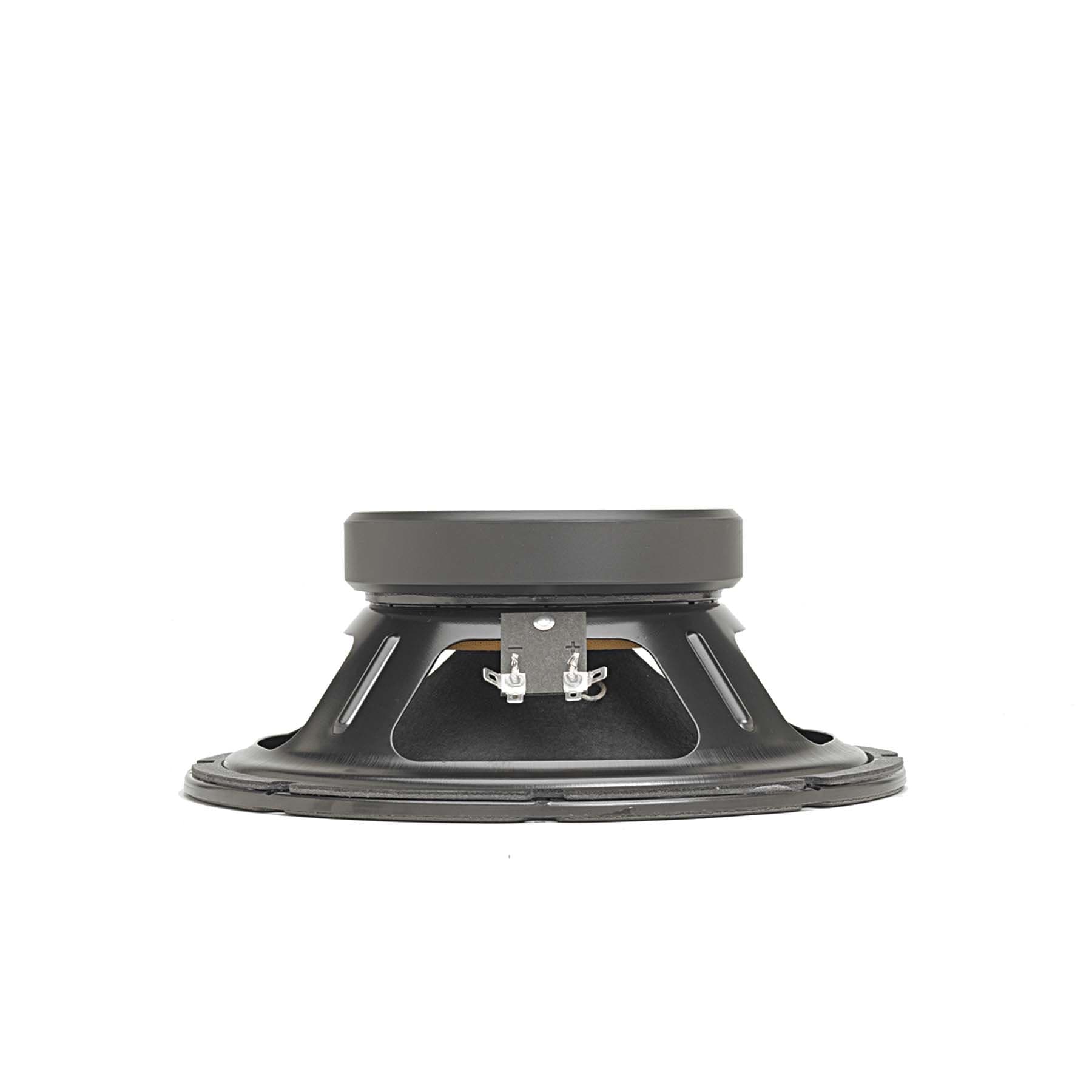

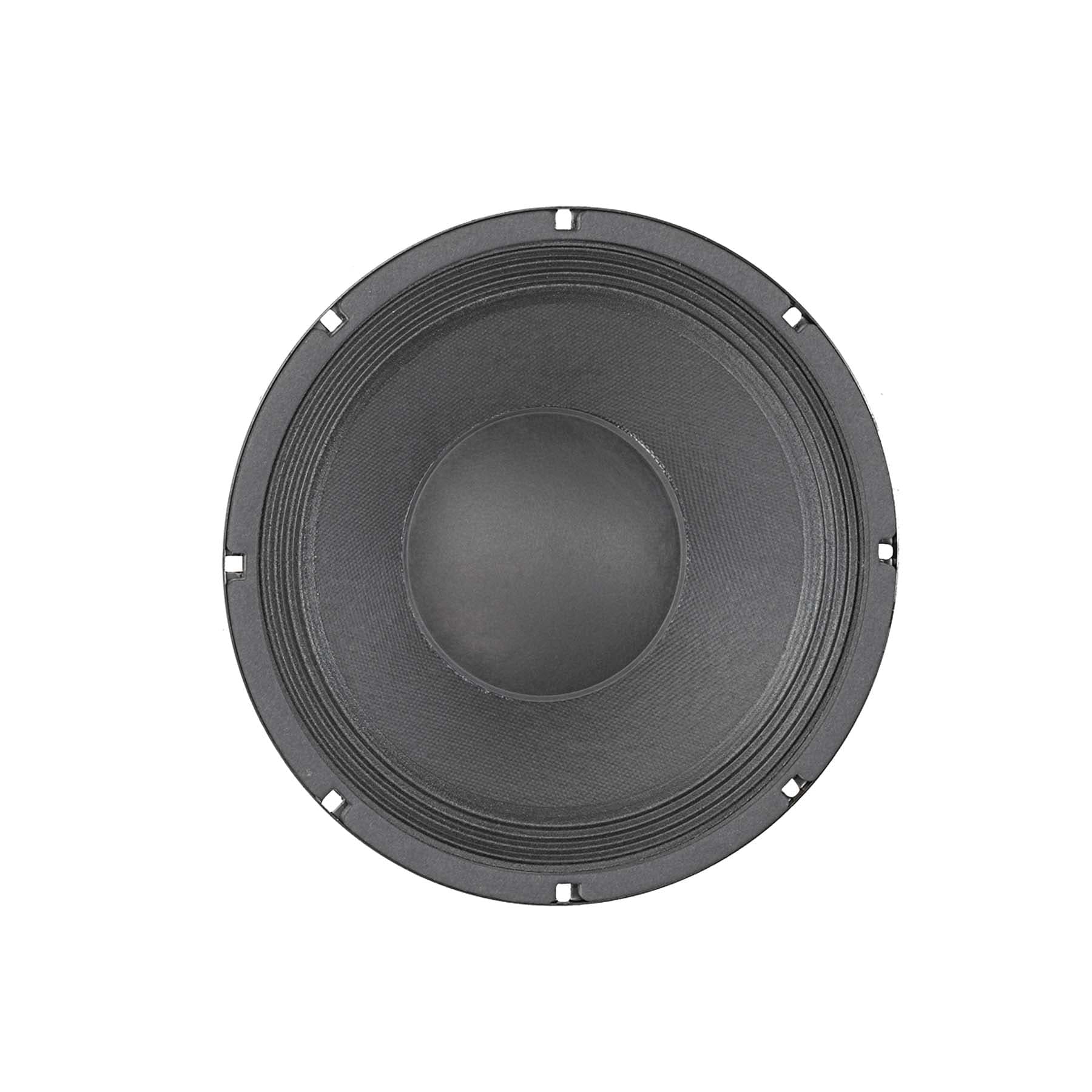

Eminence BETA-10A
Eminence BETA-10A is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 53Hz, Qts 0.49, Vas 60.1L, Xmax 3mm, sensitivity 94.4dB, plus 103cm³ Vd and 102 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £83.81.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
94.4dB
97.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
102
Vented alignment
Vd
103cm³
T/S Parameters
Valid
Fs53Hz
Qts0.49
Qes0.52
Qms8.1
Vas60.1L
Re5.8Ω
Le0.67mH
BL9.6Tm
Sd345cm²
Mms25g
Xmax3.0mm
SPL94dB
Power250W
Impedance8Ω
F Low51Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£83.81
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.1kg
Diameter256.8mm
Overall Depth101.1mm
Cutout Diameter231.9mm
Bolt Circle Diameter243.8mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
BETA-10A
10"
Best current price
£83.81
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
4 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
28% cheaper£60.00
Eminence
ALPHA-10A
10"
Lower price
Xmax3.2mm+7%
Qts0.59+20%
BL7.5Tm-22%
Vas82.2L+37%
Qes0.66+27%
70%
Similarity

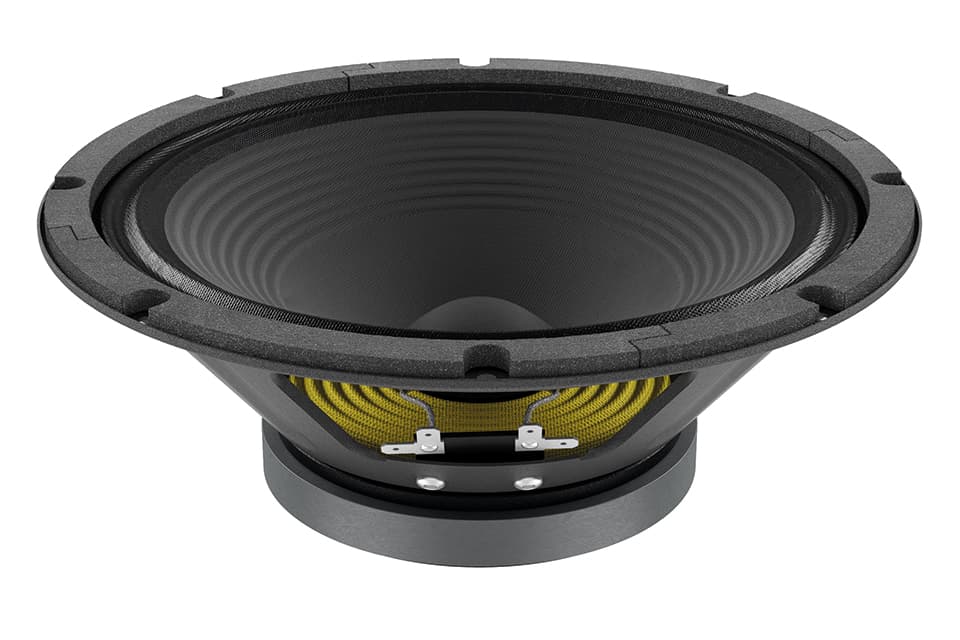

Lavoce
WSF101.70G
10"
Xmax2.7mm-10%
Qts0.5+2%
BL11.9Tm+24%
Vas36L-40%
Qes0.53+2%
56%
Similarity
Oberton
10M150
10"
Xmax3.3mm+8%
Qts0.43-12%
BL11.6Tm+21%
Vas25.9L-57%
Qes0.45-13%
42%
Similarity
PRV Audio
10MR650A-NDY
10"
Xmax3.5mm+17%
Qts0.38-22%
BL12.7Tm+33%
Vas40.7L-32%
Qes0.4-23%
