Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Not enough T/S data
Missing RMS power
Kartesian Sub265_vKi-S 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DrivervKi series
Kartesian

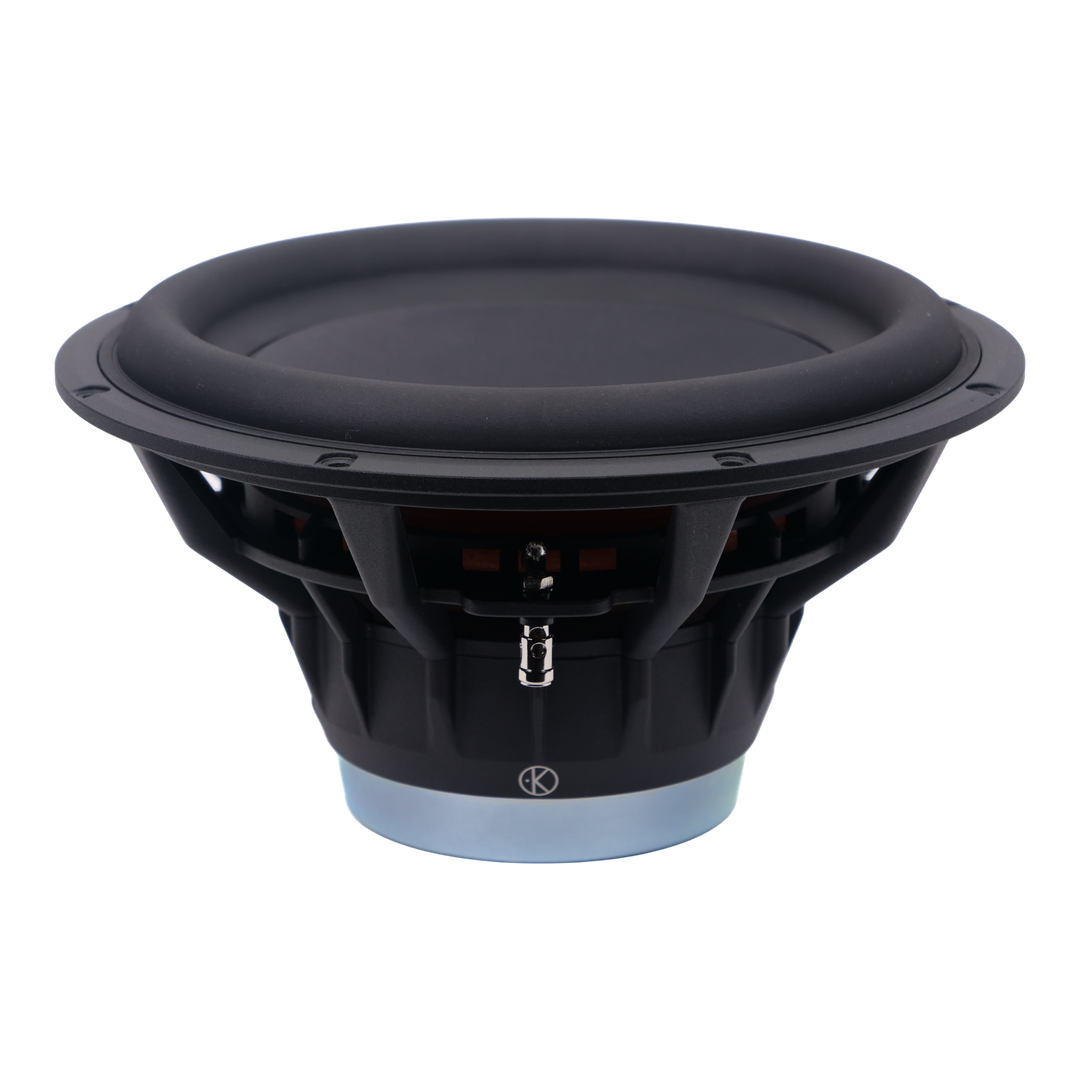

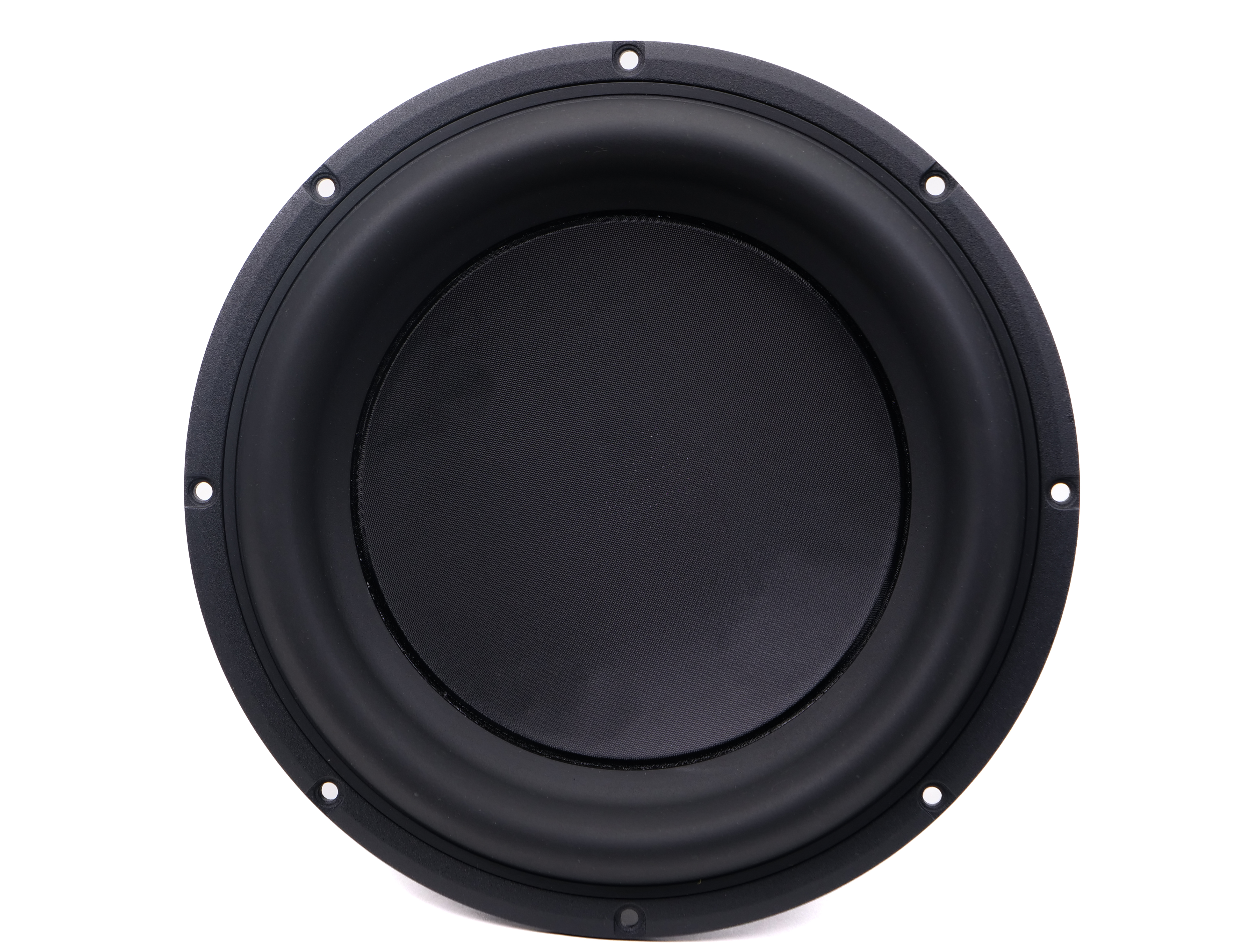

Kartesian Sub265_vKi-S
Kartesian Sub265_vKi-S is a 10.5" 4 ohm LF driver. The validated T/S data includes Fs 22Hz, Qts 0.46, Vas 103.4L, Xmax 16mm, sensitivity 85.5dB, plus 554cm³ Vd and 45 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10.5"
Impedance
4Ω
Sensitivity
85.5dB
89.0dBmanufacturer; using T/S-derived value (3.5dB delta).
EBP
45
Sealed alignment
Vd
554cm³
T/S Parameters
Valid
Fs22Hz
Qts0.46
Qes0.49
Qms7.6
Vas103.4L
Re3.4Ω
Le0.32mH
BL9.1Tm
Sd346cm²
Mms86g
Xmax16.0mm
SPL86dB
Impedance4Ω
F Low25Hz
F High500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter265.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Kartesian
Sub265_vKi-S
10.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
80%
Similarity
£62.50
SB Acoustics
SB26SFCL38-4
10"
Xmax15.8mm-1%
Qts0.43-7%
BL8.2Tm-10%
Vas104L+1%
Qes0.47-4%
68%
Similarity
£75.95
SB Acoustics
SB26SFCL38-8
10"
Xmax16.4mm+2%
Qts0.53+15%
BL9.6Tm+6%
Vas107L+3%
Qes0.6+22%
65%
Similarity
Acoustic Elegance
IB10AU-4
10"
Xmax18mm+13%
Qts0.48+4%
BL8.8Tm-4%
Vas68L-34%
Qes0.56+14%
57%
Similarity
Acoustic Elegance
SBP10-4
10"
Xmax14mm-12%
Qts0.41-12%
BL10.4Tm+15%
Vas68.2L-34%
Qes0.46-7%
49%
Similarity
Dayton Audio
RSS265HF-4
10"
Xmax12.3mm-23%
Qts0.45-2%
BL11.4Tm+26%
Vas54L-48%
Qes0.53+8%
