LF DrivervKi series
Kartesian

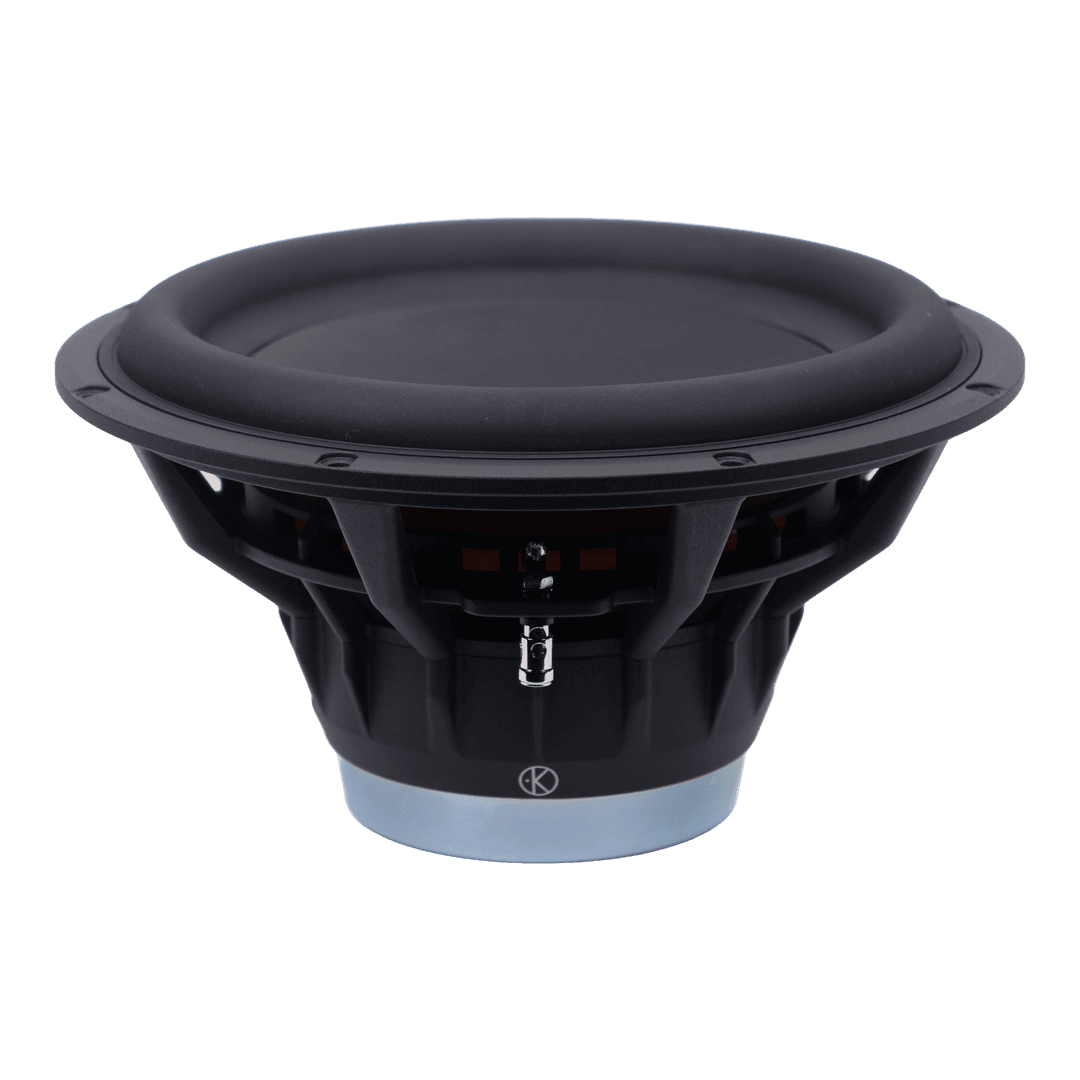

Kartesian Sub265_vKi-V
Kartesian Sub265_vKi-V is a 10.5" 8 ohm LF driver. The validated T/S data includes Fs 24Hz, Qts 0.40, Vas 91.1L, Xmax 16mm, sensitivity 86.8dB, plus 554cm³ Vd and 57 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10.5"
Impedance
8Ω
Sensitivity
86.8dB
EBP
57
Either alignment
Vd
554cm³
T/S Parameters
Valid
Fs24Hz
Qts0.40
Qes0.42
Qms7.8
Vas91.1L
Re6.5Ω
Le0.70mH
BL13.8Tm
Sd346cm²
Mms82g
Xmax16.0mm
SPL87dB
Impedance8Ω
F Low20Hz
F High400Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter265.0mm
