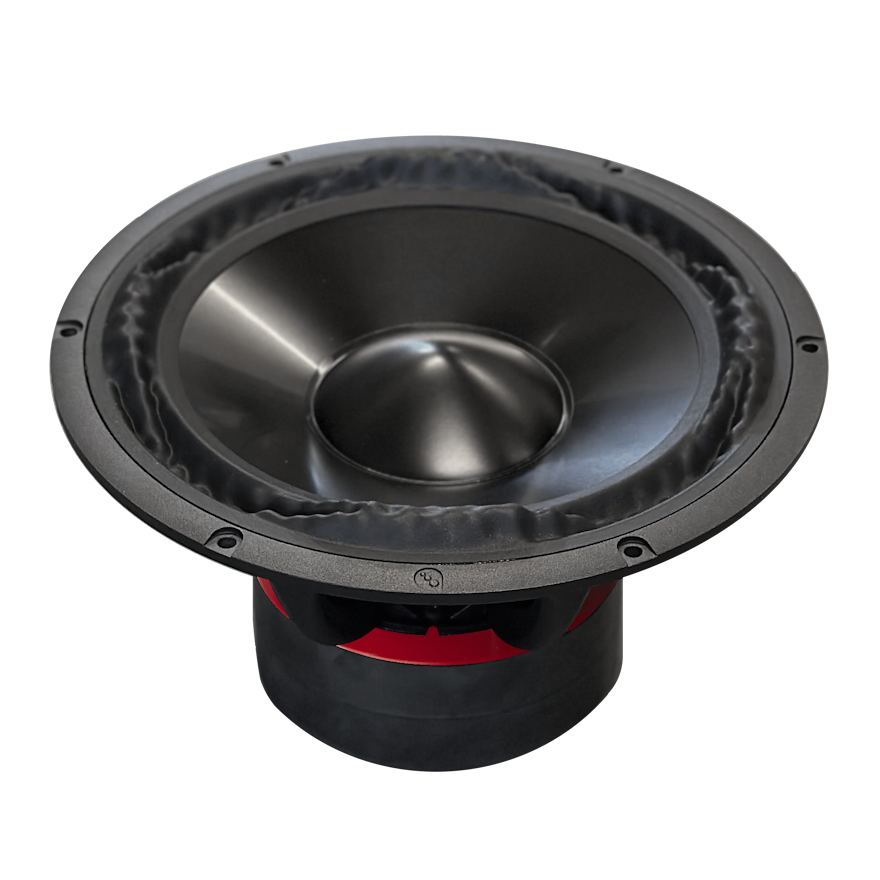

Purifi PTT10.0X04-NAB-01
Purifi PTT10.0X04-NAB-01 is a 10" 4 ohm LF driver rated at 135W RMS. The validated T/S data includes Fs 24Hz, Qts 0.33, Vas 82L, Xmax 14.8mm, sensitivity 87.1dB, plus 531cm³ Vd and 69 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
4Ω
RMS Power
135W
Sensitivity
87.1dB
EBP
69
Either alignment
Vd
531cm³
T/S Parameters
Valid
Fs24Hz
Qts0.33
Qes0.35
Qms5.5
Vas82.0L
Re3.9Ω
Le0.62mH
BL12.8Tm
Sd360cm²
Mms98g
Xmax14.8mm
SPL87dB
Power135W
Impedance4Ω
Min Impedance4.7Ω
Voice Coil52mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
Diameter269.0mm
Cutout Diameter242.0mm
Bolt Circle Diameter257.5mm
