Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverRV series
Volt
Volt RV2550

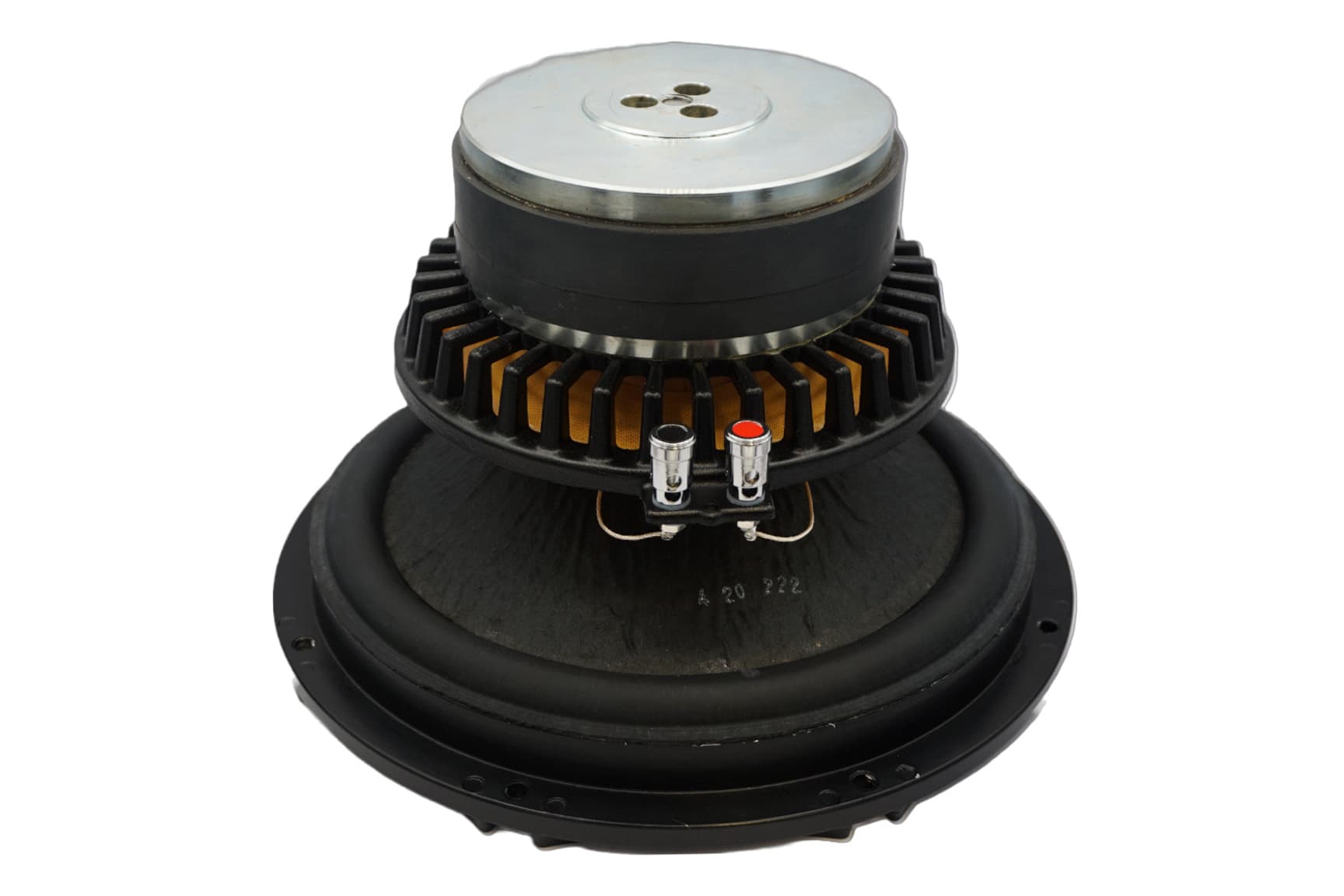

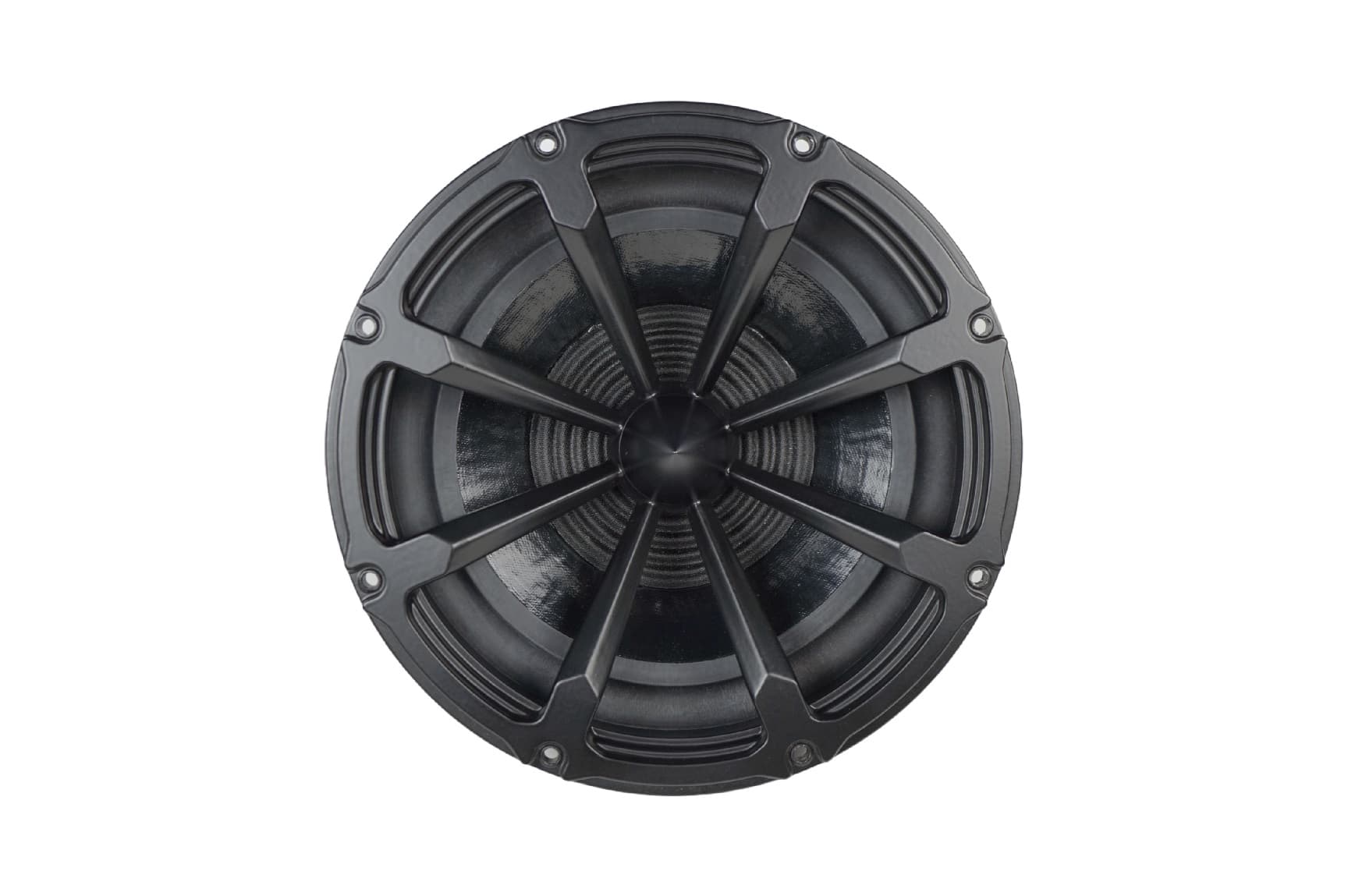

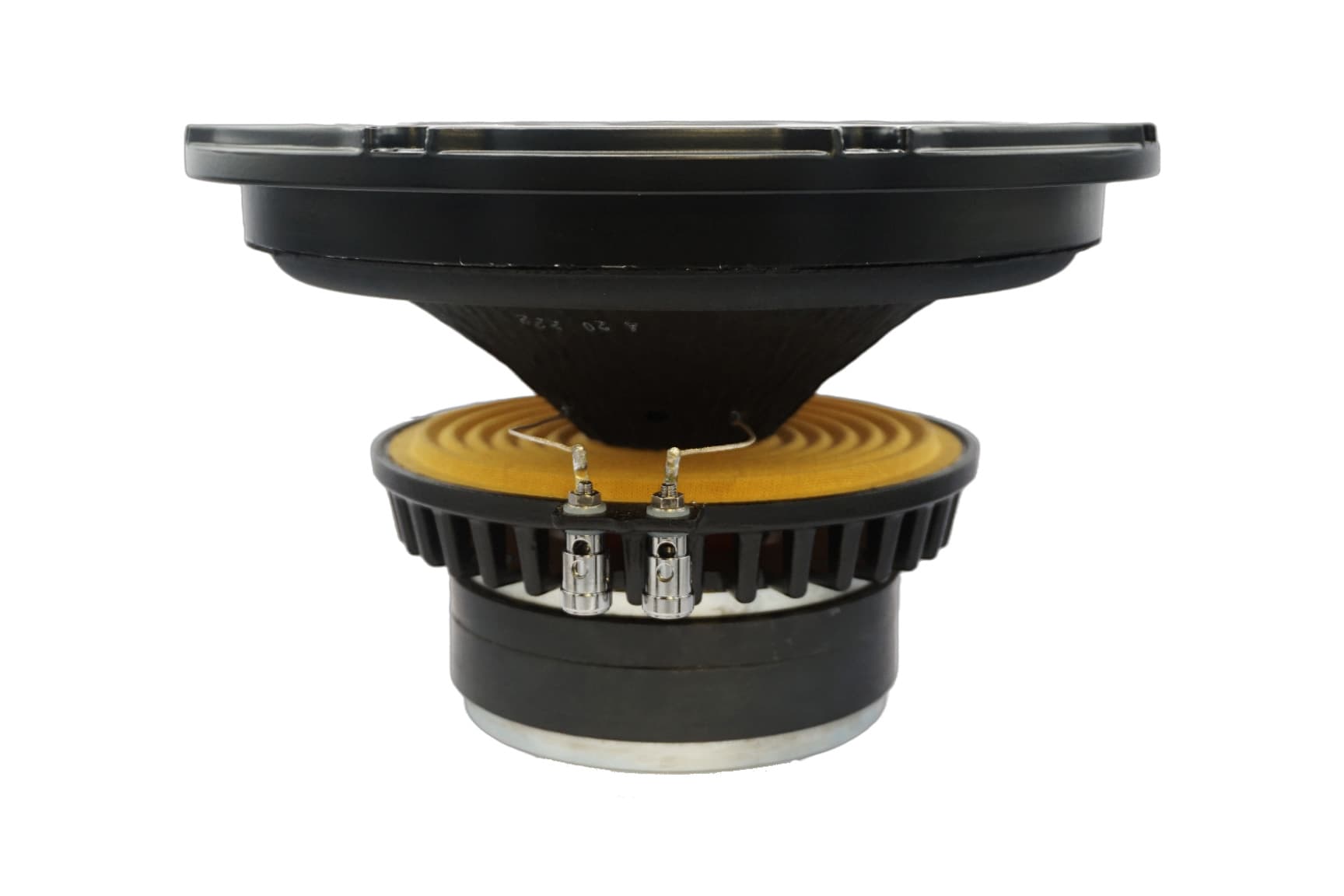

Volt RV2550 is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 28Hz, Qts 0.33, Vas 71.8L, Xmax 12mm, sensitivity 88.2dB, plus 396cm³ Vd and 74 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £443.61.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
88.2dB
EBP
74
Either alignment
Vd
396cm³
T/S Parameters
Valid
Fs28Hz
Qts0.33
Qes0.38
Qms2.6
Vas71.8L
Re5.9Ω
Le1.45mH
BL13.9Tm
Sd330cm²
Mms69g
Xmax12.0mm
SPL88dB
Power250W
Impedance8Ω
F Low20Hz
F High500Hz
Voice Coil50mm
Pricing & availability
Price definitionsPrice movement
Best current price
£443.61
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.8kg
Diameter270.0mm
Overall Depth175.0mm
Cutout Diameter241.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Volt
RV2550
10"
Best current price
£443.61
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
72% cheaper£125.45
Eminence
KAPPALITE KL3010LF-8
10"
Lower price
Xmax8.5mm-29%
Qts0.31-6%
BL18Tm+29%
Vas47.3L-34%
Qes0.33-13%
54%
Similarity
66% cheaper£149.42
FaitalPRO
10RS430
10"
Lower price
Xmax13.6mm+13%
Qts0.28-15%
BL18Tm+29%
Vas59.2L-18%
Qes0.29-24%
67%
Similarity
33% cheaper£298.95
Scanspeak
26W/4558T00
10"
Lower price
Xmax12.5mm+4%
Qts0.31-6%
BL10.5Tm-24%
Vas94.9L+32%
Qes0.33-13%
82%
Similarity
Visaton
TIW 250 XS - 8 OHM
10"
Xmax14mm+17%
Qts0.330%
BL13Tm-6%
Vas66L-8%
Qes0.35-8%
76%
Similarity
Purifi
PTT10.0X04-NAB-01
10"
Xmax14.8mm+23%
Qts0.330%
BL12.8Tm-8%
Vas82L+14%
Qes0.35-8%
64%
Similarity
Dayton Audio
RSS265HO-4
10"
Xmax12.3mm+3%
Qts0.35+6%
BL17.6Tm+27%
Vas29.4L-59%
Qes0.39+3%
59%
Similarity
Purifi
PTT10.0X08-NAB-01
10"
Xmax14.8mm+23%
Qts0.4+21%
BL15.7Tm+13%
Vas81L+13%
Qes0.42+11%
51%
Similarity
Kartesian
Wom265_vKi-6
10.5"
Xmax10mm-17%
Qts0.34+3%
BL10.4Tm-25%
Vas114.6L+60%
Qes0.37-3%
