LF DriverSB29 series
SB Acoustics
SB Acoustics SB29SWNRX-S75-6
SB Acoustics SB29SWNRX-S75-6 is a 10" 6 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 20Hz, Qts 0.29, Vas 66L, Xmax 22mm, sensitivity 84.3dB, plus 686cm³ Vd and 65 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £141.54.
Size
10"
Impedance
6Ω
RMS Power
200W
Sensitivity
84.3dB
86.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
65
Either alignment
Vd
686cm³

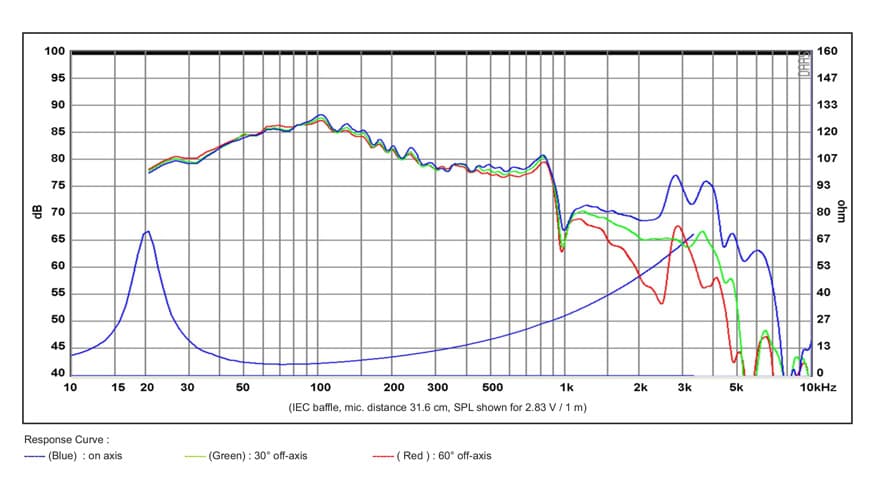

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,781 selected pixels of 3,591 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,461 selected pixels of 9,686
T/S Parameters
Valid
Fs20Hz
Qts0.29
Qes0.31
Qms4.5
Vas66.0L
Re4.5Ω
Le3.00mH
BL15.4Tm
Sd312cm²
Mms132g
Xmax22.0mm
SPL84dB
Power200W
Impedance6Ω
Voice Coil76mm
Flux Density0.63T
Pricing & availability
Price definitionsPrice movement
Best current price
£141.54
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.4kg
