Overview
LF Driver
Eighteen Sound
Eighteen Sound 10W500
Eighteen Sound 10W500 is a 10" 8 ohm LF driver rated at 280W RMS. The validated T/S data includes Fs 53Hz, Qts 0.29, Vas 45.2L, Xmax 5.5mm, sensitivity 95.4dB, plus 193cm³ Vd and 171 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £119.37.
Size
10"
Impedance
8Ω
RMS Power
280W
Sensitivity
95.4dB
98.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
171
Vented alignment
Vd
193cm³

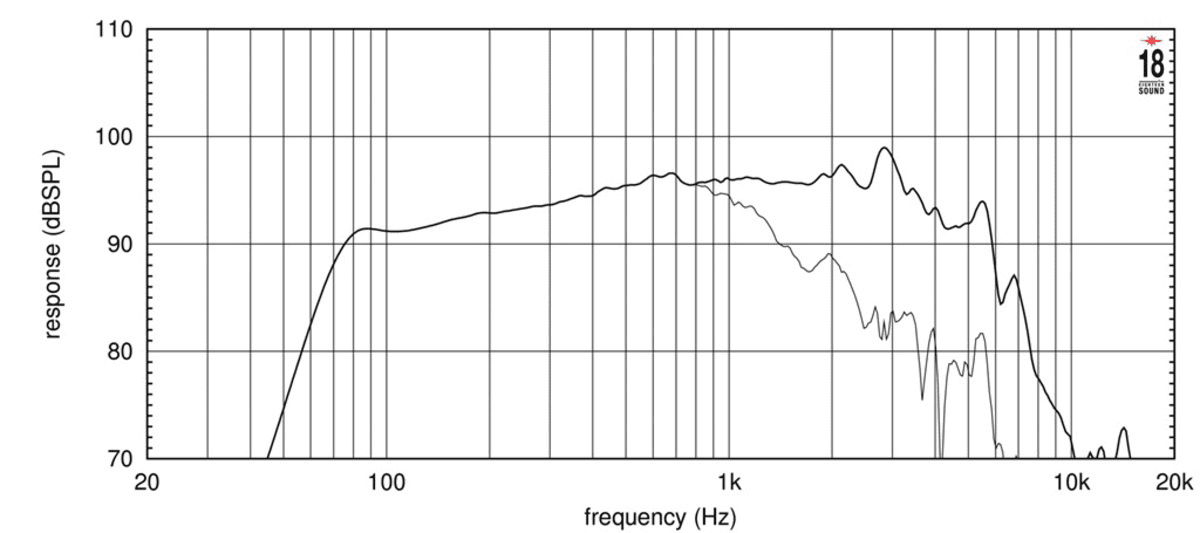

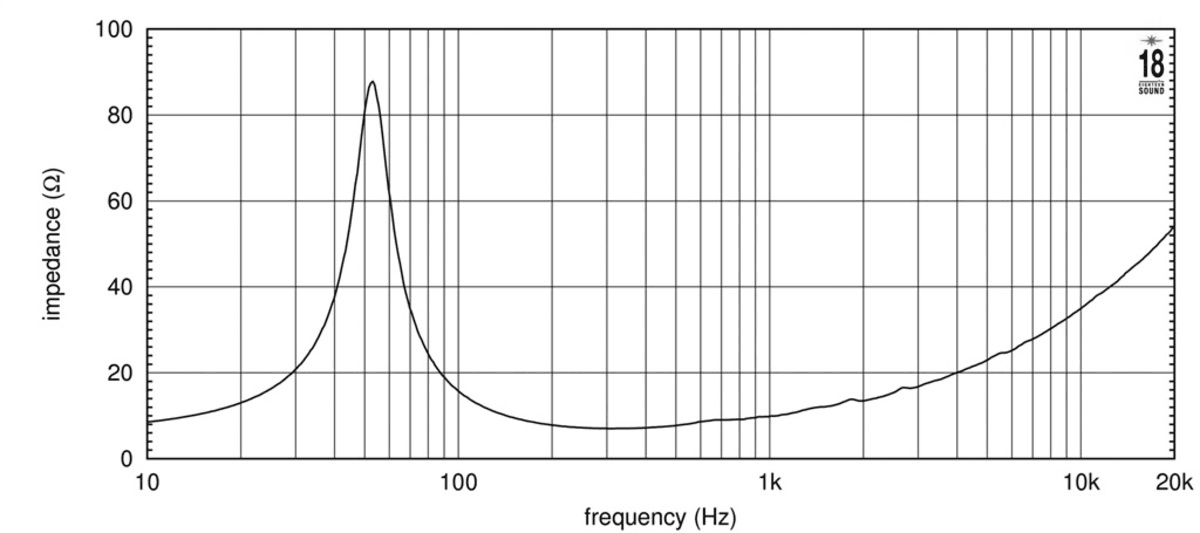

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,174 selected pixels of 1,752
T/S Parameters
Valid
Fs53Hz
Qts0.29
Qes0.31
Qms4.2
Vas45.2L
Re6.0Ω
Le0.72mH
BL14.6Tm
Sd350cm²
Mms33g
Xmax5.5mm
SPL95dB
Power280W
Power Nominal280W
Impedance8Ω
F Low55Hz
F High4500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£119.37
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.7kg
Diameter260.0mm
Overall Depth121.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter244.0mm
