10-inch LF driver · SP series · 66 mm voice coil · 300 W
Monacor SP-10A/302PA 8Ω
8 Ω · 3–3500 Hz
No current price
- Fs
- 55Hz
- Xmax
- 4mm
- SPL
- 95dB
- Pe
- 300W
- BL
- 15.8T·m
- Vd
- 138cm³
- Qts
- 0.30
- Vas
- 40L
Monacor SP-10A/302PA is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 55 Hz, Qts 0.30, Vas 40 L, Xmax 4 mm, sensitivity 95.3 dB, plus 138 cm³ Vd and 177 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 55Hz
- Qts
- 0.30
- Qes
- 0.31
- Qms
- 7.4
- Vas
- 40L
- Re
- 6.4Ω
- Le
- 0.65mH
Motor and cone
- BL
- 15.8T·m
- Sd
- 346cm²
- Mms
- 35g
- Xmax
- 4mm
- Vd †
- 138cm³
- Voice coil
- 66mm
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 98dB
- Power
- 300W
- Impedance
- 8Ω
- Range
- 3–3500Hz
- EBP †
- 177 · Leans vented

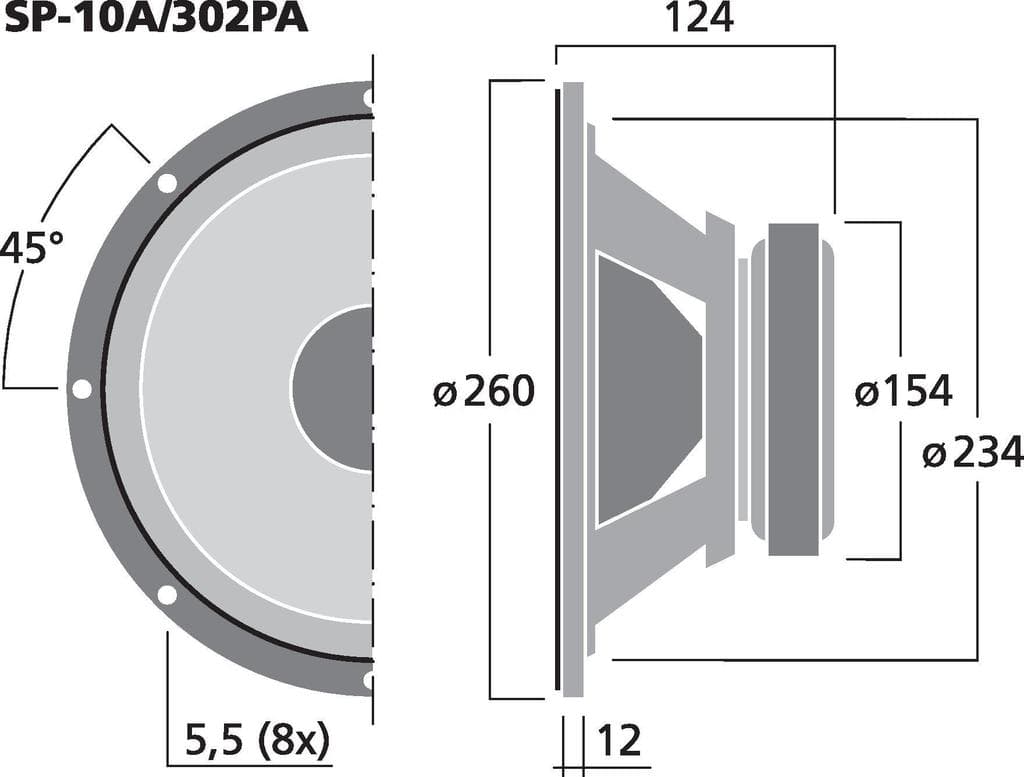

Size and mounting
- Diameter
- 260mm
- Cutout
- 234mm
- Depth
- 122mm
- Weight
- 5.0kg
Other published values
- Cms
- 0.24mm/N
- Power Peak
- 600
Other dimensions
- Mounting Depth
- 112
Sensitivity shows 95.3 dB, calculated from the T/S values. Monacor publishes 98.0 dB, 2.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 10″
- BL
- 15.8T·m
- Fs
- 55Hz
- Le
- 0.65mH
- Re
- 6.4Ω
- Sd
- 346cm²
- Cms
- 0.24mm/N
- Mms
- 35g
- Qes
- 0.31
- Qms
- 7.4
- Qts
- 0.30
- SPL
- 95.3dB
- Vas
- 40L
- Xmax
- 4mm
- Power
- 300W
- Impedance
- 8Ω
- Power Peak
- 600
- Sensitivity
- 98dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 95.3dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 66mm
- Weight
- 5.0kg
- Diameter
- 260mm
- Depth
- 122mm
- Mounting Depth
- 112
- Cutout
- 234mm
