10-inch LF driver · NTR10 series · 64 mm voice coil · 250 W

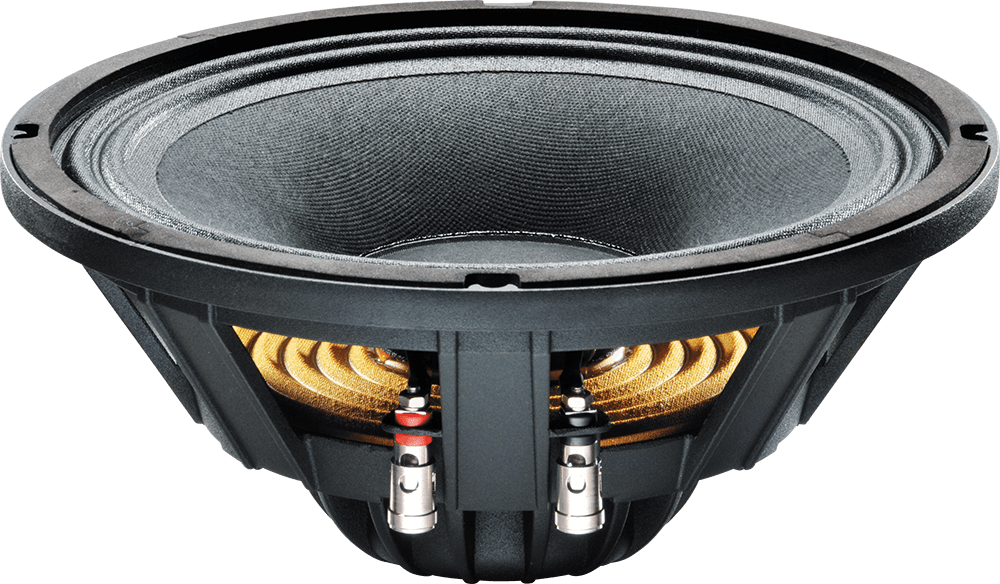

Celestion NTR10-2520D 8Ω
8 Ω · 55–3500 Hz
No price for delivery to the UK
- Fs
- 57Hz
- Xmax
- 4mm
- SPL
- 95dB
- Pe
- 250W
- BL
- 15.8T·m
- Vd
- 139cm³
- Qts
- 0.29
- Vas
- 35L

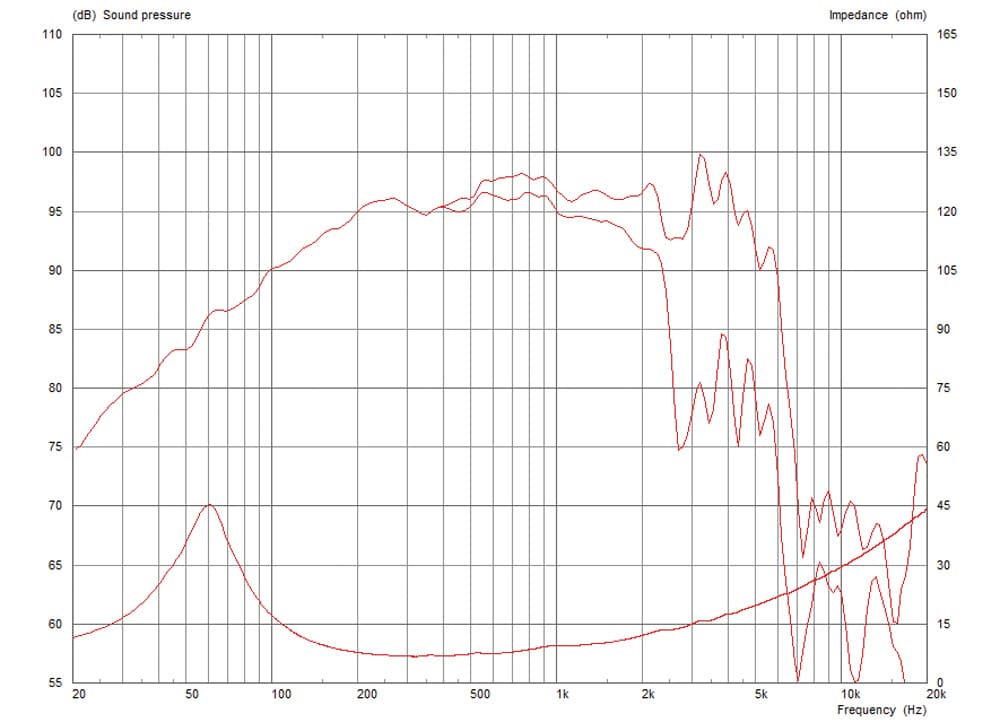

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence215 selected pixels of 388
Published graphs
Celestion NTR10-2520D is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 57 Hz, Qts 0.29, Vas 34.7 L, Xmax 4 mm, sensitivity 95.1 dB, plus 139 cm³ Vd and 178 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 57Hz
- Qts
- 0.29
- Qes
- 0.32
- Qms
- 2.8
- Vas
- 34.7L
- Re
- 5.9Ω
- Le
- 0.49mH
Motor and cone
- BL
- 15.8T·m
- Sd
- 346cm²
- Mms
- 38g
- Xmax
- 4mm
- Vd †
- 139cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 95.1dB
- Manufacturer sensitivity
- 96dB
- Power
- 250W
- Impedance
- 8Ω
- Range
- 55–3500Hz
- EBP †
- 178 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 235mm
- Bolt circle
- 247mm
- Depth
- 113mm
- Weight
- 2.2kg
Other published values
- Cms
- 0.20mm/N
- Rms
- 4.82kg/s
- Power Program
- 500
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 10″
- BL
- 15.8T·m
- Fs
- 57Hz
- Le
- 0.49mH
- Re
- 5.9Ω
- Sd
- 346cm²
- Cms
- 0.20mm/N
- Mms
- 38g
- Qes
- 0.32
- Qms
- 2.8
- Qts
- 0.29
- Rms
- 4.82kg/s
- SPL
- 95.1dB
- Vas
- 34.7L
- Xmax
- 4mm
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 55Hz
- Power Program
- 500
- Calculated sensitivity †
- 95.1dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 96dB
- Voice coil
- 64mm
- Weight
- 2.2kg
- Diameter
- 260mm
- Depth
- 113mm
- Cutout
- 235mm
- Bolt circle
- 247mm
