LF Driver10NDL series
B&C
B&C 10NDL64
B&C 10NDL64 is a 10" 16 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 58Hz, Qts 0.30, Vas 34.5L, Xmax 4.5mm, sensitivity 95.1dB, plus 144cm³ Vd and 176 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £144.97.
Size
10"
Impedance
16Ω
RMS Power
250W
Sensitivity
95.1dB
97.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
176
Vented alignment
Vd
144cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs58Hz
Qts0.30
Qes0.33
Qms3.6
Vas34.5L
Re10.5Ω
Le1.30mH
BL19.1Tm
Sd320cm²
Mms32g
Xmax4.5mm
SPL95dB
Power250W
Power Nominal250W
Impedance16Ω
Min Impedance12.2Ω
F Low50Hz
F High3000Hz
Voice Coil64mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Best current price
£144.97
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

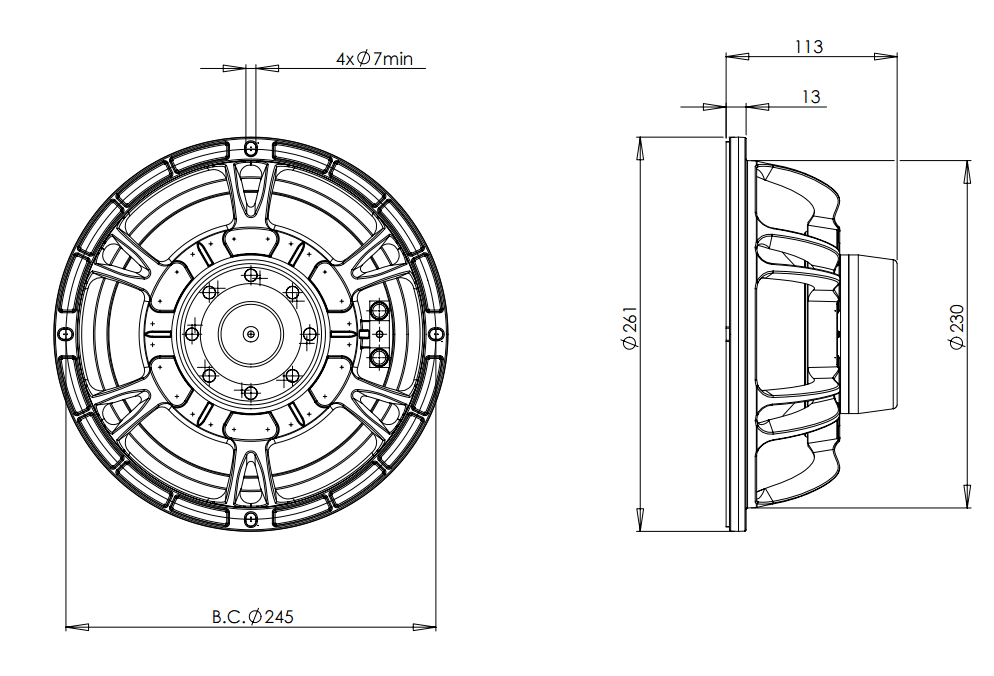

Dimensions & Physical
Weight2.9kg
Diameter261.0mm
Overall Depth113.0mm
Cutout Diameter230.0mm
Bolt Circle Diameter245.0mm
Additional Manufacturer Specs
Bl19.1 Tm
Fs58 Hz
Le1.3 mH
Re10.5 Ω
Sd320 cm² (50 in²)
Ebp176 Hz
Mms32 g
Qes0.33
Qms3.6
Qts0.3
Vas34.5 dm³ (1.22 ft³)
η01.95 %
ConeRCK10NDL6416
Xmax4.5 mm
Xvar7 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth13 mm (0.51 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter250 mm (10 in)
Winding MaterialAluminium
Magnetic Gap Depth8 mm (0.31 in)
Recommended Tuning62 Hz
Recommended LoadingVented Box
Bolt Circle Diameter245 mm (9.6 in)
Recommended Enclosure26 dm³ (0.92 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter230 mm (9.1 in)
Flange And Gasket Thickness13 mm (0.5 in)
Air Volume Occupied By Driver1.5 dm³ (0.05 ft³)
