Overview
LF Driver
Fane

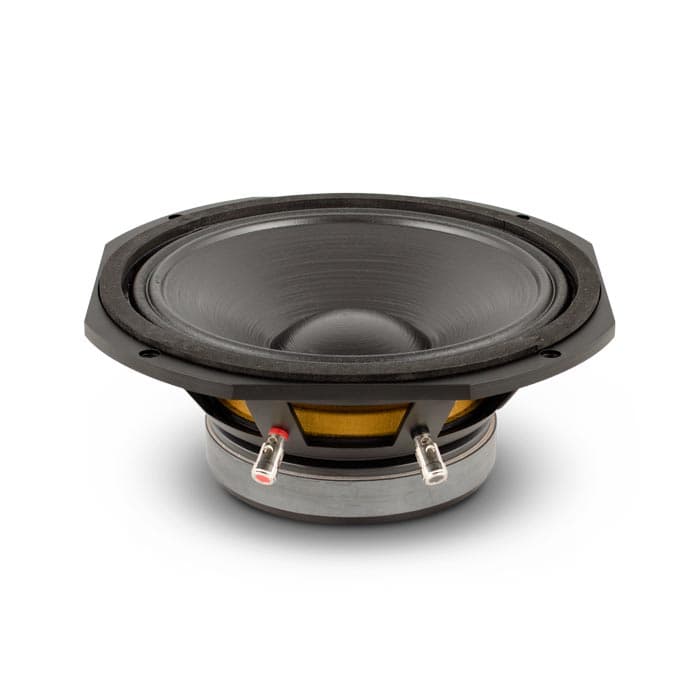

Fane SOVEREIGN PRO 10-300SC
Fane SOVEREIGN PRO 10-300SC is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 47Hz, Qts 0.33, Vas 45.4L, Xmax 4.8mm, sensitivity 93.5dB, plus 171cm³ Vd and 138 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
93.5dB
98.0dBmanufacturer; using T/S-derived value (4.5dB delta).
EBP
138
Vented alignment
Vd
171cm³
T/S Parameters
Valid
Fs47Hz
Qts0.33
Qes0.34
Qms10.1
Vas45.4L
Re5.5Ω
Le1.27mH
BL14.8Tm
Sd361cm²
Mms47g
Xmax4.8mm
SPL94dB
Power300W
Impedance8Ω
F Low45Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.1kg
Diameter283.5mm
Overall Depth111.0mm
