LF Driver10CXN series
B&C

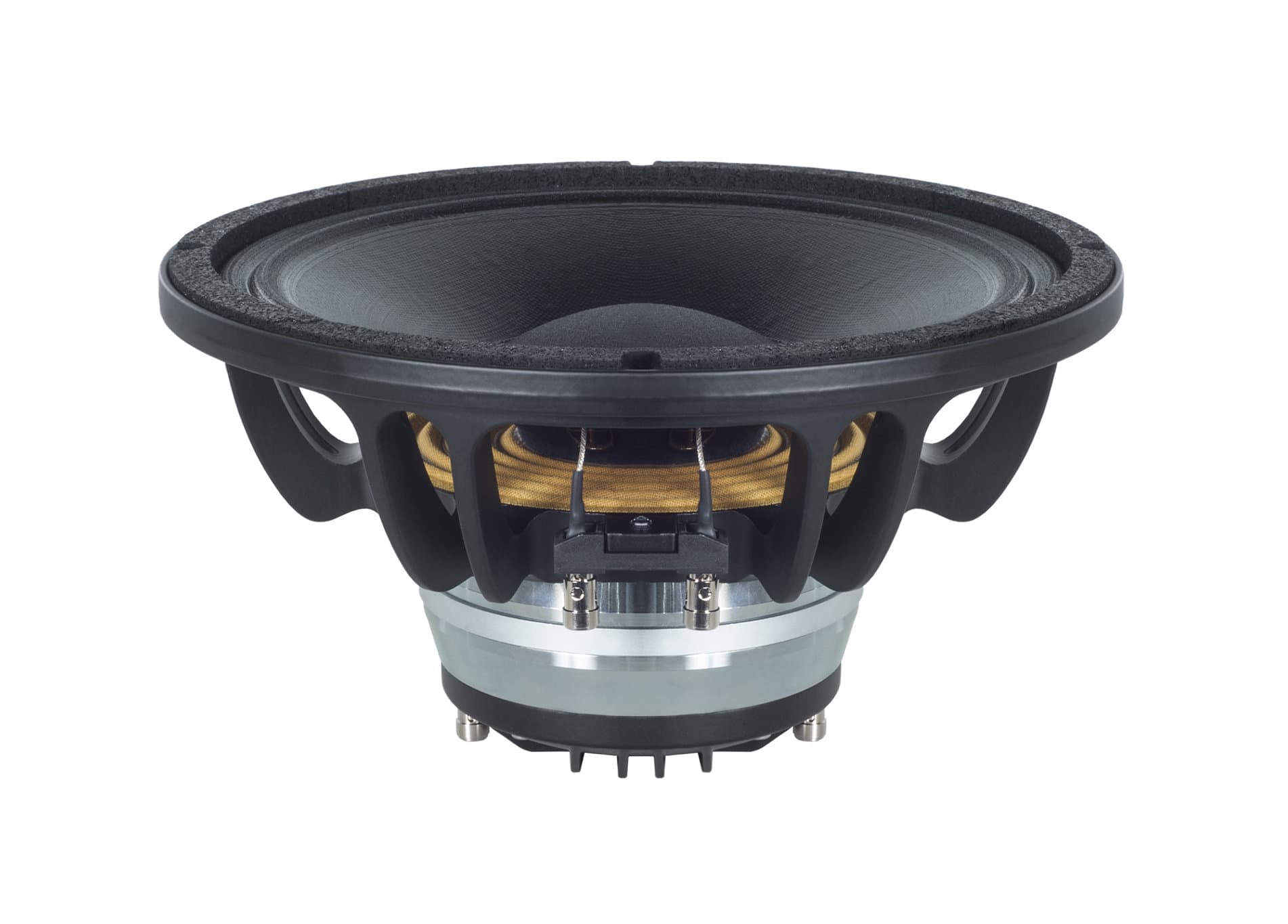

B&C 10CXN64
B&C 10CXN64 is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 68Hz, Qts 0.31, Vas 23L, Xmax 5mm, sensitivity 95.4dB, plus 160cm³ Vd and 206 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £274.31.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
95.4dB
97.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
206
Vented alignment
Vd
160cm³

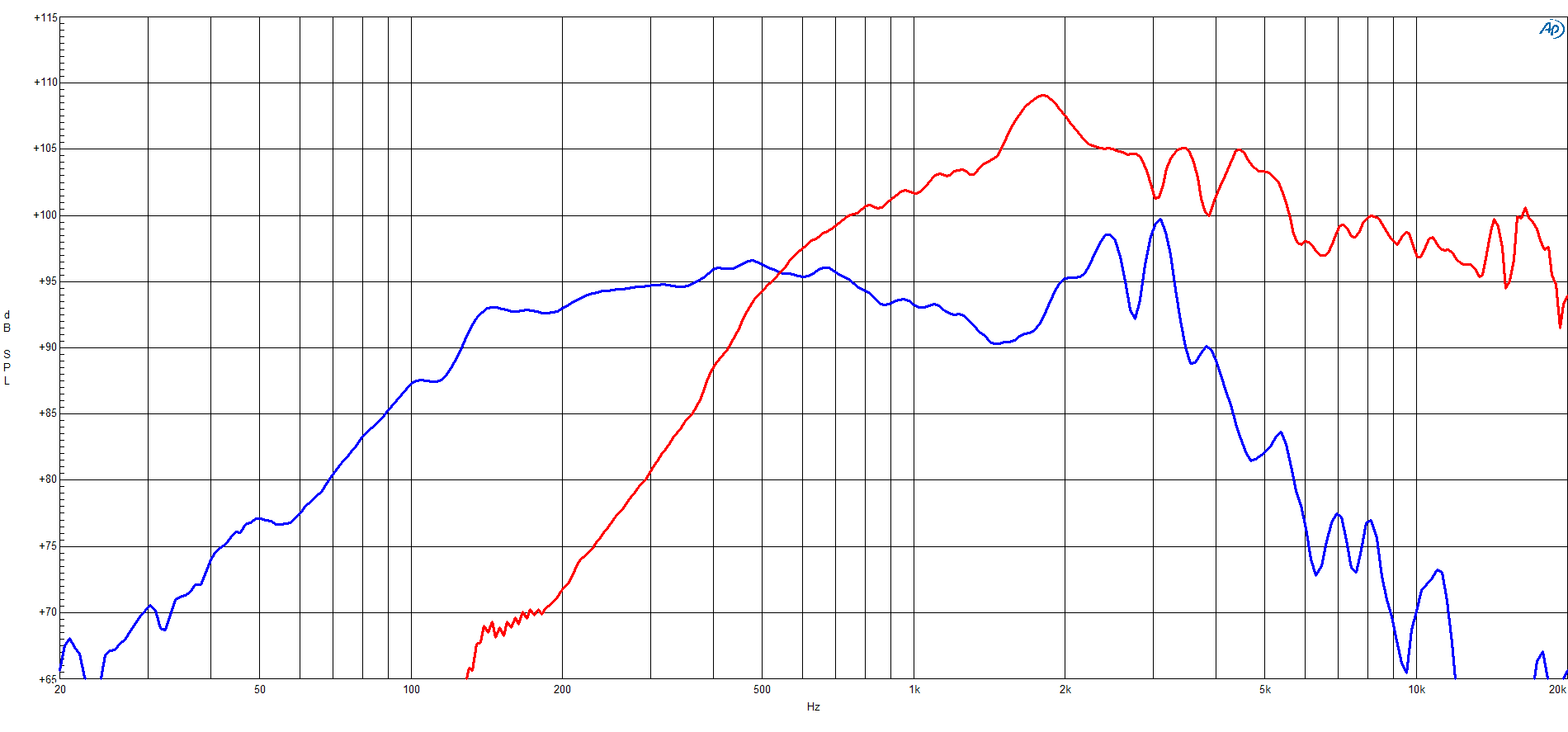

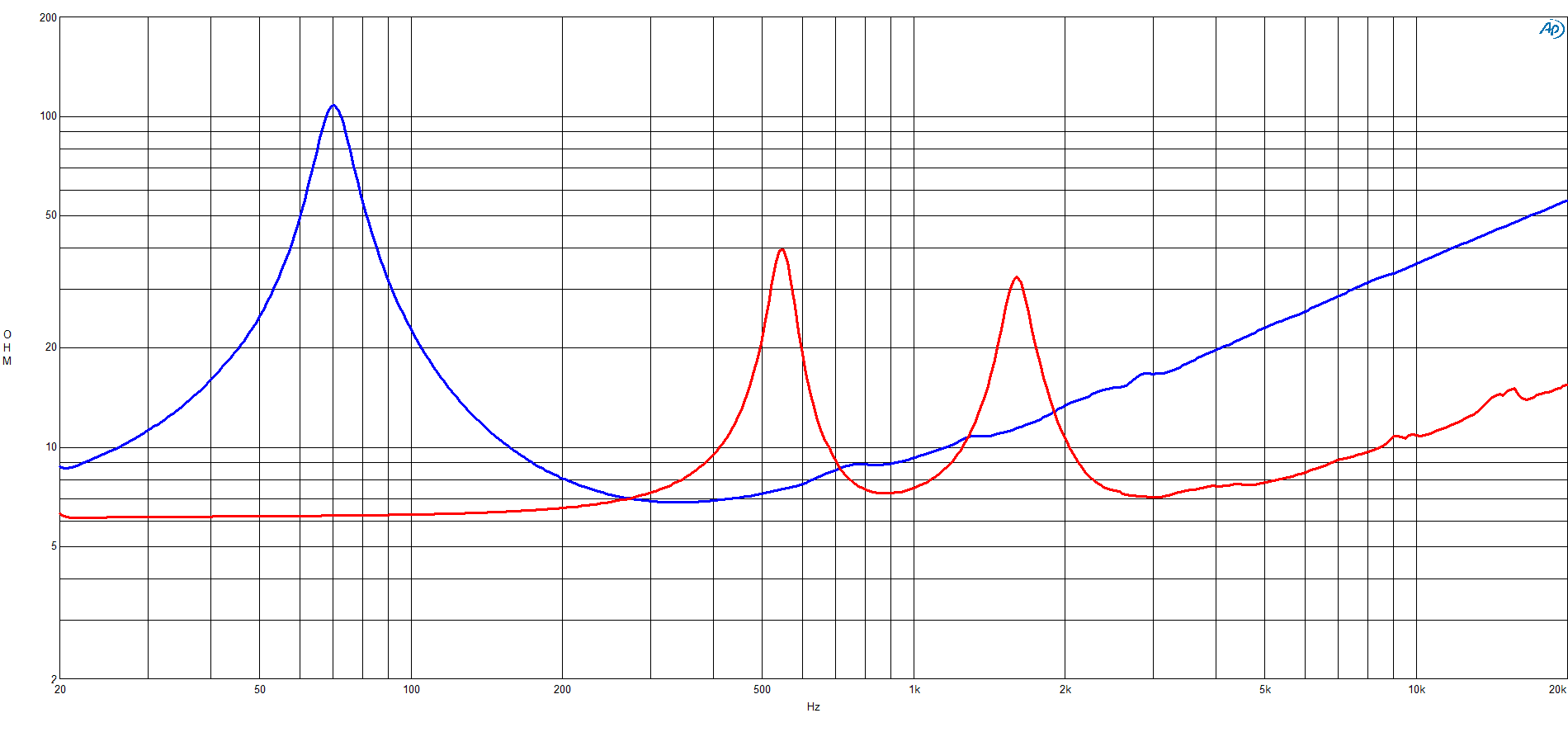

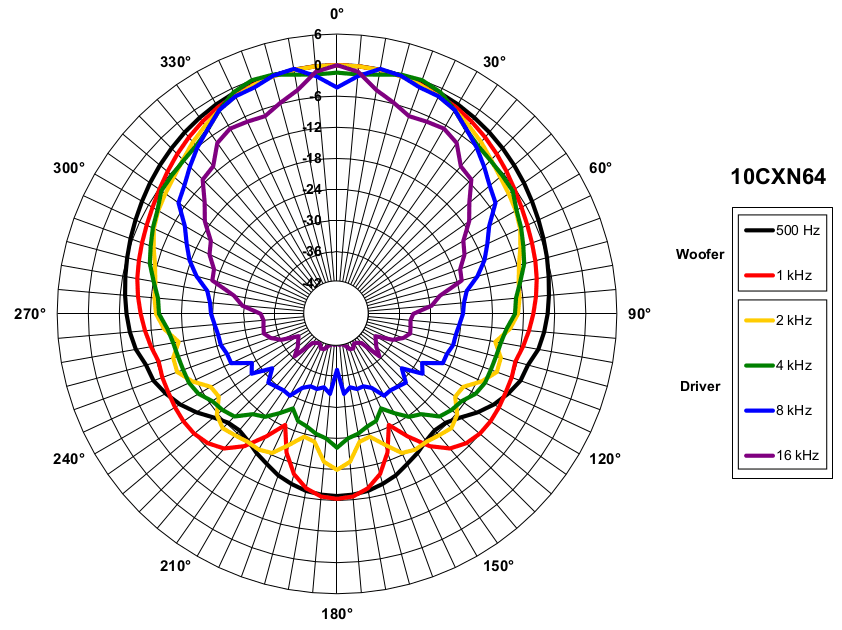

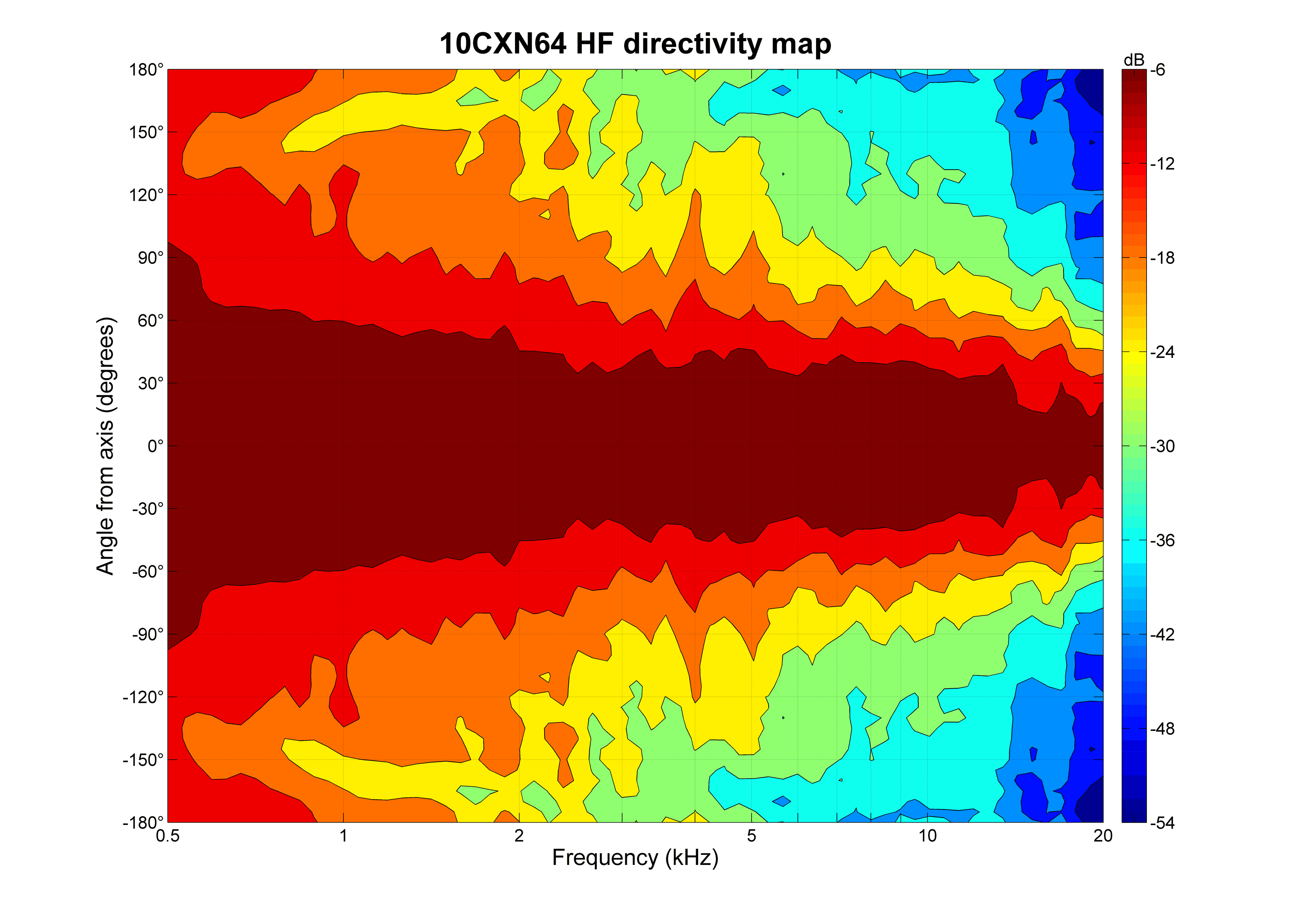

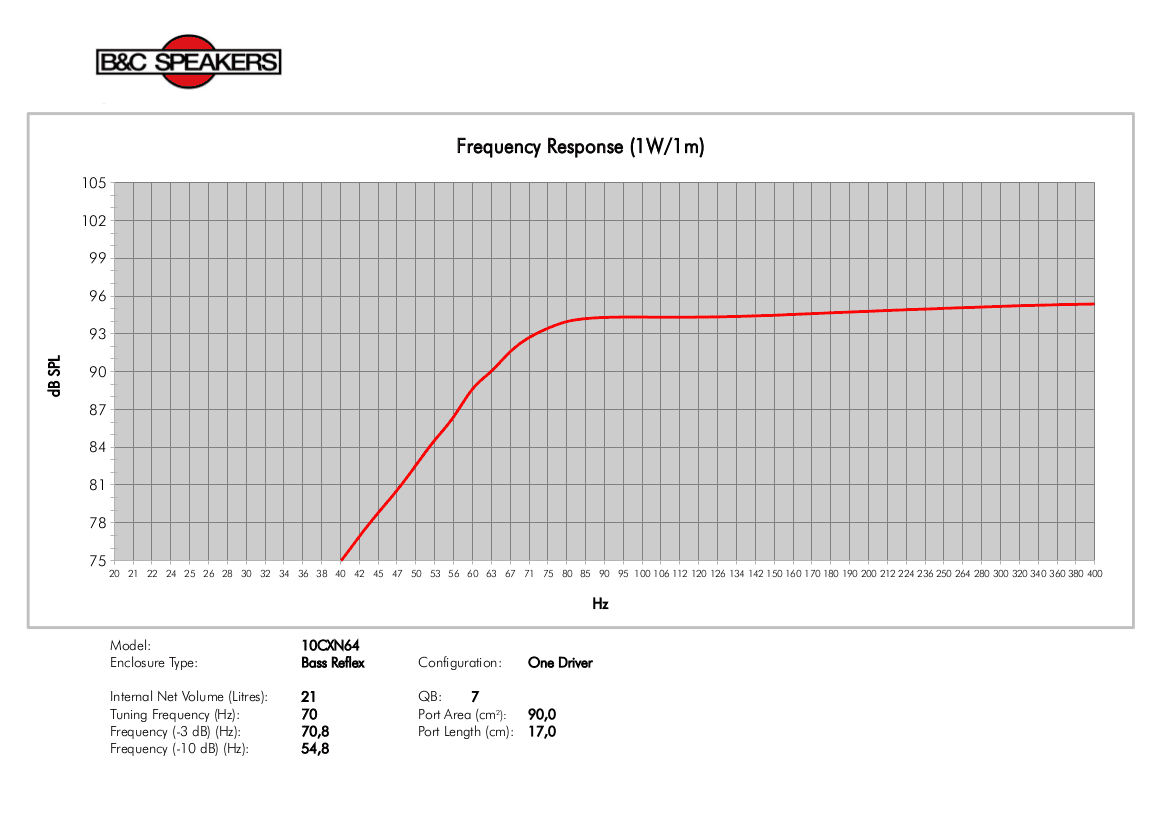

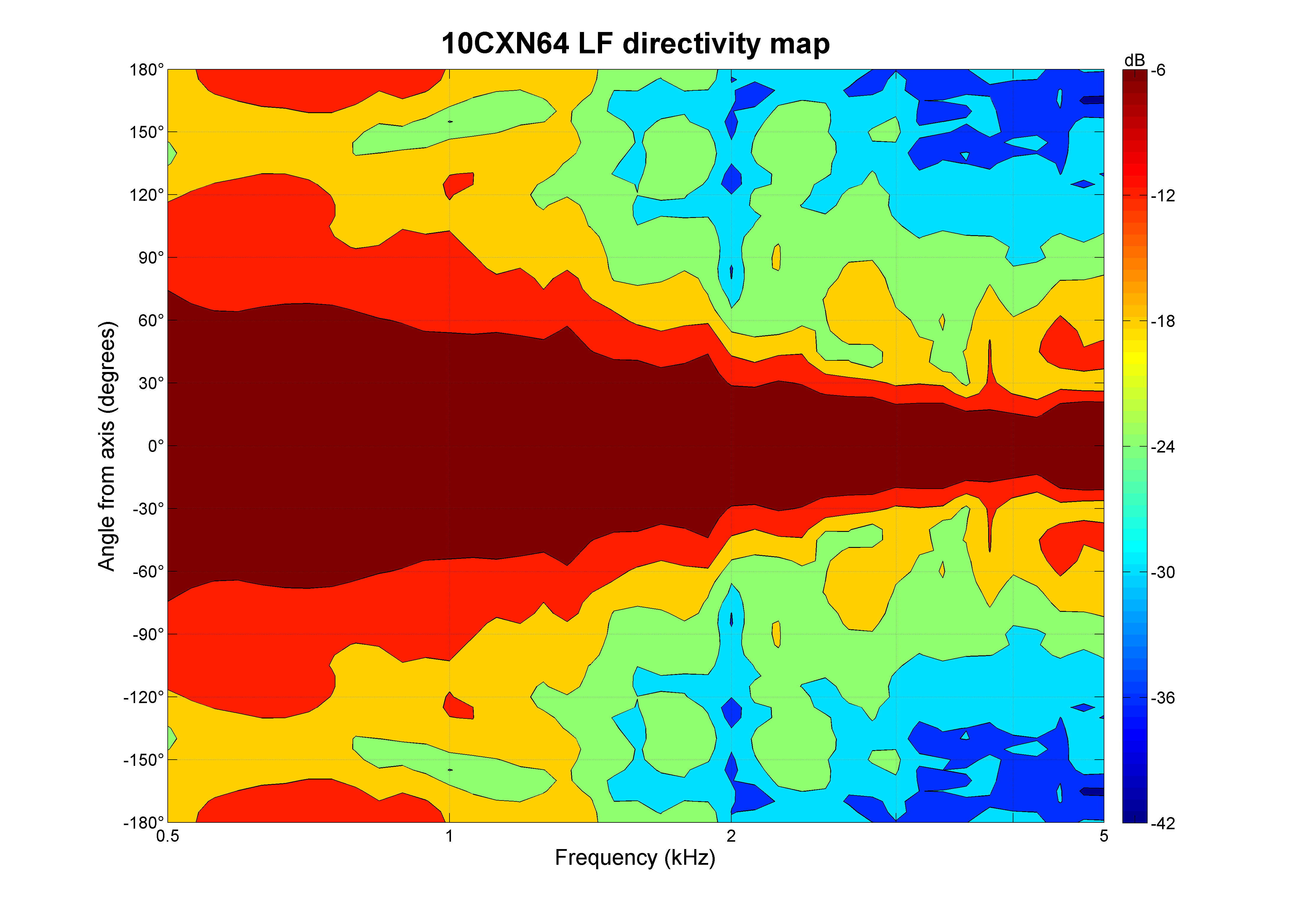

Frequency response
Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs68Hz
Qts0.31
Qes0.33
Qms5.6
Vas23.0L
Re5.6Ω
Le1.10mH
BL15.8Tm
Sd320cm²
Mms34g
Xmax5.0mm
SPL95dB
Power250W
Power Nominal250W
Impedance8Ω
Min Impedance6.7Ω
Voice Coil64mm
Flux Density1.10T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£274.31
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs68 Hz
Qts0.31
Qes0.33
Qms5.6
Vas23.0 L
Re5.6 Ω
Le1.10 mH
BL15.8 Tm
Sd320 cm²
Mms34 g
Xmax5.0 mm
SPL95 dB
Power250 W
Power Nominal250 W
Impedance8 Ω
Min Impedance6.7 Ω
Voice Coil64 mm
Flux Density1.10 T
HFSpecifications HF unit
Le0.15 mH
SPL103 dB
Power80 W
Power Nominal80 W
Impedance8 Ω
Min Impedance7.0 Ω
Xover1200 Hz
Voice Coil65 mm
Flux Density1.75 T
Additional Manufacturer Specs
Bl15.8 Tm
Fs68 Hz
Le1.1 mH
Re5.6 Ω
Sd320 cm² (49.6 in²)
Ebp206 Hz
Mms33.5 g
Qes0.33
Qms5.6
Qts0.31
Vas23 dm³ (0.81 ft³)
η02.2 %
Xvar5 mm
Winding Depth15 mm (0.59 in)
Former MaterialKapton
Nominal Diameter250 mm (10 in)
Winding MaterialCopper
Magnetic Gap Depth9 mm (0.35 in)
Woofer Cone TreatmentWP Waterproof Front Side
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
10CXN64
10"
Best current price
£274.31
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity
77% cheaper£63.00
Celestion
TF1020
10"
Lower price
Xmax4mm-20%
Qts0.32+4%
BL14.1Tm-11%
Vas28.8L+25%
Qes0.37+13%
68%
Similarity
76% cheaper£65.00
Lavoce
WAF102.50
10"
Lower price
Xmax5.1mm+2%
Qts0.38+23%
BL14.6Tm-7%
Vas23.7L+3%
Qes0.42+27%
82%
Similarity
70% cheaper£82.61
Lavoce
WAN102.50
10"
Lower price
Xmax5.1mm+2%
Qts0.35+13%
BL15.3Tm-3%
Vas22.4L-3%
Qes0.38+15%
40%
Similarity
69% cheaper£85.99
B&C
10CL51
10"
Lower price
Xmax5.5mm+10%
Qts0.38+23%
BL11.6Tm-27%
Vas36L+57%
Qes0.42+27%
50%
Similarity
67% cheaper£89.99
Eminence
DELTA 10B
10"
Lower price
Xmax3.5mm-30%
Qts0.33+6%
BL19.5Tm+23%
Vas36L+57%
Qes0.35+6%
60%
Similarity
65% cheaper£97.30
PRV Audio
10MB800FT
10"
Lower price
Xmax3.5mm-30%
Qts0.32+3%
BL14.4Tm-9%
Vas36.7L+60%
Qes0.330%
74%
Similarity
60% cheaper£109.82
FaitalPRO
10PR310
10"
Lower price
Xmax4.9mm-2%
Qts0.34+10%
BL14.4Tm-9%
Vas32.2L+40%
Qes0.36+9%
95%
Similarity
58% cheaper£116.06
B&C
10CL64
10"
Lower price
Xmax5.2mm+4%
Qts0.310%
BL16.3Tm+3%
Vas22.2L-3%
Qes0.330%
62%
Similarity
50% cheaper£138.00
B&C

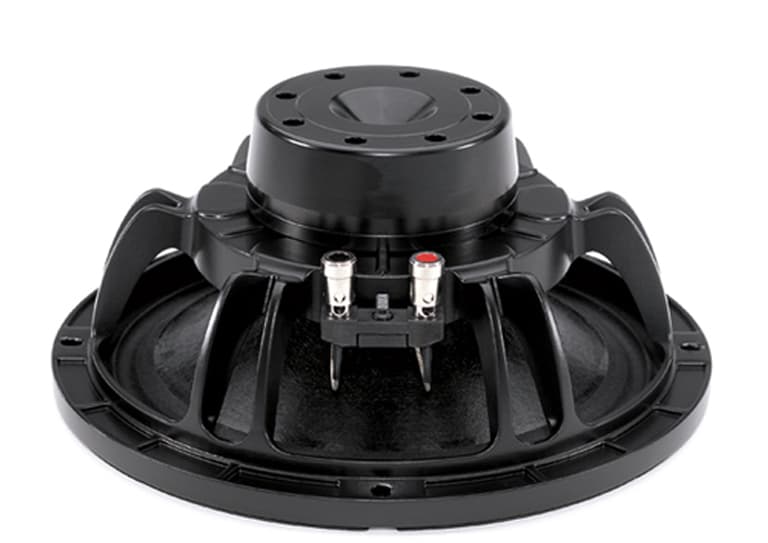

10NW64
