LF Driver10NCX series
Oberton
Oberton 10NCX
Oberton 10NCX is a 10" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 79Hz, Qts 0.29, Vas 20.6L, Xmax 5.3mm, sensitivity 97.4dB, plus 167cm³ Vd and 266 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
350W
Sensitivity
97.4dB
EBP
266
Vented alignment
Vd
167cm³
T/S Parameters
Valid
Fs79Hz
Qts0.29
Qes0.30
Qms10.0
Vas20.6L
Re5.6Ω
Le0.56mH
BL16.2Tm
Sd317cm²
Mms28g
Xmax5.3mm
SPL97dB
Power350W
Impedance8Ω
F Low75Hz
F High15000Hz
Voice Coil77mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

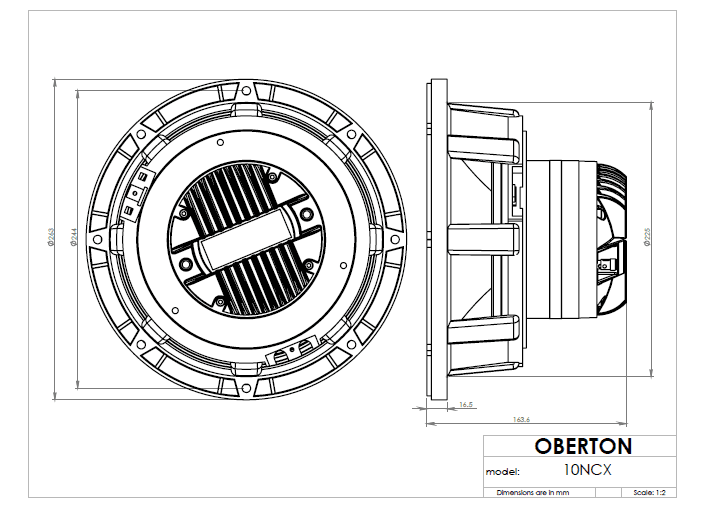

Dimensions & Physical
Weight5.2kg
Diameter263.0mm
Overall Depth163.6mm
Cutout Diameter225.0mm
Bolt Circle Diameter244.0mm
