LF DriverFH series
FaitalPRO

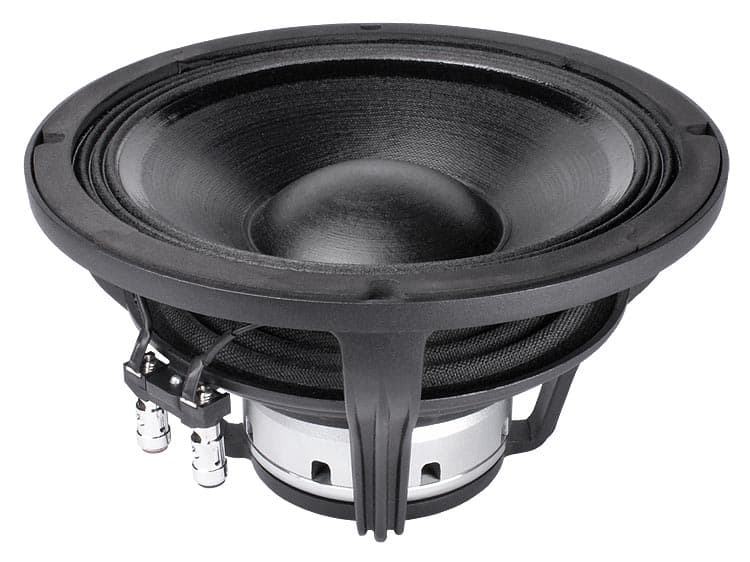

FaitalPRO 10FH520
FaitalPRO 10FH520 is a 10" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 60Hz, Qts 0.29, Vas 23.5L, Xmax 7.3mm, sensitivity 94.3dB, plus 252cm³ Vd and 200 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £165.49.
Size
10"
Impedance
8Ω
RMS Power
600W
Sensitivity
94.3dB
97.0dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
200
Vented alignment
Vd
252cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees162 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
162 plotted pointsMedium confidence605 selected pixels of 1,132 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,475 selected pixels of 2,276 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,410 selected pixels of 1,602
T/S Parameters
Valid
Fs60Hz
Qts0.29
Qes0.30
Qms11.1
Vas23.5L
Re5.1Ω
Le0.90mH
BL18.0Tm
Sd347cm²
Mms50g
Xmax7.3mm
SPL94dB
Power600W
Impedance8Ω
F Low60Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£165.49
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.7kg
Diameter261.0mm
Overall Depth141.3mm
Cutout Diameter232.0mm
Bolt Circle Diameter246.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
10FH520
10"
Best current price
£165.49
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
49%
Similarity
50% cheaper£82.61
Lavoce
WAN102.50
10"
Lower price
Xmax5.1mm-30%
Qts0.35+21%
BL15.3Tm-15%
Vas22.4L-5%
Qes0.38+27%
61%
Similarity
32% cheaper£112.27
FaitalPRO
10PR330
10"
Lower price
Xmax7.4mm+2%
Qts0.33+14%
BL14.3Tm-21%
Vas32.5L+38%
Qes0.36+20%
70%
Similarity
31% cheaper£114.82
RCF
MB10G251
10"
Lower price
Xmax7mm-3%
Qts0.34+17%
BL14.9Tm-17%
Vas24L+2%
Qes0.35+17%
69%
Similarity
30% cheaper£116.06
B&C
10CL64
10"
Lower price
Xmax5.2mm-28%
Qts0.31+7%
BL16.3Tm-9%
Vas22.2L-6%
Qes0.33+10%
78%
Similarity
21% cheaper£130.00
FaitalPRO
10FH530
10"
Lower price
Xmax7.5mm+3%
Qts0.25-14%
BL19.5Tm+8%
Vas23.5L0%
Qes0.25-17%
76%
Similarity
17% cheaper£138.00
B&C
10NW64
10"
Lower price
Xmax6mm-17%
Qts0.26-10%
BL18.3Tm+2%
Vas22L-6%
Qes0.27-10%
93%
Similarity
13% cheaper£143.66
Beyma
10MC500
10"
Lower price
Xmax8mm+10%
Qts0.290%
BL18.3Tm+2%
Vas24L+2%
Qes0.30%
68%
Similarity
12% cheaper£144.97
B&C
10NDL64
10"
Lower price
Xmax6mm-17%
Qts0.26-10%
BL16.2Tm-10%
Vas31L+32%
Qes0.29-3%
84%
Similarity
9% cheaper£151.02
B&C
10CLA76
10"
Lower price
Xmax6.5mm-10%
Qts0.290%
BL18.6Tm+3%
Vas16.4L-30%
Qes0.30%
73%
Similarity
8% cheaper£152.56
SB Audience
NERO-10MWN600D
10"
Lower price
Xmax7.3mm+1%
Qts0.34+17%
BL18.2Tm+1%
Vas18.8L-20%
Qes0.36+20%
85%
Similarity
4% cheaper£159.53
FaitalPRO
10FH500
10"
Lower price
Xmax7.5mm+3%
Qts0.26-10%
BL17.9Tm-1%
Vas25.8L+10%
Qes0.28-7%
55%
Similarity
3% more£169.77
Eighteen Sound
10MB600
10"
Higher price
Xmax6.5mm-10%
Qts0.22-24%
BL18.6Tm+3%
Vas33.4L+42%
Qes0.23-23%
