Overview
LF DriverKappa Pro series
Eminence

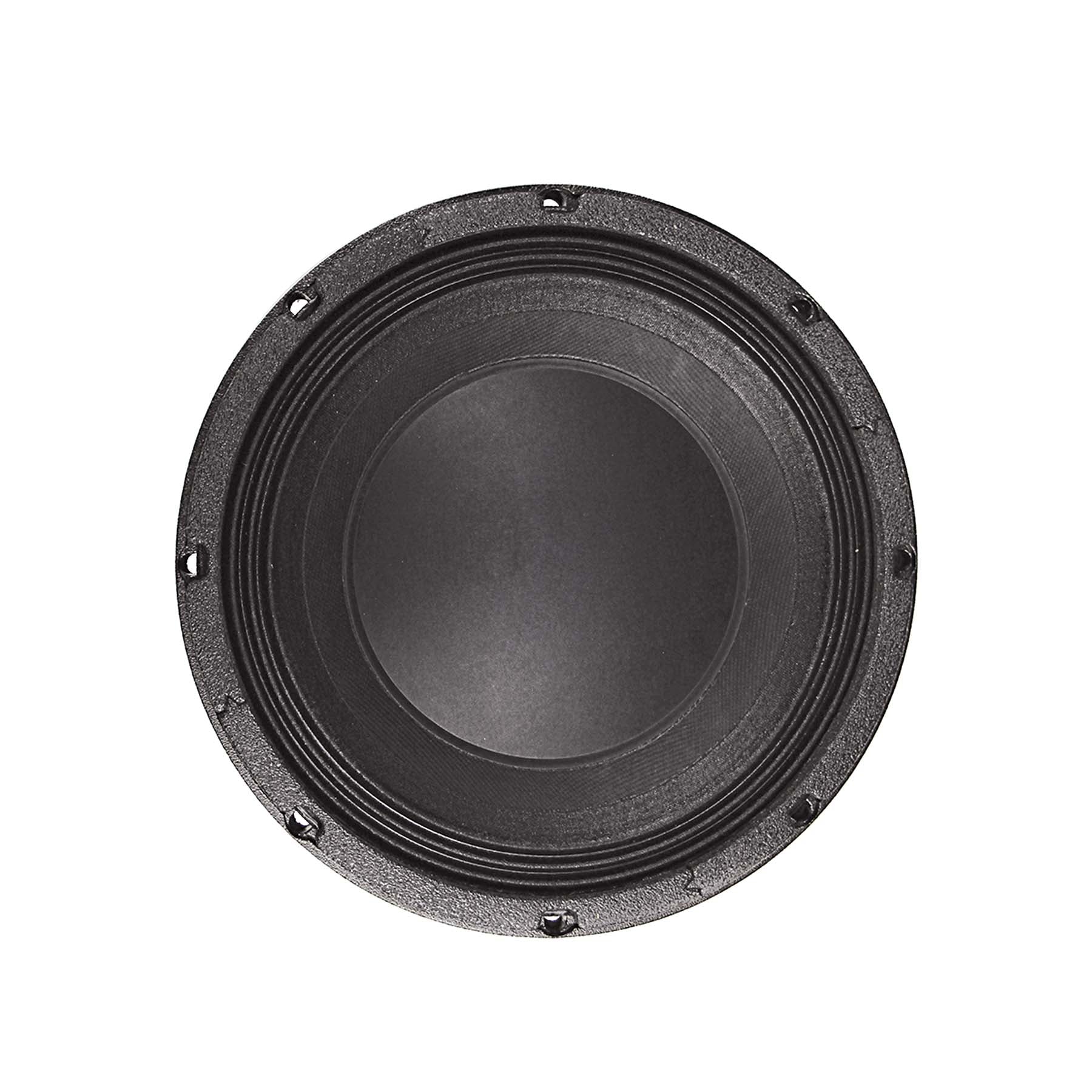

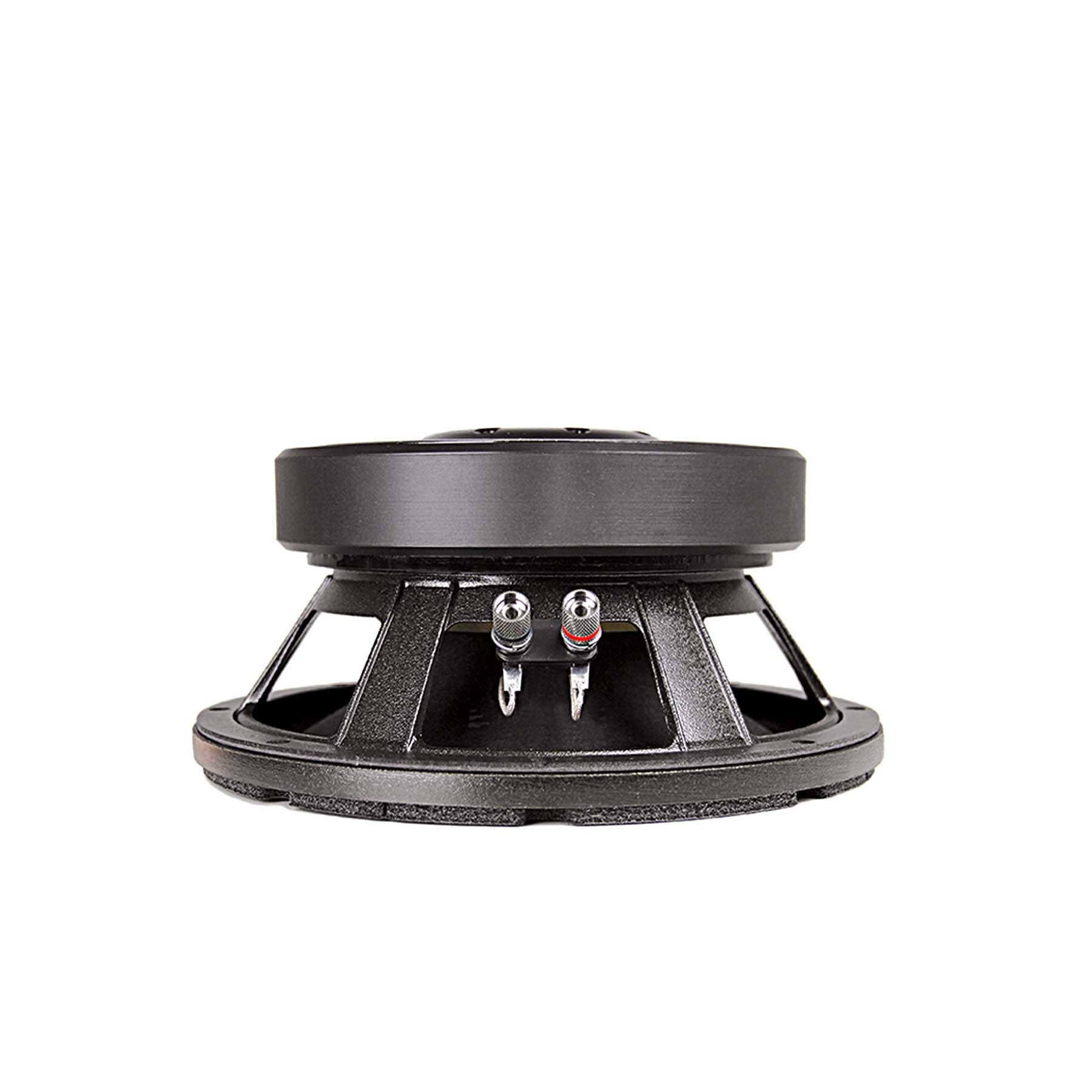

Eminence KAPPA PRO-10LF
Eminence KAPPA PRO-10LF is a 10" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 39Hz, Qts 0.28, Vas 73.0L, Xmax 7.2mm, sensitivity 93.8dB, plus 271cm³ Vd and 134 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £147.92.
Size
10"
Impedance
8Ω
RMS Power
600W
Sensitivity
93.8dB
91.6dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
134
Vented alignment
Vd
271cm³
T/S Parameters
Valid
Fs39Hz
Qts0.28
Qes0.29
Qms9.0
Vas73.0L
Re5.5Ω
Le0.97mH
BL14.5Tm
Sd377cm²
Mms46g
Xmax7.2mm
SPL94dB
Power600W
Impedance8Ω
F Low47Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorbluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£148.52
inc VAT
3 in stock
Best current price
Updated 11 Sept 2026
partsexpress
£147.92
Avg £148.22£0.30 below avg (-0.2%)
inc VAT·4 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.8kg
Diameter260.9mm
Overall Depth127.0mm
Cutout Diameter232.2mm
Bolt Circle Diameter247.7mm
