Overview
LF DriverC-Quenze series
Audio Technology
Audio Technology 23 I 52 17 06 SDKA 03
Audio Technology 23 I 52 17 06 SDKA 03 is a 9" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 38Hz, Qts 0.25, Vas 70L, Xmax 6.3mm, sensitivity 93.7dB, plus 142cm³ Vd and 146 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
9"
Impedance
8Ω
RMS Power
150W
Sensitivity
93.7dB
EBP
146
Vented alignment
Vd
142cm³
T/S Parameters
Valid
Fs38Hz
Qts0.25
Qes0.26
Qms6.0
Vas70.0L
Re5.6Ω
Le0.20mH
BL9.7Tm
Sd225cm²
Mms19g
Xmax6.3mm
SPL94dB
Power150W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Audio Technology
23 I 52 17 06 SDKA 03
9"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
74%
Similarity
Audio Technology
23 I 52 20 06 SD
9"
Xmax8mm+27%
Qts0.26+4%
BL10Tm+3%
Vas70L0%
Qes0.3+15%
63%
Similarity
Acoustic Elegance
TD10M-4
10"
Xmax6mm-5%
Qts0.24-4%
BL11.8Tm+22%
Vas59.2L-15%
Qes0.260%
52%
Similarity
£162.66
PRV Audio
10W1000-NDY-4
10"
Xmax6.5mm+3%
Qts0.27+8%
BL12Tm+24%
Vas46.4L-34%
Qes0.28+8%
40%
Similarity
Dayton Audio
RS270P-4A
10"
Xmax6mm-5%
Qts0.27+8%
BL10.9Tm+12%
Vas110.5L+58%
Qes0.34+31%
40%
Similarity

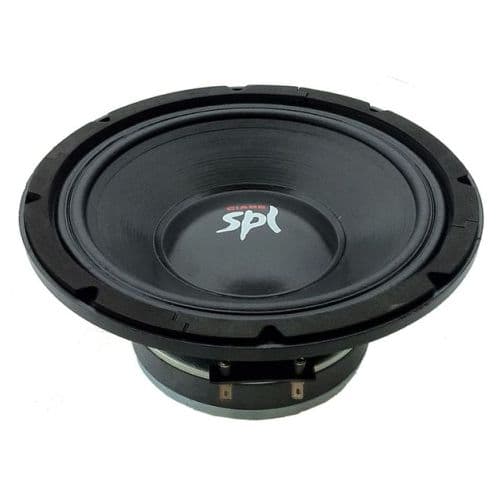

CIARE
CW260SPL
10"
Xmax6mm-5%
Qts0.19-24%
BL12Tm+23%
Vas66.3L-5%
Qes0.19-27%
35%
Similarity
PRV Audio
MT10W1200-NDY-4
10"
Xmax6.5mm+3%
Qts0.3+20%
BL12.3Tm+27%
Vas41.2L-41%
Qes0.31+19%
28%
Similarity
PRV Audio
10MB500-4
10"
Xmax4.5mm-29%
Qts0.29+16%
BL12.3Tm+26%
Vas47.6L-32%
Qes0.3+15%
