GRS10PT-8
£32.04Fs47 Hz +43%, worse
Qts0.48 –
Vas46.2 L −37%, better
BL13.4 T·m +24%, better
Xmax7.8 mm +11%, better
Sensitivity91.8 dB +3.1, better
10-inch LF driver · 50 mm voice coil · 200 W
Sica 10 SR 2 CP 8Ω
8 Ω
No current price
- Fs
- 33Hz
- Xmax
- 7mm
- SPL
- 89dB
- Pe
- 200W
- BL
- 10.8T·m
- Vd
- 238cm³
- Qts
- 0.49
- Vas
- 73L

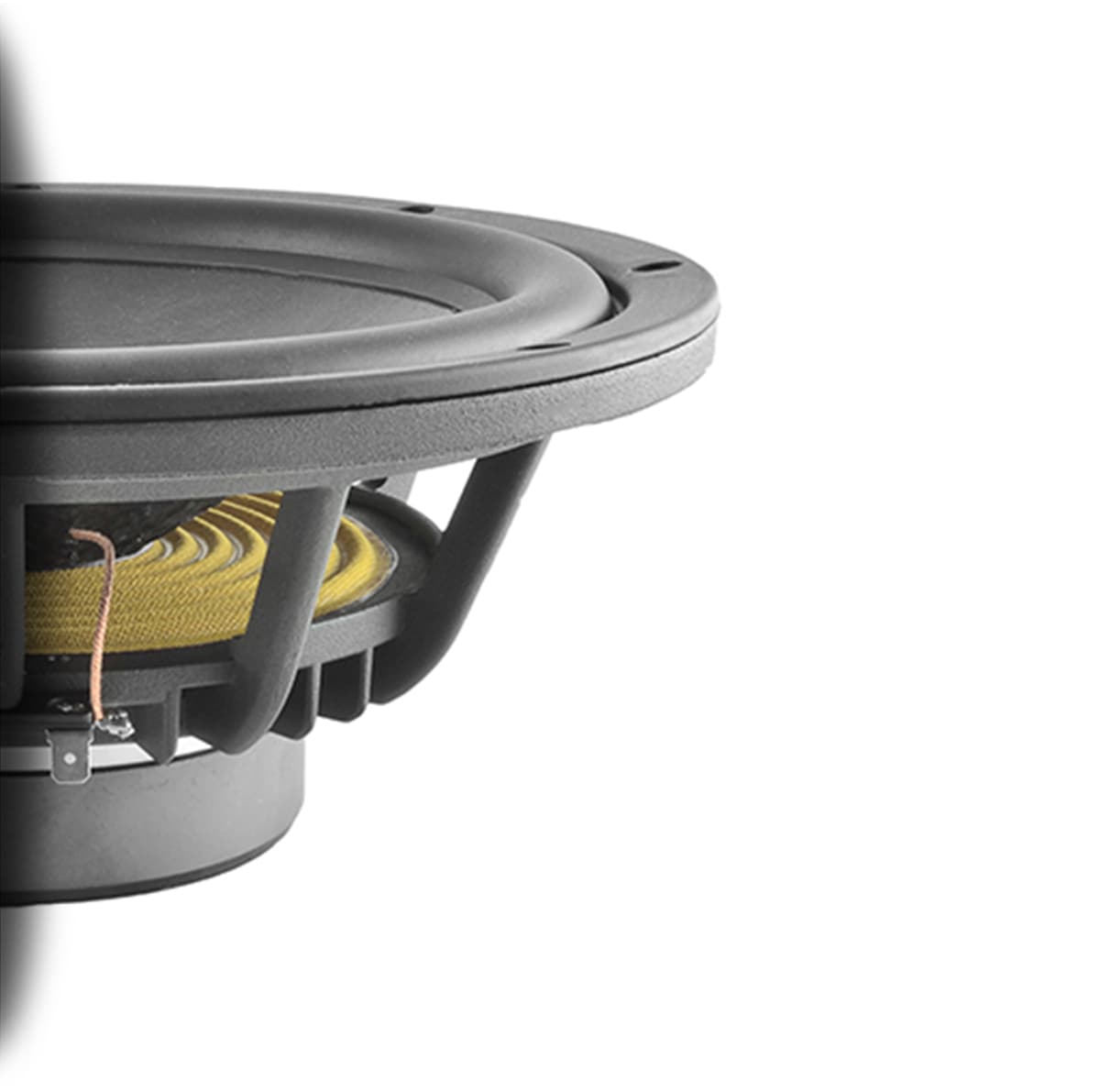

Sica 10 SR 2 CP is a 10-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.49, Vas 73 L, Xmax 7 mm, sensitivity 88.7 dB, plus 238 cm³ Vd and 59 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.49
- Qes
- 0.56
- Qms
- 4.5
- Vas
- 73L
- Re
- 6.1Ω
- Le
- 1.29mH
Motor and cone
- BL
- 10.8T·m
- Sd
- 340cm²
- Mms
- 53g
- Xmax
- 7mm
- Vd †
- 238cm³
- Voice coil
- 50mm
- Flux density
- 1.01T
Power and response
- Sensitivity †
- 88.7dB
- Manufacturer sensitivity
- 89.8dB
- Power
- 200W
- Impedance
- 8Ω
- EBP †
- 59 · Sealed or vented
Size and mounting
- Diameter
- 270mm
- Cutout
- 232mm
- Bolt circle
- 252mm
- Depth
- 121.9mm
- Weight
- 3.2kg
Other published values
- Cms
- 0.45mm/N
- Power Program
- 400
Sensitivity shows 88.7 dB, calculated from the T/S values. Sica publishes 89.8 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Sica lists
LF · Primary · 10″
- BL
- 10.8T·m
- Fs
- 33Hz
- Le
- 1.29mH
- Re
- 6.1Ω
- Sd
- 340cm²
- Cms
- 0.45mm/N
- Mms
- 53g
- Qes
- 0.56
- Qms
- 4.5
- Qts
- 0.49
- SPL
- 88.7dB
- Vas
- 73L
- Xmax
- 7mm
- Power
- 200W
- Impedance
- 8Ω
- Flux density
- 1.01T
- Sensitivity
- 89.8dB
- Power Program
- 400
- Calculated sensitivity †
- 88.7dB
- Manufacturer sensitivity
- 89.8dB
- Voice coil
- 50mm
- Weight
- 3.2kg
- Diameter
- 270mm
- Depth
- 121.9mm
- Cutout
- 232mm
- Bolt circle
- 252mm
02
Compare
Same-size drivers, compared with the 10 SR 2 CP. Clear differences are green when better and red when worse.
This driver10 SR 2 CP
Best price
–
Fs
33 Hz
Qts
0.49
Vas
73 L
BL
10.8 T·m
Xmax
7 mm
Sensitivity
88.7 dB
Power
200 W
LavoceWSF101.70G
£47.05Fs78 Hz +138%, worse
Qts0.50 –
Vas36 L −51%, better
BL11.9 T·m +10%
Xmax2.7 mm −61%, worse
Sensitivity97.1 dB +8.4, better
SB AcousticsSB26SFCL38-8
£58.42Fs28 Hz −16%, better
Qts0.53 +8%
Vas107 L +47%, worse
BL9.6 T·m −12%, worse
Xmax8.2 mm +17%, better
Sensitivity87.7 dB −1
PRV Audio10MR650A
£63.28Fs65 Hz +97%, worse
Qts0.47 −4%
Vas41.9 L −43%, better
BL12.3 T·m +13%, better
Xmax5.7 mm −18%, worse
Sensitivity95.8 dB +7.1, better
CIAREHW250
£64.35Fs23 Hz −30%, better
Qts0.48 –
Vas275 L +277%, worse
BL6.5 T·m −40%, worse
Xmax6.5 mm −7%
Sensitivity89.6 dB +0.9
FaitalPRO10FE330
£64.90Fs35 Hz +7%
Qts0.40 −18%, better
Vas72.4 L –
BL12.6 T·m +16%, better
Xmax8.3 mm +19%, better
Sensitivity90.6 dB +1.9
FaitalPRO10FE400
£66.03Fs60 Hz +83%, worse
Qts0.47 −4%
Vas35.3 L −52%, better
BL11.5 T·m +6%
Xmax5.4 mm −23%, worse
Sensitivity93.7 dB +5, better
FaitalPRO10FE300
£67.00Fs50 Hz +52%, worse
Qts0.52 +6%
Vas50.5 L −31%, better
BL11.3 T·m +4%
Xmax5.5 mm −21%, worse
Sensitivity92.7 dB +4, better
Dayton AudioDS270-8
£70.78Fs32 Hz −4%
Qts0.44 −10%, better
Vas87.7 L +20%, worse
BL10.1 T·m −7%
Xmax5.5 mm −21%, worse
Sensitivity89.1 dB –
EminenceBETA-10A
£82.50Fs53 Hz +62%, worse
Qts0.49 –
Vas60.1 L −18%, better
BL9.6 T·m −12%, worse
Xmax3 mm −57%, worse
Sensitivity94.4 dB +5.7, better
GRS10SW-4HE
£83.54Fs25 Hz −24%, better
Qts0.50 –
Vas60.6 L −17%, better
BL10.8 T·m –
Xmax11 mm +57%, better
Sensitivity87.5 dB −1.2
Dayton AudioDSA270-8
£89.41Fs30 Hz −10%
Qts0.39 −20%, better
Vas88.1 L +21%, worse
BL11.2 T·m +3%
Xmax5.5 mm −21%, worse
Sensitivity88.9 dB –
EminenceLEGEND BP102
£91.00Fs35 Hz +7%
Qts0.43 −12%, better
Vas91.2 L +25%, worse
BL10 T·m −8%
Xmax6.2 mm −11%, worse
Sensitivity91.2 dB +2.5, better
EminenceRAGIN CAJUN
£91.87Fs84 Hz +156%, worse
Qts0.51 +4%
Vas34.1 L −53%, better
BL11.8 T·m +9%
Xmax0.5 mm −93%, worse
Sensitivity97.8 dB +9.1, better
Dayton AudioRS270-8
£111.77Fs30 Hz −10%
Qts0.47 −4%
Vas96.5 L +32%, worse
BL10.3 T·m −5%
Xmax6.6 mm −6%
Sensitivity88.2 dB −0.5
Eighteen Sound10W650
£142.92Fs67 Hz +104%, worse
Qts0.48 –
Vas26 L −64%, better
BL12.4 T·m +14%, better
Xmax5.7 mm −19%, worse
Sensitivity93.9 dB +5.2, better
SB AudienceROSSO-10CX300
£174.95Fs58 Hz +77%, worse
Qts0.45 −8%
Vas40.5 L −45%, better
BL11.9 T·m +10%
Xmax8.2 mm +17%, better
Sensitivity94.2 dB +5.5, better
SB AcousticsSW26DAC76-4
£217.30Fs22 Hz −33%, better
Qts0.46 −6%
Vas54 L −26%, better
BL10.8 T·m –
Xmax12 mm +71%, better
Sensitivity82.5 dB −6.2, worse
SB AcousticsSW26DBAC76-4
£250.69Fs22 Hz −33%, better
Qts0.46 −6%
Vas54 L −26%, better
BL10.8 T·m –
Xmax12 mm +71%, better
Sensitivity82.5 dB −6.2, worse
Acoustic EleganceIB10AU-8
No current priceFs25 Hz −24%, better
Qts0.48 –
Vas68 L −7%
BL12.4 T·m +14%, better
Xmax18 mm +157%, better
Sensitivity84.8 dB −3.9, worse
EminenceFS10.20A8
No current priceFs56 Hz +71%, worse
Qts0.48 –
Vas45 L −38%, better
BL10.4 T·m −4%
Xmax5.5 mm −21%, worse
Sensitivity93.7 dB +5, better
Acoustic EleganceIB10AU-4
No current priceFs25 Hz −24%, better
Qts0.48 –
Vas68 L −7%
BL8.8 T·m −19%, worse
Xmax18 mm +157%, better
Sensitivity84.8 dB −3.9, worse
WavecorSW270WA01_SUBWOOFER
No current priceFs28 Hz −15%, better
Qts0.49 –
Vas51 L −30%, better
BL9.7 T·m −11%, worse
Xmax11 mm +57%, better
Sensitivity85.3 dB −3.4, worse
Dayton AudioRSS265HF-4
No current priceFs26 Hz −22%, better
Qts0.45 −8%
Vas54 L −26%, better
BL11.4 T·m +5%
Xmax12.3 mm +76%, better
Sensitivity84.4 dB −4.3, worse
CIARECME250
No current priceFs48 Hz +46%, worse
Qts0.48 –
Vas74 L –
BL7.5 T·m −31%, worse
Xmax4.5 mm −36%, worse
Sensitivity93.9 dB +5.2, better
WavecorWF275BD02
No current priceFs28 Hz −15%, better
Qts0.45 −8%
Vas81.5 L +12%, worse
BL11.8 T·m +9%
Xmax9 mm +29%, better
Sensitivity87.8 dB −0.9
Beyma10CX300
No current priceFs48 Hz +46%, worse
Qts0.38 −22%, better
Vas63 L −14%, better
BL11.7 T·m +7%
Xmax6.7 mm −4%
Sensitivity94.3 dB +5.6, better
HiViW10
No current priceFs35 Hz +7%
Qts0.37 −24%, better
Vas81.4 L +12%, worse
BL12.8 T·m +18%, better
Xmax7 mm –
Sensitivity90.9 dB +2.2, better
MonacorSP-252E
No current priceFs42 Hz +28%, worse
Qts0.50 –
Vas57 L −22%, better
BL8.5 T·m −22%, worse
Xmax4 mm −43%, worse
Sensitivity90.5 dB +1.8
Acoustic EleganceSBP10-4
No current priceFs28 Hz −14%, better
Qts0.41 −17%, better
Vas68.2 L −7%
BL10.4 T·m −4%
Xmax14 mm +100%, better
Sensitivity87.2 dB −1.5
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
