LF DriverHW series
CIARE

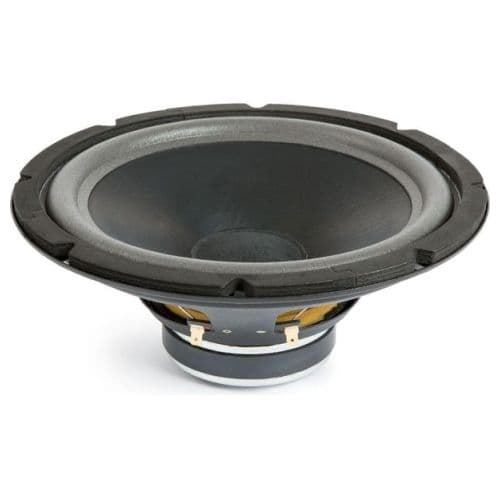

CIARE HW250
CIARE HW250 is a 10" 8 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 23Hz, Qts 0.48, Vas 275L, Xmax 6.5mm, sensitivity 89.6dB, plus 221cm³ Vd and 40 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
180W
Sensitivity
89.6dB
EBP
40
Sealed alignment
Vd
221cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,389 selected pixels of 1,815
T/S Parameters
Valid
Fs23Hz
Qts0.48
Qes0.58
Qms3.0
Vas275.0L
Re6.0Ω
Le0.60mH
BL6.5Tm
Sd340cm²
Mms29g
Xmax6.5mm
SPL90dB
Power180W
Power Nominal90W
Impedance8Ω
F Low20Hz
F High20Hz
Voice Coil32mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.8kg
Diameter265.0mm
Overall Depth111.0mm
Cutout Diameter238.0mm
Bolt Circle Diameter253.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
HW250
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
63%
Similarity
£245.95
Scanspeak
25W/8565-00
10"
Xmax6.5mm0%
Qts0.41-15%
BL8.2Tm+25%
Vas225L-18%
Qes0.44-24%
35%
Similarity
£167.95
Scanspeak
26W/4534G00
10"
Xmax6mm-8%
Qts0.36-25%
BL8.8Tm+34%
Vas156L-43%
Qes0.37-36%
