LF DriverSP series
Monacor
Monacor SP-252E
Monacor SP-252E is a 10" 4 ohm LF driver rated at 75W RMS. The validated T/S data includes Fs 42Hz, Qts 0.50, Vas 57L, Xmax 4mm, sensitivity 90.5dB, plus 141cm³ Vd and 70 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
4Ω
RMS Power
75W
Sensitivity
90.5dB
94.0dBmanufacturer; using T/S-derived value (3.5dB delta).
EBP
70
Either alignment
Vd
141cm³
T/S Parameters
Valid
Fs42Hz
Qts0.50
Qes0.60
Qms3.1
Vas57.0L
Re3.8Ω
Le1.10mH
BL8.5Tm
Sd353cm²
Mms43g
Xmax4.0mm
SPL91dB
Power75W
Impedance4Ω
F Low3Hz
F High6000Hz
Voice Coil36mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

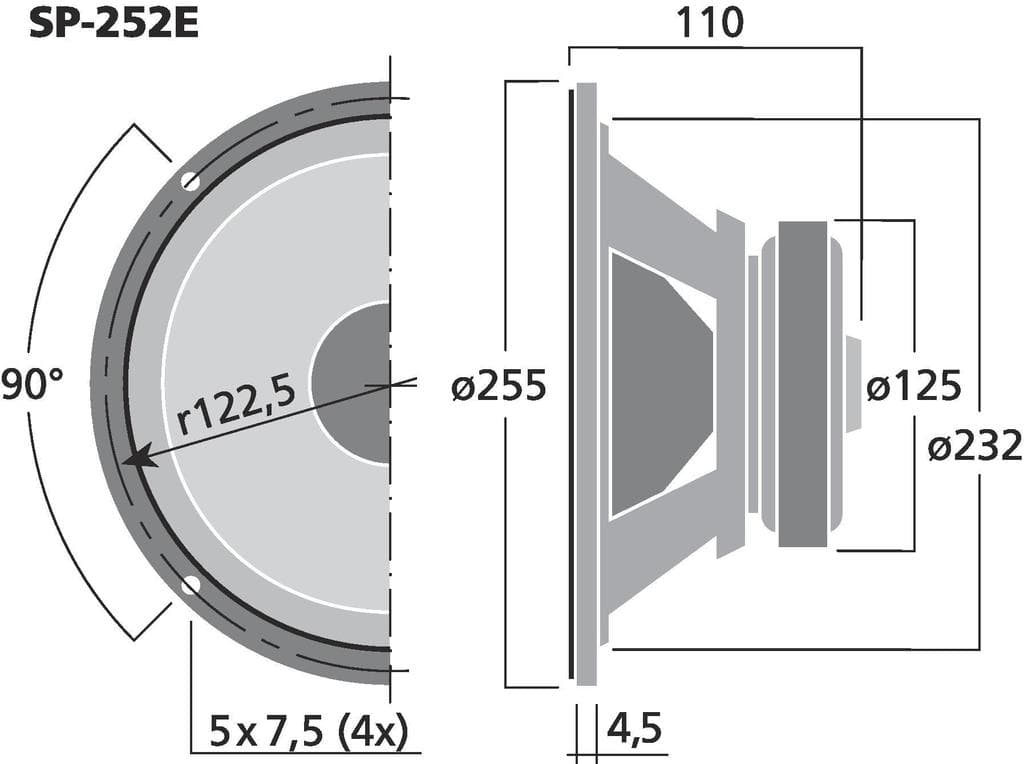

Dimensions & Physical
Weight2.3kg
Diameter255.0mm
Overall Depth110.0mm
Cutout Diameter232.0mm
