Overview
LF Driver
GRS

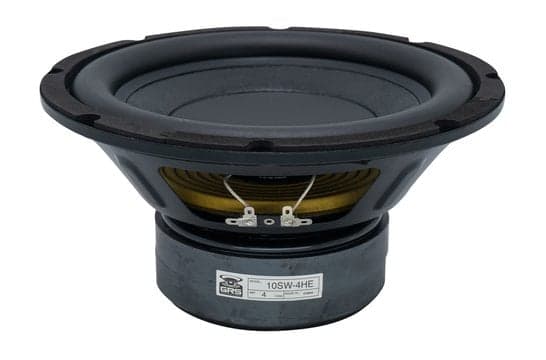

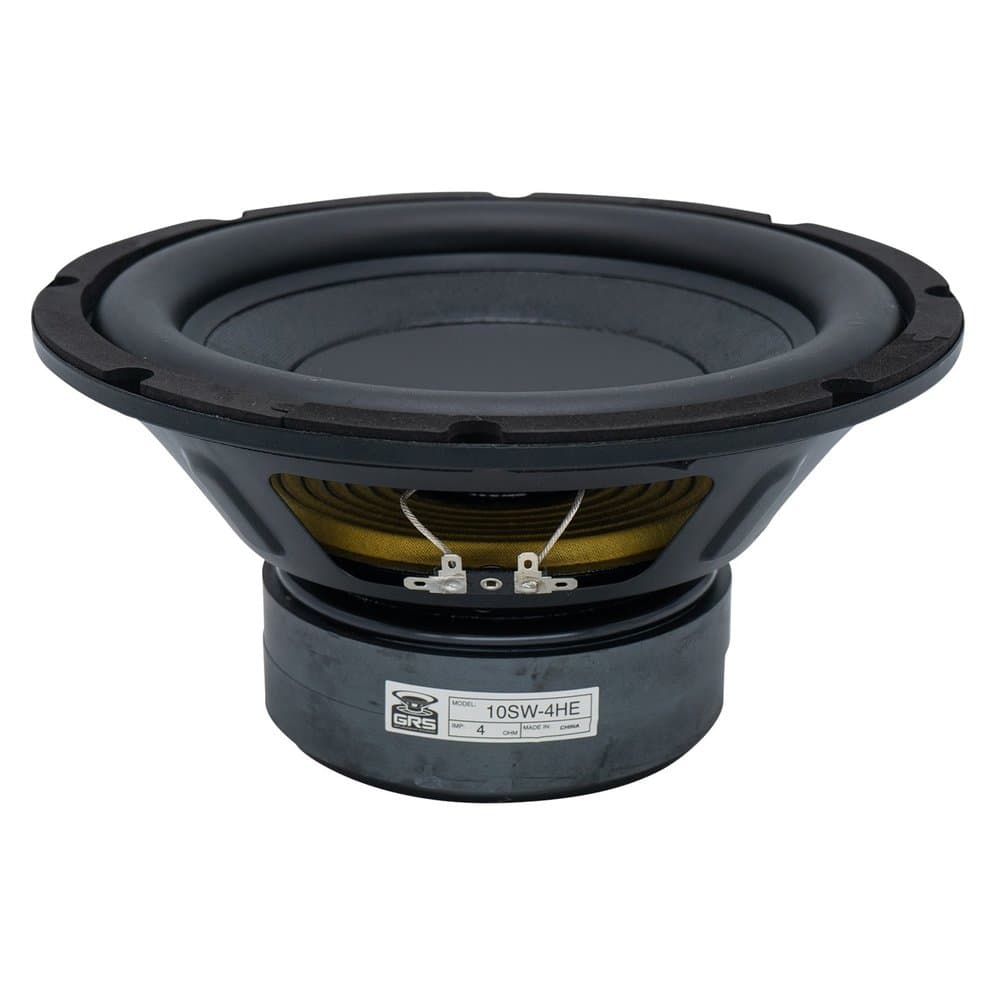

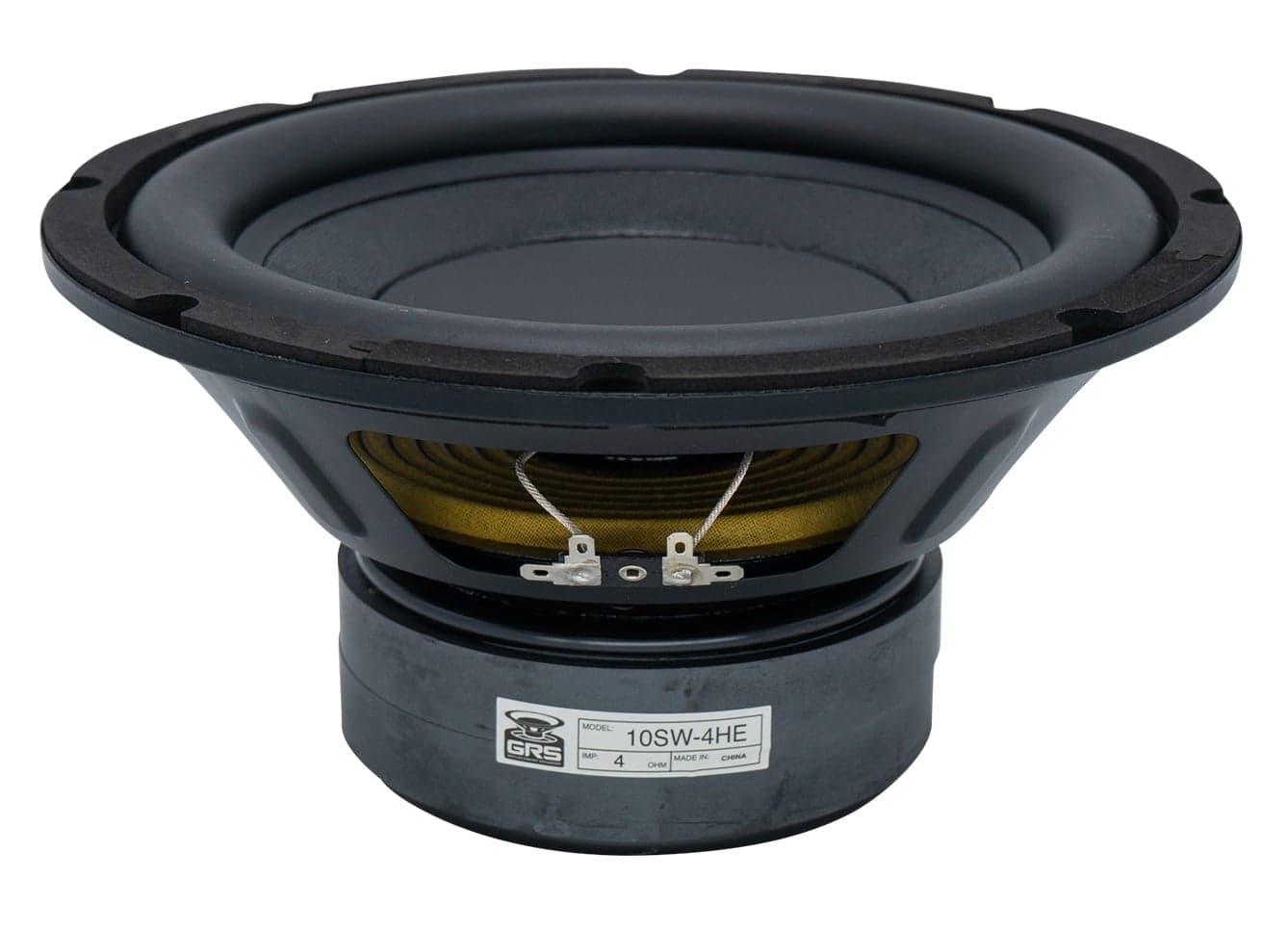

GRS 10SW-4HE
GRS 10SW-4HE is a 10" 4 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 25Hz, Qts 0.50, Vas 2.1L, Xmax 11mm, sensitivity 87.5dB, plus 381cm³ Vd. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Qes
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Size
10"
Impedance
4Ω
RMS Power
200W
Sensitivity
87.5dB
Vd
381cm³
T/S Parameters
Valid
Fs25Hz
Qts0.50
Qms4.0
Vas2.1L
Re3.8Ω
Le3.00mH
BL10.8Tm
Sd346cm²
Mms111g
Xmax11.0mm
SPL88dB
Power200W
Impedance4Ω
F Low26Hz
F High500Hz
Voice Coil51mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£85.88
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Qes
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Qes
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter256.8mm
Overall Depth130.8mm
Cutout Diameter233.2mm
Bolt Circle Diameter244.9mm
