LF DriverBETA series
Eminence

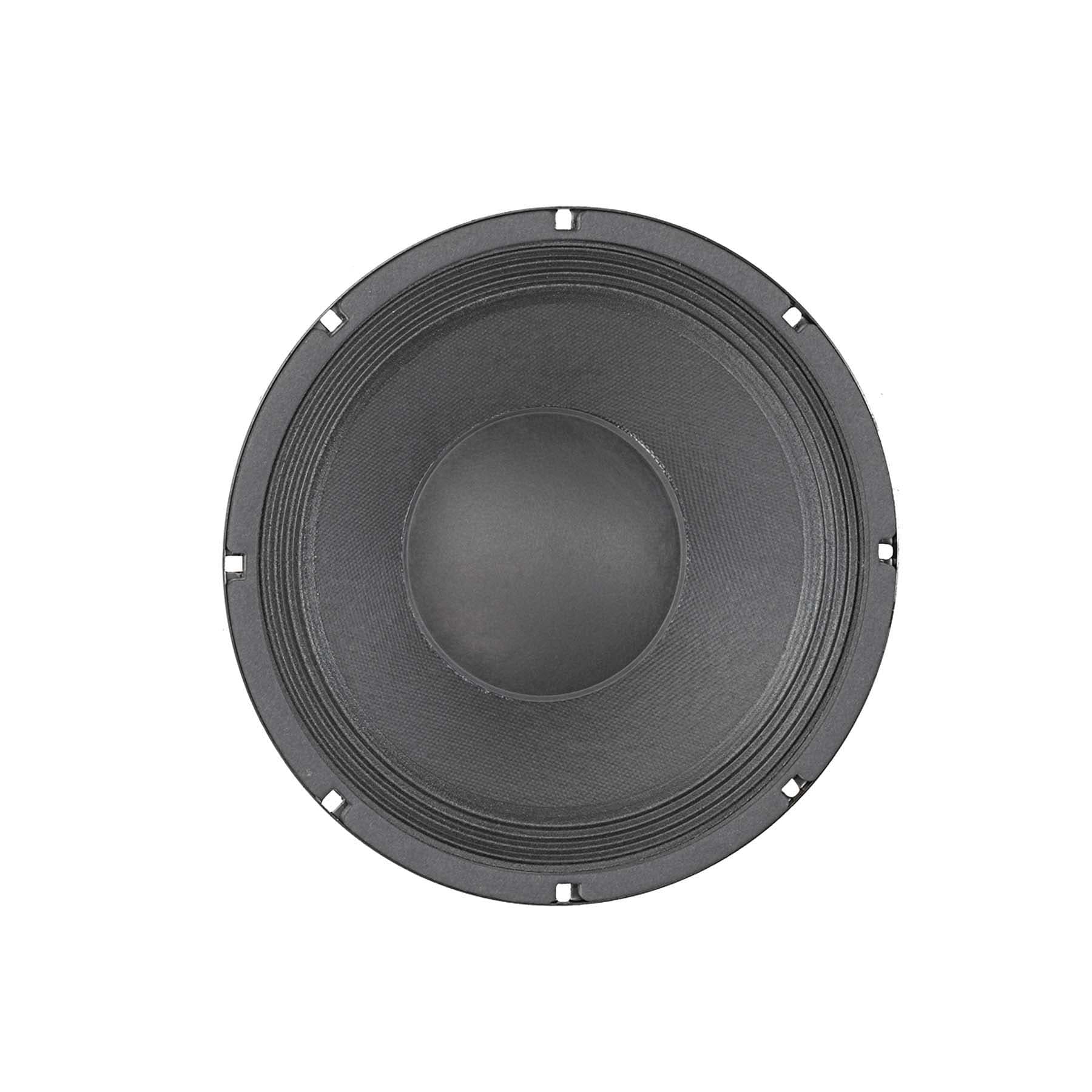

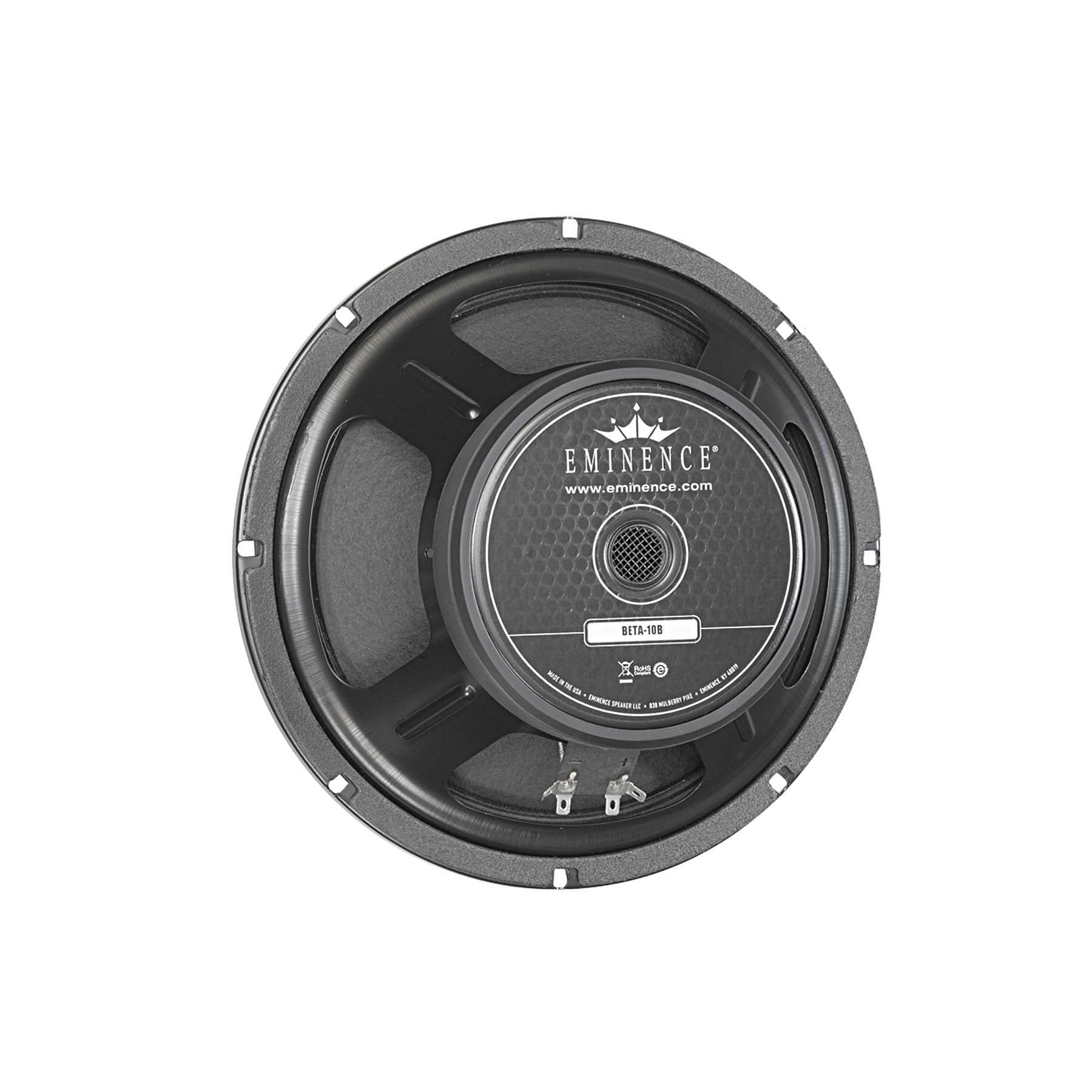

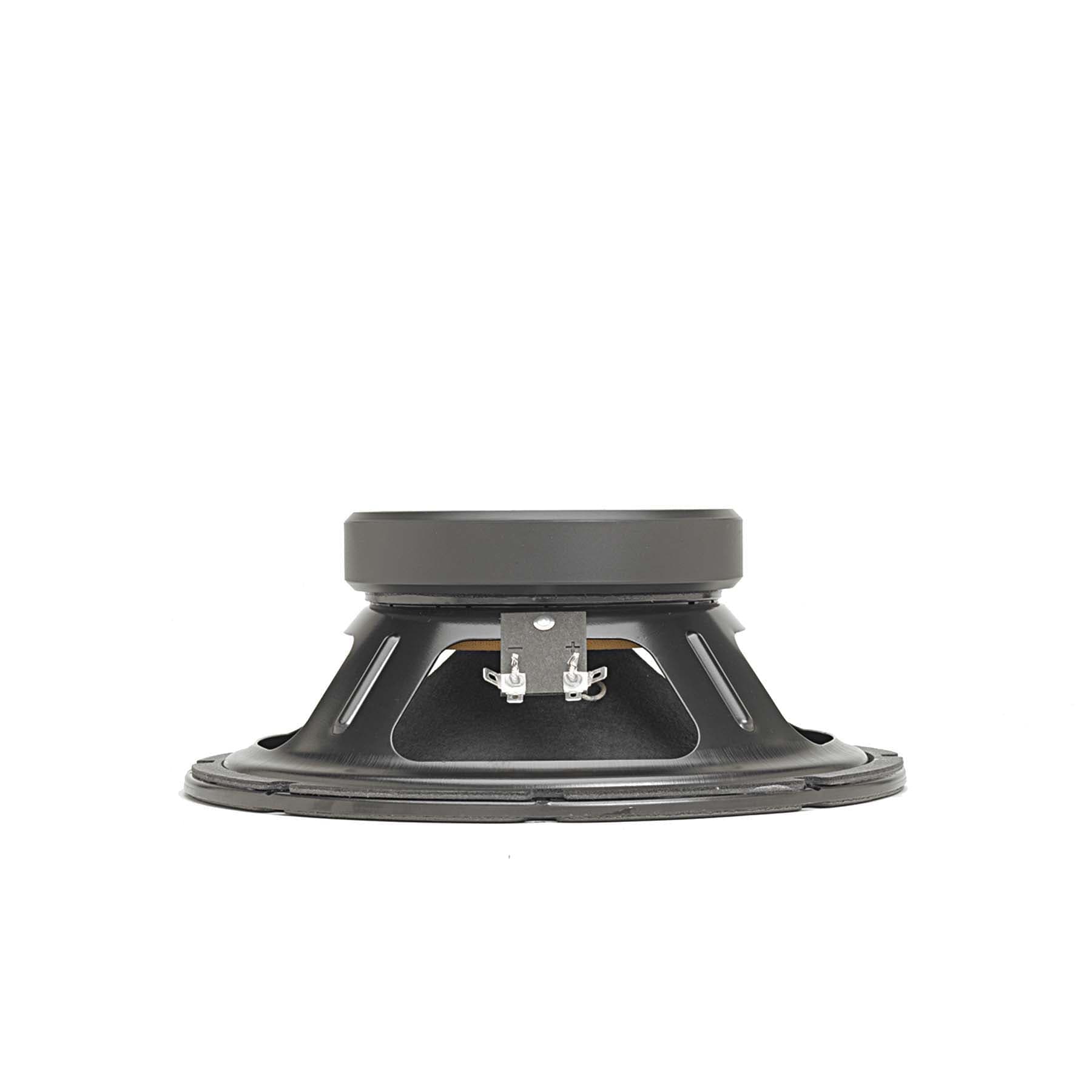

Eminence BETA-10B
Eminence BETA-10B is a 10" 16 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 52Hz, Qts 0.51, Vas 61.4L, Xmax 3mm, sensitivity 93.7dB, plus 103cm³ Vd and 89 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £85.22.
Size
10"
Impedance
16Ω
RMS Power
250W
Sensitivity
93.7dB
EBP
89
Either alignment
Vd
103cm³
T/S Parameters
Valid
Fs52Hz
Qts0.51
Qes0.58
Qms4.3
Vas61.4L
Re15.1Ω
Le1.33mH
BL15.1Tm
Sd345cm²
Mms25g
Xmax3.0mm
SPL94dB
Power250W
Impedance16Ω
F Low50Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£85.22
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.1kg
Diameter256.8mm
Overall Depth101.1mm
Cutout Diameter231.9mm
Bolt Circle Diameter243.8mm
