Overview
LF DriverRAGIN CAJUN series
Eminence
Eminence RAGIN CAJUN

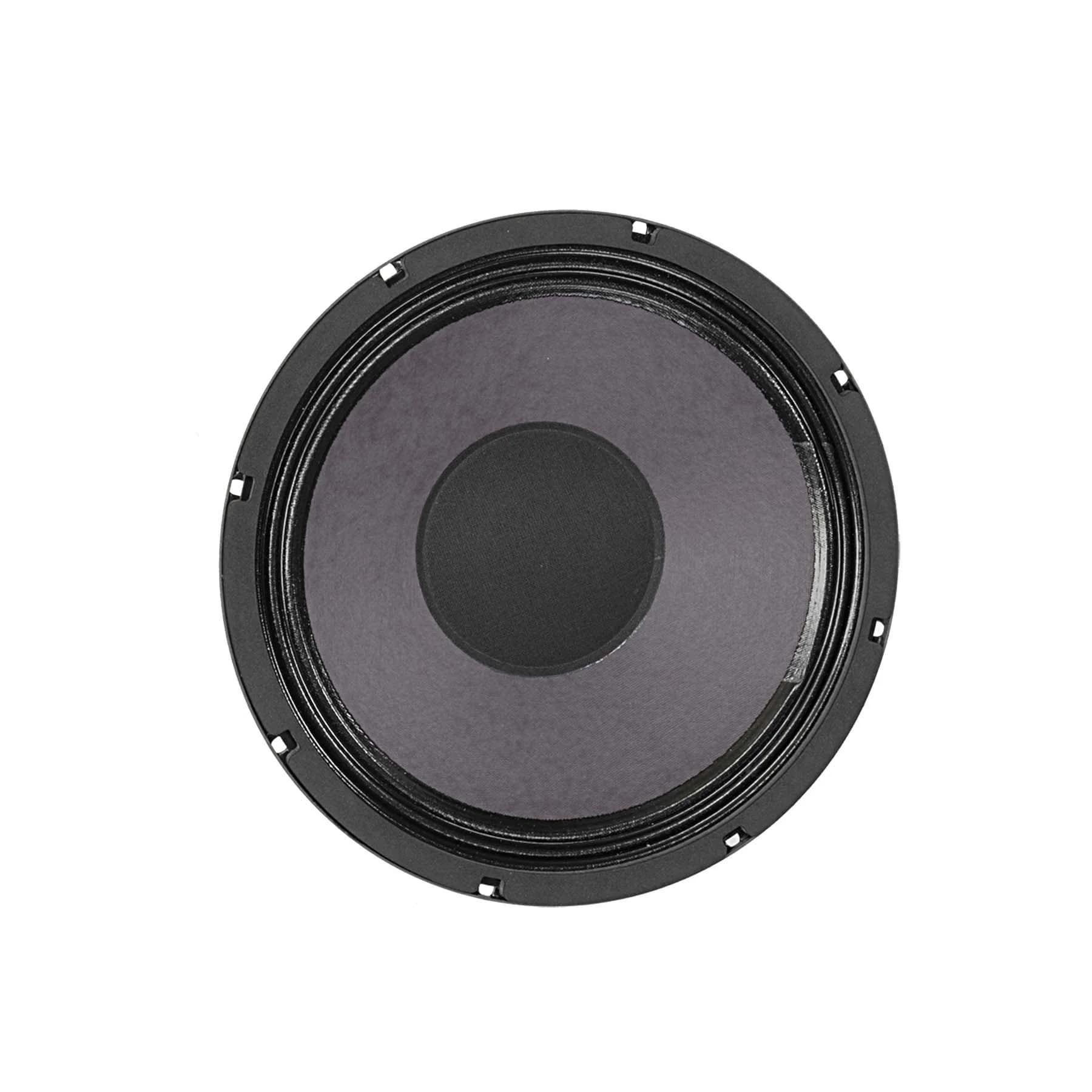

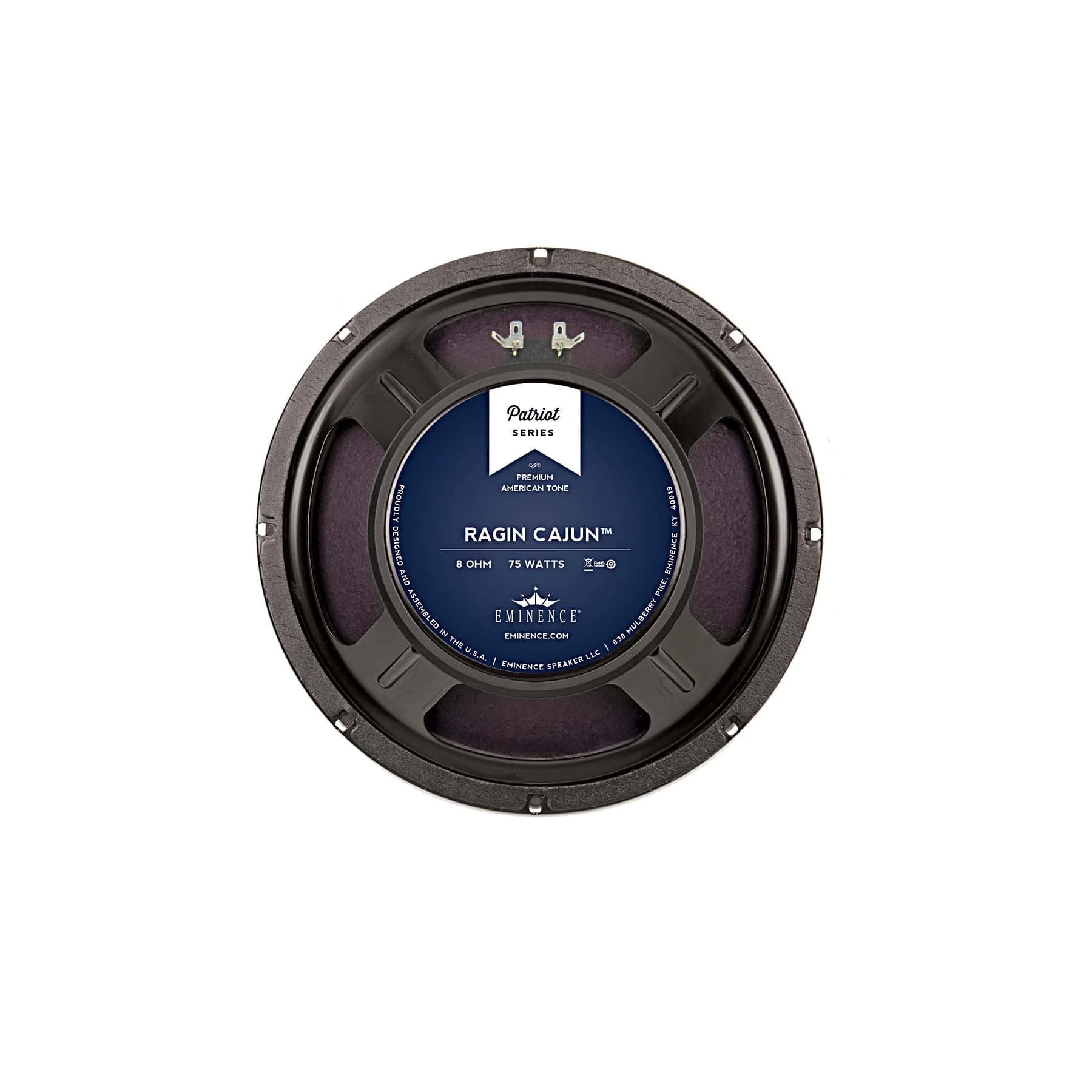

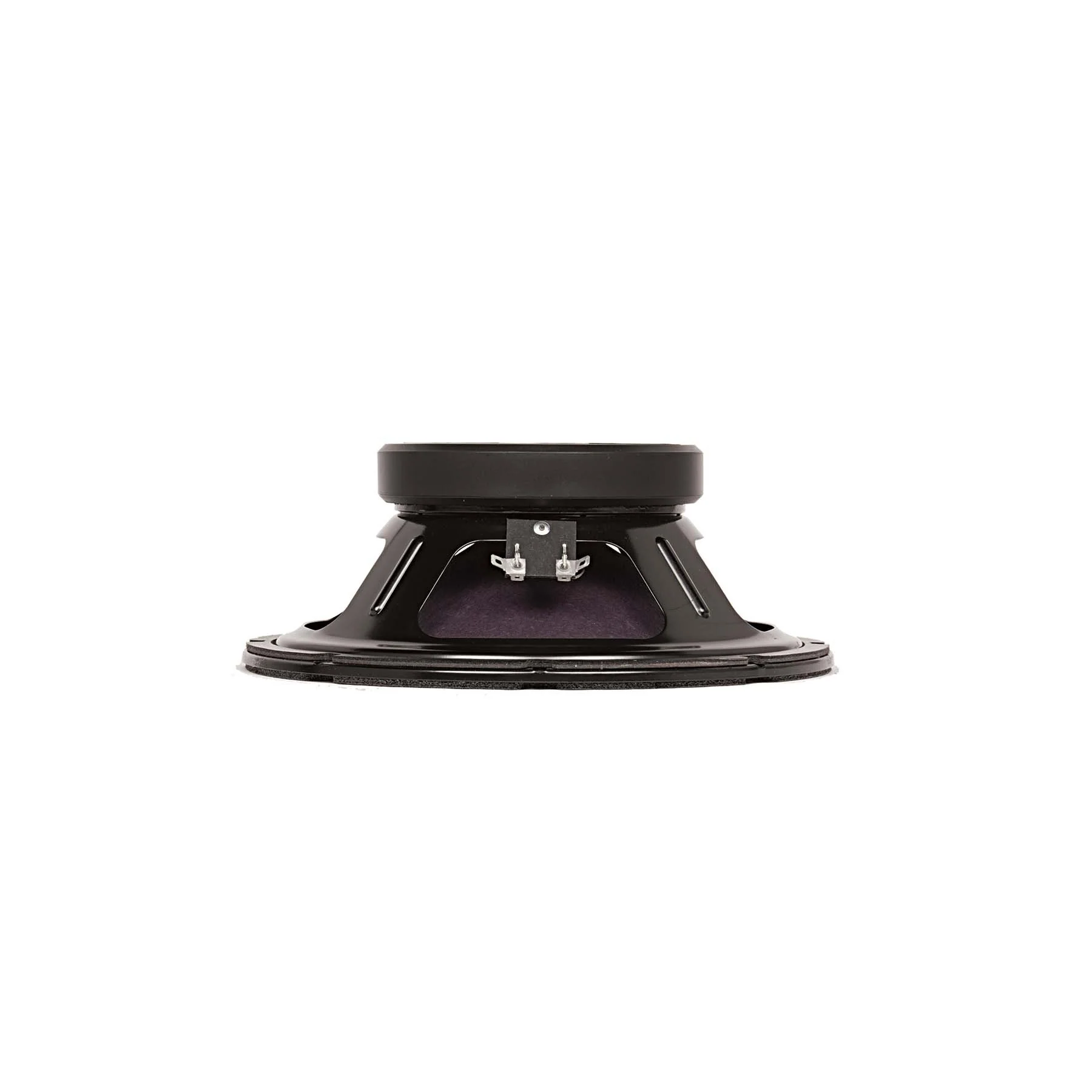

Eminence RAGIN CAJUN is a 10" 8 ohm LF driver rated at 75W RMS. The validated T/S data includes Fs 84Hz, Qts 0.51, Vas 34.1L, Xmax 0.5mm, sensitivity 97.8dB, plus 18cm³ Vd and 156 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £91.87.
Size
10"
Impedance
8Ω
RMS Power
75W
Sensitivity
97.8dB
100.5dBmanufacturer; using T/S-derived value (2.7dB delta).
EBP
156
Vented alignment
Vd
18cm³
T/S Parameters
Valid
Fs84Hz
Qts0.51
Qes0.54
Qms11.4
Vas34.1L
Re7.0Ω
Le0.38mH
BL11.8Tm
Sd366cm²
Mms20g
Xmax0.5mm
SPL98dB
Power75W
Impedance8Ω
F Low80Hz
F High5000Hz
Pricing & availability
Price definitionsOffers & B-stock
1 hidden from price comparisons
Price movement
Other offers
2 vendorsleanaudio
Updated 25 Sept 2026· 8Ω
Source: inc VAT · 20%
£91.87
inc VAT
1 in stock
thomann
Updated 25 Sept 2026· 8Ω
Source: inc VAT · 20%
£130.00
inc VAT
In stock
Best current price
Updated 25 Sept 2026
leanbusiness
£91.87
Avg £104.58£12.71 below avg (-12.2%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.9kg
Diameter256.8mm
Overall Depth96.5mm
Cutout Diameter231.9mm
