Wavecor SW280WA03 4Ω
LF DriverMedia
Wavecor
SW280WA03
Image unavailable
Overview
LF DriverSW280WA series
Wavecor
Wavecor SW280WA03
Wavecor SW280WA03 is a 10" 4 ohm LF driver. The validated T/S data includes Fs 35Hz, Qts 0.46, Vas 29.7L, Xmax 6mm, sensitivity 86.1dB, plus 193cm³ Vd and 72 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
4Ω
Sensitivity
86.1dB
EBP
72
Either alignment
Vd
193cm³
T/S Parameters
Valid
Fs35Hz
Qts0.46
Qes0.48
Qms10.3
Vas29.7L
Re3.3Ω
BL12.5Tm
Sd321cm²
Mms105g
Xmax6.0mm
SPL86dB
Impedance4Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter279.4mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW280WA03
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
94%
Similarity
£141.89
Lavoce
CSF102.50K
10"
Xmax6.3mm+4%
Qts0.45-2%
BL12.9Tm+3%
Vas29.9L+1%
Qes0.480%
Image unavailable
92%
Similarity
£101.72
Eminence
DELTA-10A-2
10"
Xmax6.4mm+6%
Qts0.44-4%
BL12.2Tm-2%
Vas29.7L0%
Qes0.480%
88%
Similarity
Eighteen Sound
10W650
10"
Xmax5.7mm-5%
Qts0.48+4%
BL12.4Tm-1%
Vas26L-12%
Qes0.51+6%
85%
Similarity
Wavecor
SW280WA04
10"
Xmax6mm0%
Qts0.45-2%
BL15.5Tm+24%
Vas30.5L+3%
Qes0.47-2%
84%
Similarity
£55.54
Lavoce
WSF102.00
10"
Xmax5.2mm-13%
Qts0.45-2%
BL11.6Tm-7%
Vas34L+15%
Qes0.480%
84%
Similarity
£63.54
PRV Audio
10MR650A
10"
Xmax5.7mm-5%
Qts0.47+2%
BL12.3Tm-2%
Vas41.9L+41%
Qes0.480%
83%
Similarity
£237.42
B&C
10FCX64
10"
Xmax6mm0%
Qts0.42-9%
BL13.4Tm+7%
Vas25L-16%
Qes0.44-8%
81%
Similarity
£55.28
FaitalPRO
10FE400
10"
Xmax5.4mm-10%
Qts0.47+2%
BL11.5Tm-8%
Vas35.3L+19%
Qes0.52+8%
80%
Similarity
Monacor
FTX1025/8
10"
Xmax5mm-17%
Qts0.44-4%
BL12.3Tm-2%
Vas25.9L-13%
Qes0.52+9%
80%
Similarity
£165.00
Celestion
FTX1025
10"
Xmax5mm-17%
Qts0.44-4%
BL12.3Tm-2%
Vas25.9L-13%
Qes0.52+9%
79%
Similarity
Lavoce
FBASS10-18
10"
Xmax4.5mm-25%
Qts0.43-7%
BL12.5Tm0%
Vas32.4L+9%
Qes0.480%
79%
Similarity

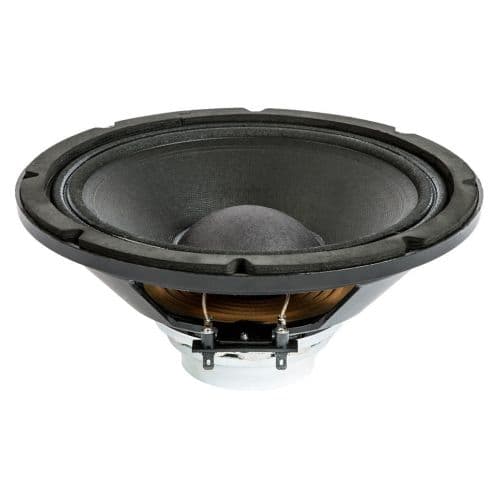

CIARE
