Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEminence LEGEND BP102 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverLEGEND BP series
Eminence

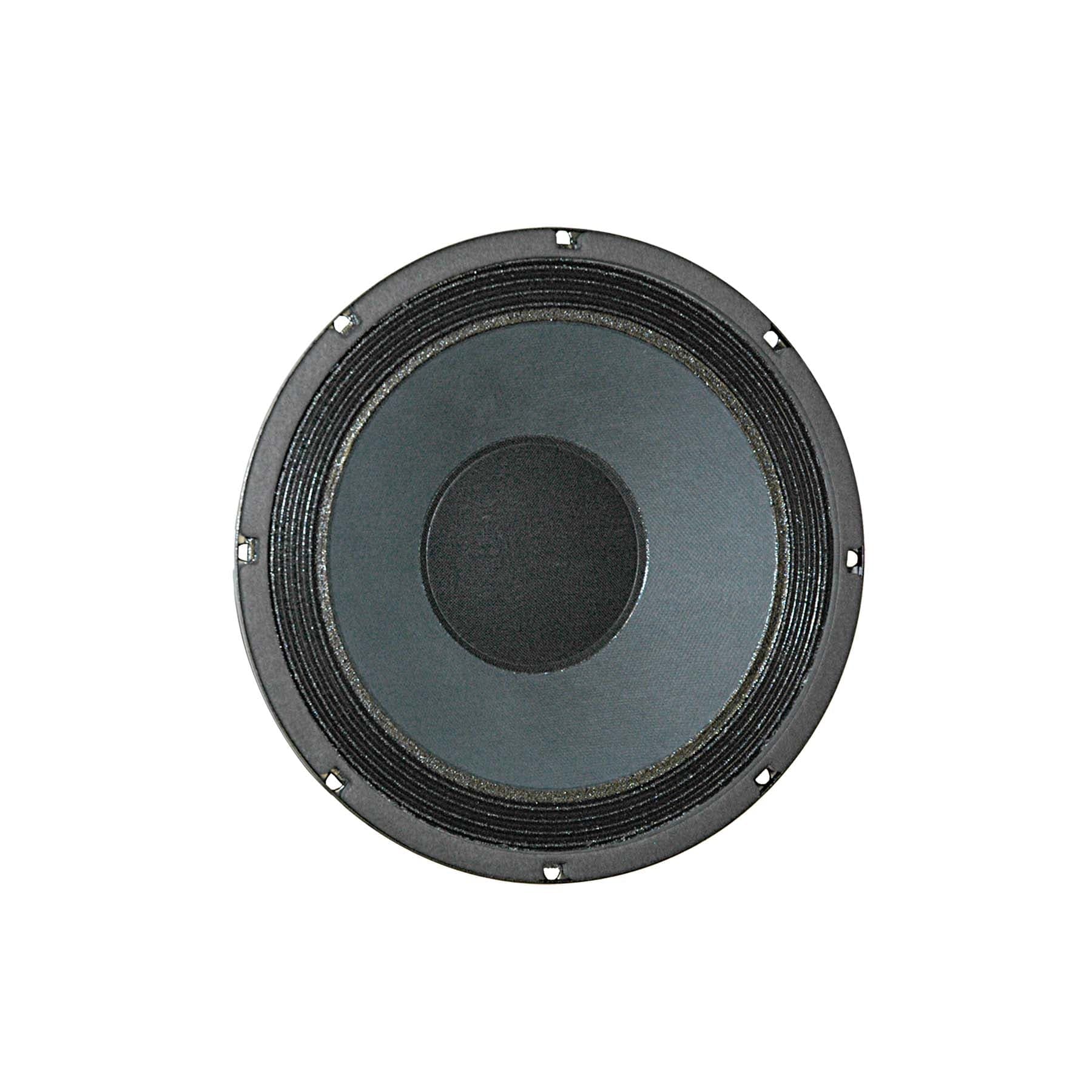

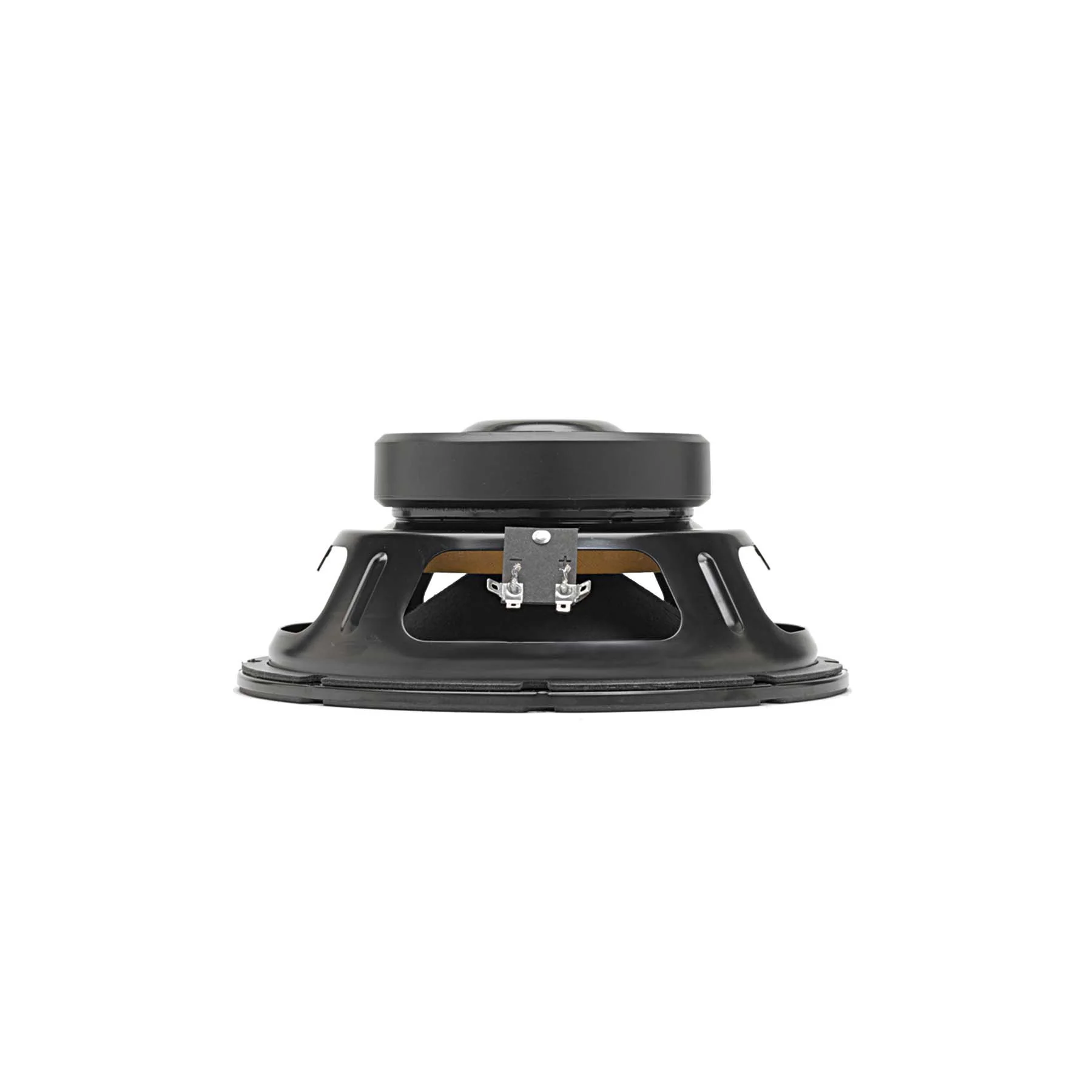

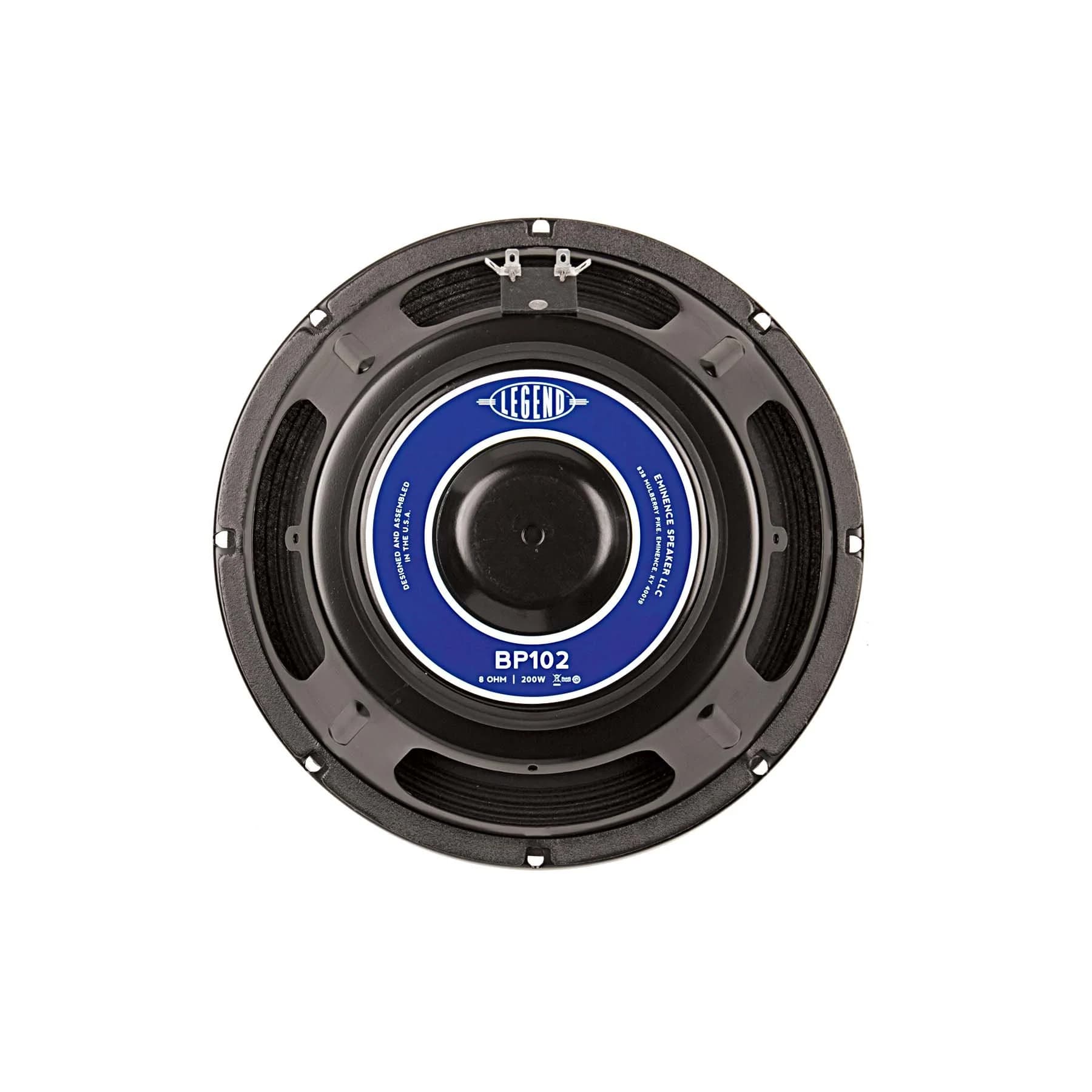

Eminence LEGEND BP102
Eminence LEGEND BP102 is a 10" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 35Hz, Qts 0.43, Vas 91.2L, Xmax 6.2mm, sensitivity 91.2dB, plus 207cm³ Vd and 74 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £91.00.
Size
10"
Impedance
8Ω
RMS Power
200W
Sensitivity
91.2dB
EBP
74
Either alignment
Vd
207cm³
T/S Parameters
Valid
Fs35Hz
Qts0.43
Qes0.47
Qms5.4
Vas91.2L
Re5.6Ω
Le0.83mH
BL10.0Tm
Sd335cm²
Mms38g
Xmax6.2mm
SPL91dB
Power200W
Impedance8Ω
F Low40Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsleanbusiness
Updated 23 Sept 2026· 8Ω
Source: inc VAT · 20%
£91.93
inc VAT
thomann
Updated 25 Sept 2026· 8Ω
Source: inc VAT · 20%
£111.00
inc VAT
In stock
Best current price
Updated 25 Sept 2026
leanaudio
£91.00
Avg £97.98£6.98 below avg (-7.1%)
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter256.0mm
Overall Depth108.0mm
Cutout Diameter233.2mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
LEGEND BP102
10"
Best current price
£91.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
46%
Similarity
64% cheaper£32.52
GRS
10PT-8
10"
Lower price
Xmax7.8mm+26%
Qts0.48+12%
BL13.4Tm+34%
Vas46.2L-49%
Qes0.5+6%
58%
Similarity
58% cheaper£37.81
Dayton Audio
DC250-8
10"
Lower price
Xmax4.5mm-27%
Qts0.38-12%
BL12.6Tm+26%
Vas104L+14%
Qes0.44-6%
53%
Similarity
57% cheaper£39.33
GRS
10SMP-4
10"
Lower price
Xmax5mm-19%
Qts0.51+19%
BL8.2Tm-18%
Vas86L-6%
Qes0.63+34%
49%
Similarity
55% cheaper£40.91
FaitalPRO
10FE200
10"
Lower price
Xmax4.6mm-25%
Qts0.49+14%
BL7Tm-30%
Vas61L-33%
Qes0.52+11%
52%
Similarity
45% cheaper£50.47
SB Audience
BIANCO-10MW200
10"
Lower price
Xmax6.7mm+8%
Qts0.36-16%
BL13Tm+30%
Vas41L-55%
Qes0.43-9%
65%
Similarity
43% cheaper£52.32
Beyma
10CMV2
10"
Lower price
Xmax6.5mm+5%
Qts0.42-2%
BL13.4Tm+34%
Vas44L-52%
Qes0.470%
63%
Similarity
29% cheaper£64.23
PRV Audio
10MR650A
10"
Lower price
Xmax5.7mm-8%
Qts0.47+9%
BL12.3Tm+23%
Vas41.9L-54%
Qes0.48+2%
68%
Similarity
29% cheaper£64.85
FaitalPRO
10FE300
10"
Lower price
Xmax5.5mm-12%
Qts0.39-9%
BL9.7Tm-3%
Vas49L-46%
Qes0.41-13%
56%
Similarity
26% cheaper£67.00
FaitalPRO
10FE300
10"
Lower price
Xmax5.5mm-11%
Qts0.52+21%
BL11.3Tm+13%
Vas50.5L-45%
Qes0.54+15%
85%
Similarity
21% cheaper£71.85
Dayton Audio
DS270-8
10"
Lower price
Xmax5.5mm-11%
Qts0.44+2%
BL10.1Tm+1%
Vas87.7L-4%
Qes0.54+15%
59%
Similarity
17% cheaper£75.63
Visaton
W 250 S - 4 OHM
10"
Lower price
Xmax7mm+13%
Qts0.35-19%
BL8.9Tm-11%
Vas135L+48%
Qes0.43-9%
40%
Similarity
12% cheaper£79.75
CIARE
FXI10
10"
Lower price
Xmax4.5mm-27%
Qts0.38-12%
BL13.3Tm+33%
Vas38.5L-58%
Qes0.41-13%
