Overview
LF Driver
Sica
Sica 10 H 2 CS

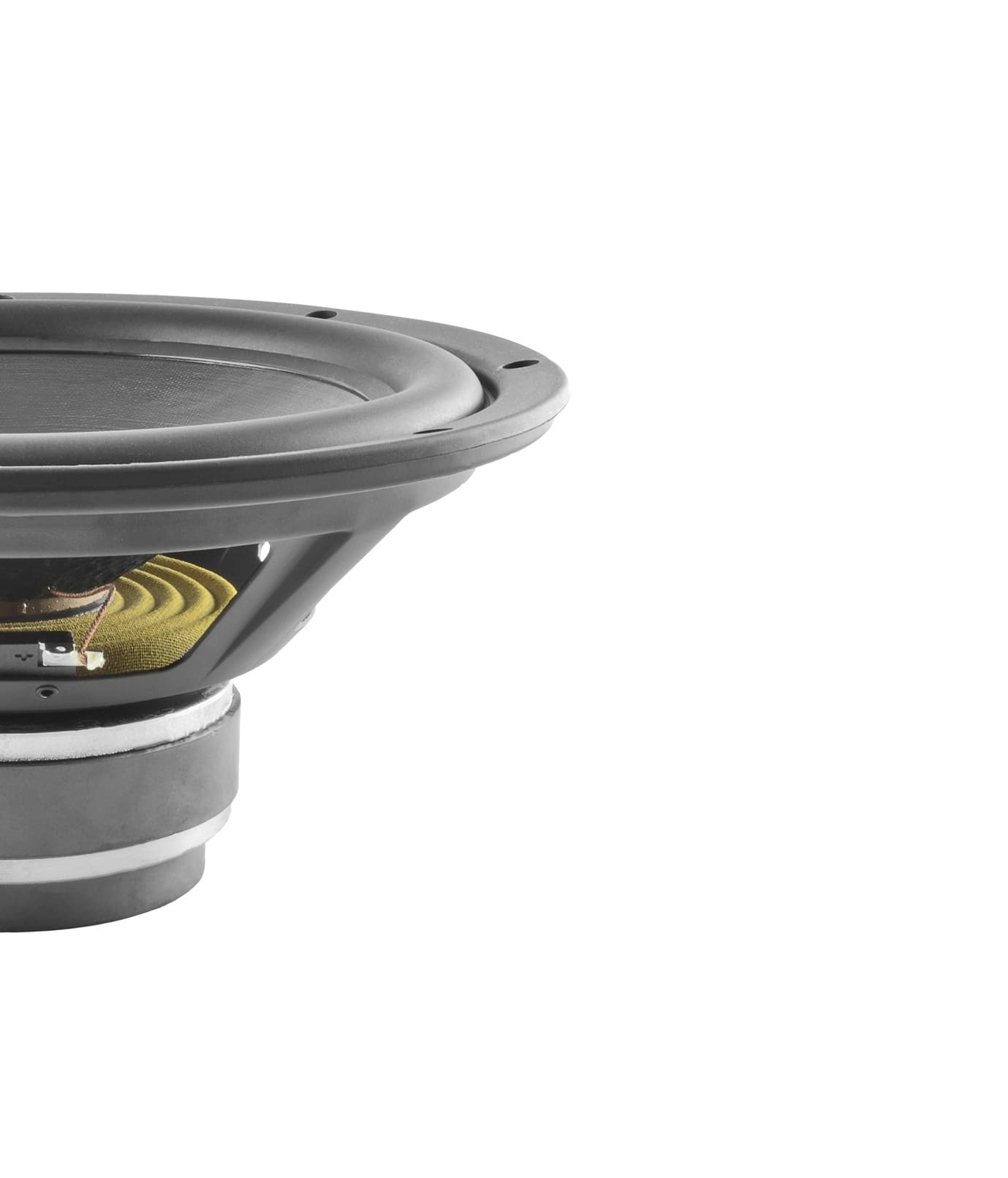

Sica 10 H 2 CS is a 10" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 30Hz, Qts 0.37, Vas 84.3L, Xmax 6mm, sensitivity 89.6dB, plus 204cm³ Vd and 74 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
200W
Sensitivity
89.6dB
90.8dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
74
Either alignment
Vd
204cm³
T/S Parameters
Valid
Fs30Hz
Qts0.37
Qes0.41
Qms4.0
Vas84.3L
Re6.1Ω
Le1.58mH
BL12.4Tm
Sd340cm²
Mms54g
Xmax6.0mm
SPL90dB
Power200W
Impedance8Ω
Voice Coil50mm
Flux Density0.87T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.5kg
Diameter270.0mm
Overall Depth130.5mm
Cutout Diameter237.0mm
Bolt Circle Diameter252.0mm
