Overview
LF DriverFE series
FaitalPRO
FaitalPRO 10FE330
FaitalPRO 10FE330 is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 35Hz, Qts 0.40, Vas 72.4L, Xmax 8.3mm, sensitivity 90.6dB, plus 318cm³ Vd and 81 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £64.90.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
90.6dB
92.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
81
Either alignment
Vd
318cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees240 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence784 selected pixels of 990 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,359 selected pixels of 1,359 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,439 selected pixels of 1,439
T/S Parameters
Valid
Fs35Hz
Qts0.40
Qes0.43
Qms6.7
Vas72.4L
Re5.3Ω
Le1.10mH
BL12.6Tm
Sd382cm²
Mms58g
Xmax8.3mm
SPL91dB
Power250W
Impedance8Ω
F Low35Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£64.90
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.5kg
Diameter260.0mm
Overall Depth110.0mm
Cutout Diameter233.0mm
Bolt Circle Diameter246.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
10FE330
10"
Best current price
£64.90
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity
22% cheaper£50.47
SB Audience
BIANCO-10MW200
10"
Lower price
Xmax6.7mm-19%
Qts0.36-10%
BL13Tm+3%
Vas41L-43%
Qes0.430%
Image unavailable
58%
Similarity
62% more£104.85
Eminence
DELTA-10A-2
10"
Higher price
Xmax6.4mm-23%
Qts0.44+10%
BL12.2Tm-3%
Vas29.7L-59%
Qes0.48+12%
53%
Similarity
73% more£112.27
FaitalPRO
10PR330
10"
Higher price
Xmax7.4mm-11%
Qts0.33-17%
BL14.3Tm+13%
Vas32.5L-55%
Qes0.36-16%
70%
Similarity
84% more£119.58
FaitalPRO
10RS350
10"
Higher price
Xmax7.4mm-11%
Qts0.37-8%
BL14Tm+11%
Vas44.3L-39%
Qes0.4-7%
56%
Similarity
119% more£141.89

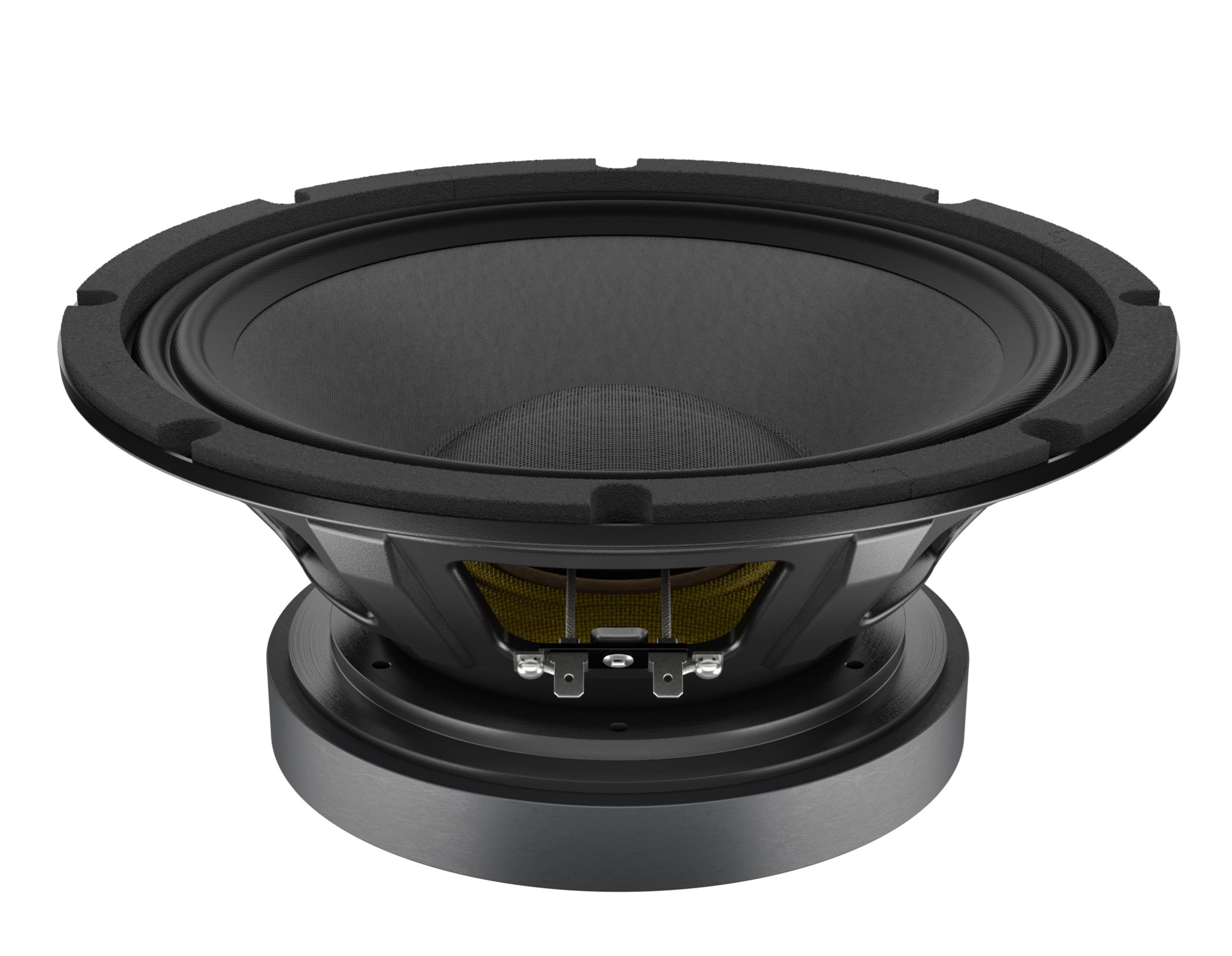

Lavoce
CSF102.50K
10"
Higher price
Xmax6.3mm-25%
Qts0.45+12%
BL12.9Tm+2%
Vas29.9L-59%
Qes0.48+12%
40%
Similarity
226% more£211.47

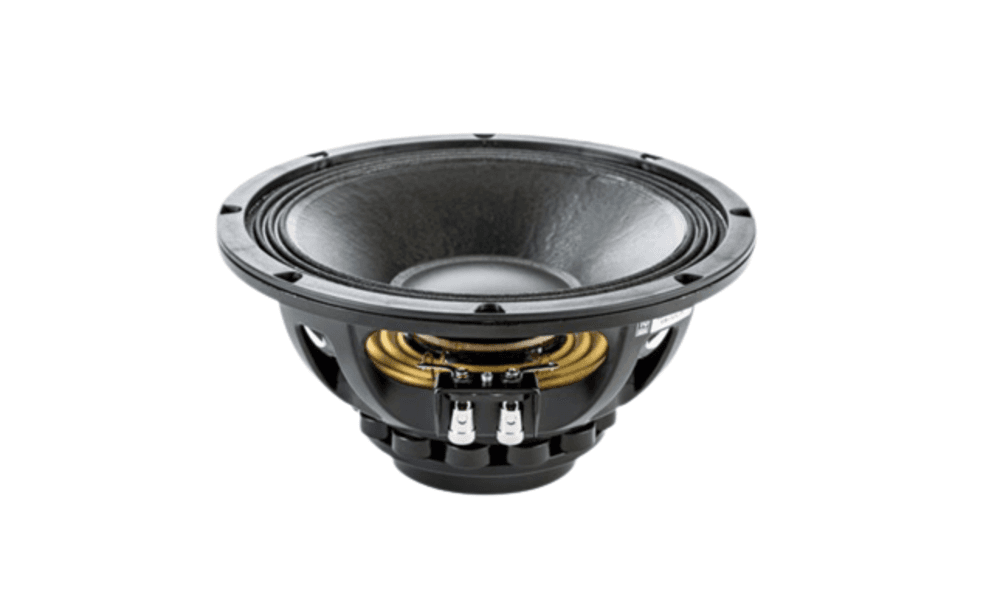

Eighteen Sound
10NW750
10"
Higher price
Xmax7.5mm-10%
Qts0.31-23%
BL16.4Tm+30%
Vas34L-53%
Qes0.32-26%
73%
Similarity
249% more£226.56
FaitalPRO
10HX230
10"
Higher price
Xmax7.4mm-11%
Qts0.39-3%
BL13.1Tm+4%
Vas30.5L-58%
Qes0.42-2%
53%
Similarity
303% more£261.58
Eighteen Sound
10CX650
10"
Higher price
Xmax6mm-28%
Qts0.35-13%
BL14Tm+11%
Vas36.4L-50%
Qes0.39-9%
77%
Similarity
Beyma
110CX3FE8
10"
Xmax6.7mm-19%
Qts0.38-5%
BL11.7Tm-8%
Vas63L-13%
Qes0.41-5%
Image unavailable
77%
Similarity
Wavecor
WF275BD02
10"
Xmax9mm+8%
Qts0.45+12%
BL11.8Tm-6%
Vas81.5L+13%
Qes0.47+9%
74%
Similarity

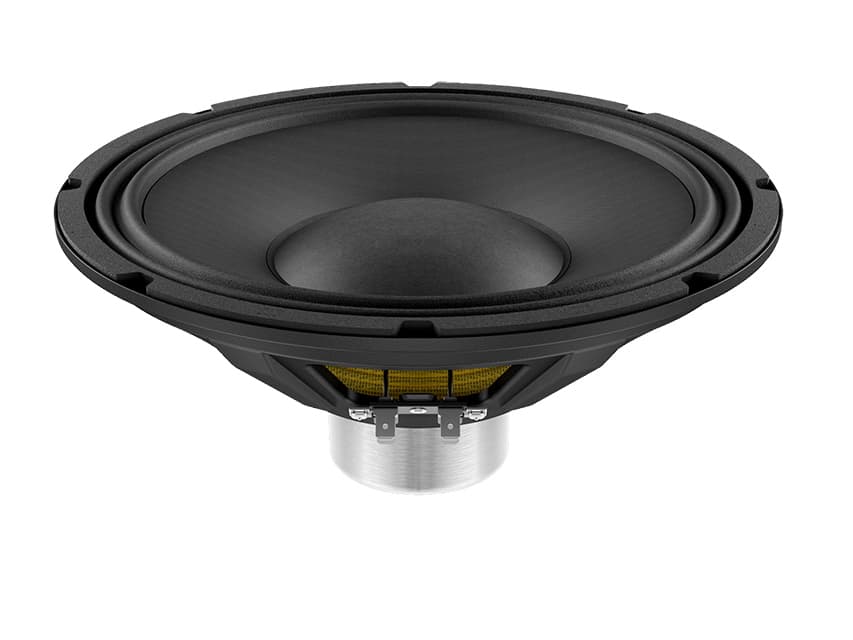

Lavoce
NBASS10-20
10"
Xmax6.6mm-21%
Qts0.39-3%
BL12.5Tm-1%
Vas43.4L-40%
Qes0.42-2%
74%
Similarity
PRV Audio
10W1000-NDY
10"
Xmax6.5mm-22%
Qts0.40%
BL12.7Tm+1%
Vas39L-46%
Qes0.42-2%
