10-inch LF driver · WF275BD series · 39 mm voice coil

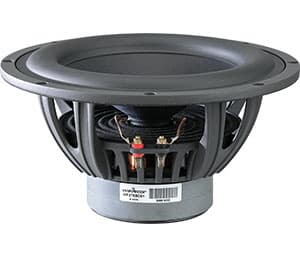

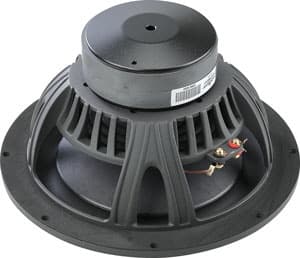

Wavecor WF275BD01 4Ω
4 Ω
No current price
- Fs
- 27Hz
- Xmax
- 9mm
- SPL
- 88dB
- Pe
- –
- BL
- 8.9T·m
- Vd
- 281cm³
- Qts
- 0.37
- Vas
- 82L
Wavecor WF275BD01 is a 10-inch 4 ohm LF driver. The validated T/S data includes Fs 27 Hz, Qts 0.37, Vas 81.5 L, Xmax 9 mm, sensitivity 88.3 dB, plus 281 cm³ Vd and 71 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 27Hz
- Qts
- 0.37
- Qes
- 0.38
- Qms
- 11.6
- Vas
- 81.5L
- Re
- 3.1Ω
Motor and cone
- BL
- 8.9T·m
- Sd
- 312cm²
- Mms
- 57g
- Xmax
- 9mm
- Vd †
- 281cm³
- Voice coil
- 39mm
Power and response
- Sensitivity †
- 88.3dB
- Impedance
- 4Ω
- EBP †
- 71 · Sealed or vented
Size and mounting
- Diameter
- 273.1mm
Other published values
- Cms
- 0.59mm/N
- Rms
- 0.85kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 10″
- BL
- 8.9T·m
- Fs
- 27Hz
- Re
- 3.1Ω
- Sd
- 312cm²
- Cms
- 0.59mm/N
- Mms
- 57g
- Qes
- 0.38
- Qms
- 11.6
- Qts
- 0.37
- Rms
- 0.85kg/s
- SPL
- 88.3dB
- Vas
- 81.5L
- Xmax
- 9mm
- Impedance
- 4Ω
- Calculated sensitivity †
- 88.3dB
- Voice coil
- 39mm
- Diameter
- 273.1mm
02
Compare
Same-size drivers, compared with the WF275BD01. Clear differences are green when better and red when worse.
This driverWF275BD01
Best price
–
Fs
27 Hz
Qts
0.37
Vas
81.5 L
BL
8.9 T·m
Xmax
9 mm
Sensitivity
88.3 dB
Power
–
FaitalPRO10FE330
£64.90Fs35 Hz +30%, worse
Qts0.40 +8%
Vas72.4 L −11%, better
BL12.6 T·m +42%, better
Xmax8.3 mm −8%
Sensitivity90.6 dB +2.3, better
FaitalPRO10FE300
£72.00Fs50 Hz +85%, worse
Qts0.39 +5%
Vas49 L −40%, better
BL9.7 T·m +9%
Xmax5.5 mm −39%, worse
Sensitivity93.8 dB +5.5, better
VisatonW 250 S
£72.18Fs33 Hz +22%, worse
Qts0.35 −5%
Vas135 L +66%, worse
BL8.9 T·m –
Xmax5 mm −44%, worse
Sensitivity92.6 dB +4.3, better
SB AcousticsSW26SFC38-8
£80.81Fs29 Hz +6%
Qts0.35 −5%
Vas80 L –
BL13.5 T·m +52%, better
Xmax3.5 mm −61%, worse
Sensitivity88.9 dB +0.6
EminenceLEGEND BP 102-4
£105.00Fs35 Hz +30%, worse
Qts0.38 –
Vas103.8 L +27%, worse
BL7.1 T·m −20%, worse
Xmax6.2 mm −31%, worse
Sensitivity92.5 dB +4.2, better
EminenceBETA 10CX
£106.91Fs49 Hz +81%, worse
Qts0.38 –
Vas61.1 L −25%, better
BL10.9 T·m +22%, better
Xmax5 mm −44%, worse
Sensitivity94.5 dB +6.2, better
CIAREHW251N
£108.85Fs30 Hz +11%, worse
Qts0.35 −5%
Vas88 L +8%
BL13.0 T·m +46%, better
Xmax5.7 mm −37%, worse
Sensitivity90 dB +1.7
Scanspeak26W/4534G00
£132.30Fs23 Hz −15%, better
Qts0.36 –
Vas156 L +91%, worse
BL8.8 T·m –
Xmax6 mm −33%, worse
Sensitivity89.1 dB +0.8
SB AcousticsSB29NRX75-6
£134.39Fs21 Hz −22%, better
Qts0.35 −5%
Vas102 L +25%, worse
BL10.7 T·m +20%, better
Xmax11 mm +22%, better
Sensitivity86 dB −2.3, worse
SB AcousticsSB29NRX75-8
£142.26Fs26 Hz −4%
Qts0.37 –
Vas85.6 L +5%
BL12.4 T·m +39%, better
Xmax11 mm +22%, better
Sensitivity87.9 dB –
SB AcousticsWO24P-8
£185.95Fs25 Hz −9%
Qts0.38 –
Vas87.5 L +7%
BL9.9 T·m +11%, better
Xmax8.5 mm −6%
Sensitivity87 dB −1.3
SB AcousticsWO24P-4
£195.93Fs28 Hz +4%
Qts0.40 +8%
Vas71 L −13%, better
BL7.6 T·m −15%, worse
Xmax8.5 mm −6%
Sensitivity87.7 dB −0.6
VisatonTIW 250 XS
£234.15Fs33 Hz +22%, worse
Qts0.33 −11%, better
Vas66 L −19%, better
BL13 T·m +46%, better
Xmax8.5 mm −6%
Sensitivity90.3 dB +2, better
Scanspeak26W/4867T00
£243.83Fs18 Hz −33%, better
Qts0.29 −22%, better
Vas220 L +170%, worse
BL8.3 T·m −7%
Xmax9 mm –
Sensitivity88.2 dB –
SB AcousticsWO24TX-4
£292.97Fs26 Hz –
Qts0.35 −5%
Vas79 L −3%
BL7.9 T·m −11%, worse
Xmax8.8 mm –
Sensitivity87.9 dB –
SB AcousticsWO24TX-8
£292.97Fs25 Hz −9%
Qts0.34 −8%
Vas88 L +8%
BL10.4 T·m +17%, better
Xmax8.6 mm −5%
Sensitivity87.6 dB −0.7
Scanspeak26W/8861T00
£334.88Fs19 Hz −30%, better
Qts0.31 −16%, better
Vas231 L +183%, worse
BL9.9 T·m +11%, better
Xmax9 mm –
Sensitivity88.8 dB +0.5
AccutonAS250-8-552
£1,019.94Fs20 Hz −25%, better
Qts0.35 −5%
Vas155.6 L +91%, worse
BL14.7 T·m +65%, better
Xmax9 mm –
Sensitivity87.4 dB −0.9
Cube AudioF10 NEO V2
No current priceFs40 Hz +48%, worse
Qts0.37 –
Vas53 L −35%, better
BL9 T·m –
Xmax3 mm −67%, worse
Sensitivity91.7 dB +3.4, better
HiViSS10
No current priceFs28 Hz –
Qts0.36 –
Vas105.7 L +30%, worse
BL10.4 T·m +17%, better
Xmax7.3 mm −19%, worse
Sensitivity89.7 dB +1.4
KartesianWOM265_VKI-6
No current priceFs30 Hz +11%, worse
Qts0.34 −8%
Vas114.6 L +41%, worse
BL10.4 T·m +17%, better
Xmax10 mm +11%, better
Sensitivity91.3 dB +3, better
HiViW10
No current priceFs35 Hz +30%, worse
Qts0.37 –
Vas81.4 L –
BL12.8 T·m +44%, better
Xmax7 mm −22%, worse
Sensitivity90.9 dB +2.6, better
Sica10 H 2 CS
No current priceFs30 Hz +12%, worse
Qts0.37 –
Vas84.3 L +3%
BL12.4 T·m +39%, better
Xmax6 mm −33%, worse
Sensitivity89.6 dB +1.3
WavecorWF275BD02
No current priceFs28 Hz +4%
Qts0.45 +22%, worse
Vas81.5 L –
BL11.8 T·m +33%, better
Xmax9 mm –
Sensitivity87.8 dB −0.5
Beyma10CX300
No current priceFs48 Hz +78%, worse
Qts0.38 –
Vas63 L −23%, better
BL11.7 T·m +31%, better
Xmax6.7 mm −26%, worse
Sensitivity94.3 dB +6, better
PRV Audio10MR650A-4
No current priceFs62 Hz +130%, worse
Qts0.39 +5%
Vas44 L −46%, better
BL10.0 T·m +12%, better
Xmax5.2 mm −42%, worse
Sensitivity96.2 dB +7.9, better
Audio Technology23 I 52 20 06 SD
No current priceFs33 Hz +22%, worse
Qts0.26 −30%, better
Vas70 L −14%, better
BL10.0 T·m +12%, better
Xmax8 mm −11%, worse
Sensitivity91.3 dB +3, better
AccutonAS250-8-555
No current priceFs24 Hz −12%, better
Qts0.33 −11%, better
Vas131.2 L +61%, worse
BL15.3 T·m +72%, better
Xmax9 mm –
Sensitivity88.9 dB +0.6
MonacorSP-252C
No current priceFs35 Hz +30%, worse
Qts0.41 +11%, worse
Vas96 L +18%, worse
BL8.1 T·m −9%
Xmax5 mm −44%, worse
Sensitivity91.5 dB +3.2, better
