Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespVisaton W 250 S 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverW series
Visaton
Visaton W 250 S

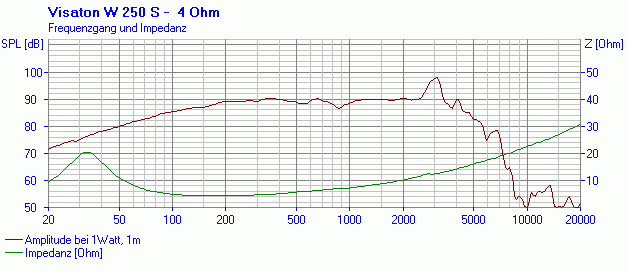

Visaton W 250 S is a 10" 4 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 33Hz, Qts 0.35, Vas 135L, Xmax 7mm, sensitivity 92.6dB, plus 242cm³ Vd and 77 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
4Ω
RMS Power
100W
Sensitivity
92.6dB
90.0dBmanufacturer; using T/S-derived value (2.6dB delta).
EBP
77
Either alignment
Vd
242cm³
T/S Parameters
Valid
Fs33Hz
Qts0.35
Qes0.43
Qms2.0
Vas135.0L
Re3.6Ω
Le0.90mH
BL8.9Tm
Sd346cm²
Mms32g
Xmax7.0mm
SPL93dB
Power100W
Impedance4Ω
F High5500Hz
Voice Coil38mm
Flux Density1.00T
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 4Ω
Source: inc VAT
£77.28
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.0kg
Diameter250.0mm
Cutout Diameter233.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Visaton
W 250 S
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
£73.95
Visaton
W 250 S - 4 OHM
10"
Xmax7mm0%
Qts0.350%
BL8.9Tm0%
Vas135L0%
Qes0.430%
86%
Similarity
£85.19
Visaton
W 250 S - 8 OHM
10"
Xmax7mm0%
Qts0.32-9%
BL9.2Tm+3%
Vas121L-10%
Qes0.39-9%
79%
Similarity
£171.95
Scanspeak
26W/4534G00
10"
Xmax6mm-14%
Qts0.36+3%
BL8.8Tm-1%
Vas156L+16%
Qes0.37-14%
77%
Similarity
HiVi
SS10
10"
Xmax7.3mm+4%
Qts0.36+3%
BL10.4Tm+17%
Vas105.7L-22%
Qes0.38-12%
75%
Similarity
Beyma
210BR60V28
10"
Xmax6.5mm-7%
Qts0.39+11%
BL10.9Tm+22%
Vas142L+5%
Qes0.44+2%
72%
Similarity
£171.95
Scanspeak
26W/8534G00
10"
Xmax6mm-14%
Qts0.4+14%
BL10.1Tm+13%
Vas150L+11%
Qes0.42-2%
Image unavailable
65%
Similarity
Wavecor
WF275BD01
10"
Xmax9mm+29%
Qts0.37+6%
BL8.9Tm0%
Vas81.5L-40%
Qes0.38-12%
61%
Similarity
Beyma
110CX3FE8
10"
Xmax6.7mm-4%
Qts0.38+9%
BL11.7Tm+31%
Vas63L-53%
Qes0.41-5%
59%
Similarity
Dayton Audio
SD270A-88
10"
Xmax6mm-14%
Qts0.43+23%
BL7.8Tm-12%
Vas107.5L-20%
Qes0.5+16%
57%
Similarity
Monacor
SP-252C
10"
Xmax5mm-29%
Qts0.41+17%
BL8.1Tm-9%
Vas96L-29%
Qes0.47+9%
55%
Similarity
£88.74
Dayton Audio
DSA270-8
10"
Xmax5.5mm-21%
Qts0.39+11%
BL11.2Tm+26%
Vas88.1L-35%
Qes0.47+9%
54%
Similarity
Dayton Audio
DA270-8
10"
Xmax6.1mm-13%
Qts0.43+23%
BL10.1Tm+13%
Vas108.5L-20%
Qes0.55+28%
