PeerlessFSL-1020R02-08
£49.45Fs65 Hz −11%, better
Qts0.36 –
Vas38.5 L +78%, worse
BL13.6 T·m −14%, worse
Xmax5.1 mm +6%
Sensitivity96.3 dB +0.8
10-inch LF driver · WAF102 series · 65 mm voice coil · 250 W

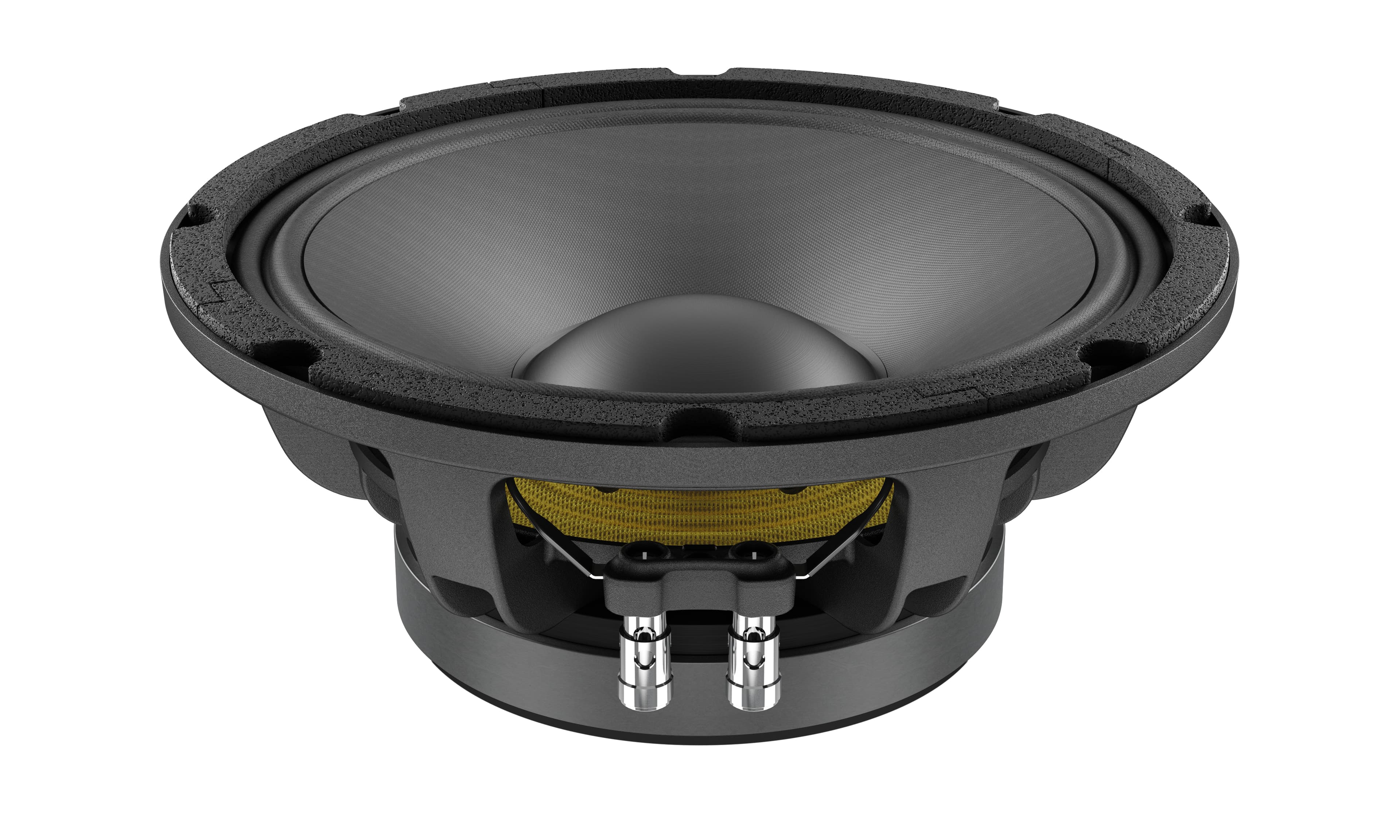

Lavoce WAF102.50A 8Ω
8 Ω · 70–4000 Hz
No price for delivery to the UK
- Fs
- 73Hz
- Xmax
- 4.8mm
- SPL
- 96dB
- Pe
- 250W
- BL
- 15.8T·m
- Vd
- 168cm³
- Qts
- 0.36
- Vas
- 22L
Lavoce WAF102.50A is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 73 Hz, Qts 0.36, Vas 21.7 L, Xmax 4.8 mm, sensitivity 95.5 dB, plus 168 cm³ Vd and 192 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 73Hz
- Qts
- 0.36
- Qes
- 0.38
- Qms
- 5.3
- Vas
- 21.7L
- Re
- 5.5Ω
- Le
- 0.80mH
Motor and cone
- BL
- 15.8T·m
- Sd
- 350cm²
- Mms
- 38g
- Xmax
- 4.8mm
- Vd †
- 168cm³
- Voice coil
- 65mm
Power and response
- Sensitivity †
- 95.5dB
- Manufacturer sensitivity
- 97dB
- Power
- 250W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 70–4000Hz
- EBP †
- 192 · Leans vented
Size and mounting
- Weight
- 4.7kg
Other published values
- Cms
- 0.13mm/N
- Xmech
- 8.8
- Power Program
- 500
Sensitivity shows 95.5 dB, calculated from the T/S values. Lavoce publishes 97.0 dB, 1.5 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Lavoce lists
LF · Primary · 10″
- BL
- 15.8T·m
- Fs
- 73Hz
- Le
- 0.80mH
- Re
- 5.5Ω
- Sd
- 350cm²
- Cms
- 0.13mm/N
- Mms
- 38g
- Qes
- 0.38
- Qms
- 5.3
- Qts
- 0.36
- SPL
- 95.5dB
- Vas
- 21.7L
- Xmax
- 4.8mm
- Xmech
- 8.8
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 70Hz
- Power Program
- 500
- Calculated sensitivity †
- 95.5dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 97dB
- Min. impedance
- 6.5Ω
- Voice coil
- 65mm
- Weight
- 4.7kg
