LF DriverTF1020 series
Celestion

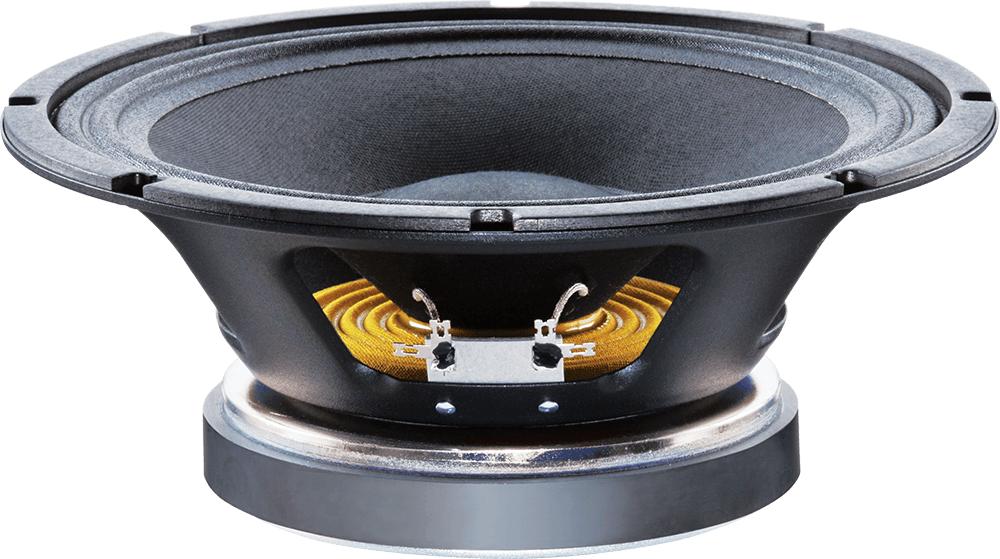

Celestion TF1020
Celestion TF1020 is a 10" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 69Hz, Qts 0.32, Vas 28.8L, Xmax 4mm, sensitivity 96.2dB, plus 139cm³ Vd and 187 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £63.00.
Size
10"
Impedance
8Ω
RMS Power
150W
Sensitivity
96.2dB
EBP
187
Vented alignment
Vd
139cm³

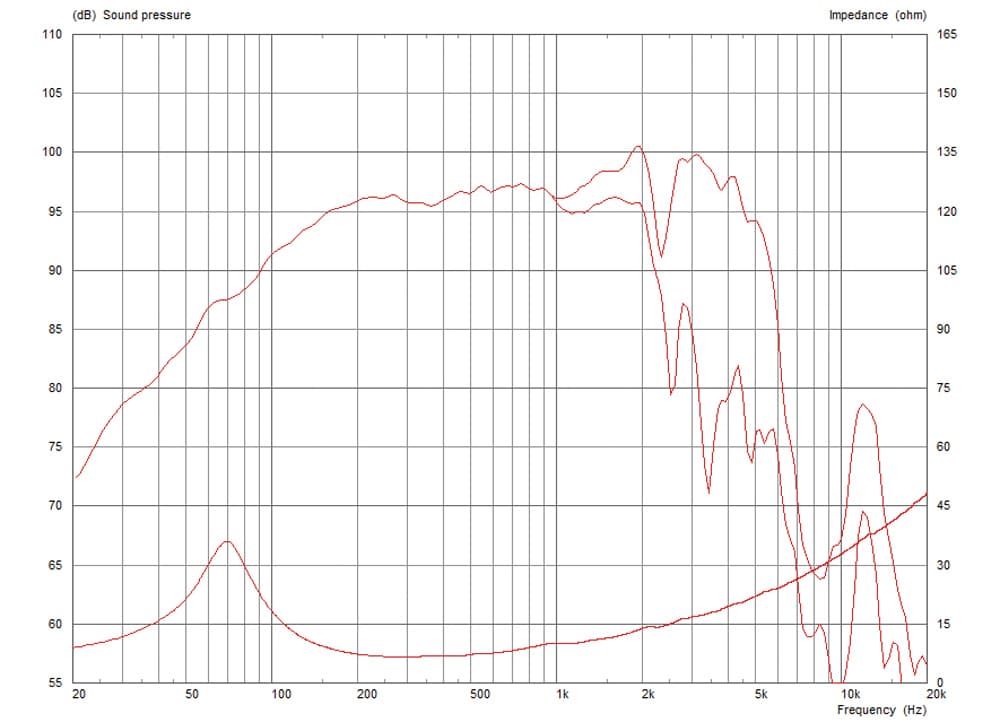

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence160 selected pixels of 349
T/S Parameters
Valid
Fs69Hz
Qts0.32
Qes0.37
Qms2.5
Vas28.8L
Re5.5Ω
Le0.60mH
BL14.1Tm
Sd346cm²
Mms31g
Xmax4.0mm
SPL96dB
Power150W
Impedance8Ω
Voice Coil50mm
Pricing & availability
Price definitionsPrice movement
Best current price
£63.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.7kg
Diameter256.0mm
Overall Depth110.0mm
Cutout Diameter229.0mm
Bolt Circle Diameter245.0mm
