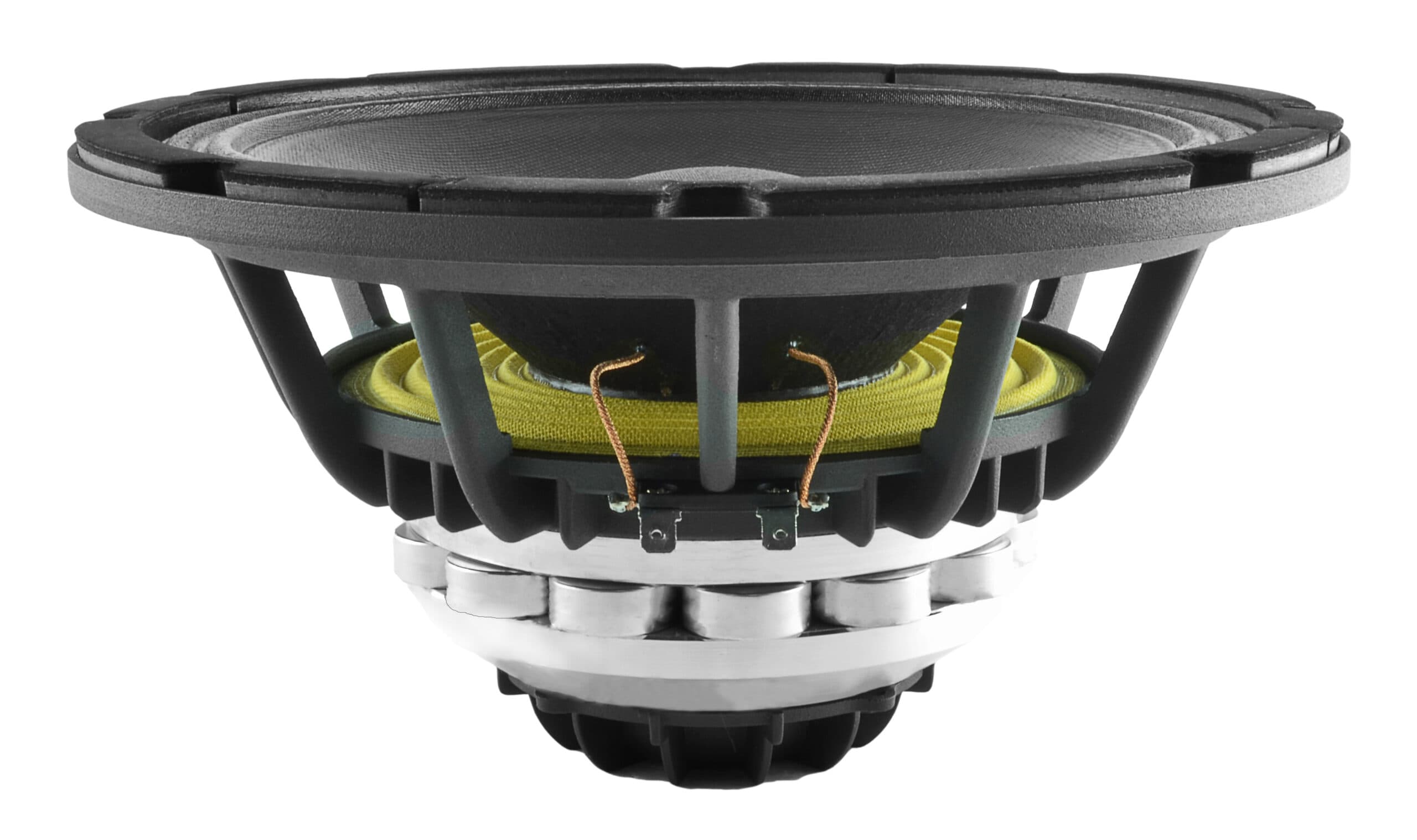

REDCATT 103FIND 8Ω
8 Ω
No current price
- Fs
- 56Hz
- Xmax
- 4.0mm
- SPL
- 95dB
- Pe
- 250W
- BL
- 18.2T·m
- Vd
- 141cm³
- Qts
- 0.29
- Vas
- 33L
REDCATT 103FIND is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 56 Hz, Qts 0.29, Vas 32.8 L, Xmax 4.0 mm, sensitivity 94.6 dB, plus 141 cm³ Vd and 176 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 56Hz
- Qts
- 0.29
- Qes
- 0.32
- Qms
- 3.7
- Vas
- 32.8L
- Re
- 7.2Ω
- Le
- 0.70mH
Motor and cone
- BL
- 18.2T·m
- Sd
- 349cm²
- Mms
- 42g
- Xmax
- 4.0mm
- Vd †
- 141cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 94.6dB
- Manufacturer sensitivity
- 95dB
- Power
- 250W
- Impedance
- 8Ω
- EBP †
- 176 · Leans vented
Size and mounting
- Diameter
- 256mm
- Cutout
- 228.5mm
- Bolt circle
- 246.5mm
- Weight
- 6kg
Other published values
- Xmech
- 12.05
- Power Peak
- 1000
Other dimensions
- Mounting Depth
- 109.5
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 10″
- BL
- 18.2T·m
- Fs
- 56Hz
- Le
- 0.70mH
- Re
- 7.2Ω
- Sd
- 349cm²
- Mms
- 42g
- Qes
- 0.32
- Qms
- 3.7
- Qts
- 0.29
- SPL
- 94.6dB
- Vas
- 32.8L
- Xmax
- 4.0mm
- Xmech
- 12.05
- Power
- 250W
- Impedance
- 8Ω
- Power Peak
- 1000
- Sensitivity
- 95dB
- Calculated sensitivity †
- 94.6dB
- Manufacturer sensitivity
- 95dB
- Voice coil
- 64mm
- Weight
- 6kg
- Diameter
- 256mm
- Mounting Depth
- 109.5
- Cutout
- 228.5mm
- Bolt circle
- 246.5mm
