CIAREPW252
£96.29 · 69% less, betterFs55 Hz −15%, better
Qts0.26 −7%
Vas43.4 L +36%, worse
BL15.2 T·m –
Xmax7 mm −5%
Sensitivity95.8 dB −0.9
10-inch LF driver · HX series · 250 W
FaitalPRO 10HX240 8Ω
8 Ω · 65–4000 Hz
£360.00
SteadySoundImports · 2 in stock · Ships from Netherlands · All 5 offers
- Fs
- 65Hz
- Xmax
- 7.4mm
- SPL
- 97dB
- Pe
- 250W
- BL
- 15.5T·m
- Vd
- 256cm³
- Qts
- 0.28
- Vas
- 32L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
163 plotted pointsMedium confidence477 selected pixels of 1,266 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,422 selected pixels of 2,600

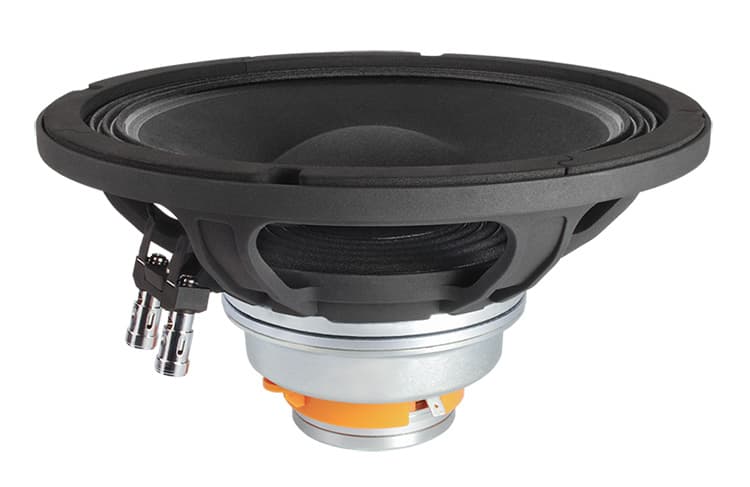

FaitalPRO 10HX240 is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 65 Hz, Qts 0.28, Vas 31.8 L, Xmax 7.4 mm, sensitivity 96.7 dB, plus 256 cm³ Vd and 217 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £308.97.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.28
- Qes
- 0.30
- Qms
- 3.3
- Vas
- 31.8L
- Re
- 5.3Ω
- Le
- 0.45mH
Motor and cone
- BL
- 15.5T·m
- Sd
- 347cm²
- Mms
- 32g
- Xmax
- 7.4mm
- Vd †
- 256cm³
Power and response
- Sensitivity †
- 96.7dB
- Manufacturer sensitivity
- 96dB
- Power
- 250W
- Impedance
- 8Ω
- Range
- 65–4000Hz
- EBP †
- 217 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 230mm
- Bolt circle
- 246mm
- Depth
- 137mm
- Weight
- 4.1kg
Other published values
- Cms
- 0.19mm/N
- Rms
- 3.90kg/s
- Power Program
- 500
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 10″
- BL
- 15.5T·m
- Fs
- 65Hz
- Le
- 0.45mH
- Re
- 5.3Ω
- Sd
- 347cm²
- Cms
- 0.19mm/N
- Mms
- 32g
- Qes
- 0.30
- Qms
- 3.3
- Qts
- 0.28
- Rms
- 3.90kg/s
- SPL
- 96.7dB
- Vas
- 31.8L
- Xmax
- 7.4mm
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 65Hz
- Power Program
- 500
- Calculated sensitivity †
- 96.7dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 4.1kg
- Diameter
- 261mm
- Depth
- 137mm
- Cutout
- 230mm
- Bolt circle
- 246mm
02
Compare
Same-size drivers, compared with the 10HX240. Clear differences are green when better and red when worse.
This driver10HX240
Best price
£308.97
Fs
65 Hz
Qts
0.28
Vas
31.8 L
BL
15.5 T·m
Xmax
7.4 mm
Sensitivity
96.7 dB
Power
250 W
B&C10HPL64
£112.21 · 64% less, betterFs61 Hz −6%
Qts0.31 +11%, worse
Vas32 L –
BL15 T·m −3%
Xmax4 mm −46%, worse
Sensitivity95.5 dB −1.2
FaitalPRO10PR330
£112.27 · 64% less, betterFs60 Hz −8%
Qts0.33 +18%, worse
Vas32.5 L –
BL14.3 T·m −8%
Xmax7.4 mm –
Sensitivity94.9 dB −1.8
Beyma10MCS500
£128.54 · 58% less, betterFs65 Hz –
Qts0.31 +11%, worse
Vas24 L −25%, better
BL17.6 T·m +14%, better
Xmax8 mm +9%
Sensitivity95 dB −1.7
CIAREPW257
£132.30 · 57% less, betterFs57 Hz −12%, better
Qts0.30 +7%
Vas31 L –
BL15.9 T·m –
Xmax5.5 mm −25%, worse
Sensitivity94.4 dB −2.3, worse
CelestionCF1025C
£135.00 · 56% less, betterFs55 Hz −16%, better
Qts0.27 −5%
Vas38.6 L +21%, worse
BL14.8 T·m −4%
Xmax4.3 mm −42%, worse
Sensitivity95.3 dB −1.4
FaitalPRO10PR320
£135.67 · 56% less, betterFs48 Hz −26%, better
Qts0.29 +4%
Vas52.7 L +66%, worse
BL13.5 T·m −13%, worse
Xmax7.4 mm –
Sensitivity94.8 dB −1.9
B&C10NDL64
£140.67 · 54% less, betterFs56 Hz −14%, better
Qts0.26 −7%
Vas31 L –
BL16.2 T·m +5%
Xmax6 mm −19%, worse
Sensitivity94.8 dB −1.9
Beyma10MC500
£143.18 · 54% less, betterFs65 Hz –
Qts0.29 +4%
Vas24 L −25%, better
BL18.3 T·m +18%, better
Xmax8 mm +9%
Sensitivity95.4 dB −1.3
EminenceKAPPA PRO-10LF
£148.52 · 52% less, betterFs39 Hz −40%, better
Qts0.28 –
Vas73.0 L +129%, worse
BL14.5 T·m −7%
Xmax7.2 mm –
Sensitivity93.8 dB −2.9, worse
Eighteen Sound10NTLS2000
£157.64 · 49% less, betterFs50 Hz −23%, better
Qts0.26 −7%
Vas38 L +19%, worse
BL16.7 T·m +8%
Xmax7.4 mm –
Sensitivity94.5 dB −2.2, worse
FaitalPRO10FH500
£158.25 · 49% less, betterFs60 Hz −8%
Qts0.26 −7%
Vas25.8 L −19%, better
BL17.9 T·m +15%, better
Xmax7.5 mm –
Sensitivity95 dB −1.7
Eighteen Sound10NW650
£159.93 · 48% less, betterFs51 Hz −22%, better
Qts0.28 –
Vas48 L +51%, worse
BL14 T·m −10%
Xmax7 mm −5%
Sensitivity95.4 dB −1.3
FaitalPRO10FH520
£165.49 · 46% less, betterFs60 Hz −8%
Qts0.29 +4%
Vas23.5 L −26%, better
BL18 T·m +16%, better
Xmax7.3 mm –
Sensitivity94.3 dB −2.4, worse
Sica10 S 3 CP
£166.62 · 46% less, betterFs42 Hz −35%, better
Qts0.30 +7%
Vas42.8 L +35%, worse
BL15.6 T·m –
Xmax7 mm −5%
Sensitivity92.1 dB −4.6, worse
PRV Audio10MB1000FT
£178.31 · 42% less, betterFs75 Hz +15%, worse
Qts0.32 +14%, worse
Vas32.3 L –
BL14.5 T·m −7%
Xmax5.9 mm −20%, worse
Sensitivity98.2 dB +1.5
Sica10 N 3 PL
£200.12 · 35% less, betterFs51 Hz −22%, better
Qts0.29 +4%
Vas40.5 L +27%, worse
BL15.9 T·m –
Xmax5.5 mm −25%, worse
Sensitivity94.6 dB −2.1, worse
Eighteen Sound10NW750
£211.47 · 32% less, betterFs53 Hz −18%, better
Qts0.31 +11%, worse
Vas34 L +7%
BL16.4 T·m +6%
Xmax7.5 mm –
Sensitivity94 dB −2.7, worse
No photo
PHL Audio3400
No current priceFs53 Hz −18%, better
Qts0.28 –
Vas30.6 L −4%
BL18.1 T·m +17%, better
Xmax6.5 mm −12%, worse
Sensitivity94 dB −2.7, worse
RCFMB10G350
No current priceFs58 Hz −11%, better
Qts0.31 +11%, worse
Vas34 L +7%
BL14.7 T·m −5%
Xmax7 mm −5%
Sensitivity95.2 dB −1.5
No photo
PHL Audio3411NDU
No current priceFs47 Hz −28%, better
Qts0.29 +4%
Vas33.3 L +5%
BL18.2 T·m +17%, better
Xmax8 mm +9%
Sensitivity92.5 dB −4.2, worse
Sica10 CX 3 PL P
No current priceFs59 Hz −9%
Qts0.29 +4%
Vas36.1 L +14%, worse
BL15.3 T·m –
Xmax6 mm −19%, worse
Sensitivity95.8 dB −0.9
Sica10 S 3 PL
No current priceFs43 Hz −34%, better
Qts0.27 −4%
Vas39.9 L +25%, worse
BL16.9 T·m +9%
Xmax7 mm −5%
Sensitivity92.6 dB −4.1, worse
Sica10 PN 3
No current priceFs48 Hz −26%, better
Qts0.26 −7%
Vas40.1 L +26%, worse
BL16.1 T·m +4%
Xmax7 mm −5%
Sensitivity94.1 dB −2.6, worse
Oberton10MB500
No current priceFs66 Hz –
Qts0.31 +9%
Vas22.1 L −31%, better
BL15.4 T·m –
Xmax8.3 mm +12%, better
Sensitivity95 dB −1.7
Sica10 K 3 PL
No current priceFs51 Hz −22%, better
Qts0.26 −7%
Vas40 L +26%, worse
BL16.1 T·m +4%
Xmax6.5 mm −12%, worse
Sensitivity94.9 dB −1.8
WavecorWF259PA02
No current priceFs52 Hz −20%, better
Qts0.28 –
Vas33 L +4%
BL16.8 T·m +8%
Xmax4.5 mm −39%, worse
Sensitivity94.2 dB −2.5, worse
CelestionNTR10-2520D
No current priceFs57 Hz −12%, better
Qts0.29 +3%
Vas34.7 L +9%
BL15.8 T·m –
Xmax4 mm −46%, worse
Sensitivity95.1 dB −1.6
WavecorWF259PA01
No current priceFs54 Hz −17%, better
Qts0.29 +4%
Vas31 L –
BL14.1 T·m −9%
Xmax4.5 mm −39%, worse
Sensitivity94.3 dB −2.4, worse
RCFMB10N251
No current priceFs55 Hz −15%, better
Qts0.27 −4%
Vas39 L +23%, worse
BL15.2 T·m –
Xmax5 mm −32%, worse
Sensitivity95.5 dB −1.2
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports Import VAT and duty may apply | £360.00, the lowest price | 2 in stock | Visit shop at SoundImports | |
Blue Aran approx 3 months | £282.35 | Ordered on Request (approx 3 months) | Visit shop at Blue Aran | |
Lean Audio | £282.35 | Back order | Visit shop at Lean Audio |
Best price over time
Tracked since 16 May
