10-inch LF driver · FH series · 500 W

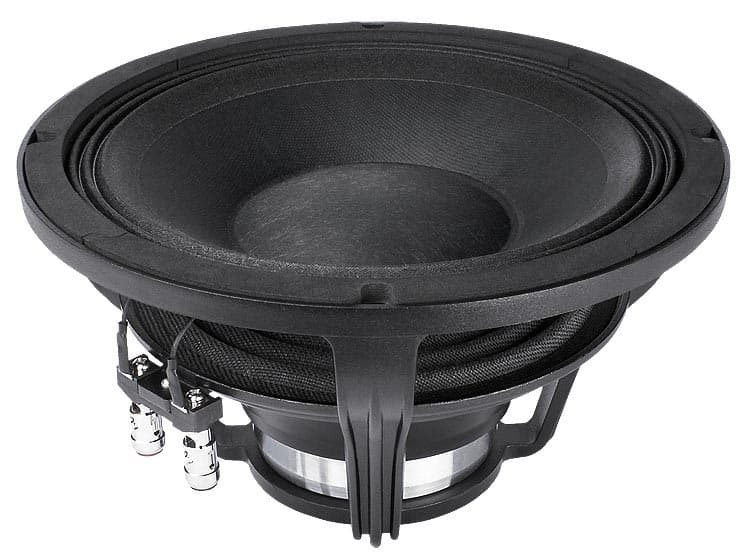

FaitalPRO 10FH500 8Ω
60–4000 Hz
£164.62
3.2%Lean Business · All 9 offers
- Fs
- 60Hz
- Xmax
- 7.5mm
- SPL
- 95dB
- Pe
- 500W
- BL
- 17.9T·m
- Vd
- 263cm³
- Qts
- 0.26
- Vas
- 26L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
235 plotted pointsMedium confidence796 selected pixels of 888 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,226 selected pixels of 1,906 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,124 selected pixels of 1,394
FaitalPRO 10FH500 is a 10-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 60 Hz, Qts 0.26, Vas 25.8 L, Xmax 7.5 mm, sensitivity 95 dB, plus 263 cm³ Vd and 214 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £158.25.
The published T/S values agree with each other
Thiele/Small
- Fs
- 60Hz
- Qts
- 0.26
- Qes
- 0.28
- Qms
- 3.3
- Vas
- 25.8L
- Re
- 5.1Ω
- Le
- 0.85mH
Motor and cone
- BL
- 17.9T·m
- Sd
- 351cm²
- Mms
- 47g
- Xmax
- 7.5mm
- Vd †
- 263cm³
Power and response
- Sensitivity †
- 95dB
- Manufacturer sensitivity
- 96dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 60–4000Hz
- EBP †
- 214 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 232mm
- Bolt circle
- 246mm
- Depth
- 141.3mm
- Weight
- 3.4kg
Other published values
- Cms
- 0.15mm/N
- Rms
- 5.40kg/s
- Power Program
- 1000
Sensitivity shows 95.0 dB, calculated from the T/S values. FaitalPRO publishes 96.0 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 10″
- BL
- 17.9T·m
- Fs
- 60Hz
- Le
- 0.85mH
- Re
- 5.1Ω
- Sd
- 351cm²
- Cms
- 0.15mm/N
- Mms
- 47g
- Qes
- 0.28
- Qms
- 3.3
- Qts
- 0.26
- Rms
- 5.40kg/s
- SPL
- 95dB
- Vas
- 25.8L
- Xmax
- 7.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 60Hz
- Power Program
- 1000
- Calculated sensitivity †
- 95dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 3.4kg
- Diameter
- 261mm
- Depth
- 141.3mm
- Cutout
- 232mm
- Bolt circle
- 246mm
02
Compare
Same-size drivers, compared with the 10FH500. Clear differences are green when better and red when worse.
This driver10FH500
Best price
£158.25
Fs
60 Hz
Qts
0.26
Vas
25.8 L
BL
17.9 T·m
Xmax
7.5 mm
Sensitivity
95 dB
Power
500 W
B&C10NW64
£113.02 · 29% less, betterFs59 Hz –
Qts0.26 –
Vas22 L −15%, better
BL18.3 T·m –
Xmax6 mm −20%, worse
Sensitivity94.3 dB −0.7
Beyma10MCS500
£128.54 · 19% less, betterFs65 Hz +8%
Qts0.31 +19%, worse
Vas24 L −7%
BL17.6 T·m –
Xmax8 mm +7%
Sensitivity95 dB –
FaitalPRO10FH530
£130.00 · 18% less, betterFs60 Hz –
Qts0.25 −4%
Vas23.5 L −9%
BL19.5 T·m +9%
Xmax7.5 mm –
Sensitivity95.1 dB –
Beyma10MC500
£143.18 · 10% less, betterFs65 Hz +8%
Qts0.29 +12%, worse
Vas24 L −7%
BL18.3 T·m –
Xmax8 mm +7%
Sensitivity95.4 dB –
B&C10NDL64
£144.00 · 9% less, betterFs56 Hz −7%
Qts0.26 –
Vas31 L +20%, worse
BL16.2 T·m −9%
Xmax6 mm −20%, worse
Sensitivity94.8 dB –
B&C10CLA76
£151.02 · 5% lessFs71 Hz +18%, worse
Qts0.29 +12%, worse
Vas16.4 L −36%, better
BL18.6 T·m +4%
Xmax6.5 mm −13%, worse
Sensitivity94.9 dB –
B&C10MBX64
£157.30 · Same priceFs65 Hz +8%
Qts0.26 –
Vas28 L +9%
BL16.9 T·m −6%
Xmax4 mm −47%, worse
Sensitivity96.6 dB +1.6
Eighteen Sound10NTLS2000
£157.64 · Same priceFs50 Hz −17%, better
Qts0.26 –
Vas38 L +47%, worse
BL16.7 T·m −7%
Xmax7.4 mm –
Sensitivity94.5 dB −0.5
FaitalPRO10FH520
£165.49 · 5% moreFs60 Hz –
Qts0.29 +12%, worse
Vas23.5 L −9%
BL18 T·m –
Xmax7.3 mm −3%
Sensitivity94.3 dB −0.7
RCFL10-750YK
£166.00 · 5% moreFs68 Hz +13%, worse
Qts0.24 −8%
Vas26 L –
BL17.5 T·m –
Xmax3 mm −60%, worse
Sensitivity97.2 dB +2.2, better
Eighteen Sound10M600
£175.83 · 11% more, worseFs70 Hz +17%, worse
Qts0.23 −12%, better
Vas25.6 L –
BL17.6 T·m –
Xmax4 mm −47%, worse
Sensitivity97.5 dB +2.5, better
B&C10NW76
£198.52 · 25% more, worseFs67 Hz +12%, worse
Qts0.26 –
Vas17.6 L −32%, better
BL20 T·m +12%, better
Xmax6.8 mm −9%
Sensitivity95 dB –
B&C10NDL88
£203.38 · 29% more, worseFs61 Hz –
Qts0.25 −4%
Vas18.4 L −29%, better
BL20 T·m +12%, better
Xmax8.1 mm +8%
Sensitivity94.1 dB −0.9
Beyma10MC500ND
£209.84 · 33% more, worseFs58 Hz −3%
Qts0.24 −8%
Vas29 L +12%, worse
BL18.7 T·m +4%
Xmax8 mm +7%
Sensitivity95.4 dB –
FaitalPRO10HX240
£308.97 · 95% more, worseFs65 Hz +8%
Qts0.28 +8%
Vas31.8 L +23%, worse
BL15.5 T·m −13%, worse
Xmax7.4 mm –
Sensitivity96.7 dB +1.7
No photo
PHL Audio3481-14
No current priceFs55 Hz −8%
Qts0.26 –
Vas25.2 L –
BL18.1 T·m –
Xmax6 mm −20%, worse
Sensitivity93.9 dB −1.1
PRV Audio10MR1000
No current priceFs73 Hz +22%, worse
Qts0.27 +4%
Vas26.1 L –
BL17.9 T·m –
Xmax2.6 mm −65%, worse
Sensitivity97.7 dB +2.7, better
No photo
PHL Audio3400
No current priceFs53 Hz −12%, better
Qts0.28 +8%
Vas30.6 L +19%, worse
BL18.1 T·m –
Xmax6.5 mm −13%, worse
Sensitivity94 dB −1
Sica10 PN 3
No current priceFs48 Hz −20%, better
Qts0.26 –
Vas40.1 L +55%, worse
BL16.1 T·m −10%, worse
Xmax7 mm −7%
Sensitivity94.1 dB −0.9
Sica10 S 3 PL
No current priceFs43 Hz −28%, better
Qts0.27 +4%
Vas39.9 L +55%, worse
BL16.9 T·m −6%
Xmax7 mm −7%
Sensitivity92.6 dB −2.4, worse
No photo
PHL Audio3411NDU
No current priceFs47 Hz −22%, better
Qts0.29 +12%, worse
Vas33.3 L +29%, worse
BL18.2 T·m –
Xmax8 mm +7%
Sensitivity92.5 dB −2.5, worse
No photo
REDCATT10NPM-1
No current priceFs64 Hz +7%
Qts0.28 +8%
Vas23 L −11%, better
BL18.3 T·m –
Xmax4.0 mm −46%, worse
Sensitivity95.2 dB –
Oberton10M250
No current priceFs77 Hz +28%, worse
Qts0.28 +8%
Vas23.1 L −11%, better
BL16.6 T·m −7%
Xmax2.8 mm −63%, worse
Sensitivity97.6 dB +2.6, better
Eighteen Sound10NCX750
No current priceFs64 Hz +7%
Qts0.25 −4%
Vas23 L −11%, better
BL20 T·m +12%, better
Xmax5.5 mm −27%, worse
Sensitivity95.7 dB +0.7
Sica10 K 3 PL
No current priceFs51 Hz −16%, better
Qts0.26 –
Vas40 L +55%, worse
BL16.1 T·m −10%, worse
Xmax6.5 mm −13%, worse
Sensitivity94.9 dB –
Oberton10MB300
No current priceFs65 Hz +8%
Qts0.24 −6%
Vas22.8 L −12%, better
BL18.3 T·m –
Xmax5.3 mm −30%, worse
Sensitivity95.9 dB +0.9
Eighteen Sound10NCX750H
No current priceFs65 Hz +8%
Qts0.25 −4%
Vas21.7 L −16%, better
BL19.8 T·m +11%, better
Xmax5.5 mm −27%, worse
Sensitivity95.6 dB +0.6
Oberton10NHCX
No current priceFs72 Hz +19%, worse
Qts0.24 −8%
Vas24.5 L −5%
BL17.4 T·m –
Xmax4.3 mm −43%, worse
Sensitivity97.7 dB +2.7, better
PeerlessNCP-1030R00-08
No current priceFs67 Hz +12%, worse
Qts0.23 −12%, better
Vas27 L +5%
BL19.1 T·m +7%
Xmax3.9 mm −48%, worse
Sensitivity96.9 dB +1.9
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £164.62, the lowest price | Stock not listed | Visit shop at Lean Business | |
Blue Aran 9-11 weeks | £159.53 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Audio | £159.53 | Back order | Visit shop at Lean Audio | |
Blue Aran 9-11 weeks | £164.62 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Audio Video Parts Import VAT and duty may apply | £170.21 | 3.4% above the lowest price | Special order | Visit shop at Audio Video Parts |
SoundImports Import VAT and duty may apply | £205.10 | 25% above the lowest price | 2 in stock | Visit shop at SoundImports |
Best price over time
Tracked since 1 Apr
