Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 10MC500ND 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 10MC500ND
Beyma 10MC500ND is a 10" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 58Hz, Qts 0.24, Vas 29L, Xmax 8mm, sensitivity 95.4dB, plus 280cm³ Vd and 223 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
500W
Sensitivity
95.4dB
97.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
223
Vented alignment
Vd
280cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence4,060 selected pixels of 4,060
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs58Hz
Qts0.24
Qes0.26
Qms4.7
Vas29.0L
Re5.5Ω
Le1.00mH
BL18.7Tm
Sd350cm²
Mms45g
Xmax8.0mm
SPL95dB
Power500W
Impedance8Ω
F Low60Hz
F High3500Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
10MC500ND
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
£130.00
FaitalPRO
10FH530
10"
Xmax7.5mm-6%
Qts0.25+4%
BL19.5Tm+4%
Vas23.5L-19%
Qes0.25-4%
83%
Similarity
£203.38
B&C
10NDL88
10"
Xmax8.1mm+1%
Qts0.25+4%
BL20Tm+7%
Vas18.4L-37%
Qes0.260%
83%
Similarity
£159.53
FaitalPRO
10FH500
10"
Xmax7.5mm-6%
Qts0.26+8%
BL17.9Tm-4%
Vas25.8L-11%
Qes0.28+8%
75%
Similarity
£157.64
Eighteen Sound
10NTLS2000
10"
Xmax7.4mm-7%
Qts0.26+8%
BL16.7Tm-11%
Vas38L+31%
Qes0.27+4%
75%
Similarity
£169.77
Eighteen Sound
10MB600
10"
Xmax6.5mm-19%
Qts0.22-8%
BL18.6Tm-1%
Vas33.4L+15%
Qes0.23-12%
75%
Similarity

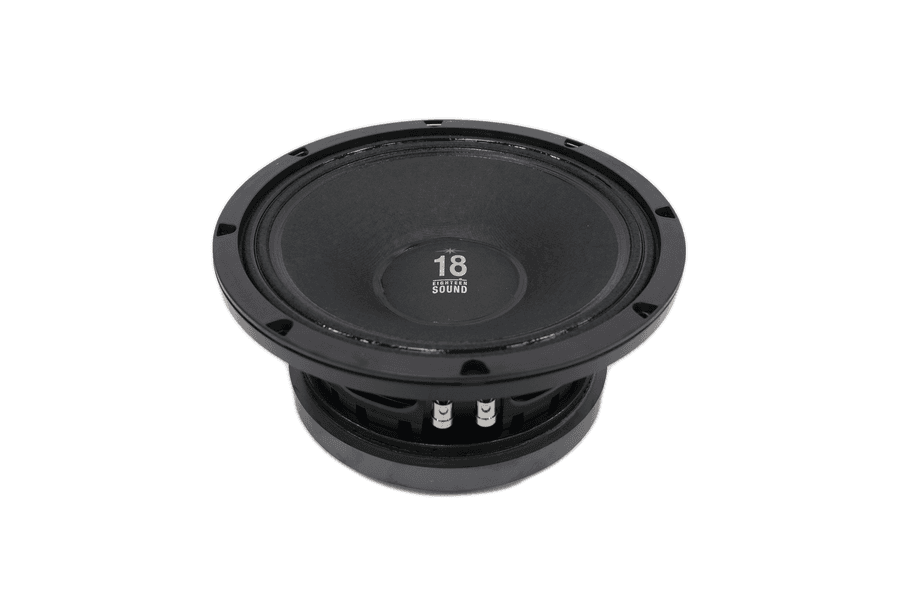

Eighteen Sound
10MB777
10"
Xmax6.5mm-19%
Qts0.22-8%
BL18.6Tm-1%
Vas33.4L+15%
Qes0.23-12%
74%
Similarity
£141.87
Beyma
10MC500
10"
Xmax8mm0%
Qts0.29+21%
BL18.3Tm-2%
Vas24L-17%
Qes0.3+15%
74%
Similarity
£207.00
Precision Devices
PD.103NR1
10"
Xmax7.5mm-6%
Qts0.21-12%
BL18Tm-4%
Vas36L+24%
Qes0.22-15%
71%
Similarity
£138.00
B&C
10NW64
10"
Xmax6mm-25%
Qts0.26+8%
BL18.3Tm-2%
Vas22L-24%
Qes0.27+4%
70%
Similarity
£198.52
B&C
10NW76
10"
Xmax6.8mm-15%
Qts0.26+8%
BL20Tm+7%
Vas17.6L-39%
Qes0.27+4%
70%
Similarity
£82.74
BishopSound
BDP10
10"
Xmax7mm-12%
Qts0.21-12%
BL19.3Tm+3%
Vas22.4L-23%
Qes0.22-15%
68%
Similarity
£212.39
Beyma
10MC700ND
10"
Xmax7mm-12%
Qts0.22-8%
BL21.8Tm+17%
Vas20L-31%
Qes0.24-8%
