B&C10NW64
£113.02Fs59 Hz −9%
Qts0.26 +7%
Vas22 L −3%
BL18.3 T·m –
Xmax6 mm +14%, better
Sensitivity94.3 dB −1.6
10-inch LF driver · 10MB series · 77 mm voice coil · 400 W
Oberton 10MB300 8Ω
8 Ω · 80–2500 Hz
No current price
- Fs
- 65Hz
- Xmax
- 5.3mm
- SPL
- 96dB
- Pe
- 400W
- BL
- 18.3T·m
- Vd
- 167cm³
- Qts
- 0.24
- Vas
- 23L

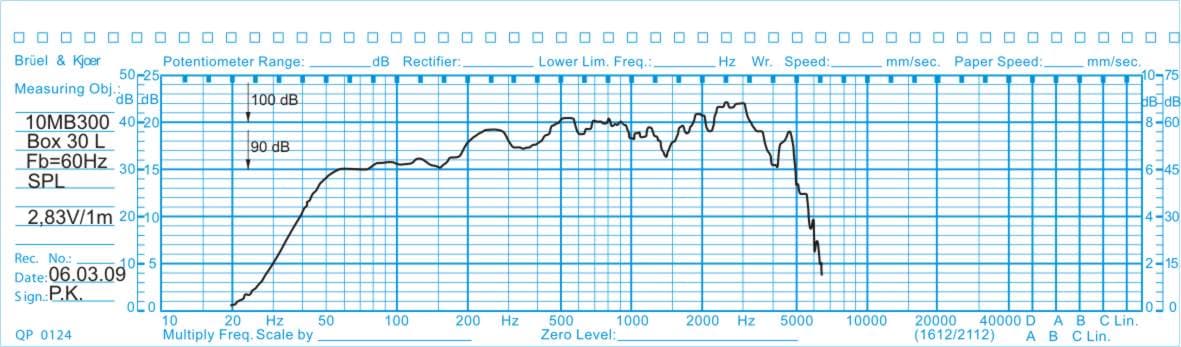

Published graphs
Oberton 10MB300 is a 10-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 65 Hz, Qts 0.24, Vas 22.8 L, Xmax 5.3 mm, sensitivity 95.9 dB, plus 167 cm³ Vd and 258 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.24
- Qes
- 0.25
- Qms
- 9.7
- Vas
- 22.8L
- Re
- 5.4Ω
- Le
- 0.72mH
Motor and cone
- BL
- 18.3T·m
- Sd
- 317cm²
- Mms
- 38g
- Xmax
- 5.3mm
- Vd †
- 167cm³
- Voice coil
- 77mm
- Flux density
- 1.33T
Power and response
- Sensitivity †
- 95.9dB
- Manufacturer sensitivity
- 200dB
- Power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 80–2500Hz
- EBP †
- 258 · Leans vented

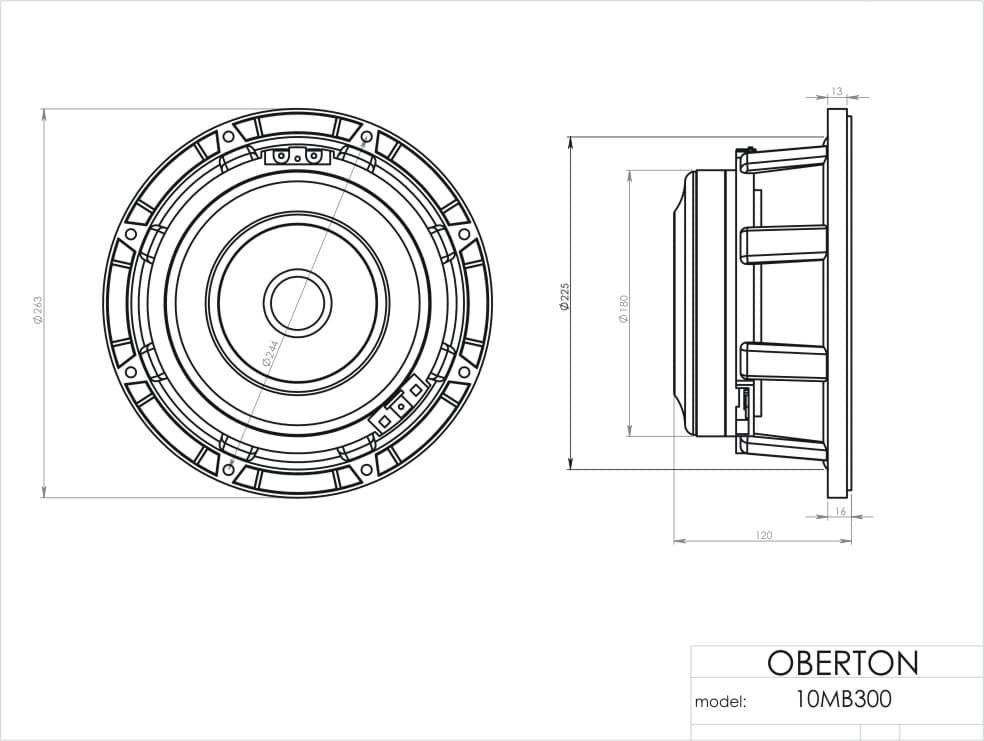

Size and mounting
- Diameter
- 263mm
- Cutout
- 225mm
- Bolt circle
- 244mm
- Depth
- 120mm
- Weight
- 6.8kg
Other published values
- Cms
- 0.16mm/N
- Power Program
- 800
Sensitivity shows 95.9 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 104.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 10″
- BL
- 18.3T·m
- Fs
- 65Hz
- Le
- 0.72mH
- Re
- 5.4Ω
- Sd
- 317cm²
- Cms
- 0.16mm/N
- Mms
- 38g
- Qes
- 0.25
- Qms
- 9.7
- Qts
- 0.24
- SPL
- 95.9dB
- Vas
- 22.8L
- Xmax
- 5.3mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.33T
- Sensitivity
- 200dB
- Low limit
- 80Hz
- Power Program
- 800
- Calculated sensitivity †
- 95.9dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.5Ω
- Voice coil
- 77mm
- Weight
- 6.8kg
- Diameter
- 263mm
- Depth
- 120mm
- Cutout
- 225mm
- Bolt circle
- 244mm
02
Compare
Same-size drivers, compared with the 10MB300. Clear differences are green when better and red when worse.
This driver10MB300
Best price
–
Fs
65 Hz
Qts
0.24
Vas
22.8 L
BL
18.3 T·m
Xmax
5.3 mm
Sensitivity
95.9 dB
Power
400 W
B&C10CL64
£116.06Fs63 Hz –
Qts0.31 +27%, worse
Vas22.2 L –
BL16.3 T·m −11%, worse
Xmax5.2 mm –
Sensitivity94.3 dB −1.6
B&C10FW64
£123.92Fs63 Hz –
Qts0.23 −6%
Vas27 L +19%, worse
BL16.4 T·m −10%, worse
Xmax5 mm −5%
Sensitivity96.3 dB –
FaitalPRO10FH530
£130.00Fs60 Hz −7%
Qts0.25 –
Vas23.5 L +3%
BL19.5 T·m +6%
Xmax7.5 mm +43%, better
Sensitivity95.1 dB −0.8
B&C10NDL64
£144.00Fs56 Hz −13%, better
Qts0.26 +7%
Vas31 L +36%, worse
BL16.2 T·m −12%, worse
Xmax6 mm +14%, better
Sensitivity94.8 dB −1.1
B&C10MBX64
£157.30Fs65 Hz –
Qts0.26 +7%
Vas28 L +23%, worse
BL16.9 T·m −8%
Xmax4 mm −24%, worse
Sensitivity96.6 dB +0.7
Eighteen Sound10NTLW2000
£157.68Fs57 Hz −12%, better
Qts0.22 −10%
Vas31 L +36%, worse
BL17.9 T·m –
Xmax4.4 mm −16%, worse
Sensitivity96.2 dB –
FaitalPRO10FH500
£158.25Fs60 Hz −7%
Qts0.26 +7%
Vas25.8 L +13%, worse
BL17.9 T·m –
Xmax7.5 mm +43%, better
Sensitivity95 dB −0.9
RCFL10-750YK
£166.00Fs68 Hz +5%
Qts0.24 –
Vas26 L +14%, worse
BL17.5 T·m −4%
Xmax3 mm −43%, worse
Sensitivity97.2 dB +1.3
Eighteen Sound10M600
£175.83Fs70 Hz +8%
Qts0.23 −6%
Vas25.6 L +13%, worse
BL17.6 T·m −4%
Xmax4 mm −24%, worse
Sensitivity97.5 dB +1.6
RCFMB10N305
£186.20Fs60 Hz −7%
Qts0.23 −6%
Vas31 L +36%, worse
BL18.5 T·m –
Xmax5 mm −5%
Sensitivity96.5 dB +0.6
B&C10NW76
£198.52Fs67 Hz +4%
Qts0.26 +7%
Vas17.6 L −23%, better
BL20 T·m +9%
Xmax6.8 mm +30%, better
Sensitivity95 dB −0.9
B&C10NDL88
£203.38Fs61 Hz −6%
Qts0.25 –
Vas18.4 L −19%, better
BL20 T·m +9%
Xmax8.1 mm +54%, better
Sensitivity94.1 dB −1.8
Beyma10MC500ND
£209.84Fs58 Hz −10%, better
Qts0.24 –
Vas29 L +27%, worse
BL18.7 T·m –
Xmax8 mm +52%, better
Sensitivity95.4 dB −0.5
Eighteen Sound10NDA610
£278.92Fs89 Hz +38%, worse
Qts0.23 −6%
Vas18 L −21%, better
BL20.3 T·m +11%, better
Xmax2.5 mm −52%, worse
Sensitivity99.3 dB +3.4, better
Oberton10M300
No current priceFs60 Hz −8%
Qts0.25 –
Vas19.4 L −15%, better
BL18.2 T·m –
Xmax5.3 mm –
Sensitivity94.1 dB −1.8
Eighteen Sound10NCX750
No current priceFs64 Hz –
Qts0.25 –
Vas23 L –
BL20 T·m +9%
Xmax5.5 mm +5%
Sensitivity95.7 dB –
Eighteen Sound10NCX750H
No current priceFs65 Hz –
Qts0.25 –
Vas21.7 L −5%
BL19.8 T·m +8%
Xmax5.5 mm +5%
Sensitivity95.6 dB –
Oberton10NHCX
No current priceFs72 Hz +11%, worse
Qts0.24 –
Vas24.5 L +8%
BL17.4 T·m −5%
Xmax4.3 mm −19%, worse
Sensitivity97.7 dB +1.8
No photo
PHL Audio3481-14
No current priceFs55 Hz −15%, better
Qts0.26 +7%
Vas25.2 L +11%, worse
BL18.1 T·m –
Xmax6 mm +14%, better
Sensitivity93.9 dB −2, worse
LavoceWAN103.01
No current priceFs70 Hz +8%
Qts0.22 −10%
Vas22.3 L –
BL20.6 T·m +12%, better
Xmax5 mm −5%
Sensitivity97.2 dB +1.3
Oberton10NM300
No current priceFs71 Hz +10%, worse
Qts0.21 −14%, better
Vas20.6 L −9%
BL20.1 T·m +10%
Xmax5.3 mm –
Sensitivity97.5 dB +1.6
PeerlessNCP-1030R00-08
No current priceFs67 Hz +4%
Qts0.23 −6%
Vas27 L +19%, worse
BL19.1 T·m +4%
Xmax3.9 mm −25%, worse
Sensitivity96.9 dB +1
Oberton10NCX
No current priceFs79 Hz +23%, worse
Qts0.29 +18%, worse
Vas20.6 L −9%
BL16.2 T·m −12%, worse
Xmax5.3 mm –
Sensitivity97.4 dB +1.5
No photo
PHL Audio3840NDU
No current priceFs62 Hz −4%
Qts0.22 −10%
Vas26.3 L +16%, worse
BL20.8 T·m +14%, better
Xmax4.5 mm −14%, worse
Sensitivity96.4 dB +0.5
No photo
REDCATT10NPM-1
No current priceFs64 Hz –
Qts0.28 +15%, worse
Vas23 L –
BL18.3 T·m –
Xmax4.0 mm −23%, worse
Sensitivity95.2 dB −0.7
Acoustic EleganceTD10M-8
No current priceFs40 Hz −38%, better
Qts0.24 –
Vas59.2 L +160%, worse
BL17 T·m −7%
Xmax6 mm +14%, better
Sensitivity93.7 dB −2.2, worse
No photo
PHL Audio3840
No current priceFs62 Hz −4%
Qts0.22 −10%
Vas26.3 L +16%, worse
BL20.9 T·m +14%, better
Xmax4.5 mm −14%, worse
Sensitivity96.6 dB +0.7
PRV Audio10MR1000
No current priceFs73 Hz +13%, worse
Qts0.27 +11%, worse
Vas26.1 L +15%, worse
BL17.9 T·m –
Xmax2.6 mm −50%, worse
Sensitivity97.7 dB +1.8
EminenceCANNABASS CB3010N-8
No current priceFs42 Hz −36%, better
Qts0.25 –
Vas55.2 L +143%, worse
BL17.2 T·m −6%
Xmax6.5 mm +23%, better
Sensitivity94 dB −1.9
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
