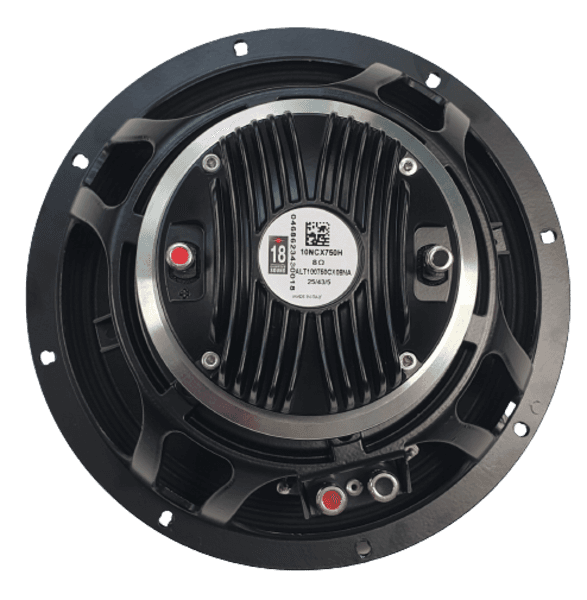

10-inch LF driver
Eighteen Sound 10NCX750H 8Ω
8 Ω · 60–1500 Hz
No price for delivery to the UK
- Fs
- 65Hz
- Xmax
- 5.5mm
- SPL
- 96dB
- Pe
- –
- BL
- 19.8T·m
- Vd
- 190cm³
- Qts
- 0.25
- Vas
- 22L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

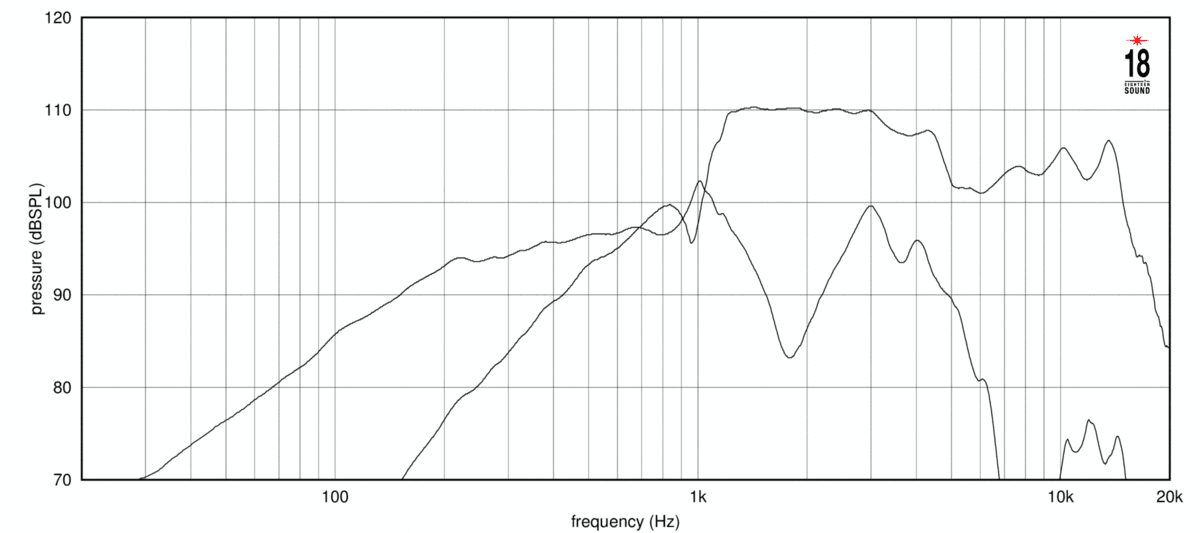

Frequency response
240 plotted pointsMedium confidence904 selected pixels of 1,034

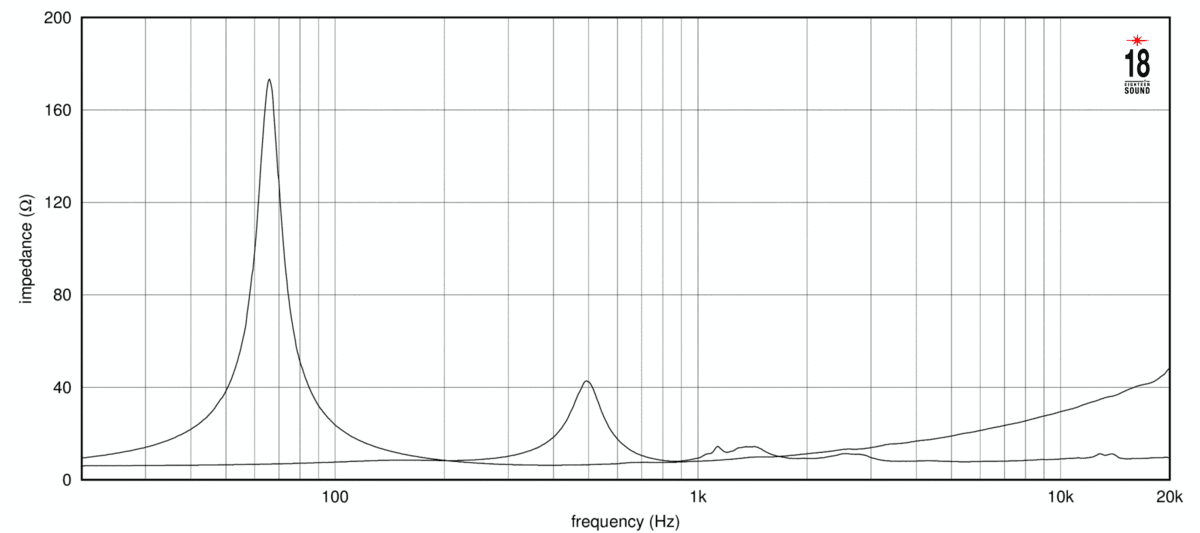

Published graphs
Eighteen Sound 10NCX750H is a 10-inch 8 ohm LF driver. The validated T/S data includes Fs 65 Hz, Qts 0.25, Vas 21.7 L, Xmax 5.5 mm, sensitivity 95.6 dB, plus 190 cm³ Vd and 250 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.25
- Qes
- 0.26
- Qms
- 8.4
- Vas
- 21.7L
- Re
- 5.3Ω
- Le
- 0.54mH
Motor and cone
- BL
- 19.8T·m
- Sd
- 346cm²
- Mms
- 47g
- Xmax
- 5.5mm
- Vd †
- 190cm³
Power and response
- Sensitivity †
- 95.6dB
- Impedance
- 8Ω
- Range
- 60–1500Hz
- EBP †
- 250 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 230mm
- Bolt circle
- 243mm
- Depth
- 148mm
- Weight
- 4.3kg
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 19.8T·m
- Fs
- 65Hz
- Le
- 0.54mH
- Re
- 5.3Ω
- Sd
- 346cm²
- Mms
- 47g
- Qes
- 0.26
- Qms
- 8.4
- Qts
- 0.25
- SPL
- 95.6dB
- Vas
- 21.7L
- Xmax
- 5.5mm
- Impedance
- 8Ω
- Low limit
- 60Hz
- Calculated sensitivity †
- 95.6dB
- High limit
- 1500Hz
- Weight
- 4.3kg
- Diameter
- 260mm
- Depth
- 148mm
- Cutout
- 230mm
- Bolt circle
- 243mm
02
Compare
Same-size drivers, compared with the 10NCX750H. Clear differences are green when better and red when worse.
This driver10NCX750H
Best price
–
Fs
65 Hz
Qts
0.25
Vas
21.7 L
BL
19.8 T·m
Xmax
5.5 mm
Sensitivity
95.6 dB
Power
–
B&C10FW64
£123.92Fs63 Hz −3%
Qts0.23 −8%
Vas27 L +24%, worse
BL16.4 T·m −17%, worse
Xmax5 mm −9%
Sensitivity96.3 dB +0.7
FaitalPRO10FH530
£130.00Fs60 Hz −8%
Qts0.25 –
Vas23.5 L +8%
BL19.5 T·m –
Xmax7.5 mm +36%, better
Sensitivity95.1 dB −0.5
B&C10NDL64
£144.00Fs56 Hz −14%, better
Qts0.26 +4%
Vas31 L +43%, worse
BL16.2 T·m −18%, worse
Xmax6 mm +9%
Sensitivity94.8 dB −0.8
B&C10MBX64
£157.30Fs65 Hz –
Qts0.26 +4%
Vas28 L +29%, worse
BL16.9 T·m −15%, worse
Xmax4 mm −27%, worse
Sensitivity96.6 dB +1
FaitalPRO10FH500
£158.25Fs60 Hz −8%
Qts0.26 +4%
Vas25.8 L +19%, worse
BL17.9 T·m −10%
Xmax7.5 mm +36%, better
Sensitivity95 dB −0.6
RCFL10-750YK
£166.00Fs68 Hz +5%
Qts0.24 −4%
Vas26 L +20%, worse
BL17.5 T·m −12%, worse
Xmax3 mm −45%, worse
Sensitivity97.2 dB +1.6
Eighteen Sound10M600
£175.83Fs70 Hz +8%
Qts0.23 −8%
Vas25.6 L +18%, worse
BL17.6 T·m −11%, worse
Xmax4 mm −27%, worse
Sensitivity97.5 dB +1.9
RCFMB10N305
£186.20Fs60 Hz −8%
Qts0.23 −8%
Vas31 L +43%, worse
BL18.5 T·m −7%
Xmax5 mm −9%
Sensitivity96.5 dB +0.9
B&C10NW76
£198.52Fs67 Hz +3%
Qts0.26 +4%
Vas17.6 L −19%, better
BL20 T·m –
Xmax6.8 mm +24%, better
Sensitivity95 dB −0.6
B&C10NDL88
£203.38Fs61 Hz −6%
Qts0.25 –
Vas18.4 L −15%, better
BL20 T·m –
Xmax8.1 mm +47%, better
Sensitivity94.1 dB −1.5
Beyma10MC500ND
£209.84Fs58 Hz −11%, better
Qts0.24 −4%
Vas29 L +34%, worse
BL18.7 T·m −6%
Xmax8 mm +45%, better
Sensitivity95.4 dB –
Beyma10MC700ND
£211.22Fs63 Hz −3%
Qts0.22 −12%, better
Vas20 L −8%
BL21.8 T·m +10%, better
Xmax7 mm +27%, better
Sensitivity95.2 dB –
Eighteen Sound10NDA610
£278.92Fs89 Hz +37%, worse
Qts0.23 −8%
Vas18 L −17%, better
BL20.3 T·m –
Xmax2.5 mm −55%, worse
Sensitivity99.3 dB +3.7, better
Sica10 K 4 PL
£317.34Fs63 Hz −4%
Qts0.31 +24%, worse
Vas19.5 L −10%, better
BL20.4 T·m –
Xmax5 mm −9%
Sensitivity93.8 dB −1.8
Eighteen Sound10NCX750
No current priceFs64 Hz –
Qts0.25 –
Vas23 L +6%
BL20 T·m –
Xmax5.5 mm –
Sensitivity95.7 dB –
Oberton10MB300
No current priceFs65 Hz –
Qts0.24 –
Vas22.8 L +5%
BL18.3 T·m −7%
Xmax5.3 mm −5%
Sensitivity95.9 dB –
Oberton10M300
No current priceFs60 Hz −8%
Qts0.25 –
Vas19.4 L −10%, better
BL18.2 T·m −8%
Xmax5.3 mm −5%
Sensitivity94.1 dB −1.5
No photo
PHL Audio3481-14
No current priceFs55 Hz −15%, better
Qts0.26 +4%
Vas25.2 L +16%, worse
BL18.1 T·m −9%
Xmax6 mm +9%
Sensitivity93.9 dB −1.7
LavoceWAN103.01
No current priceFs70 Hz +8%
Qts0.22 −12%, better
Vas22.3 L –
BL20.6 T·m +4%
Xmax5 mm −9%
Sensitivity97.2 dB +1.6
Oberton10NM300
No current priceFs71 Hz +10%
Qts0.21 −16%, better
Vas20.6 L −5%
BL20.1 T·m –
Xmax5.3 mm −5%
Sensitivity97.5 dB +1.9
Oberton10NHCX
No current priceFs72 Hz +10%, worse
Qts0.24 −5%
Vas24.5 L +13%, worse
BL17.4 T·m −12%, worse
Xmax4.3 mm −23%, worse
Sensitivity97.7 dB +2.1, better
Oberton10NCX
No current priceFs79 Hz +22%, worse
Qts0.29 +16%, worse
Vas20.6 L −5%
BL16.2 T·m −18%, worse
Xmax5.3 mm −5%
Sensitivity97.4 dB +1.8
PeerlessNCP-1030R00-08
No current priceFs67 Hz +3%
Qts0.23 −8%
Vas27 L +24%, worse
BL19.1 T·m −4%
Xmax3.9 mm −29%, worse
Sensitivity96.9 dB +1.3
Acoustic EleganceTD10M-8
No current priceFs40 Hz −38%, better
Qts0.24 −4%
Vas59.2 L +173%, worse
BL17 T·m −14%, worse
Xmax6 mm +9%
Sensitivity93.7 dB −1.9
No photo
PHL Audio3840NDU
No current priceFs62 Hz −5%
Qts0.22 −12%, better
Vas26.3 L +21%, worse
BL20.8 T·m +5%
Xmax4.5 mm −18%, worse
Sensitivity96.4 dB +0.8
B&C10CXN76
No current priceFs58 Hz −11%, better
Qts0.30 +20%, worse
Vas19 L −12%, better
BL18.9 T·m −5%
Xmax6 mm +9%
Sensitivity92.8 dB −2.8, worse
No photo
REDCATT10NPM-1
No current priceFs64 Hz –
Qts0.28 +12%, worse
Vas23 L +6%
BL18.3 T·m −8%
Xmax4.0 mm −26%, worse
Sensitivity95.2 dB –
No photo
PHL Audio3840
No current priceFs62 Hz −5%
Qts0.22 −12%, better
Vas26.3 L +21%, worse
BL20.9 T·m +6%
Xmax4.5 mm −18%, worse
Sensitivity96.6 dB +1
EminenceCANNABASS CB3010N-8
No current priceFs42 Hz −36%, better
Qts0.25 –
Vas55.2 L +154%, worse
BL17.2 T·m −13%, worse
Xmax6.5 mm +18%, better
Sensitivity94 dB −1.6
