LF Driver10FW series
B&C

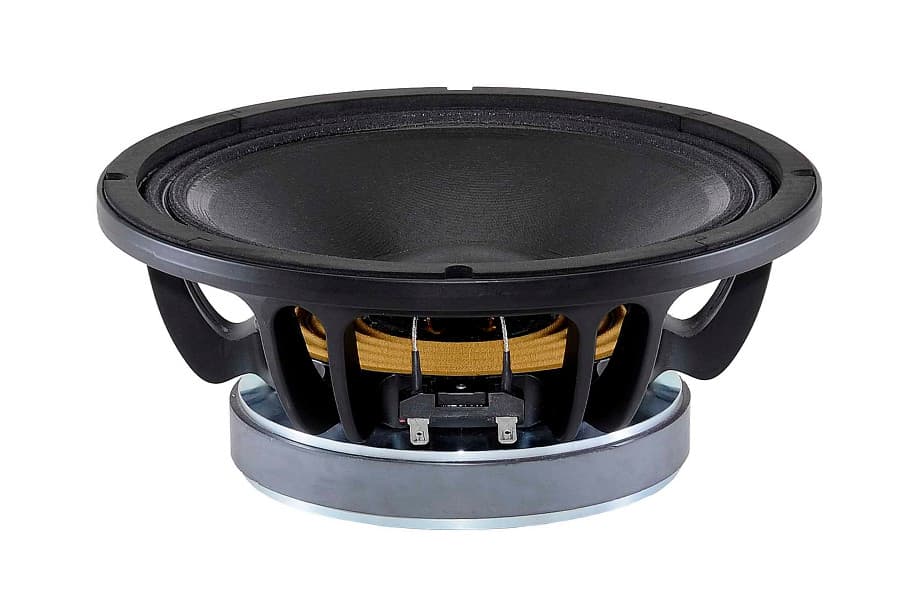

B&C 10FW64
B&C 10FW64 is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 63Hz, Qts 0.23, Vas 27L, Xmax 5mm, sensitivity 96.3dB, plus 160cm³ Vd and 252 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £130.64.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
96.3dB
98.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
252
Vented alignment
Vd
160cm³

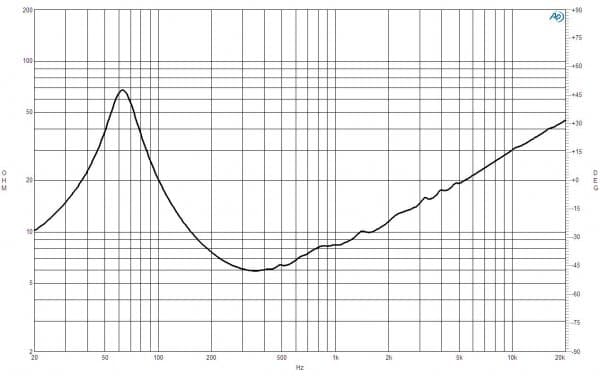

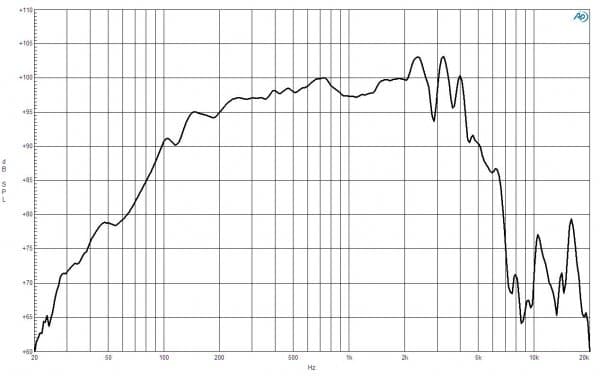

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs63Hz
Qts0.23
Qes0.25
Qms3.4
Vas27.0L
Re5.0Ω
Le0.90mH
BL16.4Tm
Sd320cm²
Mms34g
Xmax5.0mm
SPL96dB
Power250W
Power Nominal250W
Impedance8Ω
Min Impedance6.4Ω
F Low65Hz
F High3000Hz
Voice Coil64mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Best current price
£130.64
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.4kg
Diameter261.0mm
Overall Depth116.0mm
Cutout Diameter233.0mm
Bolt Circle Diameter245.0mm
Additional Manufacturer Specs
Bl16.4 Tm
Fs63 Hz
Le0.9 mH
Re5 Ω
Sd320 cm² (50 in²)
Ebp252 Hz
Mms34 g
Qes0.25
Qms3.4
Qts0.23
Vas27 dm³ (0.95 ft³)
η02.6 %
ConeRCK10FW648
Xmax5 mm
Xvar5.5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth14 mm (0.55 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter250 mm (10 in)
Winding MaterialAluminium
Magnetic Gap Depth8 mm (0.31 in)
Recommended Tuning62 Hz
Bolt Circle Diameter245 mm (9.6 in)
Recommended Enclosure26 dm³ (0.92 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter233 mm (9.17 in)
Flange And Gasket Thickness13 mm (0.5 in)
Air Volume Occupied By Driver2.5 dm³ (0.09 ft³)
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
10FW64
10"
Best current price
£130.64
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
66%
Similarity
5% cheaper£124.67
RCF
MB10N251
10"
Lower price
Xmax5mm0%
Qts0.27+17%
BL15.2Tm-7%
Vas39L+44%
Qes0.29+16%
56%
Similarity
£130.28
FaitalPRO
10PR300
10"
Xmax4.9mm-2%
Qts0.28+22%
BL14.1Tm-14%
Vas42.2L+56%
Qes0.29+16%
57%
Similarity
3% more£135.00

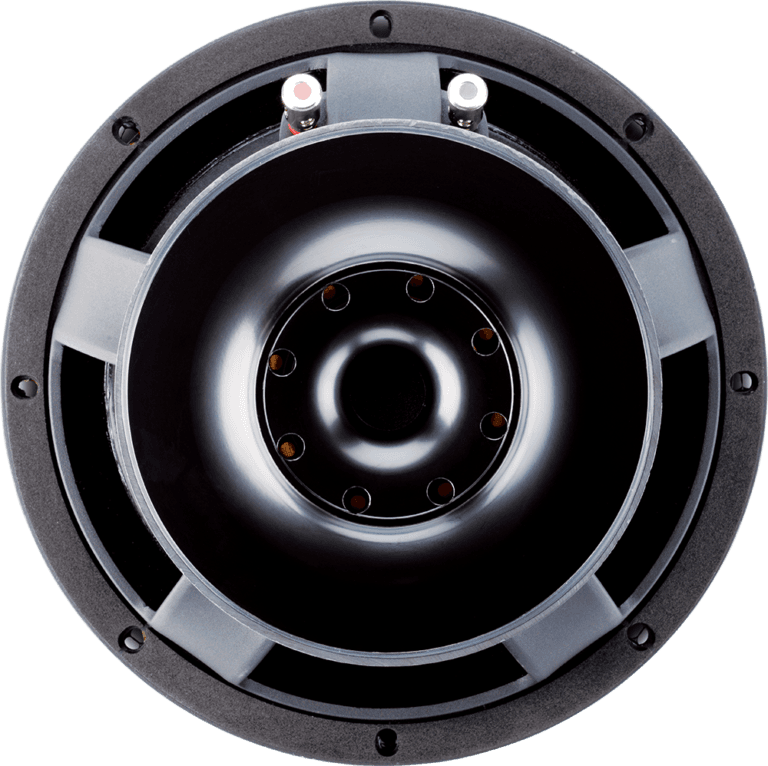

Celestion
CF1025C
10"
Higher price
Xmax4.3mm-15%
Qts0.27+15%
BL14.8Tm-10%
Vas38.6L+43%
Qes0.3+20%
67%
Similarity
6% more£138.00
B&C
10NW64
10"
Higher price
Xmax6mm+20%
Qts0.26+13%
BL18.3Tm+12%
Vas22L-19%
Qes0.27+8%
80%
Similarity
11% more£144.83
FaitalPRO
10PR410
10"
Higher price
Xmax4.5mm-10%
Qts0.230%
BL18.5Tm+13%
Vas32L+19%
Qes0.23-8%
69%
Similarity
11% more£144.97
B&C
10NDL64
10"
Higher price
Xmax6mm+20%
Qts0.26+13%
BL16.2Tm-1%
Vas31L+15%
Qes0.29+16%
75%
Similarity
20% more£157.30

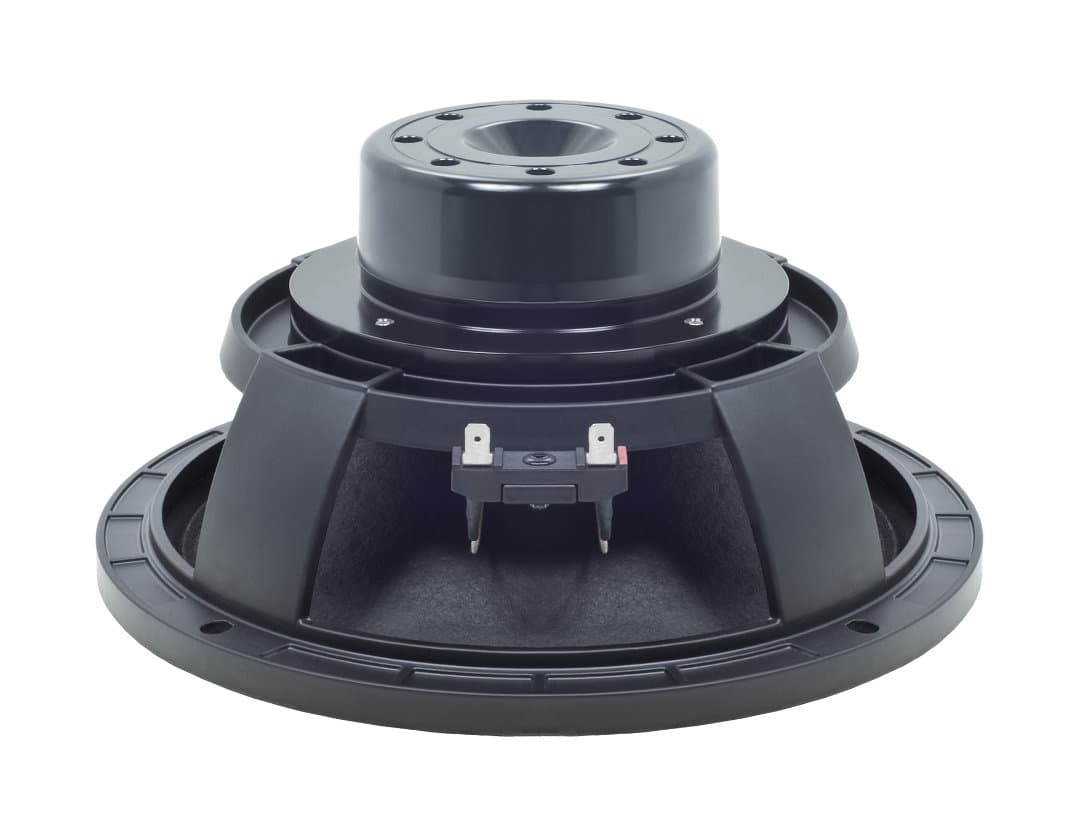

B&C
10MBX64
10"
Higher price
Xmax4mm-20%
Qts0.26+13%
BL16.9Tm+3%
Vas28L+4%
Qes0.27+8%
77%
Similarity
21% more£157.68

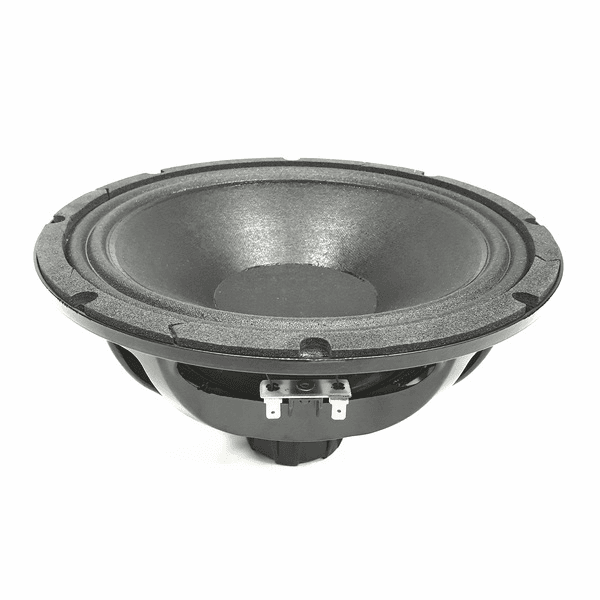

Eighteen Sound
