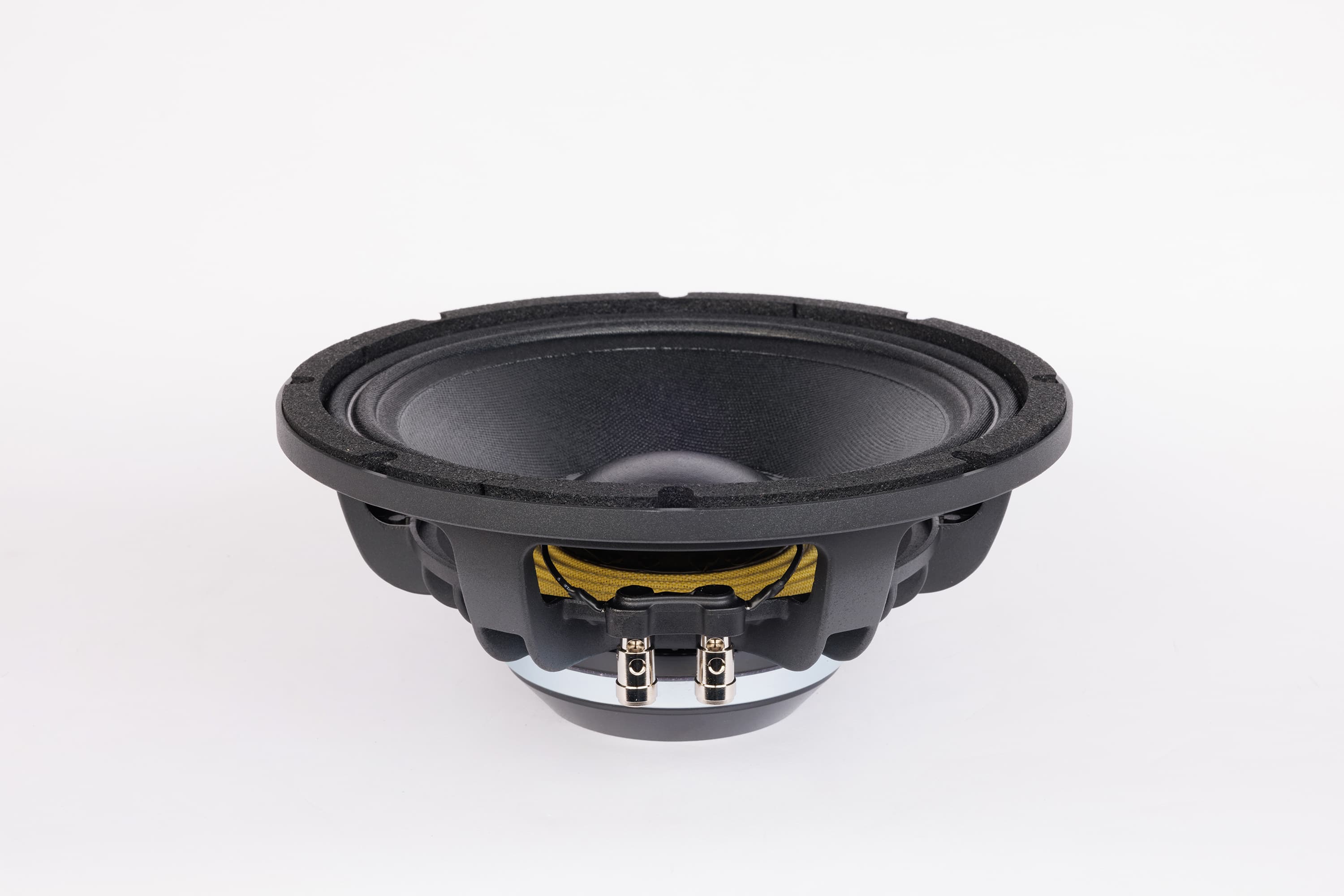

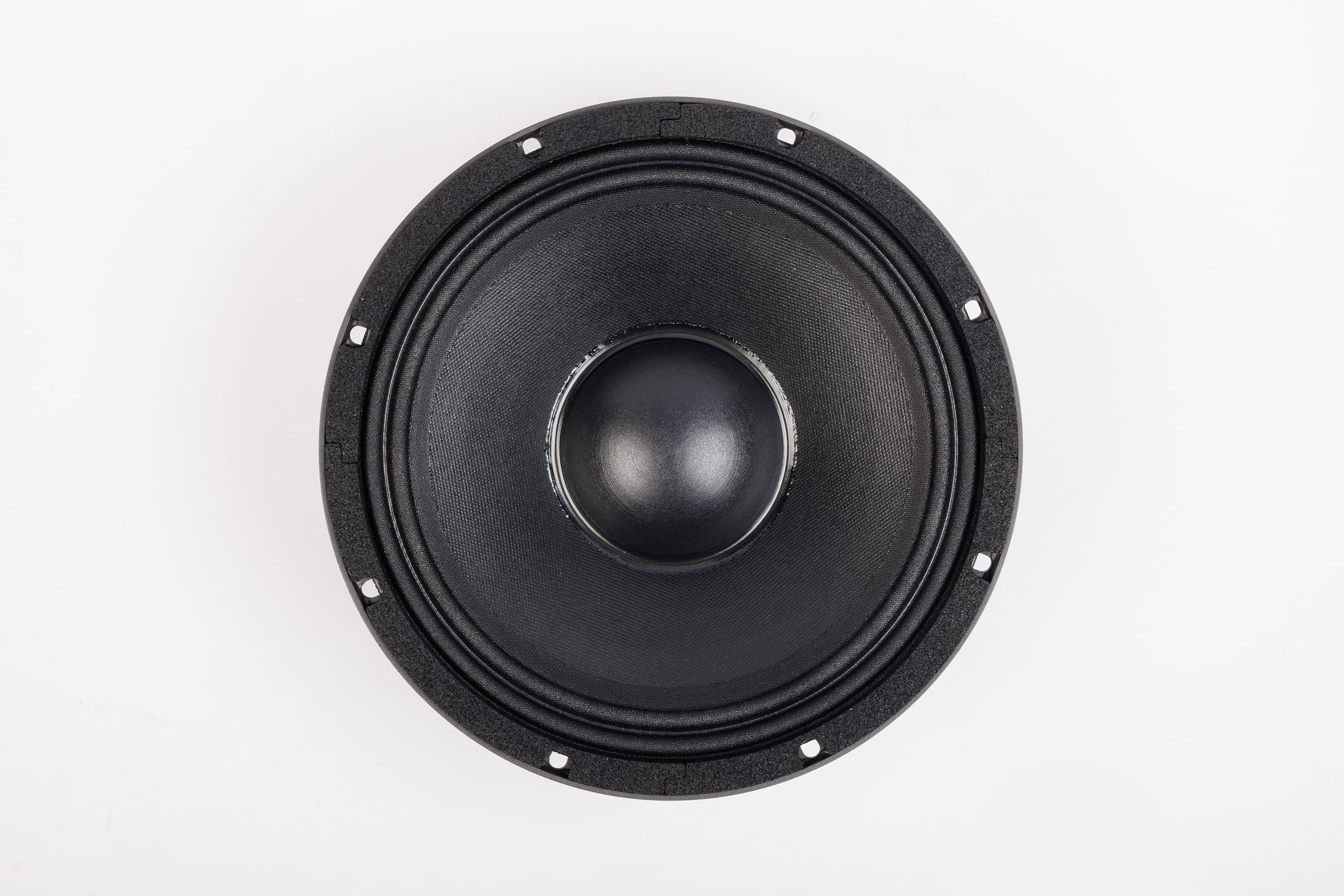

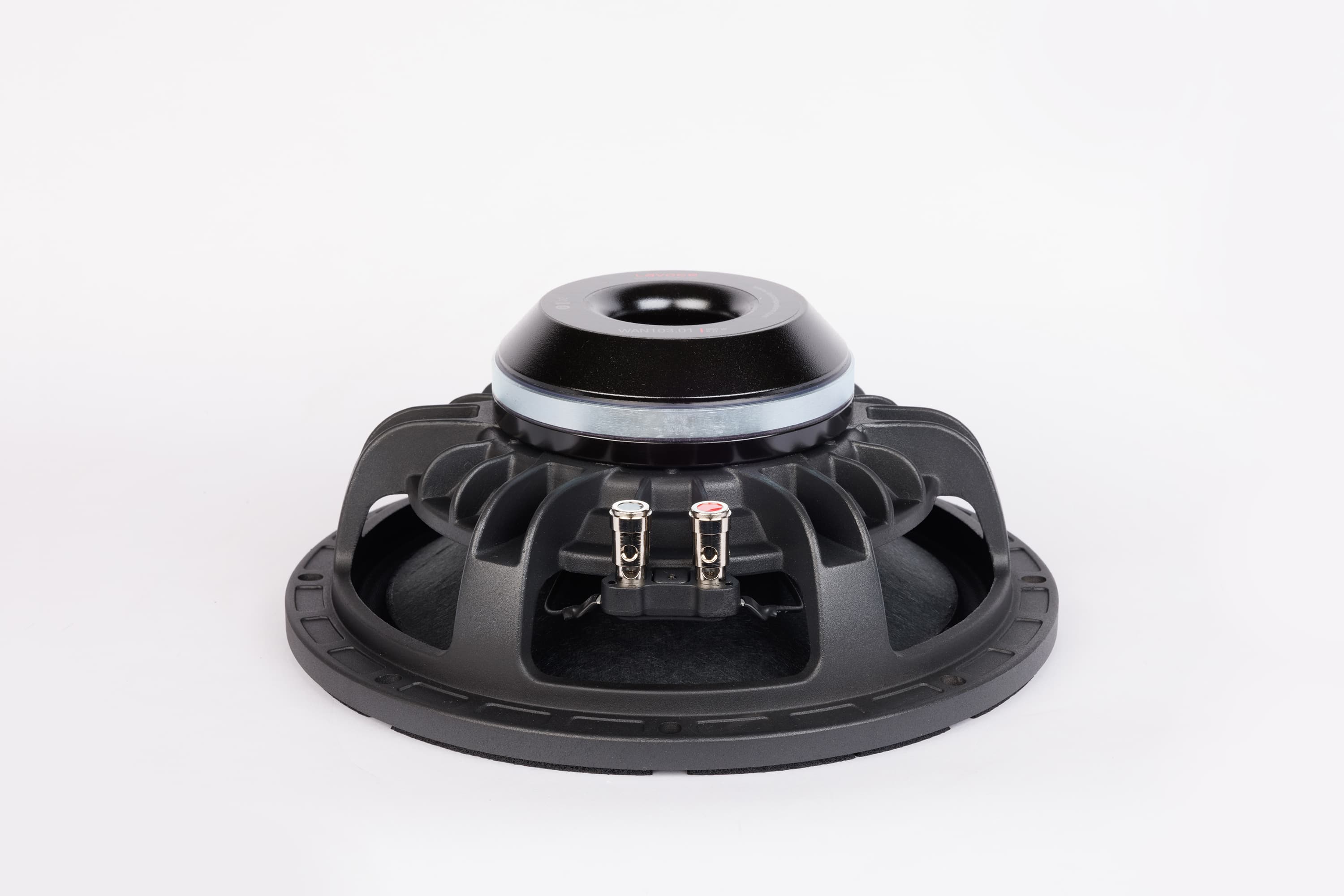

10-inch LF driver · WAN103 series · 75 mm voice coil · 450 W
Lavoce WAN103.01 8Ω
8 Ω · 70–3500 Hz
No price for delivery to the UK
- Fs
- 70Hz
- Xmax
- 5mm
- SPL
- 97dB
- Pe
- 450W
- BL
- 20.6T·m
- Vd
- 175cm³
- Qts
- 0.22
- Vas
- 22L
Lavoce WAN103.01 is a 10-inch 8 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 70 Hz, Qts 0.22, Vas 22.3 L, Xmax 5 mm, sensitivity 97.2 dB, plus 175 cm³ Vd and 304 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 70Hz
- Qts
- 0.22
- Qes
- 0.23
- Qms
- 5.9
- Vas
- 22.3L
- Re
- 5.5Ω
- Le
- 0.72mH
Motor and cone
- BL
- 20.6T·m
- Sd
- 350cm²
- Mms
- 40g
- Xmax
- 5mm
- Vd †
- 175cm³
- Voice coil
- 75mm

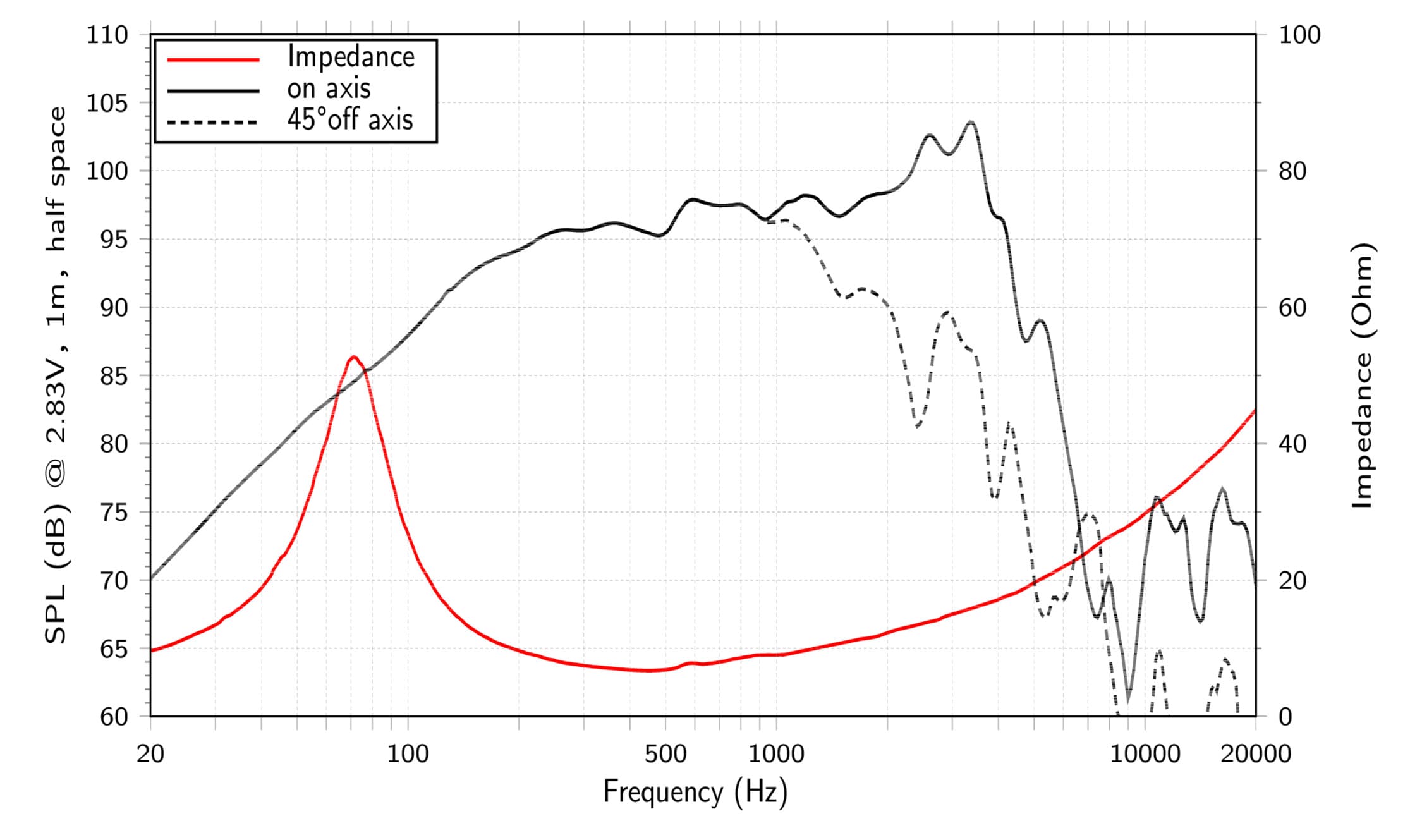

Power and response
- Sensitivity †
- 97.2dB
- Manufacturer sensitivity
- 99dB
- Power
- 450W
- Impedance
- 8Ω
- Min. impedance
- 6.6Ω
- Range
- 70–3500Hz
- EBP †
- 304 · Leans vented

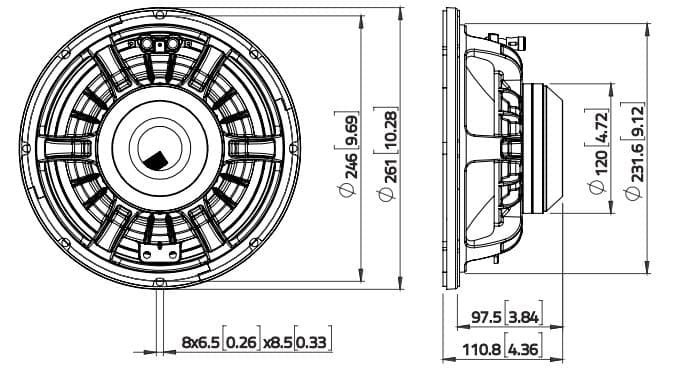

Size and mounting
- Weight
- 3.1kg
Other published values
- Cms
- 0.13mm/N
- Xmech
- 10.1
- Power Program
- 900
Sensitivity shows 97.2 dB, calculated from the T/S values. Lavoce publishes 99.0 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Lavoce lists
LF · Primary · 10″
- BL
- 20.6T·m
- Fs
- 70Hz
- Le
- 0.72mH
- Re
- 5.5Ω
- Sd
- 350cm²
- Cms
- 0.13mm/N
- Mms
- 40g
- Qes
- 0.23
- Qms
- 5.9
- Qts
- 0.22
- SPL
- 97.2dB
- Vas
- 22.3L
- Xmax
- 5mm
- Xmech
- 10.1
- Power
- 450W
- Impedance
- 8Ω
- Sensitivity
- 99dB
- Low limit
- 70Hz
- Power Program
- 900
- Calculated sensitivity †
- 97.2dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 99dB
- Min. impedance
- 6.6Ω
- Voice coil
- 75mm
- Weight
- 3.1kg
