LF Driver10MD series
B&C

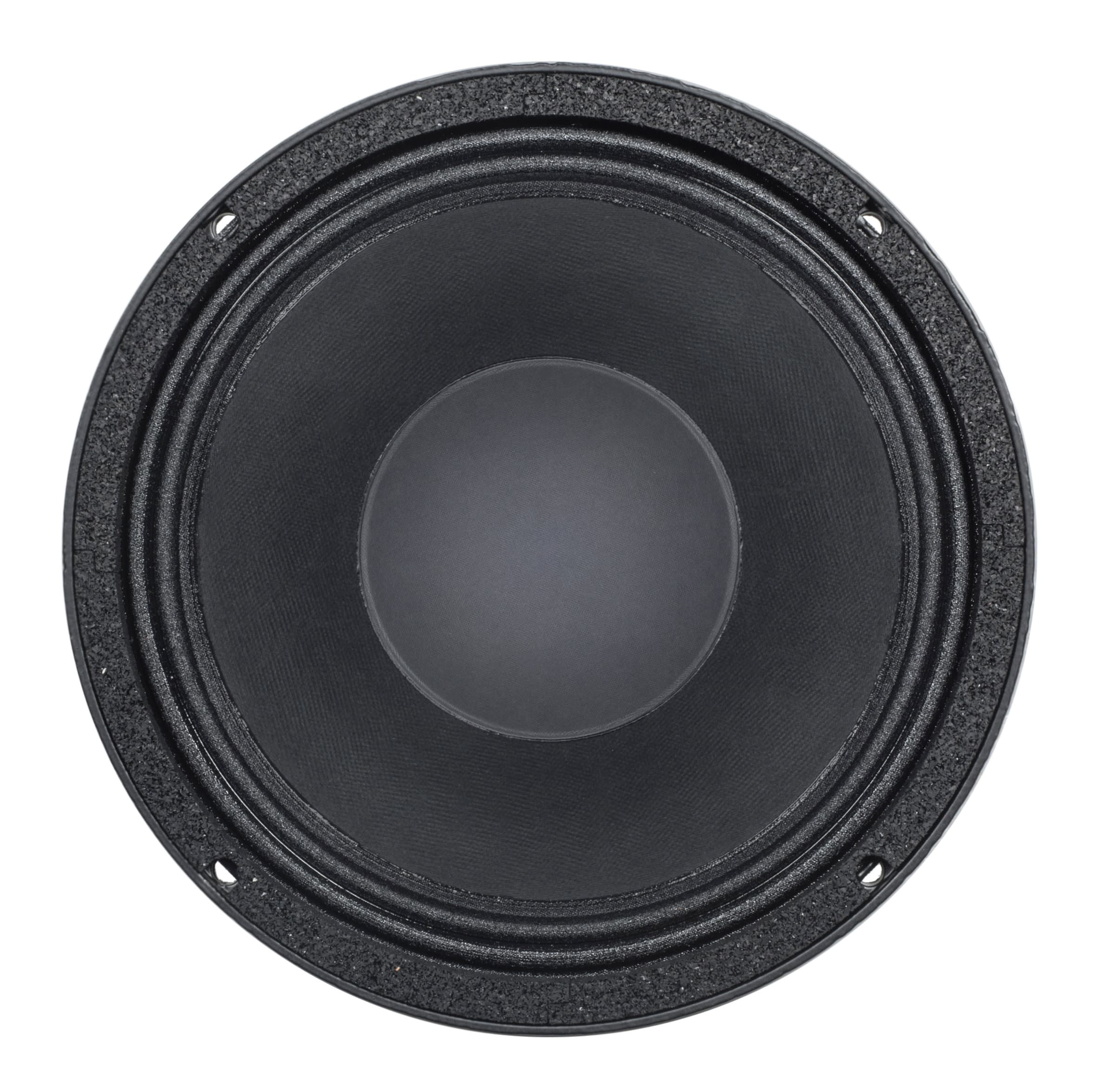

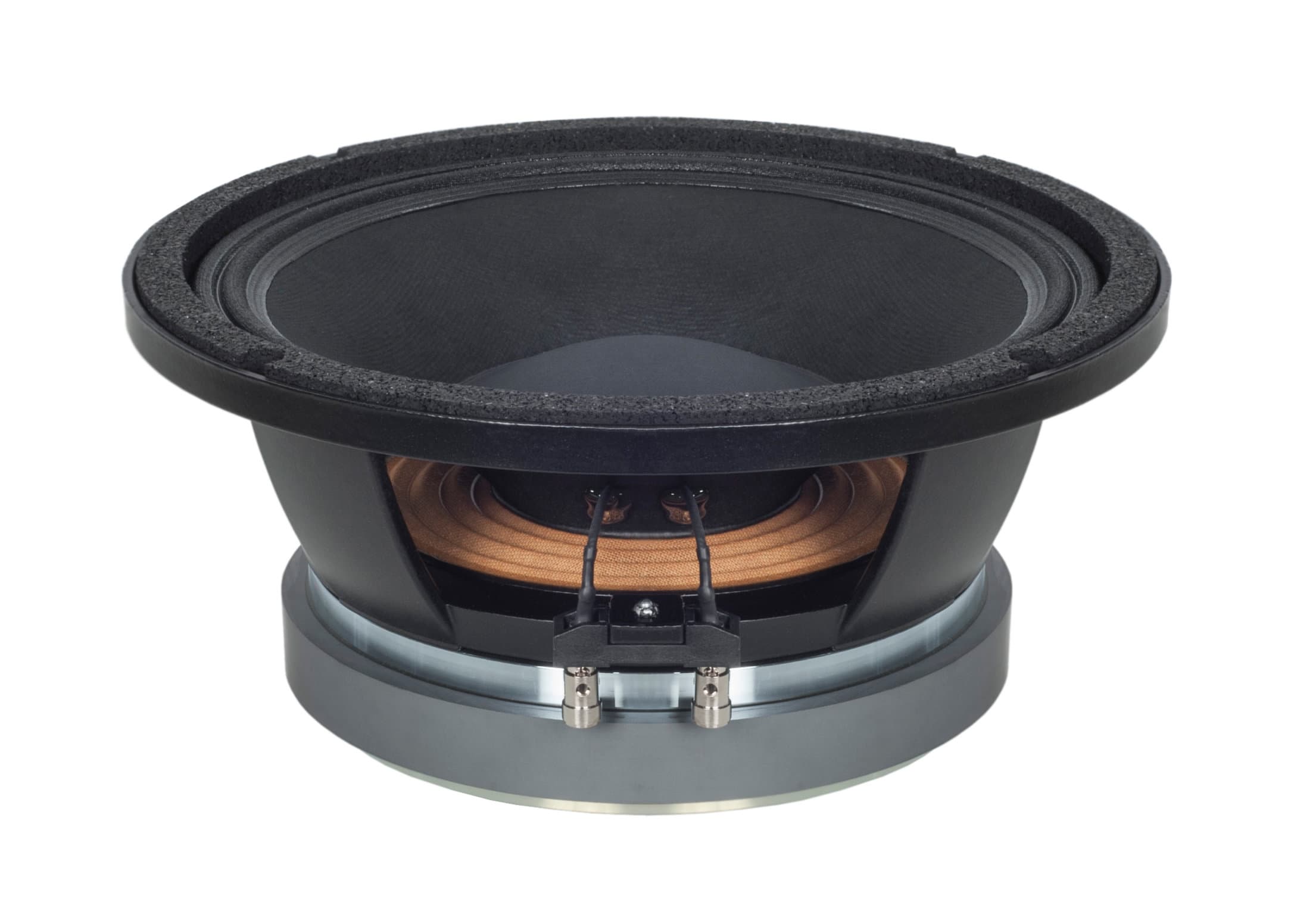

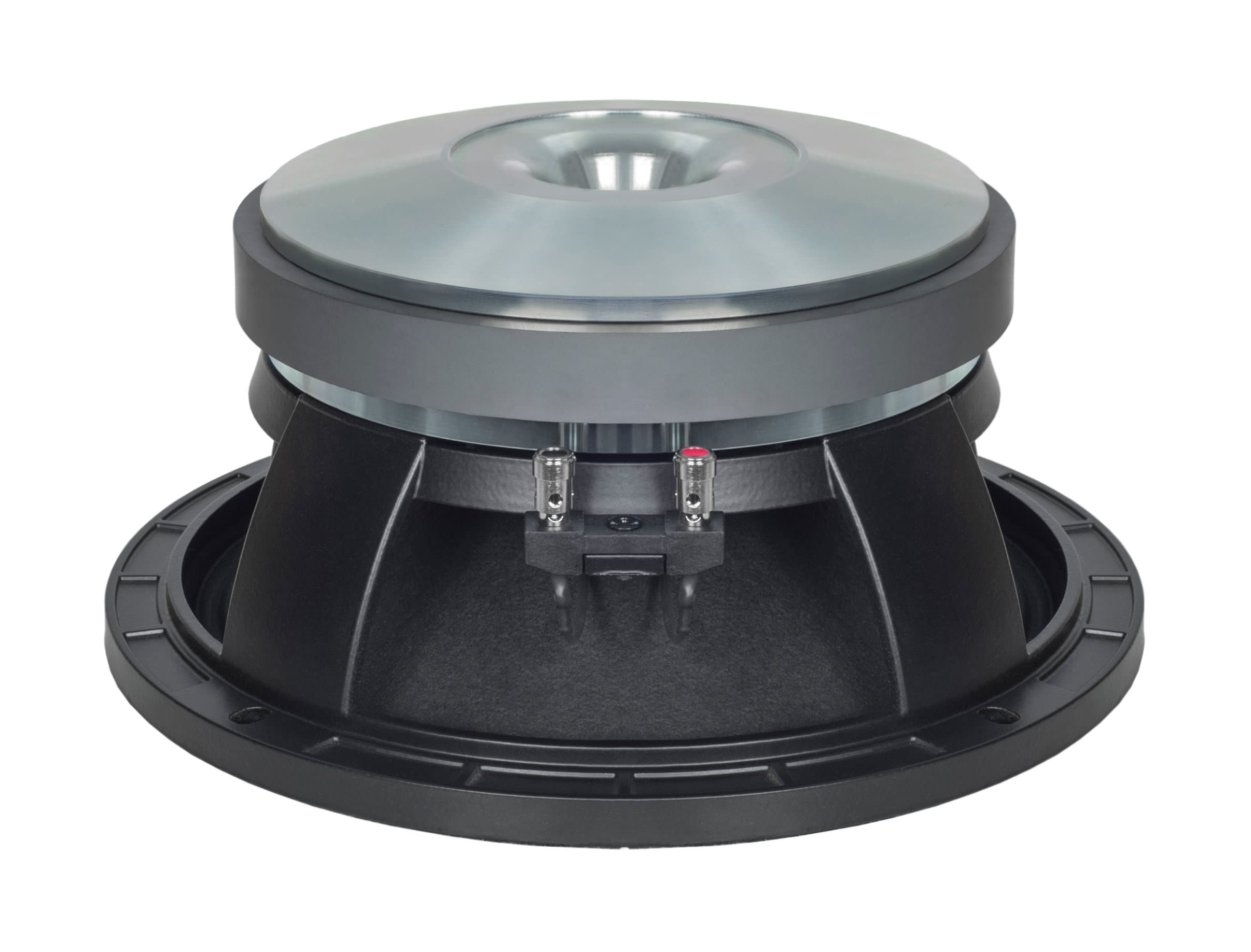

B&C 10MD26
B&C 10MD26 is a 10" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 76Hz, Qts 0.21, Vas 20L, Xmax 1.5mm, sensitivity 98dB, plus 48cm³ Vd and 345 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £144.73.
Size
10"
Impedance
8Ω
RMS Power
350W
Sensitivity
98.0dB
100.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
345
Vented alignment
Vd
48cm³

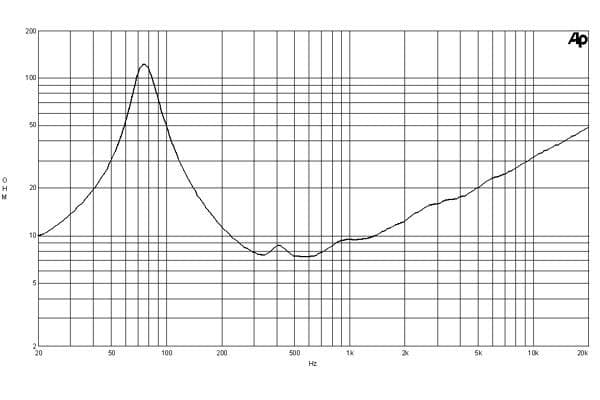

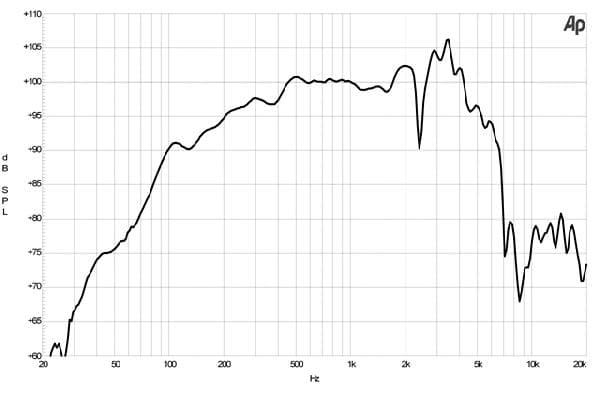

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs76Hz
Qts0.21
Qes0.22
Qms4.8
Vas20.0L
Re5.8Ω
Le1.20mH
BL19.6Tm
Sd320cm²
Mms31g
Xmax1.5mm
SPL98dB
Power350W
Power Nominal350W
Impedance8Ω
Min Impedance7.2Ω
F Low80Hz
F High4000Hz
Voice Coil76mm
Flux Density1.45T
Pricing & availability
Price definitionsPrice movement
Best current price
£144.73
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.3kg
Diameter262.0mm
Overall Depth124.0mm
Cutout Diameter230.0mm
Bolt Circle Diameter245.0mm
Additional Manufacturer Specs
Bl19.6 Tm
Fs76 Hz
Le1.2 mH
Re5.8 Ω
Sd320 cm² (49.1 in²)
Ebp345 Hz
Mms31 g
Qes0.22
Qms4.8
Qts0.21
Vas20 dm³ (0.71 ft³)
η03.9 %
ConeRCK010MD268
Xmax1.5 mm
Xvar4.5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth11 mm (0.43 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter250 mm (10 in)
Winding MaterialAluminium
Magnetic Gap Depth8 mm (0.31 in)
Bolt Circle Diameter245 mm (9.6 in)
Woofer Cone TreatmentNone
Baffle Cutout Diameter230 mm (8.8 in)
Flange And Gasket Thickness14 mm (0.55 in)
Air Volume Occupied By Driver2.6 dm³ (0.09 ft³)
