- Net volume
- 25L
- Tuning
- 65Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
10-inch LF driver · 450 W
Eighteen Sound 10MB600 8Ω
55–4500 Hz
£169.77
SteadyLean Business · All 4 offers
- Fs
- 58Hz
- Xmax
- 6.5mm
- SPL
- 97dB
- Pe
- 450W
- BL
- 18.6T·m
- Vd
- 228cm³
- Qts
- 0.22
- Vas
- 33L

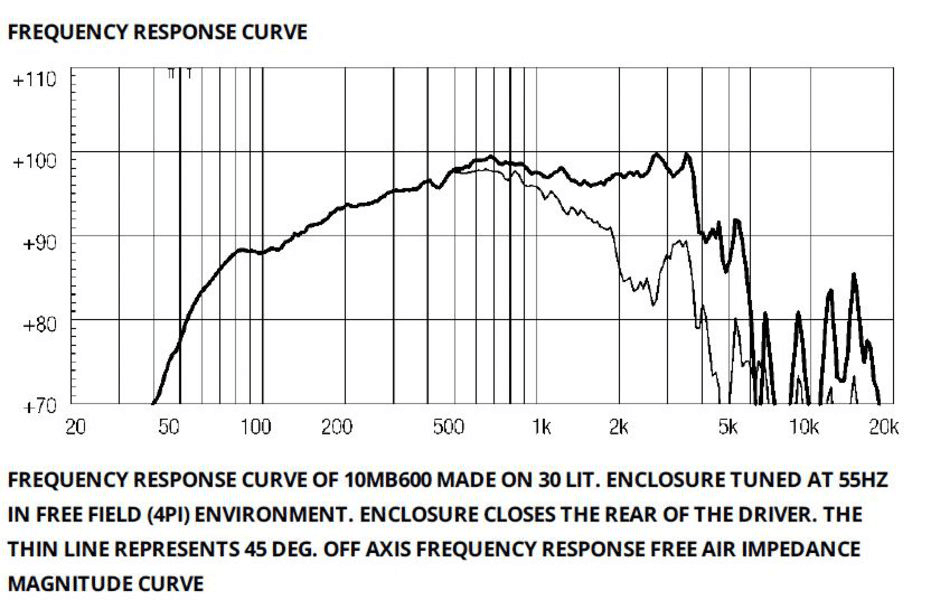

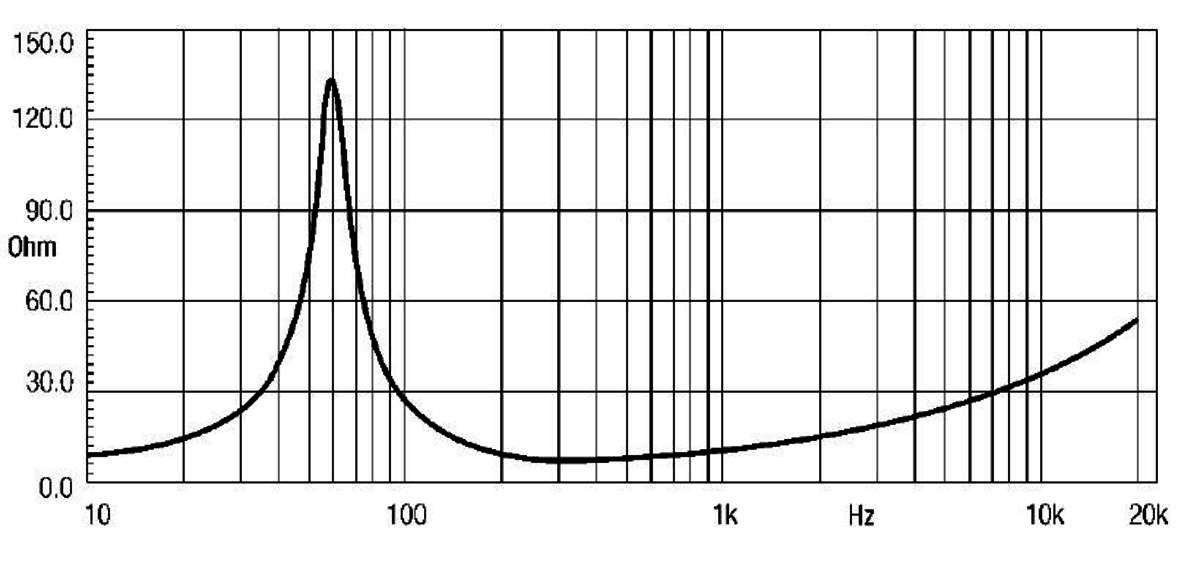

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence5,863 selected pixels of 6,189
Published graphs
Eighteen Sound 10MB600 is a 10-inch 8 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.22, Vas 33.4 L, Xmax 6.5 mm, sensitivity 96.6 dB, plus 228 cm³ Vd and 252 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £159.93.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.22
- Qes
- 0.23
- Qms
- 5.5
- Vas
- 33.4L
- Re
- 5.7Ω
- Le
- 1.60mH
Motor and cone
- BL
- 18.6T·m
- Sd
- 350cm²
- Mms
- 38g
- Xmax
- 6.5mm
- Vd †
- 228cm³
Power and response
- Sensitivity †
- 96.6dB
- Manufacturer sensitivity
- 98dB
- Power
- 450W
- Nominal power
- 450W
- Impedance
- 8Ω
- Range
- 55–4500Hz
- EBP †
- 252 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 232mm
- Bolt circle
- 244mm
- Depth
- 127mm
- Weight
- 7.2kg
Other published values
- Power Program
- 700
Sensitivity shows 96.6 dB, calculated from the T/S values. Eighteen Sound publishes 98.0 dB, 1.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 18.6T·m
- Fs
- 58Hz
- Le
- 1.60mH
- Re
- 5.7Ω
- Sd
- 350cm²
- Mms
- 38g
- Qes
- 0.23
- Qms
- 5.5
- Qts
- 0.22
- SPL
- 96.6dB
- Vas
- 33.4L
- Xmax
- 6.5mm
- Power
- 450W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 55Hz
- Nominal power
- 450W
- Power Program
- 700
- Calculated sensitivity †
- 96.6dB
- High limit
- 4500Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 7.2kg
- Diameter
- 260mm
- Depth
- 127mm
- Cutout
- 232mm
- Bolt circle
- 244mm
02
Designs
What Eighteen Sound suggests for the 10MB600. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 10MB600 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10MB600. Clear differences are green when better and red when worse.
This driver10MB600
Best price
£159.93
Fs
58 Hz
Qts
0.22
Vas
33.4 L
BL
18.6 T·m
Xmax
6.5 mm
Sensitivity
96.6 dB
Power
450 W
B&C10NW64
£113.02 · 29% less, betterFs59 Hz –
Qts0.26 +18%, worse
Vas22 L −34%, better
BL18.3 T·m –
Xmax6 mm −8%
Sensitivity94.3 dB −2.3, worse
B&C10MD26
£116.13 · 27% less, betterFs76 Hz +31%, worse
Qts0.21 −5%
Vas20 L −40%, better
BL19.6 T·m +5%
Xmax1.5 mm −77%, worse
Sensitivity98 dB +1.4
B&C10FW64
£123.92 · 23% less, betterFs63 Hz +9%
Qts0.23 +5%
Vas27 L −19%, better
BL16.4 T·m −12%, worse
Xmax5 mm −23%, worse
Sensitivity96.3 dB –
FaitalPRO10FH530
£130.00 · 19% less, betterFs60 Hz +3%
Qts0.25 +14%, worse
Vas23.5 L −30%, better
BL19.5 T·m +5%
Xmax7.5 mm +15%, better
Sensitivity95.1 dB −1.5
B&C10NDL64
£144.00 · 10% less, betterFs56 Hz −3%
Qts0.26 +18%, worse
Vas31 L −7%
BL16.2 T·m −13%, worse
Xmax6 mm −8%
Sensitivity94.8 dB −1.8
Eighteen Sound10NTLS2000
£157.64 · 1% lessFs50 Hz −14%, better
Qts0.26 +18%, worse
Vas38 L +14%, worse
BL16.7 T·m −10%, worse
Xmax7.4 mm +14%, better
Sensitivity94.5 dB −2.1, worse
Eighteen Sound10NTLW2000
£157.68 · 1% lessFs57 Hz –
Qts0.22 –
Vas31 L −7%
BL17.9 T·m −4%
Xmax4.4 mm −32%, worse
Sensitivity96.2 dB –
RCFL10-750YK
£166.00 · 4% moreFs68 Hz +17%, worse
Qts0.24 +9%
Vas26 L −22%, better
BL17.5 T·m −6%
Xmax3 mm −54%, worse
Sensitivity97.2 dB +0.6
B&C10PLB76
£175.40 · 10% more, worseFs52 Hz −10%, better
Qts0.19 −14%, better
Vas31 L −7%
BL18.4 T·m –
Xmax6 mm −8%
Sensitivity95.4 dB −1.2
Eighteen Sound10M600
£175.83 · 10% more, worseFs70 Hz +21%, worse
Qts0.23 +5%
Vas25.6 L −23%, better
BL17.6 T·m −5%
Xmax4 mm −38%, worse
Sensitivity97.5 dB +0.9
RCFMB10N305
£186.20 · 16% more, worseFs60 Hz +3%
Qts0.23 +5%
Vas31 L −7%
BL18.5 T·m –
Xmax5 mm −23%, worse
Sensitivity96.5 dB –
Precision DevicesPD.103NR1
£199.00 · 24% more, worseFs65 Hz +12%, worse
Qts0.21 −4%
Vas36 L +8%
BL18 T·m −3%
Xmax7.5 mm +15%, better
Sensitivity98.6 dB +2, better
Beyma10MC500ND
£209.84 · 31% more, worseFs58 Hz –
Qts0.24 +9%
Vas29 L −13%, better
BL18.7 T·m –
Xmax8 mm +23%, better
Sensitivity95.4 dB −1.2
Beyma10MC700ND
£211.22 · 32% more, worseFs63 Hz +9%
Qts0.22 –
Vas20 L −40%, better
BL21.8 T·m +17%, better
Xmax7 mm +8%
Sensitivity95.2 dB −1.4
Eighteen Sound10MB777
No current priceFs58 Hz –
Qts0.22 –
Vas33.4 L –
BL18.6 T·m –
Xmax6.5 mm –
Sensitivity96.6 dB –
No photo
PHL Audio3411
No current priceFs47 Hz −19%, better
Qts0.23 +5%
Vas35.1 L +5%
BL20.2 T·m +9%
Xmax8 mm +23%, better
Sensitivity93.8 dB −2.8, worse
LavoceWAN103.01
No current priceFs70 Hz +21%, worse
Qts0.22 –
Vas22.3 L −33%, better
BL20.6 T·m +11%, better
Xmax5 mm −23%, worse
Sensitivity97.2 dB +0.6
No photo
PHL Audio3840NDU
No current priceFs62 Hz +7%
Qts0.22 –
Vas26.3 L −21%, better
BL20.8 T·m +12%, better
Xmax4.5 mm −31%, worse
Sensitivity96.4 dB –
No photo
PHL Audio3840
No current priceFs62 Hz +7%
Qts0.22 –
Vas26.3 L −21%, better
BL20.9 T·m +12%, better
Xmax4.5 mm −31%, worse
Sensitivity96.6 dB –
No photo
PHL Audio3400
No current priceFs53 Hz −9%
Qts0.28 +27%, worse
Vas30.6 L −8%
BL18.1 T·m –
Xmax6.5 mm –
Sensitivity94 dB −2.6, worse
Oberton10MB300
No current priceFs65 Hz +12%, worse
Qts0.24 +11%, worse
Vas22.8 L −32%, better
BL18.3 T·m –
Xmax5.3 mm −19%, worse
Sensitivity95.9 dB −0.7
Sica10 K 3 PL
No current priceFs51 Hz −13%, better
Qts0.26 +18%, worse
Vas40 L +20%, worse
BL16.1 T·m −14%, worse
Xmax6.5 mm –
Sensitivity94.9 dB −1.7
Oberton10NM300
No current priceFs71 Hz +23%, worse
Qts0.21 −5%
Vas20.6 L −38%, better
BL20.1 T·m +8%
Xmax5.3 mm −19%, worse
Sensitivity97.5 dB +0.9
No photo
PHL Audio3481-14
No current priceFs55 Hz −5%
Qts0.26 +18%, worse
Vas25.2 L −25%, better
BL18.1 T·m –
Xmax6 mm −8%
Sensitivity93.9 dB −2.7, worse
PeerlessNCP-1030R00-08
No current priceFs67 Hz +16%, worse
Qts0.23 +5%
Vas27 L −19%, better
BL19.1 T·m –
Xmax3.9 mm −40%, worse
Sensitivity96.9 dB –
EminenceCANNABASS CB3010N-8
No current priceFs42 Hz −28%, better
Qts0.25 +14%, worse
Vas55.2 L +65%, worse
BL17.2 T·m −7%
Xmax6.5 mm –
Sensitivity94 dB −2.6, worse
Oberton10NHCX
No current priceFs72 Hz +23%, worse
Qts0.24 +8%
Vas24.5 L −27%, better
BL17.4 T·m −6%
Xmax4.3 mm −35%, worse
Sensitivity97.7 dB +1.1
Eighteen Sound10NCX750
No current priceFs64 Hz +10%, worse
Qts0.25 +14%, worse
Vas23 L −31%, better
BL20 T·m +8%
Xmax5.5 mm −15%, worse
Sensitivity95.7 dB −0.9
Eighteen Sound10NCX750H
No current priceFs65 Hz +12%, worse
Qts0.25 +14%, worse
Vas21.7 L −35%, better
BL19.8 T·m +6%
Xmax5.5 mm −15%, worse
Sensitivity95.6 dB −1
Oberton10M300
No current priceFs60 Hz +3%
Qts0.25 +13%, worse
Vas19.4 L −42%, better
BL18.2 T·m –
Xmax5.3 mm −19%, worse
Sensitivity94.1 dB −2.5, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £169.77, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £169.78 | Back order | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
