Overview
LF Driver
Eighteen Sound
Eighteen Sound 10NTLS2000
Eighteen Sound 10NTLS2000 is a 10" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 50Hz, Qts 0.26, Vas 38L, Xmax 7.4mm, sensitivity 94.5dB, plus 256cm³ Vd and 185 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £157.64.
Size
10"
Impedance
8Ω
RMS Power
350W
Sensitivity
94.5dB
97.0dBmanufacturer; using T/S-derived value (2.5dB delta).
EBP
185
Vented alignment
Vd
256cm³

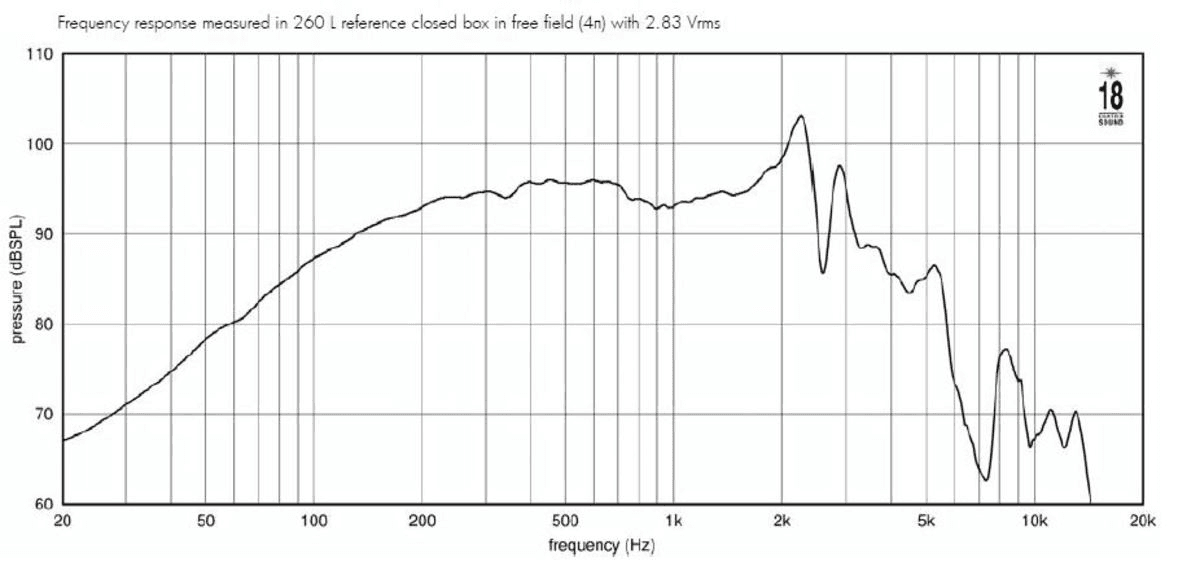

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

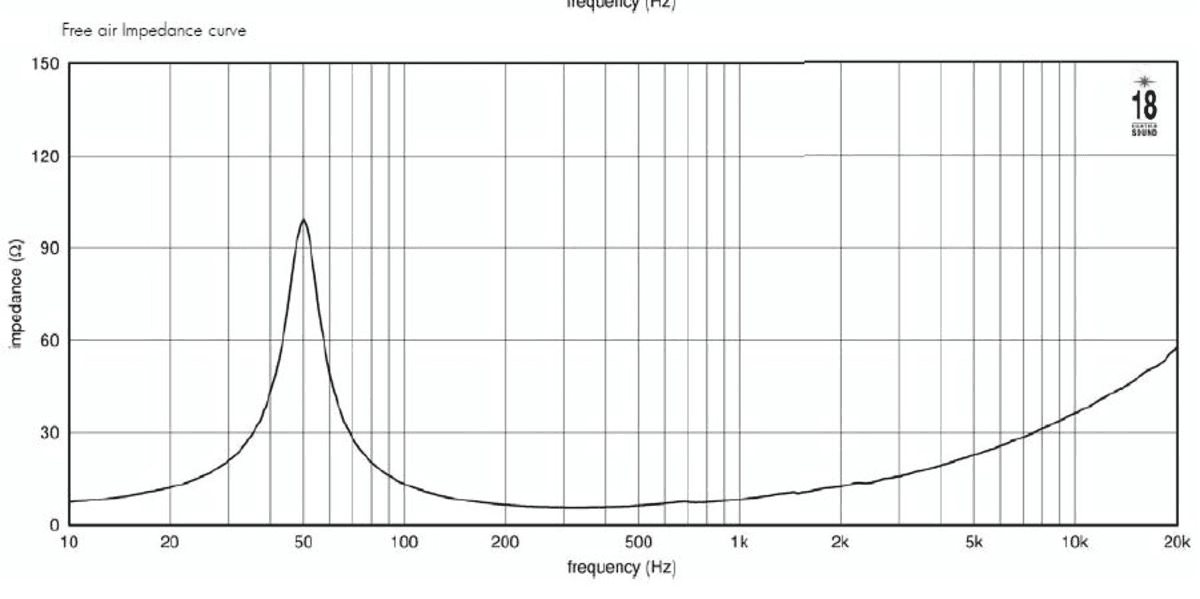

impedance
Impedance response
240 plotted pointsMedium confidence1,996 selected pixels of 2,515
T/S Parameters
Valid
Fs50Hz
Qts0.26
Qes0.27
Qms4.9
Vas38.0L
Re5.2Ω
Le0.74mH
BL16.7Tm
Sd346cm²
Mms47g
Xmax7.4mm
SPL95dB
Power350W
Power Nominal350W
Impedance8Ω
F Low50Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£157.64
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.9kg
Diameter260.0mm
Overall Depth141.0mm
Cutout Diameter233.0mm
Bolt Circle Diameter245.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
10NTLS2000
10"
Best current price
£157.64
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
57%
Similarity
48% cheaper£82.74
BishopSound
BDP10
10"
Lower price
Xmax7mm-5%
Qts0.21-19%
BL19.3Tm+16%
Vas22.4L-41%
Qes0.22-19%
50%
Similarity
26% cheaper£116.06
B&C
10CL64
10"
Lower price
Xmax5.2mm-30%
Qts0.31+19%
BL16.3Tm-2%
Vas22.2L-42%
Qes0.33+22%
61%
Similarity
24% cheaper£119.37
Eighteen Sound
10W500
10"
Lower price
Xmax5.5mm-26%
Qts0.29+12%
BL14.6Tm-13%
Vas45.2L+19%
Qes0.31+15%
60%
Similarity
20% cheaper£125.45
Eminence
KAPPALITE KL3010LF-8
10"
Lower price
Xmax8.5mm+15%
Qts0.31+19%
BL18Tm+8%
Vas47.3L+25%
Qes0.33+22%
75%
Similarity
18% cheaper£130.00
FaitalPRO
10FH530
10"
Lower price
Xmax7.5mm+1%
Qts0.25-4%
BL19.5Tm+17%
Vas23.5L-38%
Qes0.25-7%
67%
Similarity
14% cheaper£135.67
FaitalPRO
10PR320
10"
Lower price
Xmax7.4mm0%
Qts0.29+12%
BL13.5Tm-19%
Vas52.7L+39%
Qes0.31+15%
73%
Similarity
12% cheaper£138.00
B&C
10NW64
10"
Lower price
Xmax6mm-19%
Qts0.260%
BL18.3Tm+10%
Vas22L-42%
Qes0.270%
69%
Similarity
9% cheaper£143.66
Beyma
10MC500
10"
Lower price
Xmax8mm+8%
Qts0.29+12%
BL18.3Tm+10%
Vas24L-37%
Qes0.3+11%
80%
Similarity
8% cheaper£144.97
B&C
10NDL64
10"
Lower price
Xmax6mm-19%
Qts0.260%
BL16.2Tm-3%
Vas31L-18%
Qes0.29+7%
62%
Similarity
6% cheaper£148.76
B&C
10PS26
10"
Lower price
Xmax5.5mm-26%
Qts0.29+12%
BL14.1Tm-16%
Vas38L0%
Qes0.33+22%
60%
Similarity
4% cheaper£151.02
B&C
10CLA76
10"
Lower price
Xmax6.5mm-12%
Qts0.29+12%
BL18.6Tm+11%
Vas16.4L-57%
Qes0.3+11%
85%
Similarity
1% more£159.53
FaitalPRO
10FH500
10"
Higher price
Xmax7.5mm+1%
Qts0.260%
BL17.9Tm+7%
Vas25.8L-32%
Qes0.28+4%
